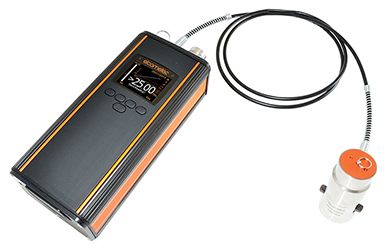

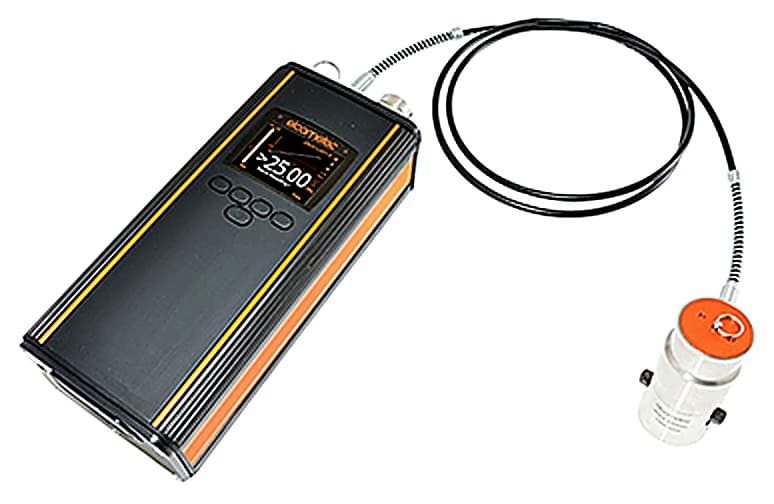

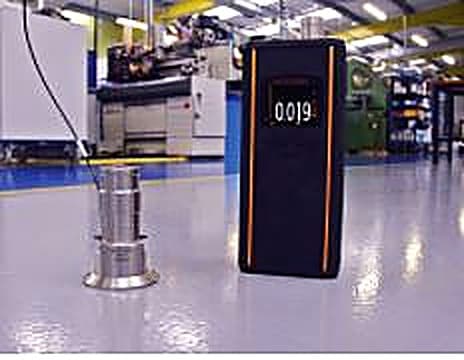

The Elcometer 510 Automatic Pull Off Adhesion Tester (part numbers F510-20S, F510-20T, F510-50S and F510-50T) measures the adhesion strength of coatings on a wide range of substrates using an automatic hydraulic pump for smooth, continuous pressure. Where most pull-off testers rely on the operator to control the rate of pull by hand, the Elcometer 510 Automatic Pull Off Adhesion Tester lets the user select a pull rate and applies it automatically, removing a major source of operator variability and making results more consistent and repeatable.
The Elcometer 510 Automatic Pull Off Adhesion Tester applies load up to 100MPa with a pressure accuracy of 1% of full scale and 0.01MPa resolution, and pull-rate accuracy of 2.5% plus 0.3 seconds. It accepts 10, 14.2, 20 and 50mm reusable dollies, with operating range and pull rate set by dolly size: the 10mm dolly covers 8 to 100MPa, the 20mm covers 2 to 25MPa, and the 50mm covers 0.3 to 4MPa, with fully adjustable pull rates such as 0.1 to 1.4MPa/s on the 20mm. A range of standard and thin-substrate actuator skirts for the Elcometer 510 Automatic Pull Off Adhesion Tester suits thick, thin, flat or convex substrates, and an optional magnetic anchor clamp holds the actuator during tests at height.
Sealed to an IP64 equivalent rating, the Elcometer 510 Automatic Pull Off Adhesion Tester weighs 2.9kg and stores up to 60,000 readings in 2,500 batches with date and time stamps, switchable between MPa, psi, Nmm2 and N. Model S outputs live and batch readings via USB; Model T adds Bluetooth to iOS and Android, advanced pull-rate mode and pull-rate graphs, transferring data to ElcoMaster software. Power is by 8 AA NiMH or alkaline batteries (around 200 pulls per charge) or AC mains on Model T, and the Elcometer 510 Automatic Pull Off Adhesion Tester carries a 2 year warranty. It can be used in accordance with ASTM C1583, ASTM D4541, ASTM D7234-12, AS/NZS 1580.408.5, BS 1881-207, DIN 1048-2, EN 1015-12, EN 12636, EN 13144, EN 1542, EN 24624, ISO 16276-1, ISO 4624, JIS K 5600-5-7, NF T30-606 and NF T30-062. Supplied by BAMR, South Africa's authorised Elcometer distributor.

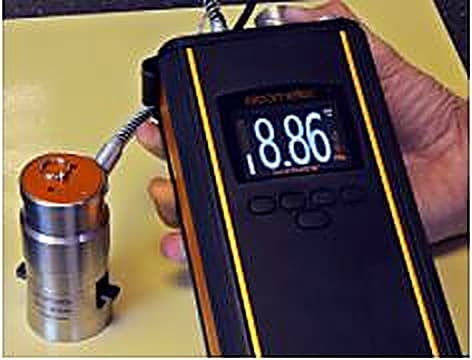

Elcometer 510 Automatic Pull Off Adhesion Tester
The Elcometer 510 Automatic Pull-Off Adhesion Gauge accurately measures the adhesion strength of coatings on a wide range of substrates using an automatic hydraulic pump to ensure smooth and continuous pressure application for consistent and repeatable results.
- Efficient Ideal for laboratory and field use. 0, 14.2, 20 & 50mm diameter reusable dollies. Compatible with ElcoMaster® Software. Range of substrate actuator skirts for thick, thin, flat or convex substrates.
- Powerful Smooth load application up to 100MPa. USB and Bluetooth® data output to iOS or Android™ devices. Stores up to 60,000 readings in 2,500 batches.
- Durable Sealed, heavy duty and impact resistant. Dust and waterproof equivalent to IP64. Suitable for use in harsh environments.
- Accurate Fully adjustable pull rates 0.1-1.4MPa/s. Accuracy of ±1% of full scale. Can be used in accordance with National & International Standards. Interchangeable units: MPa, psi, Nmm2 and N.
- Reliable Repeatable and reproducible. 2 year gauge warranty. Batch date and time stamp facility.
- Easy Supplied in a robust plastic carry case for easy transportation. USB and Bluetooth® data output to iPhone or Android™ devices. Bright LCD colour screen.
When to use the Elcometer 510
Reach for the Elcometer 510 when you need consistent, repeatable pull-off adhesion results across a range of substrates. An automatic hydraulic pump applies smooth, continuous pressure up to 100MPa at a controlled pull rate. It suits labs and inspectors who need standard-compliant, logged adhesion data.
- 1Automatic controlled pullThe hydraulic pump applies smooth continuous pressure with fully adjustable pull rates, removing the operator variability of a hand pump.
- 2Wide range with dolly optionsLoads up to 100MPa with 0, 14.2, 20 and 50mm reusable dollies and skirts for thick, thin, flat or convex substrates cover most adhesion jobs.
- 3Logged and standard-compliantIt stores up to 60,000 readings, outputs over USB and Bluetooth to ElcoMaster, and can be used to national and international standards for defensible records.
- 4Built for lab and fieldSealed and impact resistant to an IP64 equivalent rating with a hard carry case, it moves between the lab and the site.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 510
Reach for the Elcometer 510 when you need consistent, repeatable pull-off adhesion results across a range of substrates. An automatic hydraulic pump applies smooth, continuous pressure up to 100MPa at a controlled pull rate. It suits labs and inspectors who need standard-compliant, logged adhesion data.
- 1Automatic controlled pullThe hydraulic pump applies smooth continuous pressure with fully adjustable pull rates, removing the operator variability of a hand pump.
- 2Wide range with dolly optionsLoads up to 100MPa with 0, 14.2, 20 and 50mm reusable dollies and skirts for thick, thin, flat or convex substrates cover most adhesion jobs.
- 3Logged and standard-compliantIt stores up to 60,000 readings, outputs over USB and Bluetooth to ElcoMaster, and can be used to national and international standards for defensible records.
- 4Built for lab and fieldSealed and impact resistant to an IP64 equivalent rating with a hard carry case, it moves between the lab and the site.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
● = certificate available
| Part Number | Description | Certificate |
|---|---|---|
| F510-20S | Elcometer 510 Model S Automatic Adhesion Gauge; 20mm Kit | ● |
| F510-20T | Elcometer 510 Model T Automatic Adhesion Gauge; 20mm Kit | ● |
| F510-50S | Elcometer 510 Model S Automatic Adhesion Gauge; 50mm Concrete Kit | ● |
| F510-50T | Elcometer 510 Model T Automatic Adhesion Gauge; 50mm Concrete Kit | ● |
- Pressure Accuracy
- ±1% of full scale
- Pressure Resolution
- 0.01MPa
- Pull Rate Accuracy
- ±(2.5% + 0.3 seconds)
- Pull Rate Resolution
- 0.01MPa
- 10mm Operating Range
- 8 - 100 MPa
- 10mm Pull Rate Range
- 0.4 - 5.6MPa/s
- 14.2mm Operating Range
- 4 - 50 MPa
- 14.2mm Pull Rate Range
- 0.2 - 2.8MPa/s
- 20mm Operating Range
- 2 - 25 MPa
- 20mm Pull Rate Range
- 0.1 - 1.4MPa/s
- 50mm Operating Range
- 0.3 - 4 MPa
- 50mm Pull Rate Range
- 0.02 - 0.22MPa/s
- Gauge Dimensions
- 260 x 100 x 66mm
- Actuator Height (10mm)
- 85mm
- Actuator Height (14.2mm)
- 85mm
- Actuator Height (20mm)
- 85mm
- Actuator Height (50mm)
- 110mm
- Instrument Weight
- 2.9kg
- Kit Weight (20mm)
- 6.1kg
- Kit Weight (50mm)
- 7.3kg
- Power Supply
- 8 x AA NiMH/Alkaline batteries (16 rechargeable batteries supplied with charger) or AC mains power (Model T only)
- Battery Life
- ~200 pulls per charge up to 25MPa at 1MPa/s, recharge time less than 5 hours
- 14.2mm Titanium Dolly (Pack of 10)
- T9990014T
- 20mm Titanium Dolly (Pack of 10)
- T9990020T
- 14.2mm Coated Titanium Dolly (Pack of 10)
- T9990014CT
- 20mm Coated Titanium Dolly (Pack of 10)
- T9990020CT
- 50mm Coated Titanium Dolly (Pack of 10)
- T9990050CT
Packing List
Packing List
Standards
Standards
Accessories
Accessories
Dollies
| Dolly Diameter | Part Number |
|---|---|
| 10mm | T5100014AL-10 |
| 14.2mm | T9990014AL-10 |
| 20mm | T9990020AL-10 |
| 50mm | T9990050AL-4 |
| 50mm Stainless Steel | T9990050SS-4 |
Dolly Skirts
| Diameter | Part Number |
|---|---|
| 10mm | T999101420S |
| 14.2mm | T999101420S |
| 20mm | T999101420S |
| 50mm | T9990050S |
| 50mm Stainless Steel | - |
| T99923924 | Elcometer AVU Adhesion Verification Unit |
| T99923924C | Elcometer AVU Adhesion Verification Unit - Certified |
Dolly Cutter
| Diameter | Part Number |
|---|---|
| 10mm | - |
| 14.2mm | T9991420H |
| 20mm | T9991420H |
| 50mm | T9990050H |
| 50mm Stainless Steel | - |
| T99923797 | Magnetic Anchor Clamp - holds actuator securely during tests on vertical surfaces |
| T99912906 | Araldite Standard Two Part Epoxy Adhesive, 2 x 15ml Tubes |
| T99923147 | Dolly Cleaning Heating Tongs - EUR 220V / UK 240V |
Product Features
Product Features
- Easy to use menu structure; multiple languages
- ■ ■

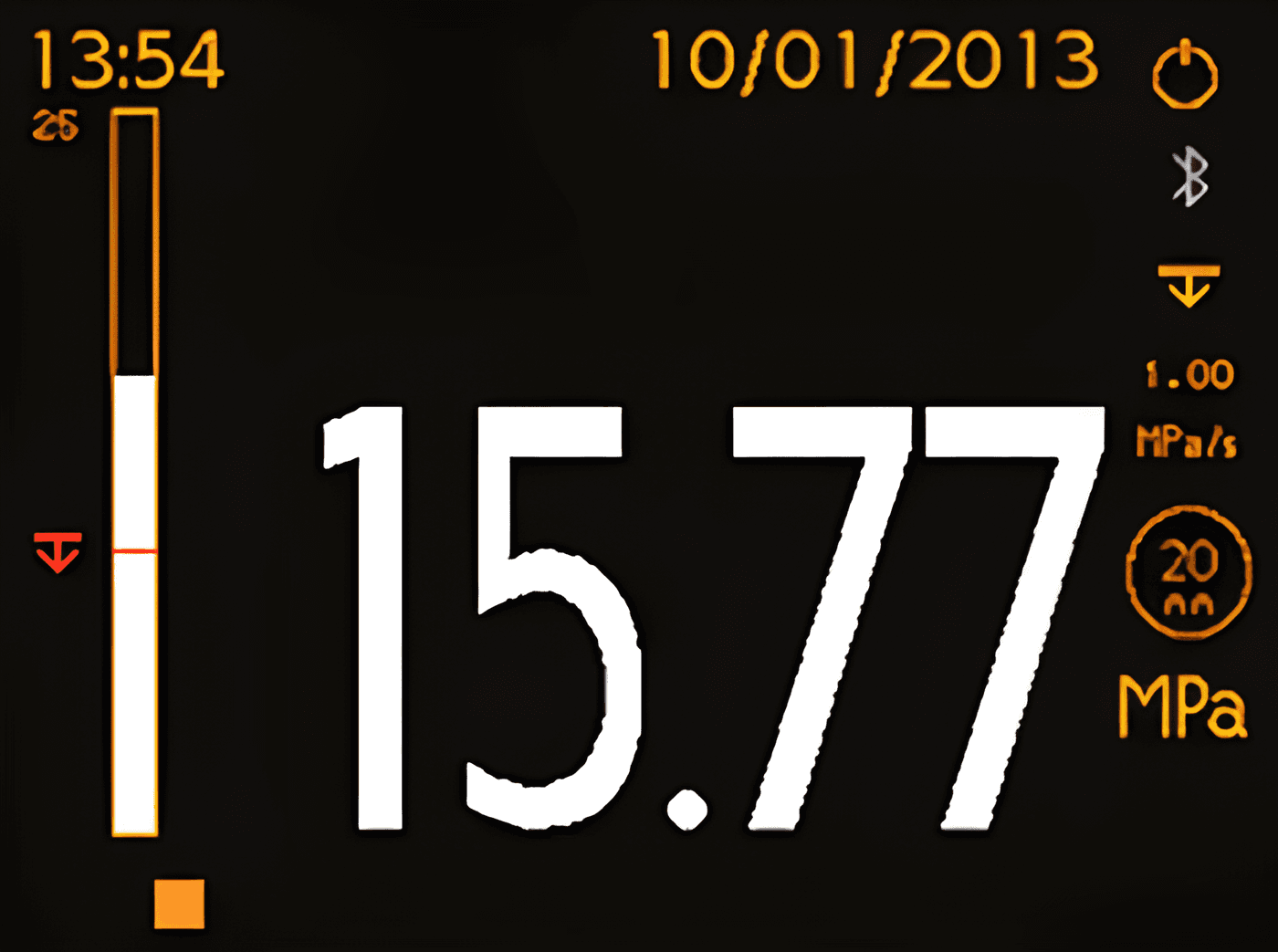

- Bright LCD colour screen; with ambient light sensor
- ■ ■
- Scratch & solvent resistant display; 6cm (2.4") TFT
- ■ ■
- Automatic rotating display; 0°, 180°
- ■ ■
- PC command; start & stop gauge from a PC with live readings (USB only)
- ■
- On-Screen Statistics (η, x, σ, Hi, Lo, CV%, N>hi limit ♦ )
- ■ ■

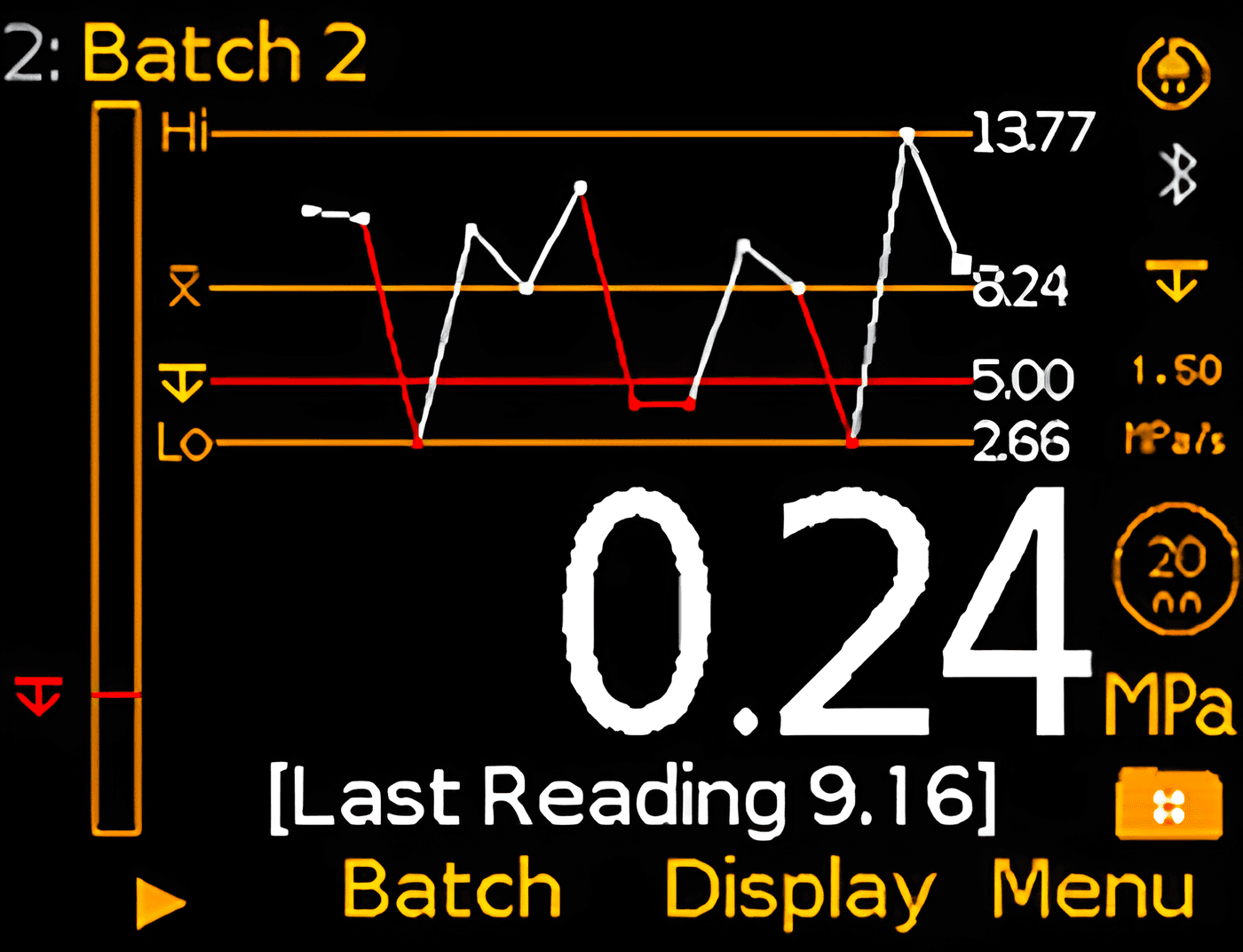

- Trend Graph
- ■ ■
- Attribute Modes to meet National & International Standards
- ■
- Readings, Selected Stats & Run Chart (last 20 readings)
- ■ ■

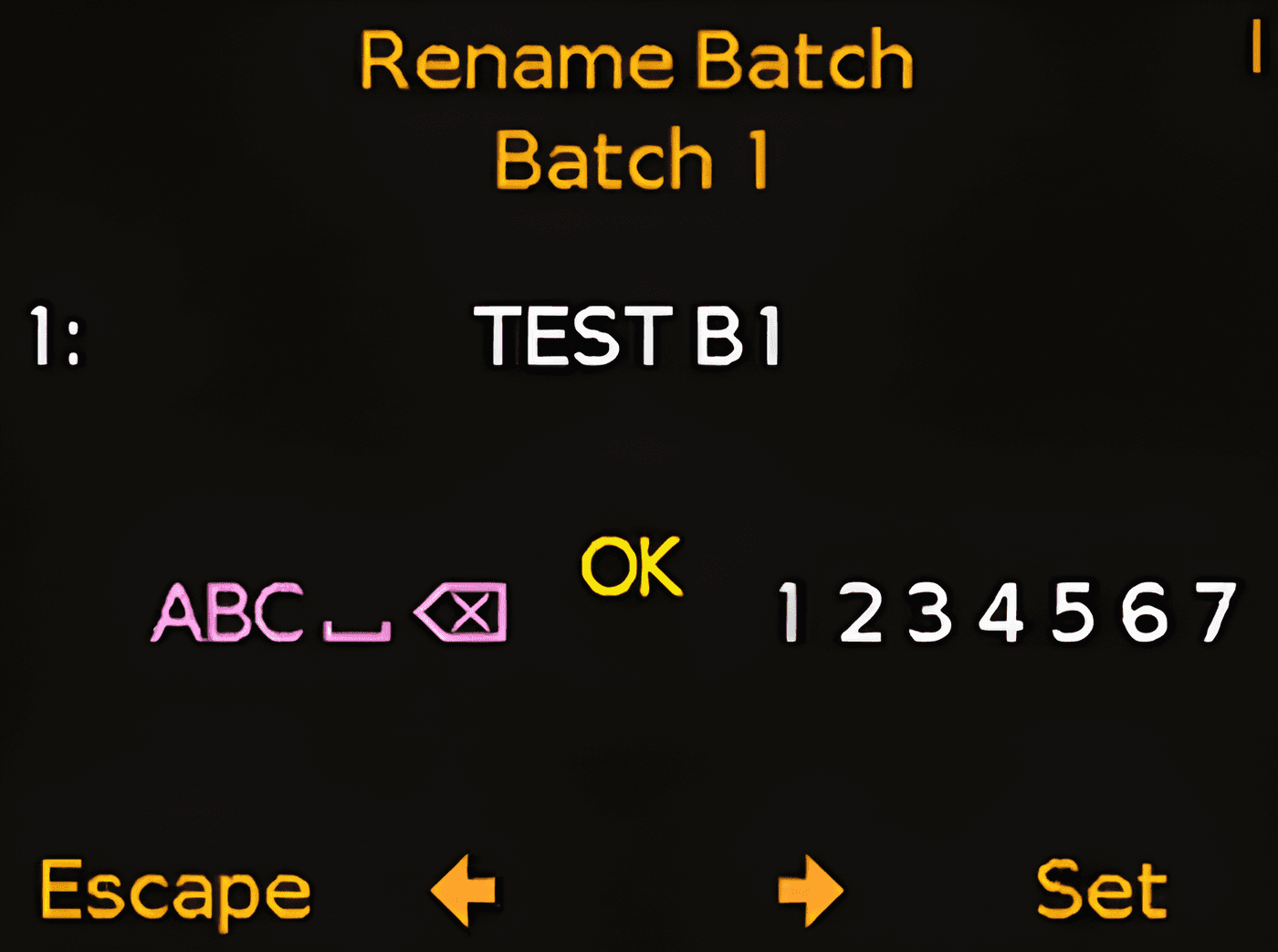

- Batch Review
- ■
- Power Cable with Multi International Plug Adaptor (UK, EU, US, AUS)
- ■
Test Method
Test Method
Preventing Adhesive and Cohesive Failures Preparing the surface and dolly
1. Select an appropriate test area which is flat and has sufficient area to attach the adhesion gauge.
2. Abrade the dolly and surface, clean both to remove any dust - minimising the risk of an 'adhesive' failure. Fixing the dolly
3. Mix the adhesive correctly and apply a uniform adhesive film over the entire dolly face.
4. Test Standards require that the dolly is pulled off perpendicularly to the test surface. The dolly must therefore be adhered on to a prepared flat test surface (see images below). Apply an even pressure to the dolly to ensure that the dolly face is parallel to the test surface.
5. Remove any excess adhesive from around the dolly and allow to fully cure. Tape maybe required when applying dollies to vertical surfaces during the cure process.
6. If required, once the dolly has fully cured, score the coating around the dolly using the dolly cutter provided.
7. Attach the gauge actuator to the dolly and begin test. Assessment of the Adhesion Test For a valid pull test the coating must cover at least 50% of the area of the dolly face. If the glue fails and no coating is present on the dolly, or it covers less than 50% of the dolly face area, the pull-test is invalid and should be repeated. When the coating has failed within the layer leaving the same coating on both the dolly and the test panel it is known as a 'cohesive failure'. 'Adhesive failures' occur when either the coating has failed at the interface with another coating (leaving a coating on the dolly and another coating on the substrate), or when the coating has failed at the substrate (leaving the coating on the dolly and the substrate bare). NOTE: If the glue fails at a value above the specification then it can be reported that the adhesion exceeded the specification for this individual test. Coating Adhesion Testing on Concrete
Downloads
Videos
Videos
Frequently asked questions
How does the Elcometer 510 apply load, and why does that matter for repeatability?
The 510 uses an automatic hydraulic pump to apply smooth and continuous pressure. This helps give consistent and repeatable results across a wide range of substrates.
What dolly sizes and operating ranges does the 510 support?
Four dolly sizes are supported. A 10mm dolly covers 8 to 100 MPa, a 14.2mm dolly covers 4 to 50 MPa, a 20mm dolly covers 2 to 25 MPa, and a 50mm dolly covers 0.3 to 4 MPa. The 50mm kits are listed for concrete testing.
What is the pressure accuracy and resolution?
Pressure accuracy is plus or minus 1% of full scale, with a resolution of 0.01 MPa. Pull rate accuracy is plus or minus 2.5% plus 0.3 seconds, with a resolution of 0.01 MPa.
What power options are available, and how many pulls does a battery charge support?
The 510 runs on 8 AA NiMH or alkaline batteries, giving about 200 pulls per charge up to 25 MPa at 1 MPa/s, with recharge time under 5 hours. Model T can also run on AC mains power via an international plug adaptor.
What data output options does the 510 offer?
Model T offers USB output, including PC command to start and stop the gauge with live readings, and includes batch review. Both models display on-screen statistics including mean, standard deviation, coefficient of variation, and high and low values.
Quote on the Elcometer 510 Automatic Pull Off Adhesion Tester by close of business.
Tell us about your application and we will send a quote with lead time and accessories.
Not sure this is the right model for your job? for a quick recommendation.
Request a quote
Request a quote
Tell us about your application and we will send a quote with lead time and accessories.
