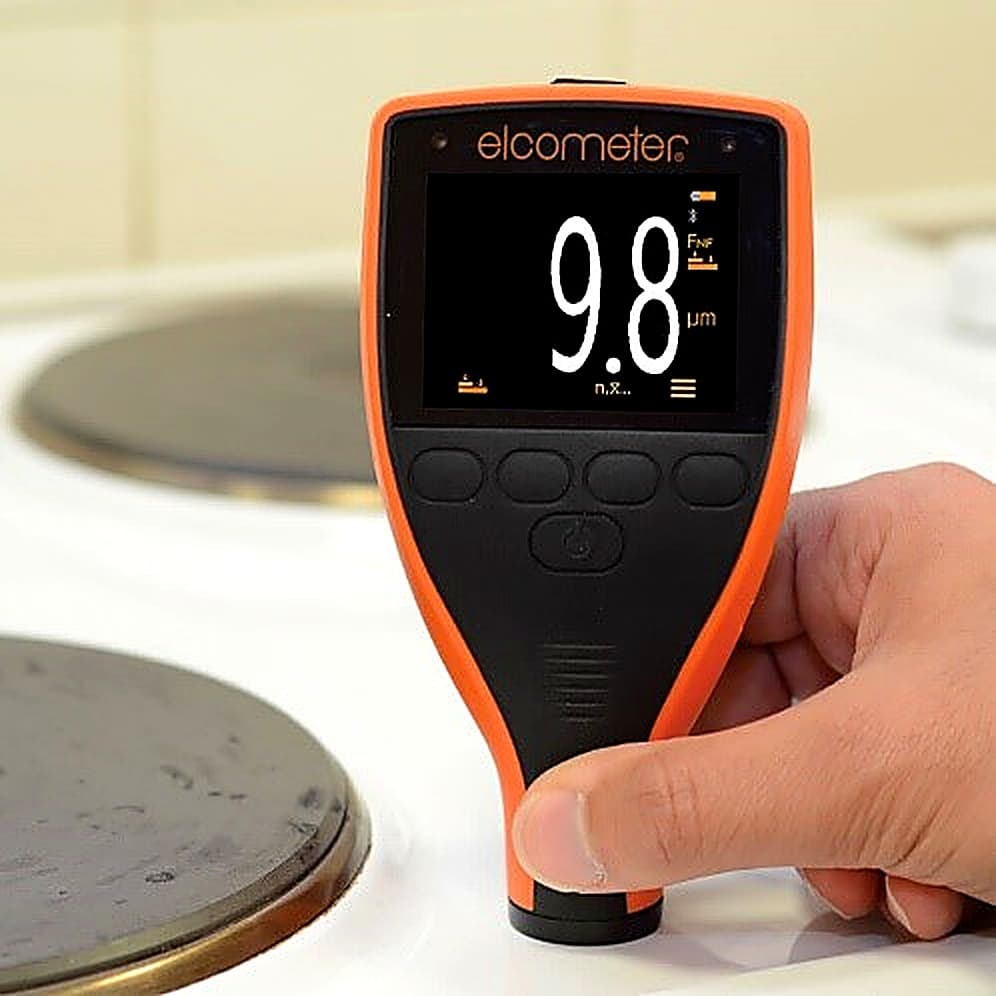

The Elcometer 415 Industrial Paint and Powder Thickness Gauge is a hand-held dry film thickness gauge for fast, accurate measurement of smooth, thin industrial paint and powder coatings on metal. On a production line or QA station, coating that is too thin fails to protect and coating that is too thick wastes material and can cause finish defects, so quick reliable thickness readings keep the finishing process within specification and output moving.

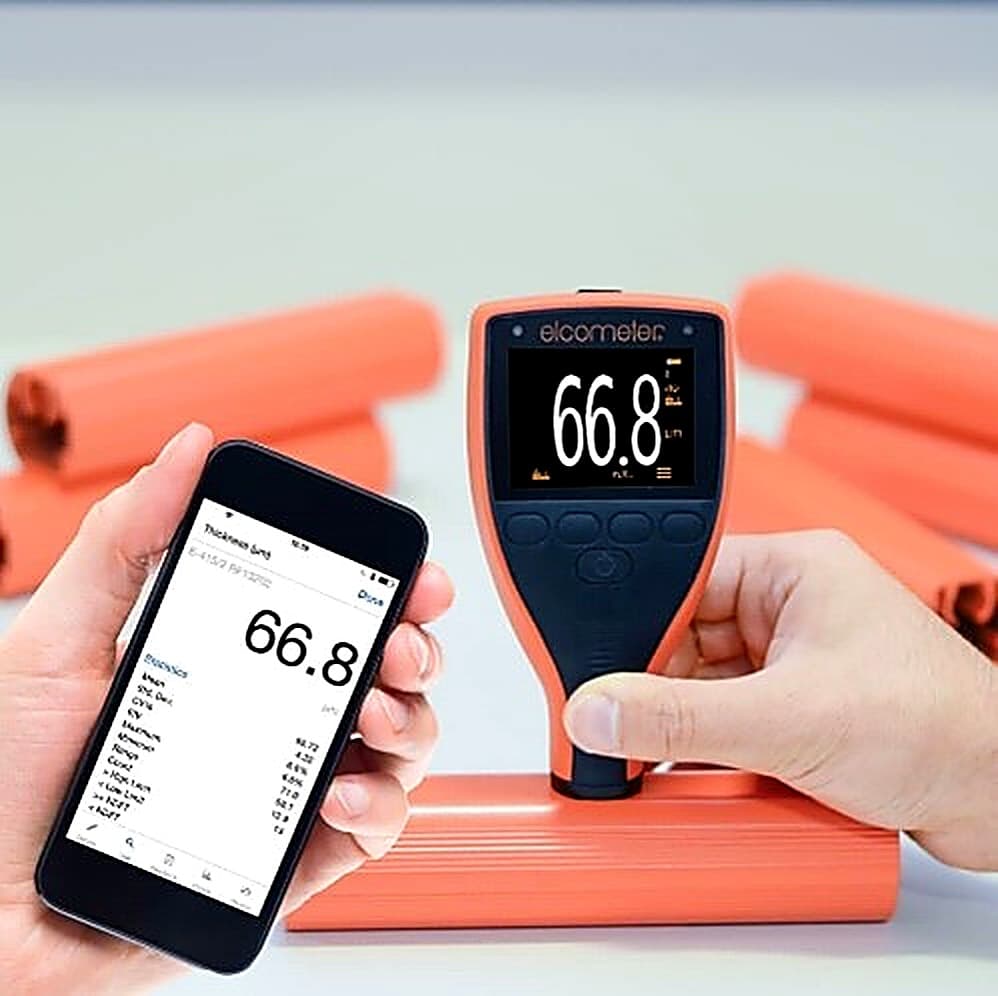

The Elcometer 415 Industrial Paint & Powder Thickness Gauge reads at 60 or more readings per minute and automatically switches between ferrous and non-ferrous substrates on FNF models. It measures cured paint and powder coatings from 0 to 1000 microns to an accuracy of plus or minus 1 to 3% or 2.5 microns, with 1 point and 2 point calibration to stay accurate on smooth and thin coated surfaces. The auto-rotating colour display gives a clear reading at any angle and shows the number of readings, average, lowest and highest values. The case is scratch, solvent and powder resistant, equivalent to IP64, and the gauge runs from two AA batteries or via USB. The 415 is available as Model B and Model T, the difference being live data output: Model B outputs via USB, while Model T adds Bluetooth, transferring readings live to ElcoMaster software and the ElcoMaster Mobile App on PC, Android or iOS for instant report generation.
It can be used in accordance with standards including ISO 2178, ISO 2360, ISO 2808, ASTM B 499, ASTM D 7091, ASTM E 376 and EN 13523-1. Used in industrial paint and powder coating, manufacturing and quality control, it is supplied by BAMR, South Africa's authorised Elcometer distributor.

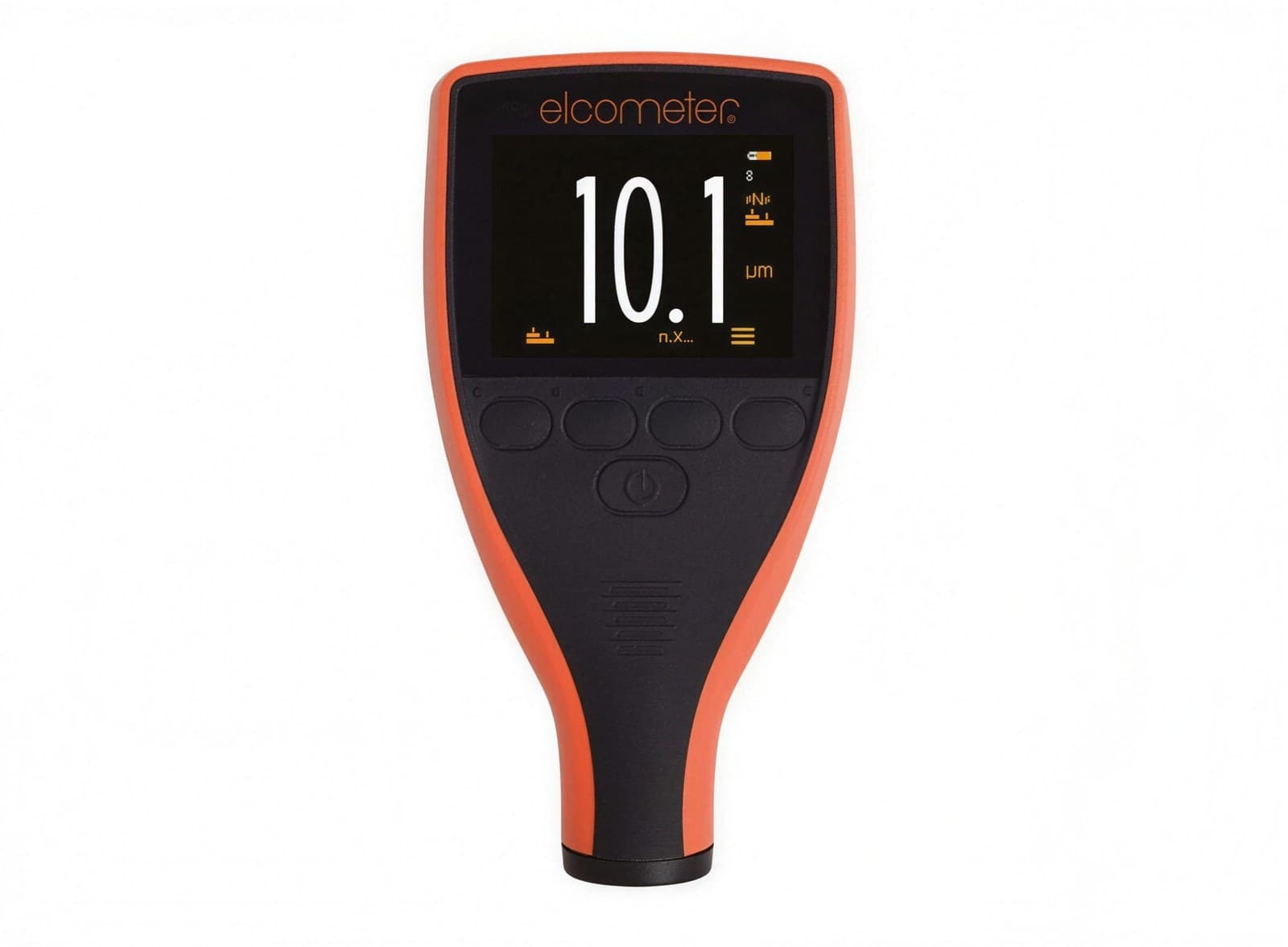

Elcometer 415 Industrial Paint & Powder Thickness Gauge
The Elcometer 415 Industrial Paint & Powder Thickness Gauge provides simple, fast and accurate coating thickness measurements on smooth and thin industrial paint and powder coatings.
- Incredibly fast (60+ readings per minute) Reduces inspection times, increasing productivity
- Automatically switches between ferrous and non-ferrous substrates
- Measures cured paint & powder coatings up to 1000μm
- 1 point and 2 point calibration Ensures accuracy on smooth and thin coated substrates
- Easy to use, ergonomic design Provides maximum comfort for continuous use
- Large easy to read values in microns or mils
- Auto rotating large colour display Provides clear visibility whatever the angle of measurement
- Scratch, solvent and powder resistant display
- Rugged and resistant to powder coatings ingress Equivalent to IP64
- Transfer live data via USB or Bluetooth® To ElcoMaster® for instant report generation
When to use the Elcometer 415 Thickness Gauge

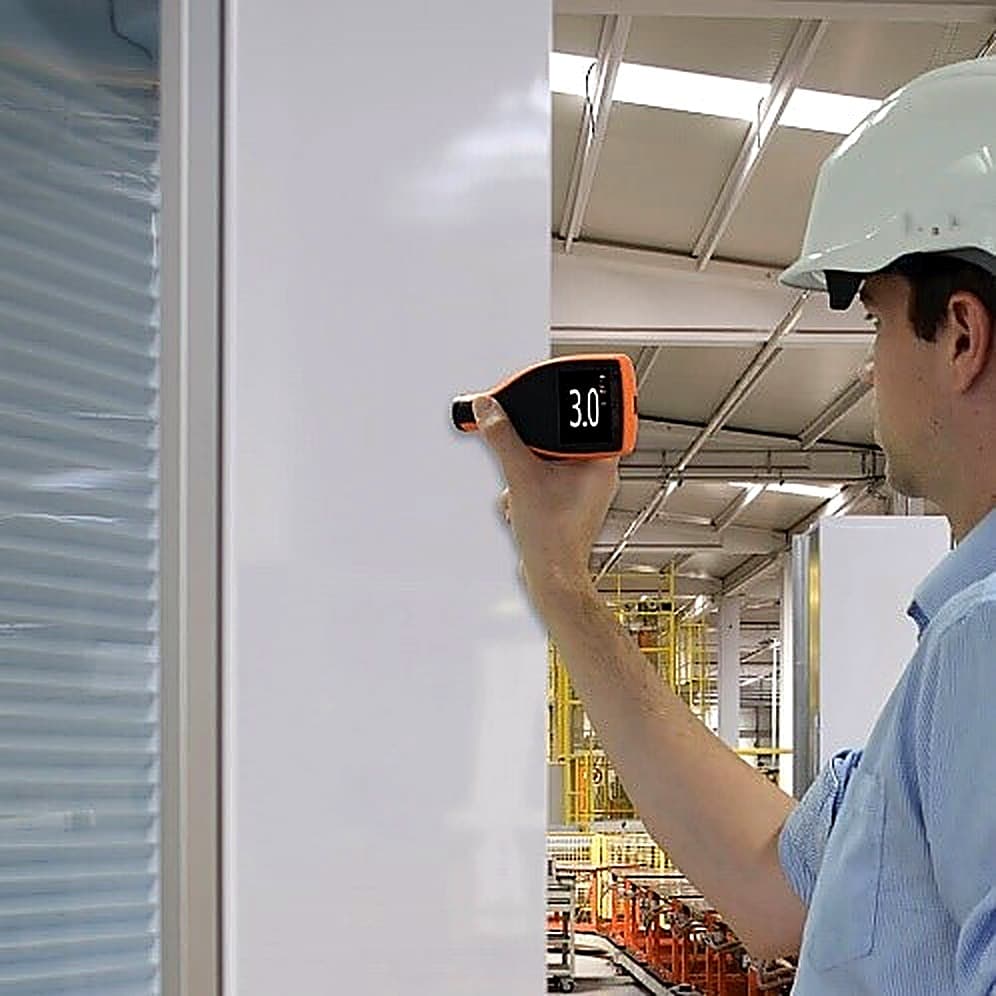

QC staff reach for the 415 to check cured paint and powder coatings on smooth, thin industrial parts at high throughput. It is built for fast, repeated checks where the substrate switches between ferrous and non-ferrous.
- 1High throughput inspectionAt 60 plus readings per minute it cuts inspection time on production lines where many parts must be checked quickly.
- 2No substrate switching neededIt automatically switches between ferrous and non-ferrous substrates, so a mixed batch of parts can be checked without changing settings.
- 3Suited to thin coatingsOne and two point calibration ensures accuracy on smooth and thin coated substrates up to 1000 microns, where calibration errors would otherwise creep in.
- 4Reporting from the gaugeLive data transfers via USB or Bluetooth to ElcoMaster for instant report generation, so results feed straight into QC records.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 415 Thickness Gauge
QC staff reach for the 415 to check cured paint and powder coatings on smooth, thin industrial parts at high throughput. It is built for fast, repeated checks where the substrate switches between ferrous and non-ferrous.
- 1High throughput inspectionAt 60 plus readings per minute it cuts inspection time on production lines where many parts must be checked quickly.
- 2No substrate switching neededIt automatically switches between ferrous and non-ferrous substrates, so a mixed batch of parts can be checked without changing settings.
- 3Suited to thin coatingsOne and two point calibration ensures accuracy on smooth and thin coated substrates up to 1000 microns, where calibration errors would otherwise creep in.
- 4Reporting from the gaugeLive data transfers via USB or Bluetooth to ElcoMaster for instant report generation, so results feed straight into QC records.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
■ = feature included / standard on this model
| Model B (Ferrous) | Model B (FNF) | Model T (Ferrous) | Model T (FNF) | |
|---|---|---|---|---|
| Part Number | A415CFBI | A415CFNFBI | A415CFTI | A415CFNFTI |
| Calibration Test Certificate | ■ | ■ | ■ | ■ |
| Built in probe type | Ferrous (F) | Ferrous / Non-Ferrous (FNF) | Ferrous (F) | Ferrous / Non-Ferrous (FNF) |
| On screen statistics (Number of readings, n; Average (mean), x; Lowest reading, Lo; Highest reading, Hi) | ■ | ■ | ■ | ■ |
| Live data output | USB | USB | Bluetooth® & USB | Bluetooth® & USB |
- Reading rate
- 60+ readings per minute
- Accuracy
- ±1-3% or ±2.5μm
- Measurement Range
- 0-1000μm
- Operating Temperature
- -10 to 50°C
- Relative Humidity (RH)
- 0 to 95% (RH)
- Power Supply
- 2 x AA Batteries or via USB (rechargeable batteries can also be used)
- Gauge Dimensions
- 14.1 x 7.30 x 3.70cm (h x w x d)
- Gauge Weight
- 156g (including batteries)
Packing List
Packing List
Standards
Standards
Accessories
Accessories
| T99916925 | Calibration Check Piece; Steel (Ferrous) |
| T99916901 | Calibration Check Piece; Aluminium (Non-Ferrous) |
| T99022255-1 | Foil Set; 0-1000μm |
| T99022255-1C | Certified Foil Set; 0 - 1000μm |
| T99921325 | USB Cable |
| T99922341 | Self Adhesive Screen Protectors (Pack of 10) |
Downloads
Videos
Videos
Frequently asked questions
What is the measurement range and accuracy of the Elcometer 415?
The 415 measures 0 to 1,000 micrometres at an accuracy of plus or minus 1 to 3% or plus or minus 2.5 micrometres, whichever is greater. Reading rate is 60 or more per minute.
Which 415 models can measure on non-ferrous substrates?
The FNF variants, A415CFNFBI and A415CFNFTI, carry ferrous and non-ferrous probes. The A415CFBI and A415CFTI models are ferrous-only.
What data output options does the 415 support?
Model B variants (A415CFBI and A415CFNFBI) output data via USB only. Model T variants (A415CFTI and A415CFNFTI) add Bluetooth in addition to USB. All models display on-screen statistics including number of readings, mean, lowest, and highest.
What power source does the 415 use?
The gauge runs on two AA batteries or can be powered via USB. Rechargeable batteries are also supported. The gauge weighs 156g including batteries.
