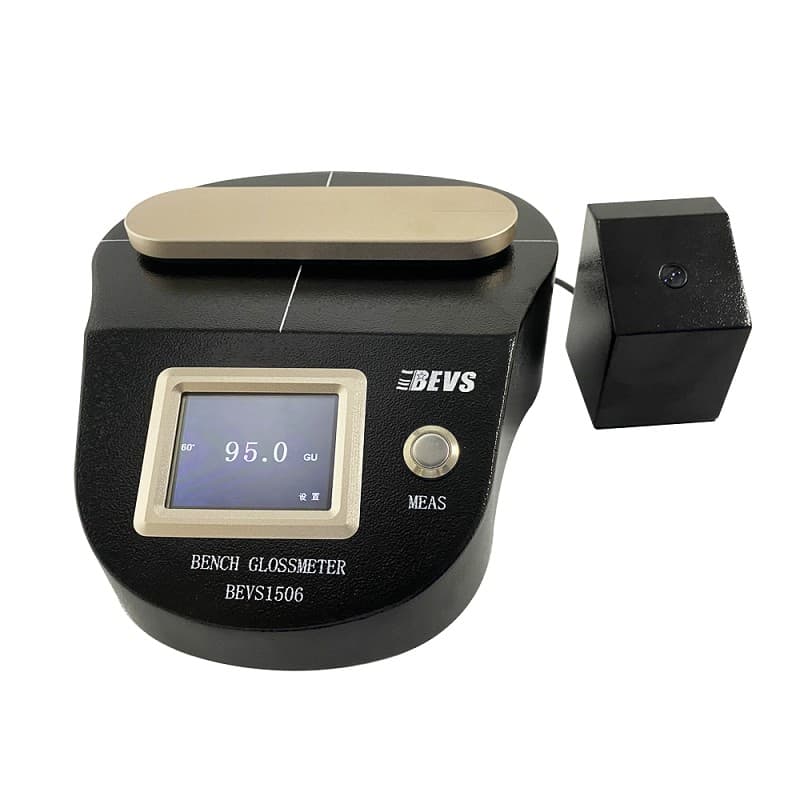

This small, portable BEVS 1506 Bench Glossmeter is made for measuring the gloss of curved surface, small pieces, specially shaped surface of small products, application in the area of coatings, automobiles, toys, furniture, plastics, banknotes, teeth, ceramics etc.
The BEVS 1506 measures at a 60° angle over a range of 0 to 2000 GU, with a repeatability of ±0.5 GU (0 to 199.9 GU) and a 2 x 2 mm measurement area. Up to 3000 readings are stored, and calibration can be done automatically within one second. Measurements can be taken with one button, the foot switch or the infrared sensor switch. It conforms to ASTM D523 and DIN 67530.
BEVS 1506 Bench Glossmeter
A benchtop gloss meter that measures 60° gloss on curved surfaces, small pieces and specially shaped products, through a 2 x 2 mm measurement area. It reads from 0 to 2000 GU, stores up to 3000 readings and conforms to ASTM D523 and DIN 67530.
- 3000 readings. Up to 3000 readings stored.
- Automatic calibration. Calibration can be done automatically within one second.
- One-button operation. One button operation.
- Colour touchscreen. Colourful touch screen displaying readings, statistics and calibration procedure status.
- Foot switch. Foot switch available for simple measurement.
- Infrared sensor switch. Convenient measurement with infrared sensor switch.
When to choose the BEVS 1506 Bench Glossmeter
The BEVS 1506 is a benchtop 60° gloss meter with a 2 x 2 mm measurement area, for gloss checks on small, curved or specially shaped items that a handheld meter cannot sit flat on.
- 1Small parts, curved surfaces and specially shaped productsThe BEVS 1506 measures through a 2 x 2 mm area, so it reads gloss on items too small or too curved for a standard gloss meter, such as toys, banknotes, teeth and ceramics. The Elcometer 480 measures over an 8 x 16 mm area at 60°.
- 2Repeated checks at the benchThe sample is placed on the instrument rather than the meter held against it, and a foot switch or the infrared sensor switch triggers each reading, leaving both hands free to position the next piece. Up to 3000 readings are stored and transferred over USB, which suits quality control of many small items in a lab or on a line.
- 3Very high-gloss and mirror-like surfaces at 60°The BEVS 1506 reads up to 2000 GU at 60°, against 1000 GU at the same angle on the Elcometer 480, giving more headroom for polished metals and other highly reflective finishes. It conforms to ASTM D523 and DIN 67530.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to choose the BEVS 1506 Bench Glossmeter
The BEVS 1506 is a benchtop 60° gloss meter with a 2 x 2 mm measurement area, for gloss checks on small, curved or specially shaped items that a handheld meter cannot sit flat on.
- 1Small parts, curved surfaces and specially shaped productsThe BEVS 1506 measures through a 2 x 2 mm area, so it reads gloss on items too small or too curved for a standard gloss meter, such as toys, banknotes, teeth and ceramics. The Elcometer 480 measures over an 8 x 16 mm area at 60°.
- 2Repeated checks at the benchThe sample is placed on the instrument rather than the meter held against it, and a foot switch or the infrared sensor switch triggers each reading, leaving both hands free to position the next piece. Up to 3000 readings are stored and transferred over USB, which suits quality control of many small items in a lab or on a line.
- 3Very high-gloss and mirror-like surfaces at 60°The BEVS 1506 reads up to 2000 GU at 60°, against 1000 GU at the same angle on the Elcometer 480, giving more headroom for polished metals and other highly reflective finishes. It conforms to ASTM D523 and DIN 67530.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Technical specifications
- Angle
- 60°
- Range
- 0 to 2000 GU
- Repeatability
- ±0.5 GU (0 to 199.9 GU)
- Precision
- 1 GU
- Measurement area
- 2 x 2 mm
- Display resolution
- 320 x 240
- Control
- Touch screen with one button measurement
- Memory
- 3000 readings
- Port
- USB
- Operating temperature
- -10 to 40°C
- Dimensions (L x W x H)
- 220 x 190 x 85 mm
- Weight
- 3 kg
What's in the kit
What's in the kit
Conforms to
Conforms to
Accessories
Accessories
| BEVS1506/P/001 | Standard calibration tile |
| BEVS1506/P/002 | USB data cable |
| BEVS1506/P/003 | Foot switch |
| BEVS1506/P/004 | Optical sensor switch |
Downloads
Frequently asked questions
What does the BEVS 1506 Bench Glossmeter measure?
It measures gloss at a 60° angle, from 0 to 2000 GU, on curved surfaces, small pieces and specially shaped small products, in areas such as coatings, automobiles, toys, furniture, plastics, banknotes, teeth and ceramics.
How accurate is the BEVS 1506?
Repeatability is ±0.5 GU over 0 to 199.9 GU, and precision is 1 GU. The measurement area is 2 x 2 mm.
Which standards does the BEVS 1506 meet?
The BEVS 1506 Bench Glossmeter conforms to ASTM D523 and DIN 67530.
How is the BEVS 1506 calibrated?
Calibration is automatic and can be done within one second using the standard calibration tile supplied. The touchscreen displays the calibration procedure status.
How are readings taken and stored on the BEVS 1506?
Readings are taken with one button on the touchscreen, the foot switch or the infrared sensor switch. Up to 3000 readings are stored, statistics are shown on screen, and there is a USB port.
What is included with the BEVS 1506, and what are the part numbers?
It is supplied with 1 calibration tile, 1 USB cable, 1 foot switch and 1 sensor switch. Part numbers: BEVS1506/P/001 standard calibration tile, BEVS1506/P/002 USB data cable, BEVS1506/P/003 foot switch, BEVS1506/P/004 optical sensor switch.
