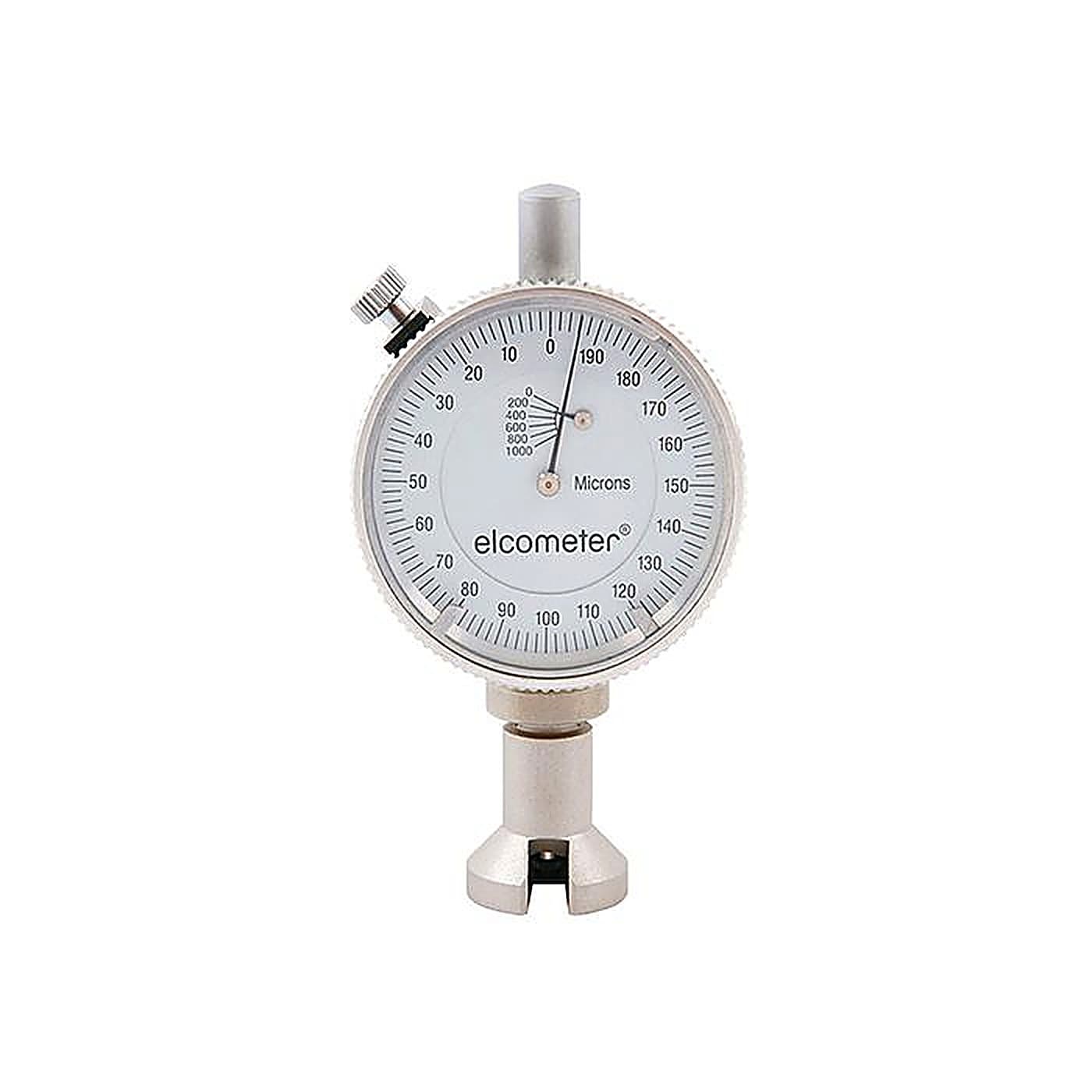

Elcometer 123 Surface Profile Gauge
Product Description
Surface Profile Gauges are used to measure the profile height of a surface. The degree of the surface profile on the surface affects a coating’s overall performance and determines aspects such as adhesion, coverage and overall volume of coatings used. If the surface profile is too large the amount of coating required increases, otherwise there is a danger that the peaks remain uncoated – allowing rust spots to occur. If the surface profile is too small there may be insufficient key for adequate adhesion leading to premature coating failure.
The Elcometer 123 Profile Gauge measures the peak-to-valley height of a blast cleaned surface in a similar way to the Elcometer 224 Digital Surface Profile Gauge.
The Elcometer 123 Profile Gauge can be used in accordance with:
- ASTM D 4417-B
- SANS 5772
- SSPC PA 17
- US Navy NSI 009-32
- US Navy PPI 63101-000
Specifications
Elcometer 123 Surface Profile Gauge – Specifications
| Part Number | Description | Certificate |
| E123A–M- | Elcometer 123 Surface Profile Gauge, Metric Version | ο |
| Range | 0 – 1000µm | |
| Scale | 2µm | |
| Dimensions | 105 x 55 x 25mm | |
| Weight | 335g |
Packing List
- Elcometer 123 Surface Profile Gauge
- Glass Slide
- 2mm Allen Key
- Carry Case
- Operating Instructions
Data Sheet
Elcometer 123 Surface Profile Gauge – Data Sheet
Elcometer 123 Surface Profile Gauge Data Sheet
Standards
Elcometer 123 Surface Profile Gauge – Standards
The Elcometer 123 Profile Gauge can be used in accordance with:- ASTM D 4417-B
- SANS 5772
- SSPC PA 17
- US Navy NSI 009-32
- US Navy PPI 63101-000
