The Elcometer 124 Dial Thickness Gauge (part number E124-3M) measures the peak-to-valley height of a surface profile moulded into Elcometer 122 Testex Replica Tape. Correct surface profile is essential before coating: if the profile is too low, coating adhesion is reduced; too high, and the profile peaks risk remaining uncoated, allowing rust spots to start. The gauge gives the measured profile that confirms the surface meets specification.
After the replica tape has captured a mould of the blasted profile, the tape is placed between the anvil and spindle of the Elcometer 124 Dial Thickness Gauge and the dial reads the combined thickness. Subtracting the 50µm non-compressible mylar backing of the tape gives the actual peak-to-valley profile. The gauge applies the anvil pressure required by the standards, has a range of 5mm and reads to a scale resolution of 2µm. It measures 120 x 95 x 25mm, weighs 254g, and is available in both metric and imperial versions.
It conforms to ASTM D 4417-C, ISO 8503-5, NACE RP 0287, SSPC PA 17 and US Navy NSI 009-32, used with the replica tape to measure surface profile in compliance with international standards. An optional calibration certificate is available. It is used by coatings inspectors and blasting contractors in surface preparation and corrosion protection. Supplied by BAMR, South Africa's authorised distributor.

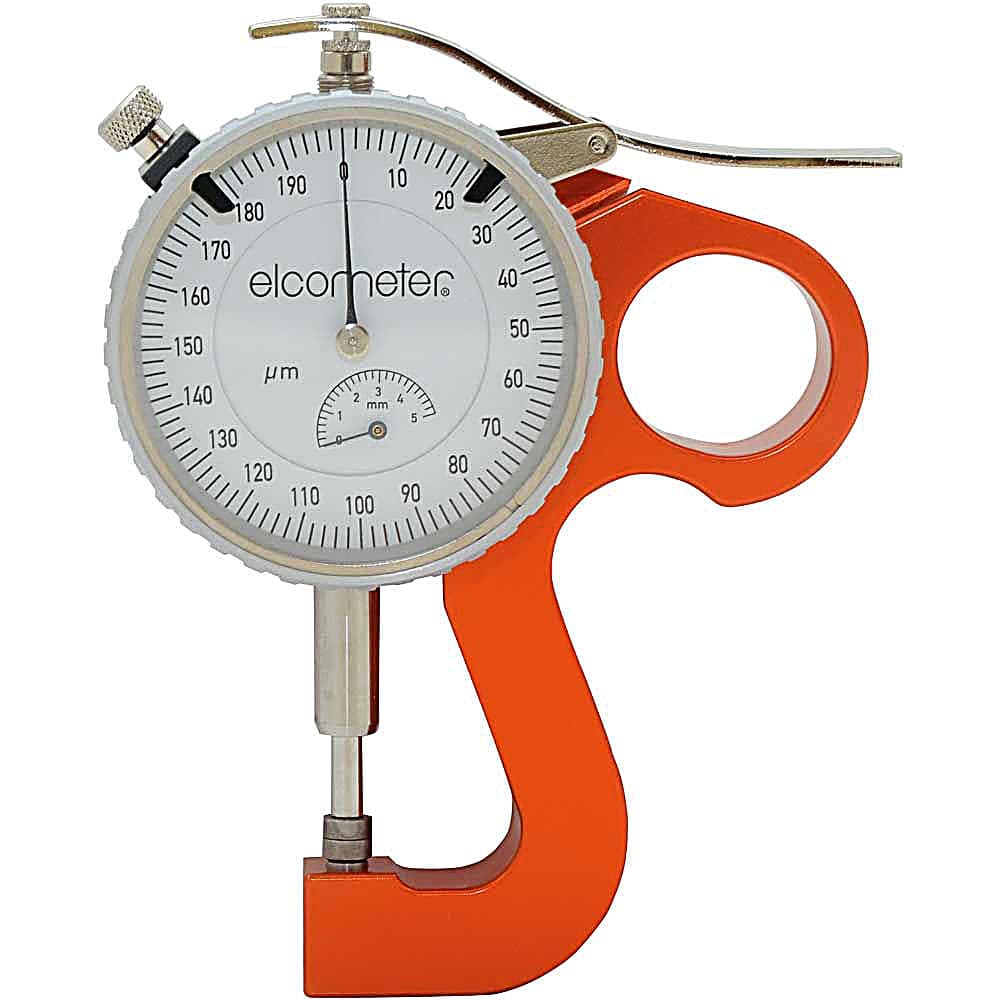

Elcometer 124 Dial Thickness Gauge
The Elcometer 124 Thickness Gauge is used to measure the peak-to-valley height of a surface profile moulded in the Elcometer 122 Testex Replica Tape.
- Available in both Metric and Imperial versions
- Quick and easy to use
- Anvil pressure as required in the Standards
Also available to buy online at GaugeIt, our online store.
When to use the Elcometer 124 Dial Thickness Gauge
Use the 124 to read the peak-to-valley height captured in Elcometer 122 Testex Replica Tape. It applies the anvil pressure the standards require, so the figure you record from the replica is correct and comparable between inspectors.
- 1Built to read replica tapeIt is the gauge made to measure the profile moulded into Testex Replica Tape, closing the loop between taking the replica and getting a number.
- 2Correct anvil pressureIt applies the anvil pressure the standards call for, so the reading is taken under the right conditions and stands up to scrutiny.
- 3Metric or imperial, 2 micron resolutionBoth unit versions and a 2 micron scale resolution let you record the profile to the precision your specification calls for.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 124 Dial Thickness Gauge
Use the 124 to read the peak-to-valley height captured in Elcometer 122 Testex Replica Tape. It applies the anvil pressure the standards require, so the figure you record from the replica is correct and comparable between inspectors.
- 1Built to read replica tapeIt is the gauge made to measure the profile moulded into Testex Replica Tape, closing the loop between taking the replica and getting a number.
- 2Correct anvil pressureIt applies the anvil pressure the standards call for, so the reading is taken under the right conditions and stands up to scrutiny.
- 3Metric or imperial, 2 micron resolutionBoth unit versions and a 2 micron scale resolution let you record the profile to the precision your specification calls for.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Part Number
- E124-3M
- Description
- Elcometer 124 Thickness Gauge
- Range
- 5mm
- Dimensions
- 120 x 95 x 25mm
- Weight
- 254g
- Scale Resolution
- 2µm
- Certificate
- Optional Calibration Certificate available
What's in the kit
What's in the kit
Standards
Standards
Downloads
Videos
Videos
Frequently asked questions
What is the Elcometer 124 used to measure?
It measures the peak-to-valley height of a surface profile that has been moulded into Elcometer 122 Testex Replica Tape.
What is the measurement range and scale resolution of the gauge?
The gauge has a range of 5 mm and a scale resolution of 2 micrometres.
Is a calibration certificate available for the E124-3M?
An optional calibration certificate is available for the E124-3M. It is not included as standard and must be requested separately.
