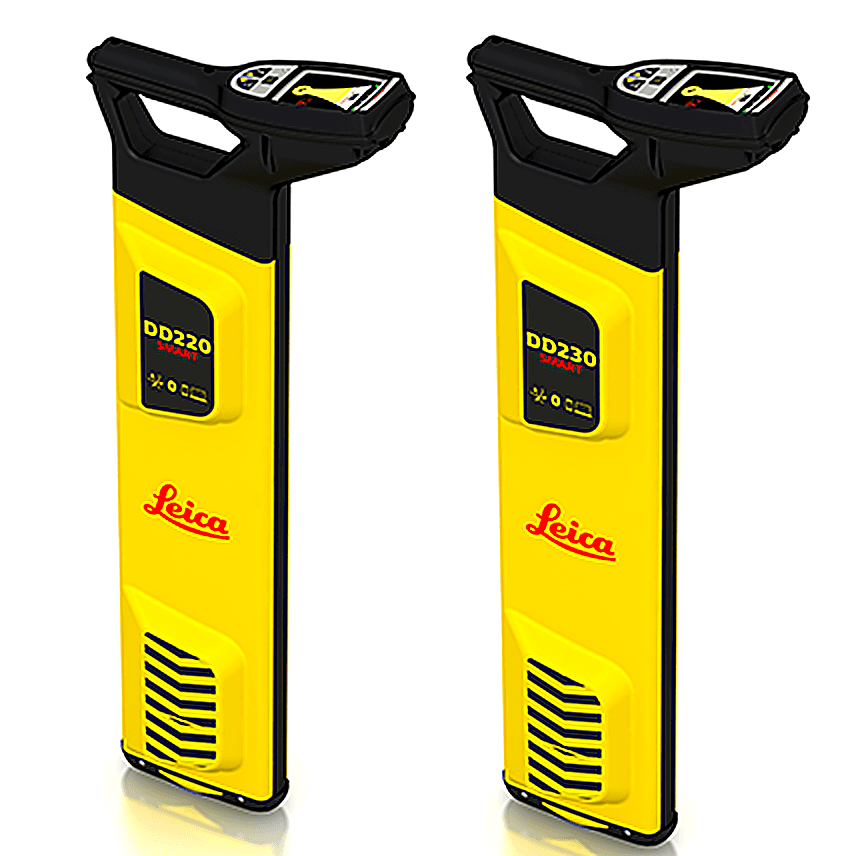

Leica DD220 & DD230 Smart Utility Locators Solution
Product Description
The new Leica DD SMART utility locator solution, including the DD230/220 cable locator series, DX Shield software and
signal transmitters is the only complete portfolio of detection solutions for utility professionals and anyone who is breaking
ground.
The Leica DD SMART utility locator series uses industry-leading digital signal processing to identify underground
assets deeper, faster and more accurately than any other system.
Using smart technology, the Leica DD SMART series can record all site usage activities enabling managed safety regimes
to flourish. Mapping buried utilities and protecting your assets, buried utilities has never been simpler with the onboard
software. Transfer user logs and data via a hosted service for multiple users, across multiple sites promote smart activities
and smart safety.
The DD230/220 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free
connection to mobile devices
Specifications
Leica DD220 & DD230 Smart Utility Locators Solution – Specifications
| Part Number | Description | |
| MODE | DD220 SMART | DD230 SMART |
| 50/60Hz mains electrical and harmonics | 50/60 Hz mains electrical and harmonics | |
| Radio | 15kHz to 60kHz | 15kHz to 60kHz |
| Auto | Power, Radio, 33kHz | Power, Radio, 33kHz |
| Transmitter Modes | 131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz | 131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
| Depth Range | Line 0.1m to 5m Line 4 inches to 16.4 feet Sonde 0.1m to 7m Sonde 4 inches to 23 feet | Line 0.1m to 7m 4 inches to 23 feet Sonde 0.1 to 10m Sonde 4 inches to 32.8 feet |
| Depth Accuracy | 5% | 5% |
| Bluetooth | Class 2 BLE dual mode module Bluetooth Classic 2.1 Bluetooth 4.0 (LE) | Class 2 BLE dual mode module Bluetooth Classic 2.1 Bluetooth 4.0 (LE) |
| GPS** | Chipset (1): u-blox®GPS Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1 Accuracy (2): Horizontal Position 2.5m Autonomous, 2.0 m SBAS,CEP Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical | Chipset (1): u-blox®GPS Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1 Accuracy (2): Horizontal Position 2.5m Autonomous, 2.0 m SBAS,CEP Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical |
| Memory Capacity | 8 GB internal memory | 8 GB internal memory |
| Environmental Standard | IP66 | IP66 |
| Operating Temperature | -20 °C to +50 °C | -20 °C to +50 °C |
| Battery | 7.4V Rechargeable Li – Ion | 7.4V Rechargeable Li – Ion |
| Battery operating time *** | 15 h | 15 h |
| Dimensions (HxWxD) | 765×290 x93mm | 765×290 x93mm |
| Weight with batteries | 2.7Kg | 2.7Kg |
* Depth to an undistorted signal
(1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.
(2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
*** Constant use at 20°C
Packing List
|
Leica Detect DD220 Smart package
|
 |
|
Leica Detect DD230 Smart package
|
 |
Data Sheet
Leica DD220 & DD230 Smart Utility Locators Solution – Data Sheet
Leica DD220 & DD230 Smart Utility Locators Solution Data Sheet
Accessories
Leica DD220 & DD230 Smart Utility Locators Solution – Accessories
|

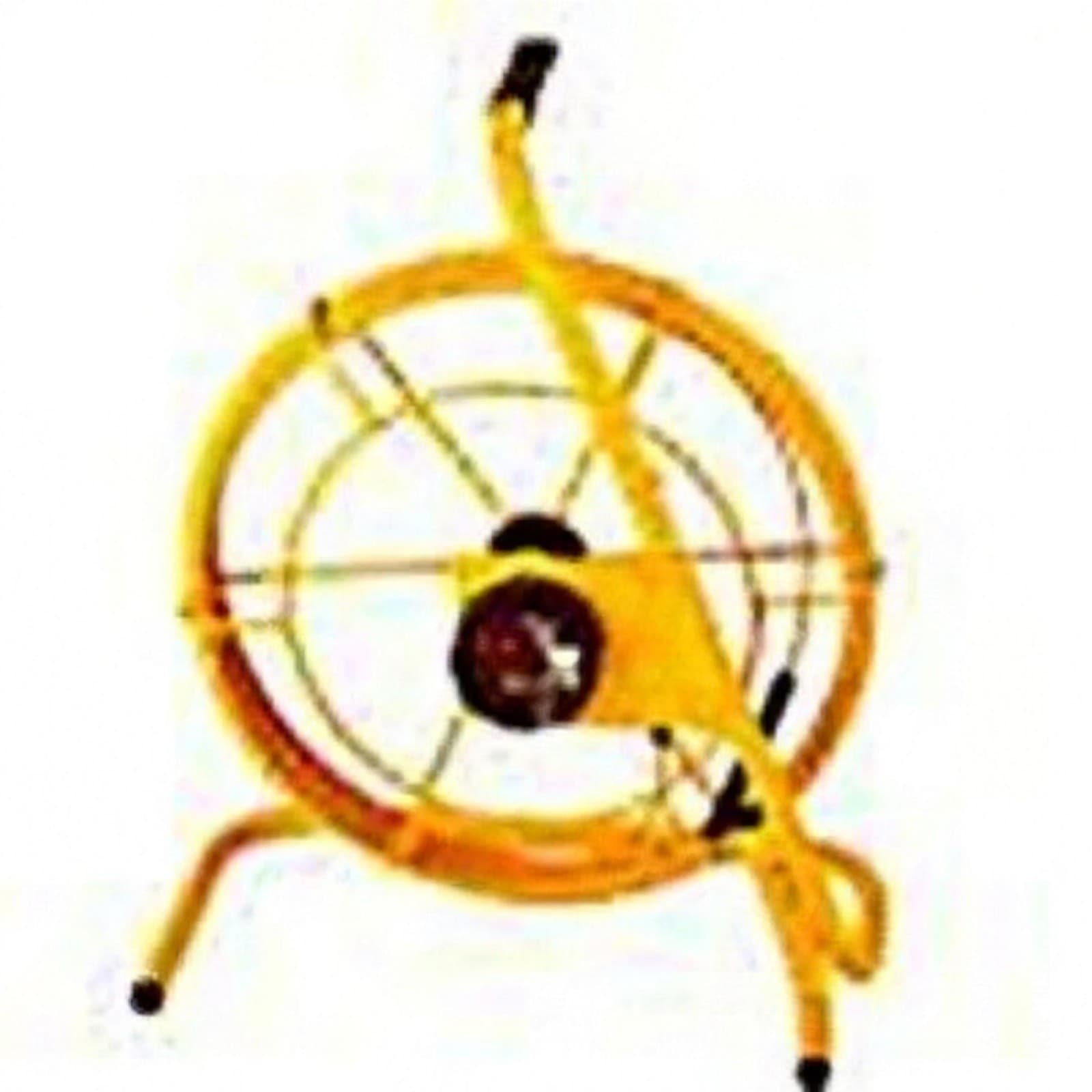

Trace Rods
|
Used with the DD Locators and DA Signal Transmitter to trace the route of non metallic drains, ducts or pipes. Trace Rod 50M / Trace Rod 80M |
|
Transmitter Clamps
|
Used with the DA Signal transmitter to apply a trace signal to utilities such as telecom cables, power cables and pipes. Transmitter Clamp 100mm / Transmitter Clamp80mm |
|

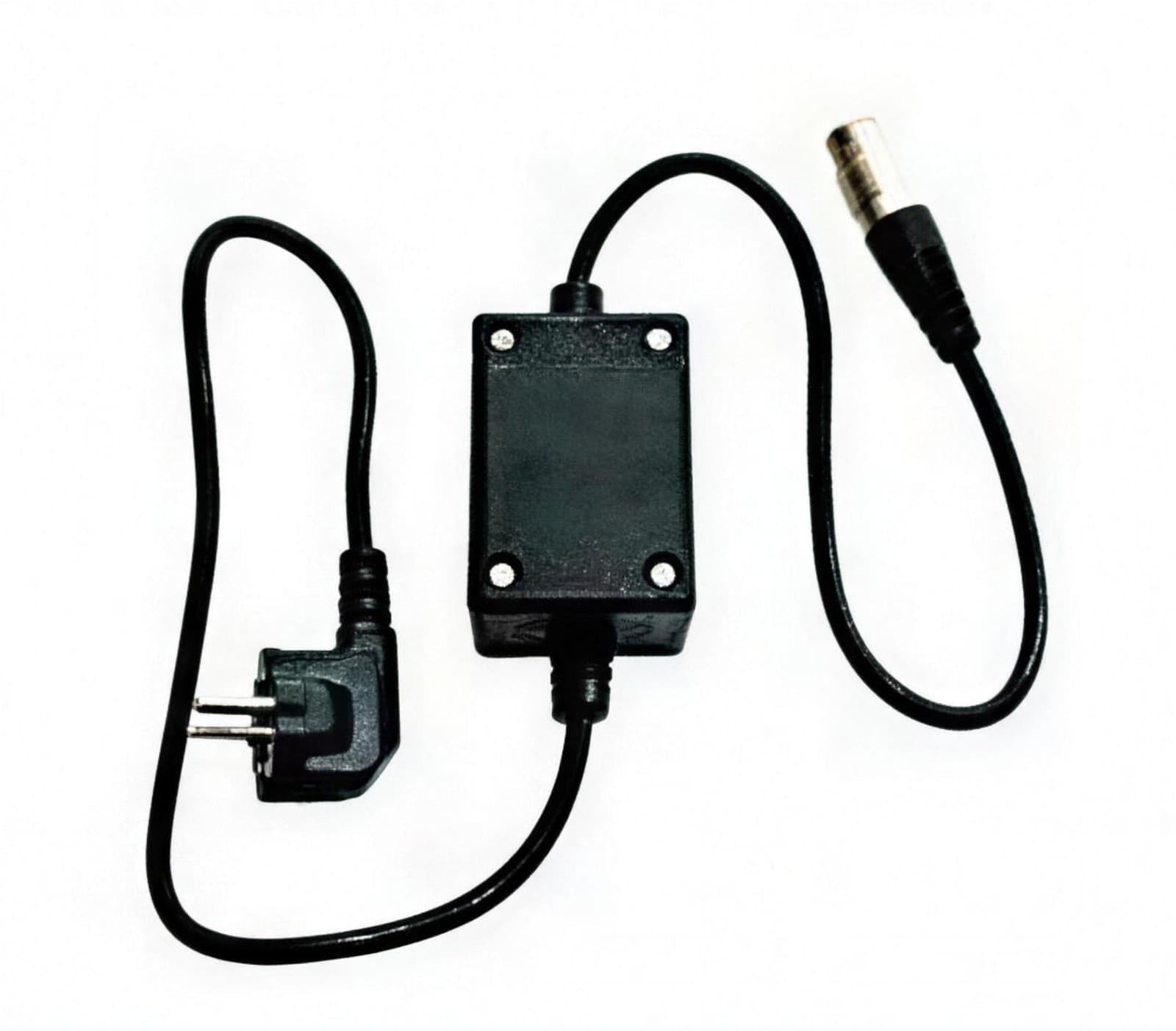

Property Plug Connector
|
The set provides a safe way of applying a detectable signal to live electricity cables going in a domestic property. To be used in conjunction with a DIGITEX signal transmitter. |
|

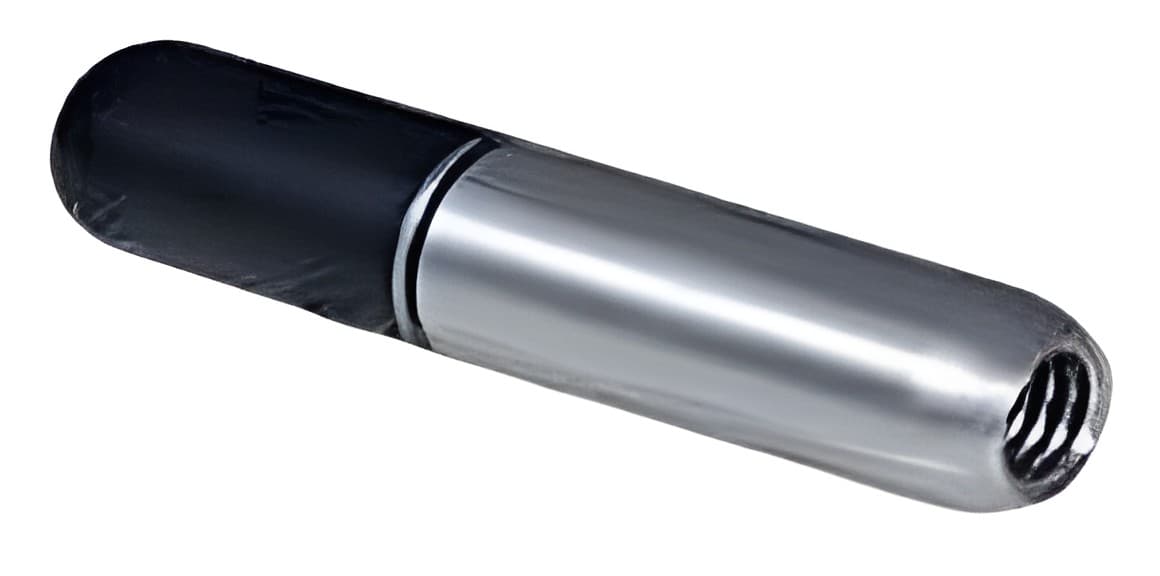

Mini Sonde 33
|
Mini Sonde 33, 18mm diameter 33kHz Sonde used to trace drains, sewers and other non-conductive utilities. Mini Sonde has a M12 female thread and can be attached to a range of equipment including drain rods, boring tools and inspection cameras. Powered by 1 x 3.6v battery, with a depth range of 10 meters |
|

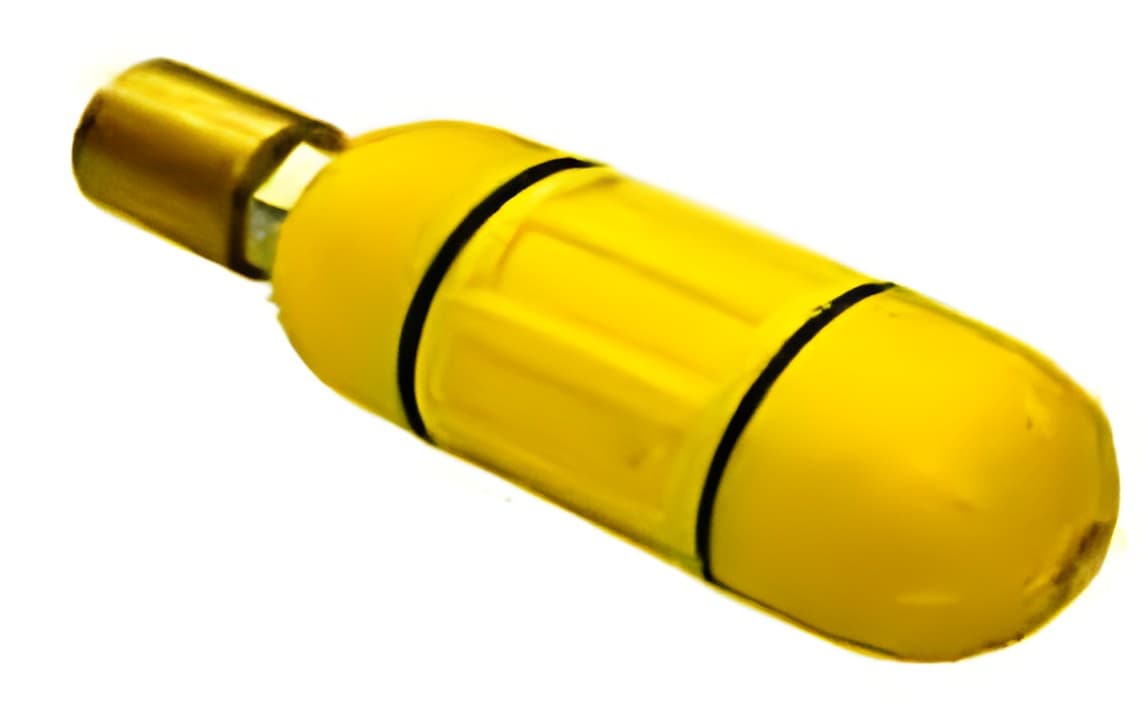

Midi Sonde 8/33
|
Midi Sonde 8/33, 38mm diameter dual frequency 8kHz or 33kHz Sonde used to trace drains, sewers and other non conductive utilities. Midi Sonde has a M10 male thread with an additional female adapter and can be attached to a range of equipment including drain rods, boring tools and inspection cameras. Powered by 1 x AA alkaline battery, with a working depth range of 5 meters |
|
Clamp Sonde 33
|
Maxi Sonde 8/33, 55mm diameter dual frequency 8kHz or 33kHz Sonde used to trace deep lying drains, sewers and other non conductive utilities. Maxi Sonde has a M10 male thread with an additional female adapter and can be attached to a range of equipment including drain rods, boring tools, and inspection cameras. Powered by 3 x AA alkaline batteries, with a depth range of 12 meters |
|
Duct Sonde 33
|
24mm diameter with a 33kHz output. Working Range 5m |
|
Clamp Sonde 33
|
Clamp Sonde 33, 40mm 33kHz Sonde. Clamps directly on to 12mm duct rod or the cable of a sewer inspection camera. Used to trace the route of the duct, position of the inspection camera or a blockage. Powered by 1 x AAA battery. with a working depth range of 5 meters |
Video
Leica DD220 & DD230 Smart Utility Locators Solution – Video
The new Leica DD SMART utility locator solution, including the DD230/220 cable locator series, DX Shield software and signal transmitters is the only complete portfolio of detection solutions for utility professionals and anyone who is breaking ground.
The new SMART utility locator solution allows users to map buried utilities, transfer and access data remotely to a hosted service for multiple users, across multiple sites to manage site activities.
