The BEVS 2506 Intelligent Mixer adopts advanced touch screen control design, and the frequency converter regulates the motor speed. Different discs can be used for dispersion, mixing and grinding. The speed (RPM), dispersion, mixing and grinding time can be set through the touch screen interface of the BEVS 2506 Intelligent Mixer, which is an ideal choice for research and development, laboratory and field test.
The BEVS 2506 Intelligent Mixer is widely used in industries including coatings, dyes, inks, pigments, papermaking, cosmetics, food, resins, adhesives, emulsions, medicine, petroleum, pesticides, daily chemicals and others.

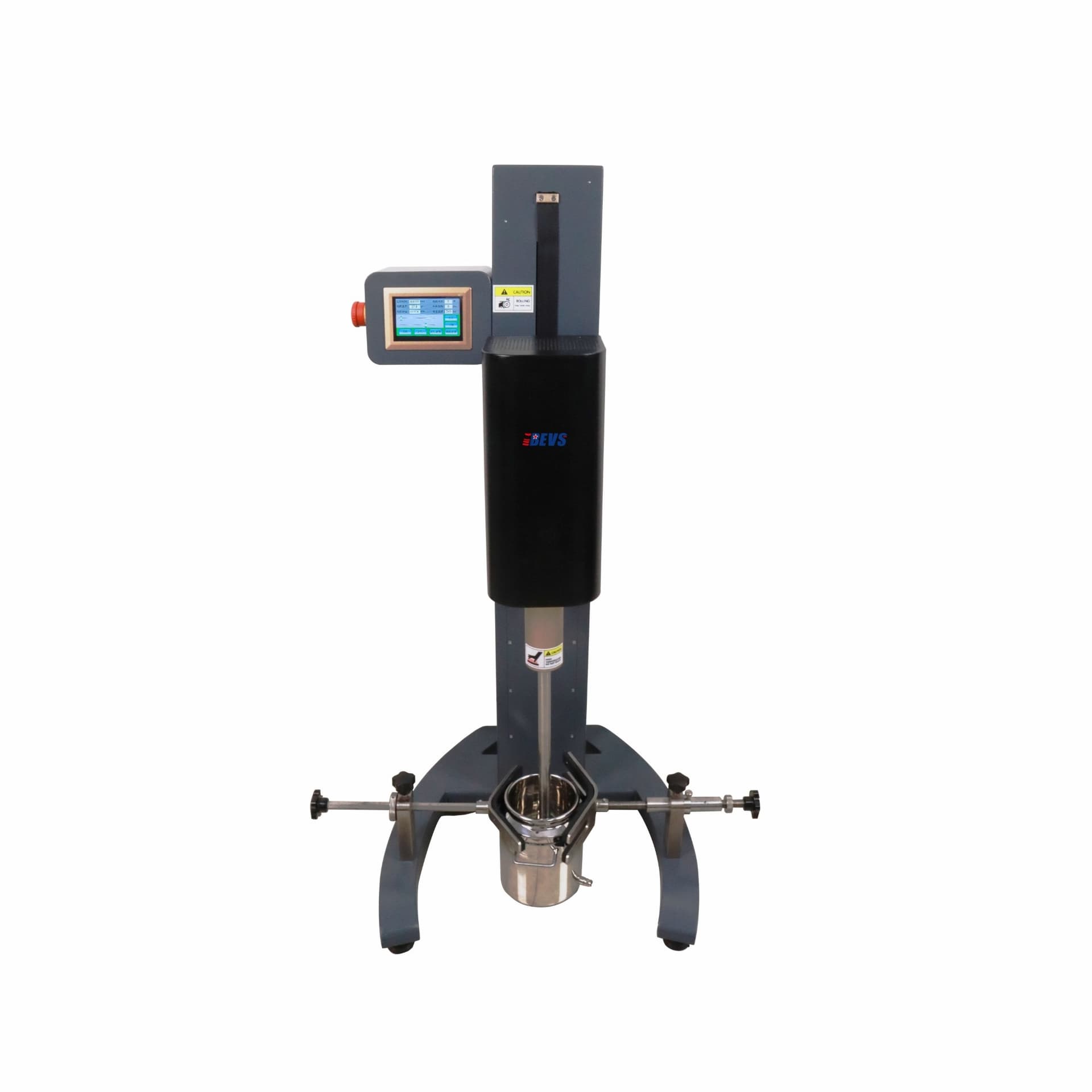

BEVS 2506 Intelligent Mixer
A touch-screen laboratory mixer for dispersion, mixing and grinding. Speed and running time are set on the screen, and the frequency-converter motor runs from 500 to 12000 rpm.
- Touch screen control. Set speed (rpm) and dispersion, mixing and grinding time through the touch screen interface.
- FM high-speed motor. Frequency converter regulates the motor speed.
- Automatic lifting. Stroke length 300 mm.
- Safety clamping sensing function. Only runs while the vessel is fixed tightly.
- Explosion-proof type. Available as an option.
When to choose the BEVS 2506 Intelligent Mixer
Two situations where the BEVS 2506 is the right choice.
- 1One machine that can disperse, mix and grindDifferent discs are swapped in for each of those three jobs, rather than needing separate equipment for each.
- 2Flammable or solvent-based materialsThe explosion-proof version is available as an option for those applications.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to choose the BEVS 2506 Intelligent Mixer
Two situations where the BEVS 2506 is the right choice.
- 1One machine that can disperse, mix and grindDifferent discs are swapped in for each of those three jobs, rather than needing separate equipment for each.
- 2Flammable or solvent-based materialsThe explosion-proof version is available as an option for those applications.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Speed
- 500 - 12000 rpm
- Power
- 750 W
- Maximum mixing volume
- 10 L
- Supported vessels
- 1.5 / 3 / 5 / 10 L
- Motor
- FM high-speed motor
- Lifting system
- Automatic, 300 mm stroke length
- Running time
- Adjustable
- Safety
- Clamping sensing function, only runs while vessel is fixed tightly
- Explosion-proof type
- Optional
Accessories
Accessories
| Dispersing discs | 30, 40, 50, 60, 80, 100, 120, 150 and 200 mm |
| BEVS 2501/P/025 | Milling disc, 45 mm, nylon |
| BEVS 2501/P/026 | Milling disc, 60 mm, nylon |
| BEVS 2501/P/027 | Milling disc, 45 mm, Teflon |
| BEVS 2501/P/028 | Milling disc, 60 mm, Teflon |
| BEVS 2511/2 | Jacketed stainless steel vessel, 1.5 L |
| BEVS 2511/3 | Jacketed stainless steel vessel, 3 L |
| BEVS 2511/4 | Jacketed stainless steel vessel, 5 L |
| BEVS 2511/5 | Jacketed stainless steel vessel, 10 L |
Downloads
Frequently asked questions
What speed range does the BEVS 2506 Intelligent Mixer cover?
500 to 12000 rpm, set through the touch screen interface.
What is the maximum mixing volume?
10 L, using vessels of 1.5, 3, 5 or 10 L.
How is the mixer controlled?
Through a touch screen, which sets the speed (rpm) and the dispersion, mixing and grinding time. The motor speed is regulated by a frequency converter.
Does it have a safety interlock?
Yes. A safety clamping sensing function means it only runs while the vessel is fixed tightly.
Is an explosion-proof version available?
Yes, an explosion-proof type of the BEVS 2506 Intelligent Mixer is available as an option, for use with flammable or solvent-based materials.
What industries is it used in?
Coatings, dyes, inks, pigments, papermaking, cosmetics, food, resins, adhesives, emulsions, medicine, petroleum, pesticides, daily chemicals and others.
