The Leica DISTO X6 is a laser distance meter built for rough construction sites. Site conditions cause most failures of measuring tools, so the extremely robust IP65 housing, which protects against dust and water jets and is drop tested from 2 m, underlines the reliability and durability needed where the Leica DISTO X6 is handled hard and exposed to the elements.
The Leica DISTO X6 measures distance with a Class 2, 635 nm laser (under 1 mW). Accuracy is 1.0 mm under favourable conditions and 2.0 mm under unfavourable conditions, with a range of 0.05 to 250 m under favourable conditions and 0.05 to 150 m under unfavourable conditions, and a smallest displayed unit of 0.1 mm. Start-up is ready in under one second. A digital Pointfinder with 4-fold zoom aids aiming over distance, a 360 degree tilt sensor with plus or minus 0.2 degree tolerance enables Smart Horizontal Mode, height tracking and profile or angle measurements, and a 7.11 cm IPS touchscreen with scratch-proof lens plus a side DIST key make operation intuitive. Gestures can trigger a reading.
Memory holds up to 300 reports and 1000 captured 3D points. The Leica DISTO X6 works with the DISTO Plan app on iOS and Android and DISTO transfer on Windows, transferring data over Bluetooth 5.0 (range up to 10 m), with USB-C charging and download, and P2P measuring via the DST 360-X adapter. The Li-Ion 2,000 mAh battery of the Leica DISTO X6 gives up to 4,000 measurements or 8 hours, and the unit weighs 230 g and operates from -10 to 50 degrees C.
The Leica DISTO X6 is supplied by BAMR, South Africa's authorised distributor.

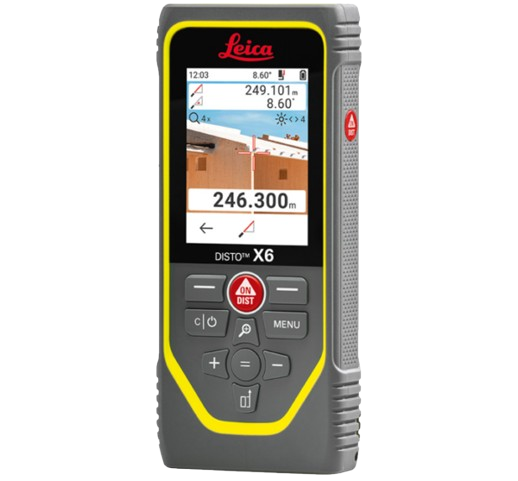

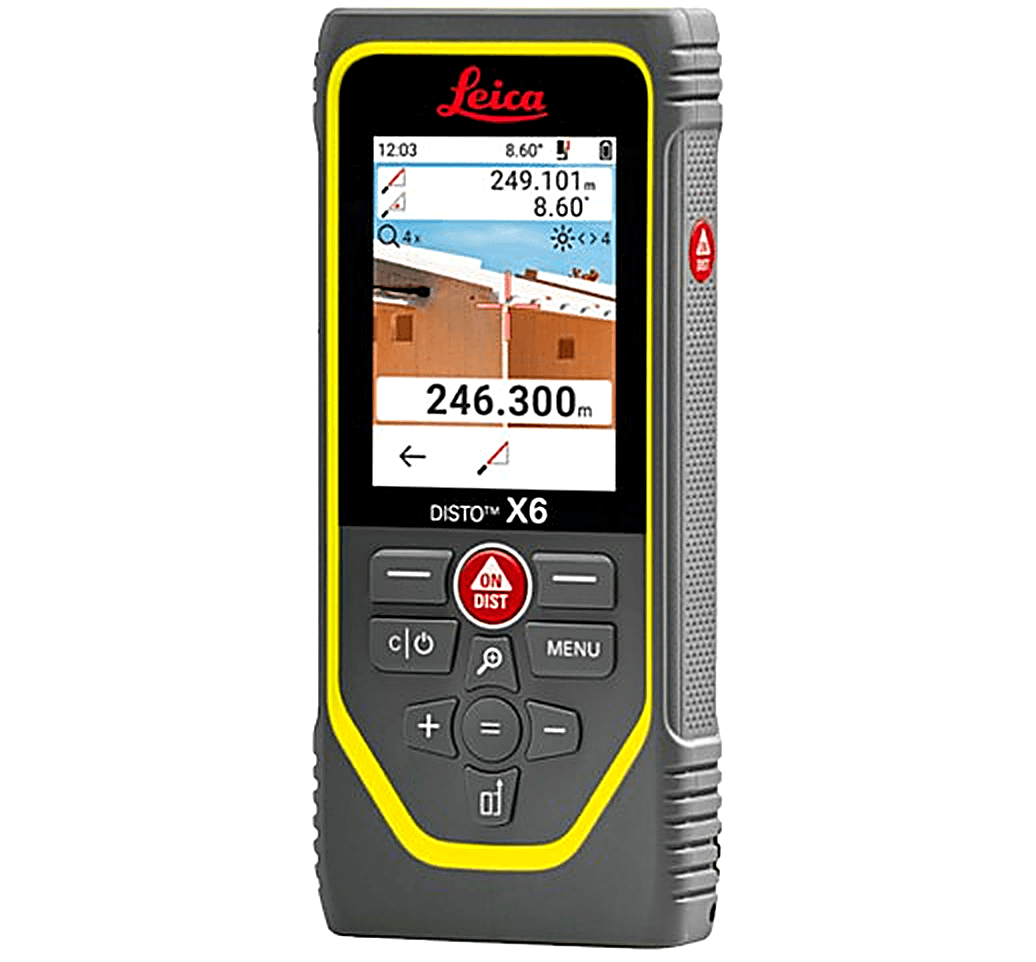

Leica Disto X6 Distance Meter
The Leica DISTO X6 is especially suitable for rough construction sites. With an IP65 rating, the extremely robust housing protects against dust and water jets and is drop tested from a height of 2m, underlining the reliability and durability of this laser measure.
- Range up to 250m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Fast Start-up time ready in under 1 second
- Bright and clear 7.11cm IPS touchscreen with scratch-proof lens
- DIST key on the side for even more intuitive measurements
- Robust according to IP65 and drop tested from 2 metres
- Trigger measurements with gestures
- Memory for 300 reports and 1000 captured 3D points
- Li-Ion rechargeable battery
- USB-C charging and download of data
Also available to buy online at GaugeIt, our online store.
When to use the Leica Disto X6
You need the longest reach in the rugged Disto line, measuring up to 250 metres in favourable conditions to a 1.0mm accuracy with 0.1mm resolution. The IPS touchscreen, Pointfinder zoom and on-board memory suit detailed survey and as-built work on large or messy sites.
- 1Reach and resolution togetherRange up to 250m with a smallest displayed unit of 0.1mm covers both long shots and fine detail, so one meter handles a wider span of jobs.
- 2Touchscreen and PointfinderThe 7.11cm IPS touchscreen with 4-fold zoom Pointfinder lets you see and aim at distant targets that the naked eye cannot pick out.
- 3Captures reports and 3D pointsMemory for 300 reports and 1,000 3D points with USB-C and Bluetooth transfer keeps a full record of the survey on the device and moves it cleanly to your software.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Leica Disto X6
You need the longest reach in the rugged Disto line, measuring up to 250 metres in favourable conditions to a 1.0mm accuracy with 0.1mm resolution. The IPS touchscreen, Pointfinder zoom and on-board memory suit detailed survey and as-built work on large or messy sites.
- 1Reach and resolution togetherRange up to 250m with a smallest displayed unit of 0.1mm covers both long shots and fine detail, so one meter handles a wider span of jobs.
- 2Touchscreen and PointfinderThe 7.11cm IPS touchscreen with 4-fold zoom Pointfinder lets you see and aim at distant targets that the naked eye cannot pick out.
- 3Captures reports and 3D pointsMemory for 300 reports and 1,000 3D points with USB-C and Bluetooth transfer keeps a full record of the survey on the device and moves it cleanly to your software.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Accuracy with favourable conditions
- 1.0 mm / 1/16 in
- Accuracy with unfavourable conditions
- 2.0 mm / 1/8 in
- Range with favourable conditions
- 0.05 - 250 m / 0.07 - 820 ft
- Range with unfavourable conditions
- 0.05 - 150 m / 0.07 - 500 ft
- Smallest unit displayed
- 0.1 mm / 1/32 in
- X-Range Power Technology
- Yes
- Laser
- class 2, 635 nm, <1 mW
- Digital Pointfinder with 4-fold zoom
- Yes
- Tilt measuring range
- 360°
- Tilt measuring tolerance
- ± 0.2°
- ø laser point | at distances
- 6 / 30 / 60 mm | 10 / 50 / 100 m
- Protection class
- IP65 (dust tight and jet water protected); drop tested from 2 m height
- Auto. laser switch off after
- 90 s
- Auto. power switch off after
- 180 s
- Memory
- up to 300 reports
- Bluetooth Smart
- Bluetooth v5.0
- Range of Bluetooth Smart
- up to 10 m
- Battery durability (Li-Ion 2 000 mAh)
- up to 4,000 measurements; up to 8 hours operation time
- Dimension (H x D x W)
- 154 x 68 x 25 mm
- Weight (with batteries)
- 230 g
- Temperature range storage | operation
- -25 to 70 °C | -10 to 50 °C
Downloads
Videos
Videos
Frequently asked questions
What accuracy can I expect from the DISTO X6?
Accuracy is 1.0 mm under favourable conditions. In unfavourable conditions it is 2.0 mm. The smallest unit the display shows is 0.1 mm.
Is the DISTO X6 tough enough for a rough construction site?
Yes. It has an IP65 rating (dust tight and protected against water jets) and is drop tested from a height of 2 m, which is the level of durability the X6 is built for on rough sites.
What is the maximum measuring range of the X6?
Under favourable conditions the range is 0.05 to 250 m. Under unfavourable conditions it drops to 0.05 to 150 m.
Can the X6 measure tilt or slope, not just distance?
Yes. It has a 360 degree tilt measuring range with a tolerance of plus or minus 0.2 degrees, so inclines and slopes on site can be measured directly.
How do I get measurement data off the X6 and onto another device?
The X6 has Bluetooth Smart v5.0 with a range of up to 10 m for transferring readings. It also stores up to 300 reports in its own memory.
How long will the X6 run between charges?
The Li-Ion 2,000 mAh battery supports up to 4,000 measurements or up to 8 hours of operation. The laser switches off automatically after 90 seconds and the unit powers off after 180 seconds of inactivity to help preserve battery life.
