BEVS Automatic Panel Sprayer are highly automated spraying devices designed to quickly produce uniform and consistent coatings, ensuring reliable testing and evaluation results. Widely used in industries such as automotive, aerospace, 3C electronics, furniture, appliances, crafts, and other coating application fields.
High Efficiency: The BEVS 1829 EXP Automatic Panel Sprayer can prepare multiple test panels simultaneously, avoiding the time loss and low efficiency of manual spraying.
Superior Coating Quality: With precise spray-path control, the BEVS 1829 EXP eliminates the deviations and uncertainties common in manual spraying and ensures excellent repeatability.
The BEVS 1829 EXP is equipped with a 10-inch high-definition touchscreen for simple operation. It supports one-button start for fully automatic spraying, and one-button rapid spray-gun cleaning for quick material or gun changes. As an advanced, intelligently programmed spray-coating solution, it is the ideal choice for laboratory coating preparation in the coatings and materials industry.
Working principle: The BEVS 1829 EXP Automatic Panel Sprayer delivers coating material through a pressurised feeding unit to the spray gun, where it is atomised into fine droplets. The atomised coating is then deposited onto the substrate through programmable motion control. The machine integrates a feeding system, atomisation spray gun, control module, and motion mechanism, enabling automatic and repeatable spray application that replaces manual spraying.

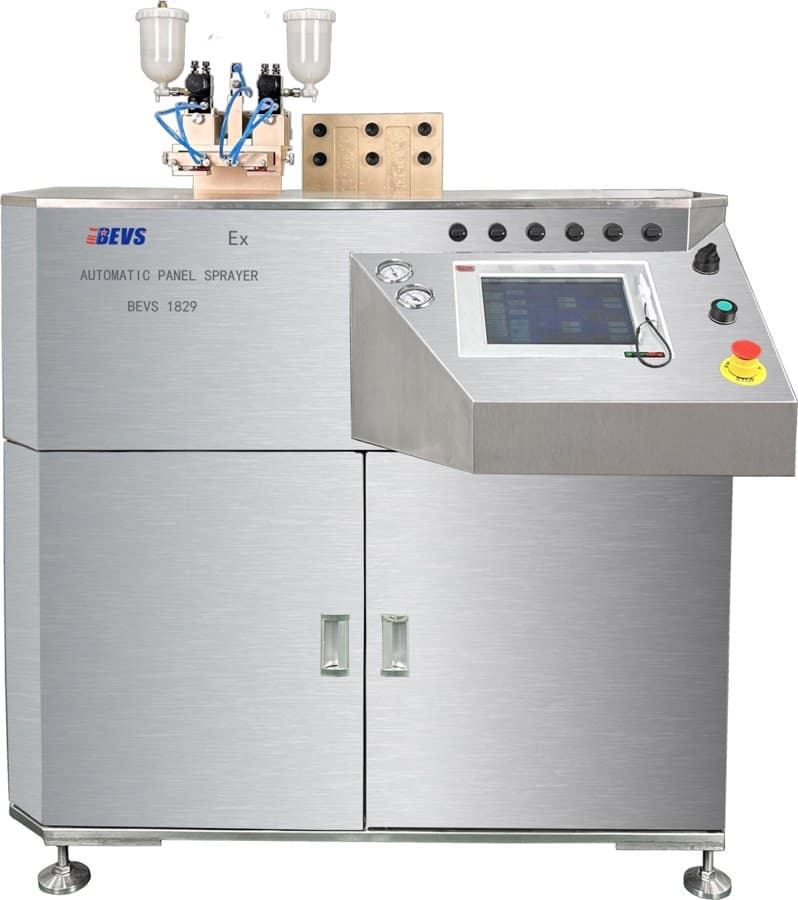

BEVS 1829 EXP Automatic Panel Sprayer
An explosion-proof automatic spraying system that prepares uniform, repeatable coatings on laboratory test panels, replacing manual spraying. It sprays up to six standard 100 x 150 mm panels in one run, with water-based or oil-based coatings, under programmable control from a 10-inch touchscreen.
- Gun distance. The distance between the spray gun and the sample panel can be set according to actual demand.
- Stroke. The appropriate spray stroke can be set according to the size/quantity of the sample panel.
- Spraying speed. Different spraying speeds can be set according to different types of paint.
- Programming function. Spraying processes for each paint type can be programmed and saved. Capable of spraying in two directions simultaneously.
- Numbers of sprays. Spraying times can be set according to the coating process.
- Flash-dry function. Accelerates flash-drying time using air blowing.
- Spray gun type. Suitable for automatic or manual spray guns, compatible with single-gun or dual-gun operation (can spray two different types of coatings or use them alternately as needed).
- Spraying air pressure. Different air pressure can be set according to the requirements of each spraying process.
- Storage function. Can be edited and saved for different models of spraying process, easy to check the spraying process of the same batch/model.
When to choose the BEVS 1829 EXP Automatic Panel Sprayer
The BEVS 1829 EXP is the explosion-proof automatic panel sprayer, for laboratories that spray solvent-borne or multi-coat systems onto test panels and need a consistent, programmed process.
- 1When solvent-borne coatings are sprayed in a hazardous areaThe BEVS 1829 EXP carries an explosion-proof rating for flammable gas and dust atmospheres (Exd IIB T4Gb / ExD A21 T80°C, IP66) and handles oil-based as well as water-based coatings. Choose it over the BEVS 1826 when the spraying room is classified as hazardous or flammable solvents are being sprayed.
- 2Multi-coat systems, such as a basecoat under a clearcoatIt supports cross wet-on-wet spraying, a set number of spray passes, and a flash-dry function that blows air between coats. The two guns can spray two different coatings or alternate between them, so a complete coating system can be built on the panel in one programmed run.
- 3When a test method calls for uniform films on test panelsASTM D823 sets out practices for producing films of uniform thickness of paint and coatings on test panels, and GB/T 1727 covers general preparation of paint films. The BEVS 1829 EXP is built to both, so the panels it prepares are a sound base for later tests such as adhesion, hardness, gloss or weathering.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to choose the BEVS 1829 EXP Automatic Panel Sprayer
The BEVS 1829 EXP is the explosion-proof automatic panel sprayer, for laboratories that spray solvent-borne or multi-coat systems onto test panels and need a consistent, programmed process.
- 1When solvent-borne coatings are sprayed in a hazardous areaThe BEVS 1829 EXP carries an explosion-proof rating for flammable gas and dust atmospheres (Exd IIB T4Gb / ExD A21 T80°C, IP66) and handles oil-based as well as water-based coatings. Choose it over the BEVS 1826 when the spraying room is classified as hazardous or flammable solvents are being sprayed.
- 2Multi-coat systems, such as a basecoat under a clearcoatIt supports cross wet-on-wet spraying, a set number of spray passes, and a flash-dry function that blows air between coats. The two guns can spray two different coatings or alternate between them, so a complete coating system can be built on the panel in one programmed run.
- 3When a test method calls for uniform films on test panelsASTM D823 sets out practices for producing films of uniform thickness of paint and coatings on test panels, and GB/T 1727 covers general preparation of paint films. The BEVS 1829 EXP is built to both, so the panels it prepares are a sound base for later tests such as adhesion, hardness, gloss or weathering.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Technical parameters
- Explosion-proof
- Exd IIB T4Gb / ExD A21 T80°C / IP66
- Coating type
- Water-based or oil-based coating
- Coating viscosity range
- 1 to 20000 cps
- Gun distance
- 170 to 250 mm (manual adjustment)
- Spraying speed
- 20 to 500 mm/s
- Atomising air pressure
- 0 to 0.7 MPa
- System air pressure
- 0.7 MPa
- Feed pressure
- 0 to 0.7 MPa
- Spraying area
- Max 300 x 300 mm, or 6 standard panels of 100 x 150 mm
- Spray gun type
- Automatic spray gun or manual spray gun
- Spray gun structure
- Dual-gun combination, disposable no-clean pot unit
- Spray gun clamp
- 2 sets according to spray gun model
- Panel holder
- Optional multi-purpose mesh, vacuum, magnetic, clamp or customised panel holder
- Dimensions (L x W x H)
- 1150 x 1170 x 1760 mm (including extension rod)
- Power supply
- 220 V / 1.5 kW (two-phase four-wire)
Main functions
- Automatic control
- Spray speed, spray dimensions and spray distance
- Spraying method
- Supports cross wet-on-wet spraying
- Cleaning
- Spray-gun cleaning control
- Custom spray mode
- Input of spray movement speed, gun distance, atomisation pressure, number of sprays, start and end spraying positions, etc.; parameters can be saved for later recall
- Real-time display
- Current parameters, number of sprays completed, remaining sprays, spraying air pressure, estimated remaining time, etc.
- Control interface
- 10-inch touchscreen
Installation requirements
- Site
- Ambient temperature 10°C to 35°C, relative humidity 30 to 75%, floor space 1200 mm (L) x 1300 mm (W) x 1800 mm (H)
- Compressed air
- Oil-free and water-free compressed air (under 0.7 MPa), flow rate greater than 1000 L/min, ensuring stable air pressure; if stable air pressure cannot be guaranteed, an additional air storage cylinder is required
- Water curtain cabinet
- Used to collect excess paint generated during the spraying process
- Discharge
- Wastewater and exhaust gas discharge pipeline network
What's in the kit
What's in the kit
Conforms to
Conforms to
Options
Options
| Panel holder: multi-purpose mesh, vacuum, magnetic, clamp or customised panel holder |
| Water curtain cabinet: dry water curtain cabinet, 380 V three-phase five-wire, 1.5 kW 50 Hz inverter (adjustable fan speed), sheet metal with powder coating or 304 stainless steel |
| Activated carbon waste gas treatment device |
| Compressed air (oil-free and water-free), oil-water separator, air storage tank |
Downloads
Frequently asked questions
What does the BEVS 1829 EXP Automatic Panel Sprayer do?
It sprays uniform, repeatable coatings onto test panels in the laboratory, replacing manual spraying. Coating is fed under pressure to the spray gun, atomised, and deposited on the panel under programmable motion control. It is explosion-proof.
What is the explosion-proof rating of the BEVS 1829 EXP?
The BEVS 1829 EXP is rated Exd IIB T4Gb / ExD A21 T80°C, with IP66 protection.
How many panels can the BEVS 1829 EXP spray at once, and what coatings can it use?
The maximum spraying area is 300 x 300 mm, which takes six standard 100 x 150 mm panels. It sprays water-based or oil-based coatings with a viscosity of 1 to 20000 cps.
Which standards does the BEVS 1829 EXP meet?
ASTM D823/A, standard practices for producing films of uniform thickness of paint, coatings and related products on test panels, and GB/T 1727-92, general preparation of paint film.
What does the BEVS 1829 EXP need to be installed?
An ambient temperature of 10 to 35°C and 30 to 75% relative humidity, floor space of 1200 x 1300 x 1800 mm, oil-free and water-free compressed air under 0.7 MPa at more than 1000 L/min, a water curtain cabinet to collect excess paint, a wastewater and exhaust gas discharge pipeline network, and a 220 V, 1.5 kW power supply.
What is included with the BEVS 1829 EXP, and what options are there?
It is supplied with one panel holder. Options are other panel holders (multi-purpose mesh, vacuum, magnetic, clamp or customised), a dry water curtain cabinet, an activated carbon waste gas treatment device, and compressed air equipment (oil-water separator and air storage tank).
