The Elcometer 3505 Cube Film Applicator is a precision applicator used to lay down a controlled-thickness film stripe of paint or coating onto a test substrate for laboratory and quality control work. Applying coatings at a known, repeatable wet film thickness is essential when assessing properties such as drying time, opacity, levelling and adhesion, because results are only comparable if the film is laid down to the same dimensions each time.
Manufactured from hardened stainless steel, the applicator produces an accurate 12mm wide film stripe. Two models are available: the Elcometer 3505/1 (K0003505M001) applies a single stripe and has a total width of 26mm, while the Elcometer 3505/2 (K0003505M202) applies five stripes and has a total width of 146mm. Both cover a film thickness range of 30 to 1000μm. Each applicator is supplied with a set of nineteen thickness gauges from 30 to 1000μm to set and adjust the applied film thickness.
The Elcometer 3505 Cube Film Applicators can be used in accordance with ASTM D 823-E, which covers methods for producing films of uniform thickness, and ASTM D 1640-03, which covers drying, curing and film formation of coatings. They are used in coatings laboratories and quality control by formulators and inspectors preparing test panels. The Elcometer 3505 Cube Film Applicator is supplied by BAMR, South Africa's authorised distributor.

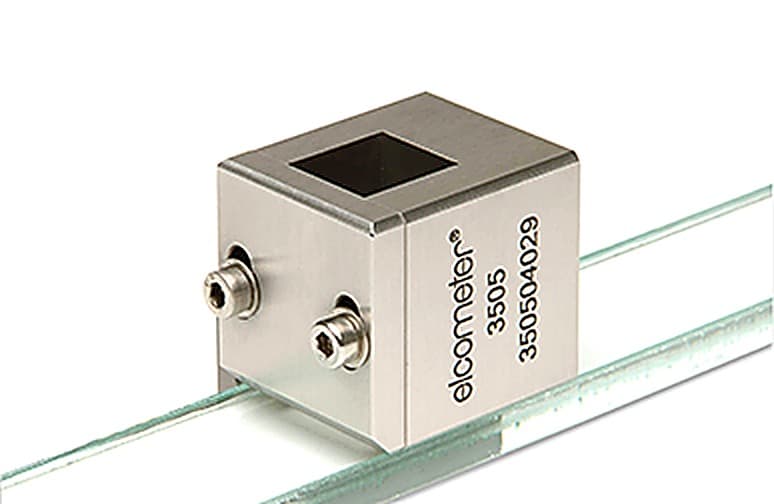

Elcometer 3505 Cube Film Applicator
The Elcometer 3505 Cube Film Applicator is manufactured from hardened stainless steel, this allows you to apply a single 12mm film stripe accurately.
- Manufactured from hardened stainless steel
- Applies a single 12mm film stripe accurately
- Supplied with a set of nineteen thickness gauges from 30-1000μm to adjust the film thickness
When to use the Elcometer 3505 Cube Film Applicator
Reach for this applicator in a coatings lab when you need to draw a single, narrow 12mm film stripe of a test coating at a controlled thickness. It suits sample preparation where one consistent stripe at a chosen thickness is what the test method calls for.
- 1Single accurate 12mm stripeIt applies one 12mm film stripe accurately, which keeps a sample narrow and repeatable for further testing.
- 2Adjustable across a wide rangeThe supplied set of nineteen thickness gauges from 30 to 1000 microns lets you set the film thickness the method requires without changing tools.
- 3Hardened stainless steel edgeThe hardened stainless steel construction holds its edge over repeated draw downs, so the applied thickness stays consistent across samples.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 3505 Cube Film Applicator
Reach for this applicator in a coatings lab when you need to draw a single, narrow 12mm film stripe of a test coating at a controlled thickness. It suits sample preparation where one consistent stripe at a chosen thickness is what the test method calls for.
- 1Single accurate 12mm stripeIt applies one 12mm film stripe accurately, which keeps a sample narrow and repeatable for further testing.
- 2Adjustable across a wide rangeThe supplied set of nineteen thickness gauges from 30 to 1000 microns lets you set the film thickness the method requires without changing tools.
- 3Hardened stainless steel edgeThe hardened stainless steel construction holds its edge over repeated draw downs, so the applied thickness stays consistent across samples.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
| Part Number | Model | Film Thickness – µm | Film Width* – mm | Number of Stripes |
|---|---|---|---|---|
| K0003505M001 | Elcometer 3505/1 Cube Film Applicators | 30-1000 | 12 | 1 |
| K0003505M202 | Elcometer 3505/2 Cube Film Applicators | 30-1000 | 12 | 5 |
What's in the kit
What's in the kit
Standards
Standards
Accessories
Accessories
| KT003600P001 | 19 Metric Thickness Gauges for Calibration (30-40-50-60-70-80-90-100-150-200-250-300-400-500-600-700-800-900-1000µm) |
Frequently asked questions
What is the difference between the Elcometer 3505/1 and 3505/2 models?
The 3505/1 applies a single 12mm film stripe per application, while the 3505/2 applies five 12mm stripes simultaneously. Both handle film thicknesses from 30 to 1000 micrometres.
What film thickness range does the Elcometer 3505 handle?
Both the 3505/1 and 3505/2 apply films from 30 to 1000 micrometres. This range covers most liquid coating applications.
Is the 12mm film width adjustable on the Elcometer 3505?
No. The applicator is designed to apply a fixed 12mm film stripe. The width is not adjustable.
Why is the Elcometer 3505 manufactured from hardened stainless steel?
Hardened stainless steel construction ensures durability and enables the applicator to deliver accurate, consistent film stripes across repeated test applications.
Can I apply multiple test stripes with the Elcometer 3505/2 in a single pass?
Yes. The 3505/2 applies five 12mm stripes in one application, allowing you to test multiple coating samples simultaneously.
