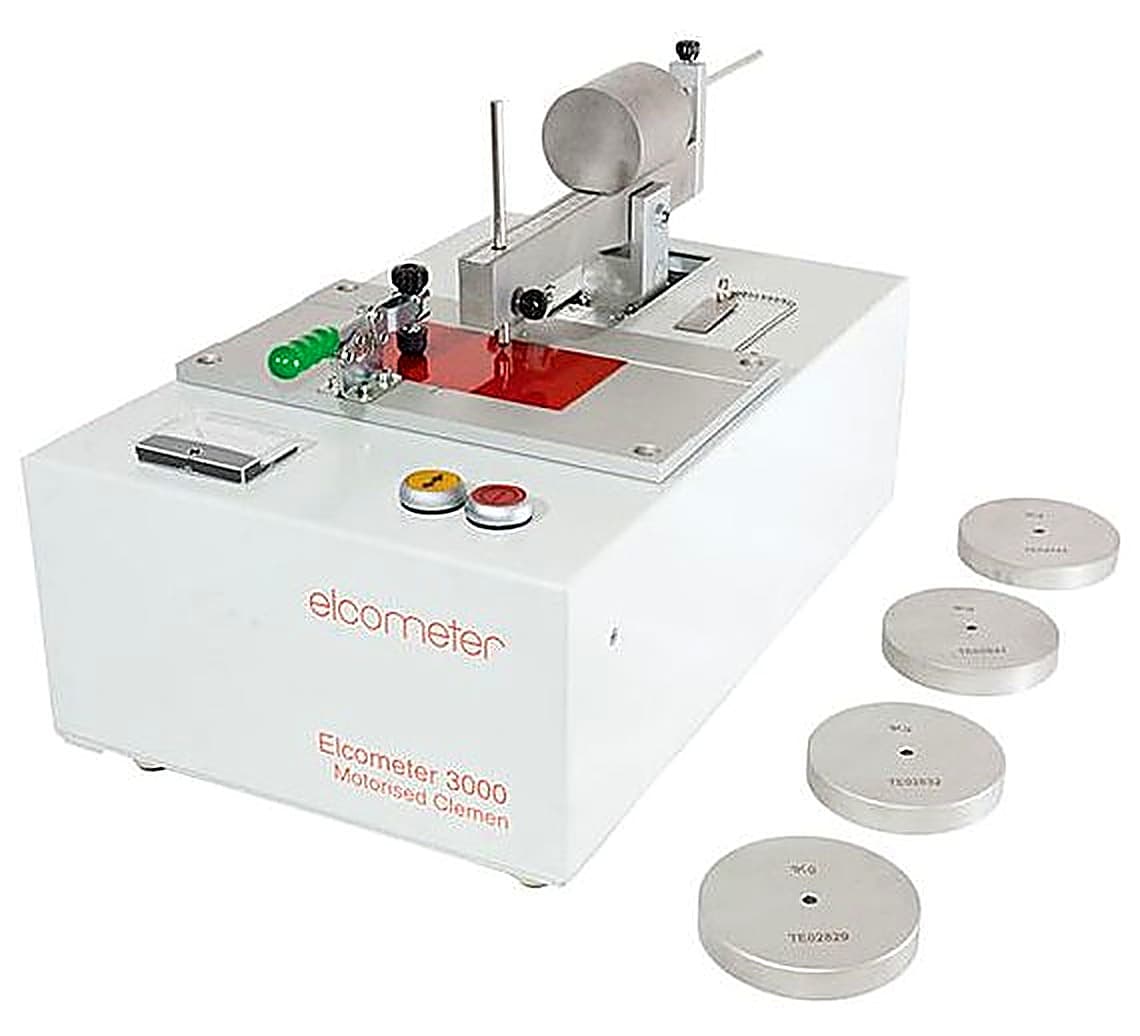

The Elcometer 3000 Motorised Clemen Unit is a robust and accurate instrument for evaluating the resistance to scratching of a coated surface. The sample can be metal, wood, glass, plastic, or other hard materials. A tool is fitted with a hemispherical tip of 1mm diameter (standard), lowered gradually on to the sample surface which is then pulled linearly 60mm. As the sample is pulled the tool lowers automatically on to the sample, moves along the sample, and gently rises at the end of the stroke.

To ensure consistent, repeatable and reproduceable tests, the Motorised Clemen Unit automatically brings the tool gently in contact with the sample, moves across the coating and then lifts it with the automatic Start/Stop function. Depending on the load applied, varying degrees of penetration of the tool into the coating are observed – from a superficial trace to total destruction. If the coating is completely removed during the test, the contact of the tool with the metallic substrate is indicated by a lamp and voltmeter indicator.

The Elcometer 3000 Motorised Clemen Unit can be used in accordance with:

• AS/NZS 1580.403.1
• BS 3900-E2*
• DIN 53799*
• ECCA T12*
• EN 13523-12
• ISO 1518-1:2011
• JIS K 5600-5-5

* Standards not in bold have been superseded but are still recognised in some industries

ο Optional Calibration Certificate available
* Using the optional Adjustment Kit

• Elcometer 3000 Motorised Clemen Unit
• 1kg weight (x4)
• Tungsten carbide ball tool
• 1mm mains leads (UK, EUR and US)
• Operating instructions

Elcometer 3000 Motorised Clemen Unit Data Sheet

The Elcometer 3000 Motorised Clemen Unit can be used in accordance with:

• AS/NZS 1580.403.1
• BS 3900-E2*
• DIN 53799*
• ECCA T12*
• EN 13523-12
• ISO 1518-1:2011
• JIS K 5600-5-5

* Standards not in bold have been superseded but are still recognised in some industries
