The BEVS 1132 Intelligent Cone and Plate Viscometer is a highly accurate instrument for studying the rheological properties of fluid products. The BEVS 1132 is a fully automatic viscometer with adjustable shear rate and controllable temperature, using a high-precision DC motor and an automatic lifting platform to make viscosity measurement simpler and more accurate.
Shear rate on the BEVS 1132 Intelligent Cone and Plate Viscometer is tightly controlled at 10,000 s⁻¹ (BS standard) and 12,000 s⁻¹ (ASTM standard), or can be freely set across a 333-20000 s⁻¹ range.
The temperature control plate is precisely controlled from +5°C to 75°C, producing both temperature and shear rate/viscosity curves. Its portable design suits Newtonian and non-Newtonian testing across food, cosmetics, pharmaceuticals, coatings, inks, mining, construction, petrochemicals and polymers.

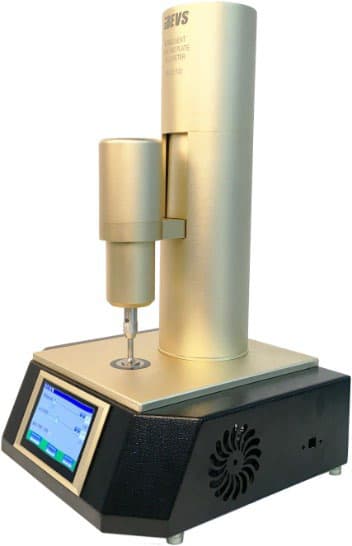

BEVS 1132 Intelligent Cone and Plate Viscometer
The BEVS 1132 Intelligent Cone and Plate Viscometer is a fully automatic instrument for studying the rheological properties of fluid products, with adjustable shear rate and controllable temperature. It uses a high-precision DC motor and an automatic lifting platform, and suits Newtonian and non-Newtonian testing across food, cosmetics, pharmaceuticals, coatings, inks, mining, construction, petrochemicals and polymers.
- Automatic lifting
- Automatic measurement
- Compatible with various speeds
- High-definition touch-screen display
- Display of temperature and viscosity curve
- Display of shear rate
- Precise temperature control
- Output of data and report
Specifications
- Rotational speed
- 100 - 1500 rpm
- Shear rate
- 333 - 20000 s⁻¹
- Controllable temperature range
- +5 - 75°C
- Cone
- 5 types
- Cone 1 measuring range
- 0 - 5P / 0 - 500 cP
- Cone 2 measuring range
- 0 - 10P / 0 - 1000 cP
- Cone 3 measuring range
- 0.1 - 20P / 10 - 2000 cP
- Cone 4 measuring range
- 0.1 - 50P / 10 - 5000 cP
- Cone 5 measuring range
- 0.1 - 100P / 10 - 10000 cP
- Resolution
- 1 cP
- Measurement accuracy
- ±1% (full scale)
- Measurement repeatability
- ±0.5% (full scale)
- Temperature resolution
- 0.1°C
- Temperature accuracy
- ±0.3°C
- Input voltage
- 100 - 240 VAC / 50 - 60 Hz
Specifications
Specifications
- Rotational speed
- 100 - 1500 rpm
- Shear rate
- 333 - 20000 s⁻¹
- Controllable temperature range
- +5 - 75°C
- Cone
- 5 types
- Cone 1 measuring range
- 0 - 5P / 0 - 500 cP
- Cone 2 measuring range
- 0 - 10P / 0 - 1000 cP
- Cone 3 measuring range
- 0.1 - 20P / 10 - 2000 cP
- Cone 4 measuring range
- 0.1 - 50P / 10 - 5000 cP
- Cone 5 measuring range
- 0.1 - 100P / 10 - 10000 cP
- Resolution
- 1 cP
- Measurement accuracy
- ±1% (full scale)
- Measurement repeatability
- ±0.5% (full scale)
- Temperature resolution
- 0.1°C
- Temperature accuracy
- ±0.3°C
- Input voltage
- 100 - 240 VAC / 50 - 60 Hz
Conforms to
Conforms to
Part Numbers
Part Numbers
| Description | Part Numbers |
|---|---|
| Models | BEVS 1132 - Intelligent Cone and Plate Viscometer (without cone)BEVS 1132/5 - Cone 1 with 5 oils (0-5P)BEVS 1132/10 - Cone 2 with 5 oils (0-10P)BEVS 1132/20 - Cone 3 with 5 oils (0.1-20P)BEVS 1132/50 - Cone 4 with 5 oils (0.1-50P)BEVS 1132/100 - Cone 5 with 5 oils (0.1-100P) |
