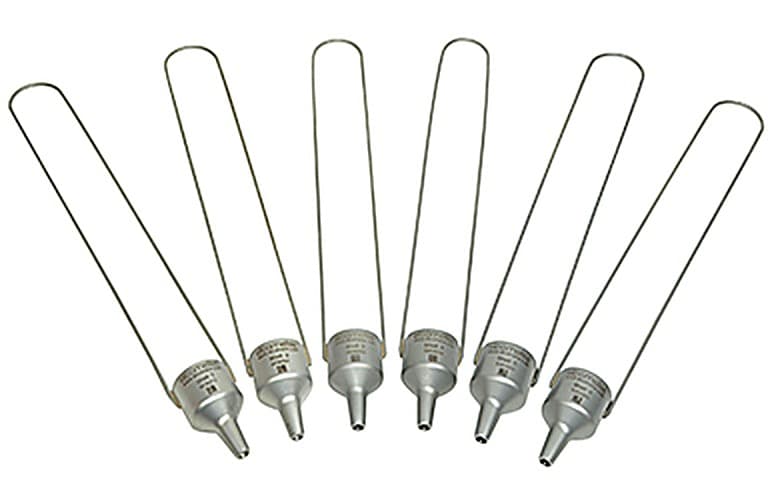

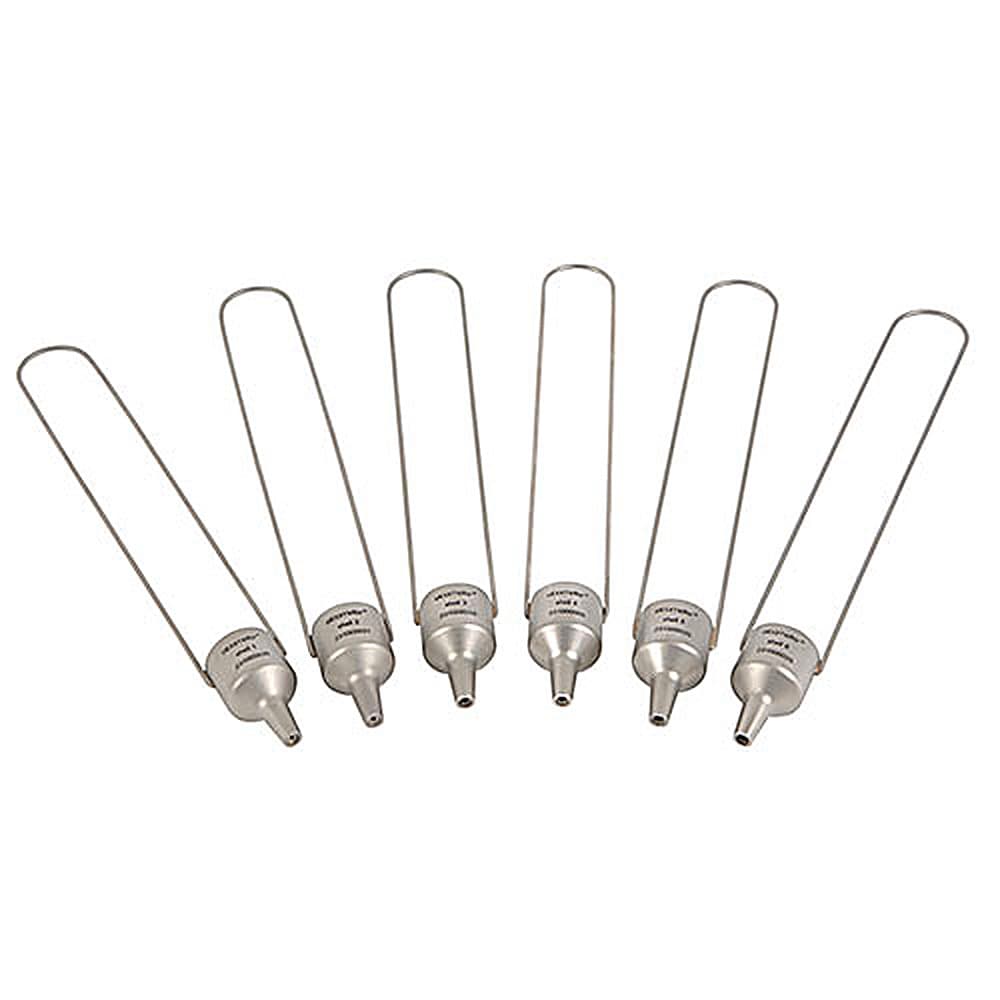

Elcometer 2310 Shell Viscosity Cups
Product Description
| The Elcometer 2310 Shell Viscosity Dip Cups are stainless steel cups for quick measurements on-site or during production. These cups are often used in the printing or ink industry.Simply dip the cup into the product to be measured, lift it out and measure how long it takes for the contents to empty through the orifice.The measured kinematic viscosity is generally expressed in seconds (s) flow time, which can be converted into Centistokes (cSt).There are six different orifice sizes available, for measurements between 2 and 1300cSt.
The Elcometer 2310 Shell Viscosity Dip Cups can be used in accordance with:
|
Specifications
Elcometer 2310 Shell Viscosity Cups – Specifications
| Part Number | Description | Cup Number | Orifice Diameter | Range (cSt)(i) |
| K0002310M001 | Elcometer 2310/1 Shell Dip Cup | 1 | 1.8mm | 2-20 |
| K0002310M002 | Elcometer 2310/2 Shell Dip Cup | 2 | 2.4mm | 10-50 |
| K0002310M003 | Elcometer 2310/3 Shell Dip Cup | 3 | 3.1mm | 30-120 |
| K0002310M004 | Elcometer 2310/4 Shell Dip Cup | 4 | 3.8mm | 70-270 |
| K0002310M005 | Elcometer 2310/5 Shell Dip Cup | 5 | 4.6mm | 125-520 |
| K0002310M006 | Elcometer 2310/6 Shell Dip Cup | 6 | 5.8mm | 320-1300 |
| K0002310M001C | Elcometer 2310/1 with calibration certificate | 1 (e) | 1.8mm | 2-20 |
| K0002310M002C | Elcometer 2310/2 with calibration certificate | 2 (e) | 2.4mm | 10-50 |
| K0002310M003C | Elcometer 2310/3 with calibration certificate | 3 (e) | 3.1mm | 30-120 |
| K0002310M004C | Elcometer 2310/4 with calibration certificate | 4 (e) | 3.8mm | 70-270 |
| K0002310M005C | Elcometer 2310/5 with calibration certificate | 5 (e) | 4.6mm | 125-520 |
| K0002310M006C | Elcometer 2310/6 with calibration certificate | 6 (e) | 5.8mm | 320-1300 |
| Certificate available | Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability. | |||
(i) For information only
(e) Efflux Time Certificate
Data Sheet
Elcometer 2310 Shell Viscosity Cups – Data Sheet
Elcometer 2310 Shell Viscosity Cups Data Sheet
Standards
Elcometer 2310 Shell Viscosity Cups – Standards
The Elcometer 2310 Shell Viscosity Dip Cups can be used in accordance with:
- ASTM D 4212
Accessories
Elcometer 2310 Shell Viscosity Cups – Accessories
 |
K0007300M201 | Elcometer 7300 High precision stopwatch. |
| Measuring intervals: 1/100 second for 30 minutes and 1 second for 24 hours. | ||
| Time calendar display, 12/24 hour mode. | ||
 |
KT002400N003 | Elcometer 2400 Conversion Disc allowing viscosity (cSt) and flow times of different cups to be compared. |
| Front: No.4 cups according to AFNOR, BS, NF, ASTM, DIN, Zahn 2 | ||
| Elcometer 2400 Conversion Disc Allowing viscosity (cSt) and flow times of different cups to be calculated. Front: No.4 cups according to AFNOR, BS, NF, ASTM, DIN, Zahn 2 Back: No.3-4-5-6 cups according to ISO and Zahn 3 |
||
 |
G212—-1A | Elcometer 212 Digital Pocket Thermometer with Liquid Probe |
| G213—-2 | Elcometer 213/2 Digital Thermometer (°C/°F) | |
| T1164441 | Spirit Thermometer in °C | |
| T9996390 | Elcometer 213/2 Liquid Probe |
