The Elcometer 4270 Sag Tester is a stainless steel applicator used to establish a coating's resistance to sag under gravity. When a wet coating is applied too thickly or has poor sag resistance, it runs and forms uneven stripes or curtains as it dries on a vertical surface, spoiling the finish; the Elcometer 4270 Sag Tester quantifies the film thickness at which this begins to happen so a formulation can be assessed and adjusted.
The straight scraper of the Elcometer 4270 Sag Tester has 11 notches of increasing clearance. The applicator is drawn down across a contrast chart to lay a series of parallel stripes of increasing thickness, and the chart is immediately set vertical with the thinnest film at the top. As the coating sags, the thicker stripes flow into one another, and the thickness at which the stripes join indicates the tendency to sag. Four models of the Elcometer 4270 Sag Tester cover different thickness ranges: the 4270/1 covers 75 to 300 microns, the 4270/2 covers 25 to 150 microns, the 4270/3 covers 350 to 1500 microns and the 4270/4 covers 100 to 600 microns (part numbers K0004270M001, M002, M203 and M204), each with defined notch depths and supplied with a certificate.
The Elcometer 4270 Sag Tester can be used in accordance with ASTM D 4400 and FMTS 141 4494.1, the test methods for sag resistance of coatings. Used in paint and coatings laboratories, product development and quality control, the Elcometer 4270 Sag Tester is supplied by BAMR, South Africa's authorised Elcometer distributor.

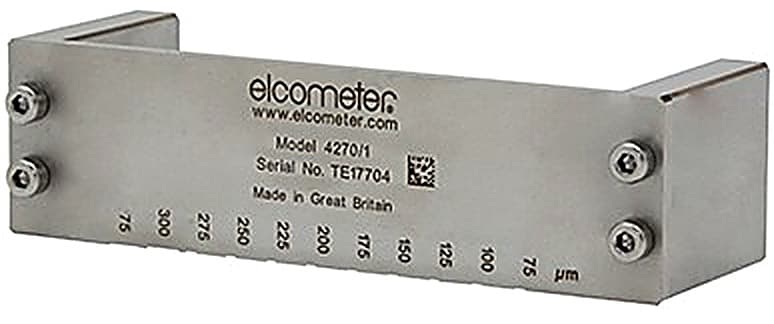

Elcometer 4270 Sag Tester
The Elcometer 4270 Sag Tester is used to establish a coating's resistance to sag due to gravity. Made from stainless steel, the straight scraper has 11 notches of increasing clearance. A contrast chart is immediately placed in a vertical position with the thinnest film at the top. The thickness at which the stripes join indicates the tendency to sag.
When to use the Elcometer 4270 Sag Tester
Paint formulators and lab staff use the 4270 to find out how much a wet coating will sag under gravity before it sets. It draws down a graded set of stripes and shows the thickness at which they start to run together.
- 1Reads sag resistance directlyThe 11 notches of increasing clearance applied to a vertical chart show the exact film thickness at which stripes join, pinpointing the sag limit of a formulation.
- 2Durable stainless scraperThe straight scraper is made from stainless steel, keeping the notch clearances stable for repeatable results over time.
- 3Supports method complianceIt conforms to ASTM D 4400 and FMTS 141 4494.1, so results can be reported against recognised test methods.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 4270 Sag Tester
Paint formulators and lab staff use the 4270 to find out how much a wet coating will sag under gravity before it sets. It draws down a graded set of stripes and shows the thickness at which they start to run together.
- 1Reads sag resistance directlyThe 11 notches of increasing clearance applied to a vertical chart show the exact film thickness at which stripes join, pinpointing the sag limit of a formulation.
- 2Durable stainless scraperThe straight scraper is made from stainless steel, keeping the notch clearances stable for repeatable results over time.
- 3Supports method complianceIt conforms to ASTM D 4400 and FMTS 141 4494.1, so results can be reported against recognised test methods.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
ο = certificate available
| Part Number | Description* | Range µm | Notch Depth µm | Certificate |
|---|---|---|---|---|
| K0004270M001 | Elcometer 4270/1 Sag Tester | 75 – 300 | 75, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300 | ο |
| K0004270M002 | Elcometer 4270/2 Sag Tester | 25 – 150 | 25, 37, 50, 62, 75, 87, 100, 112, 125, 137, 150 | ο |
| K0004270M203 | Elcometer 4270/3 Sag Tester | 350 – 1500 | 350, 400, 450, 500, 620, 750, 875, 1000, 1125, 1250, 1500 | ο |
| K0004270M204 | Elcometer 4270/4 Sag Tester | 100 – 600 | 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 | ο |
- Certificate
- Yes
Packing List
Packing List
Standards
Standards
Downloads
Videos
Videos
Frequently asked questions
Which Elcometer 4270 model matches my coating thickness range?
Match the model to the film thickness you need to check: the 4270/2 (K0004270M002) covers 25 to 150 micrometres, the 4270/1 (K0004270M001) covers 75 to 300 micrometres, the 4270/4 (K0004270M204) covers 100 to 600 micrometres, and the 4270/3 (K0004270M203) covers 350 to 1500 micrometres.
How does the Elcometer 4270 show whether a coating will sag?
The stainless steel scraper is drawn through the wet coating, and its 11 notches of increasing clearance leave stripes of the film at different thicknesses. A contrast chart is then placed in a vertical position with the thinnest film at the top, and the thickness at which the stripes join together shows the point where the coating starts to sag.
What is the Elcometer 4270 scraper made from?
The straight scraper is made from stainless steel and carries 11 notches of increasing clearance, which is what creates the stepped stripes of coating used to read sag resistance.
Which Elcometer 4270 model do I need for the thickest coatings?
The Elcometer 4270/3 (K0004270M203) covers the widest range in the set, 350 to 1500 micrometres, with notch depths stepping from 350 up to 1500 micrometres.
Is the Elcometer 4270 supplied with a calibration certificate?
Yes. A certificate is supplied with the Elcometer 4270, covering all models in the range.
