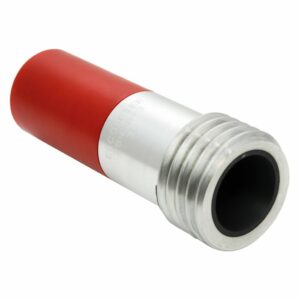

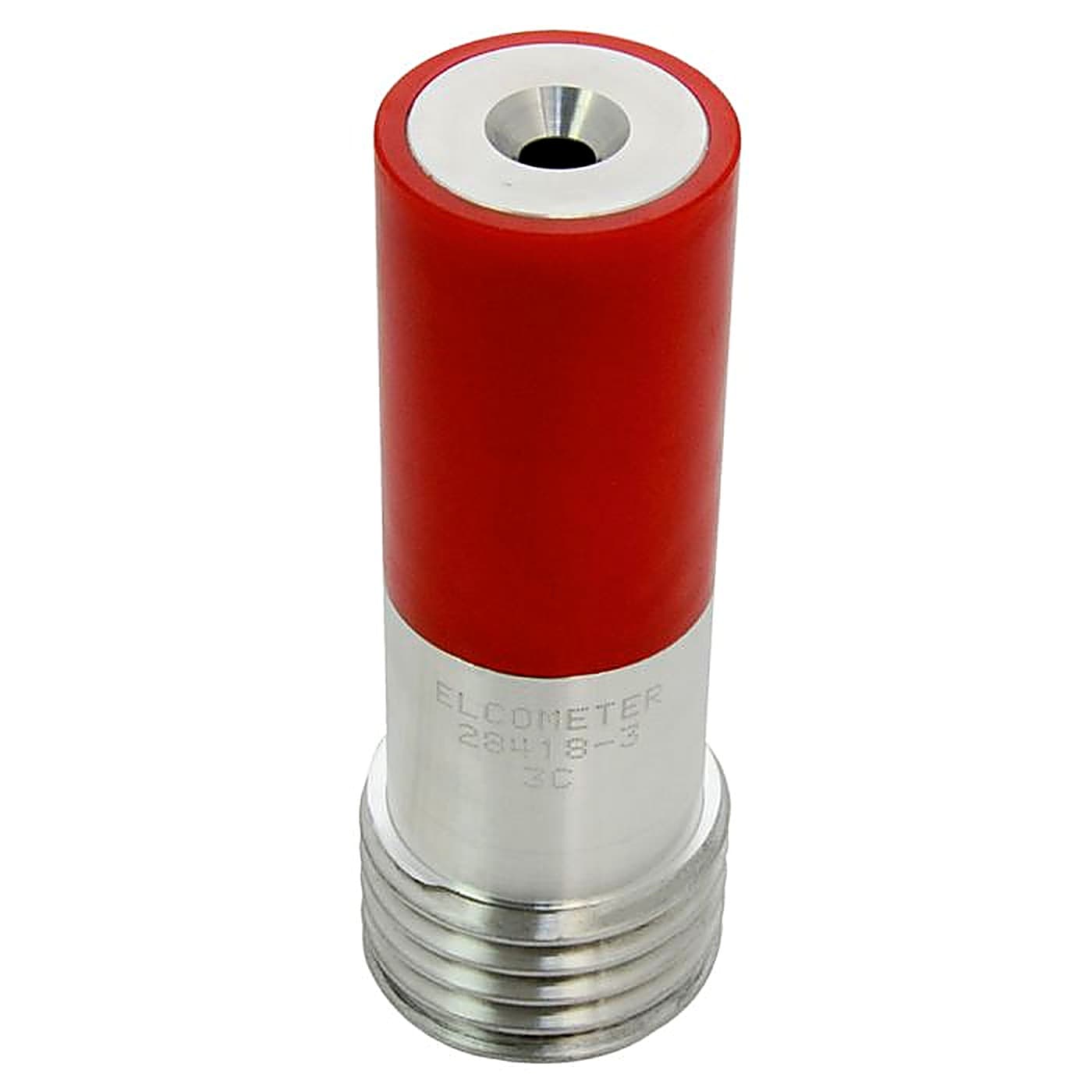

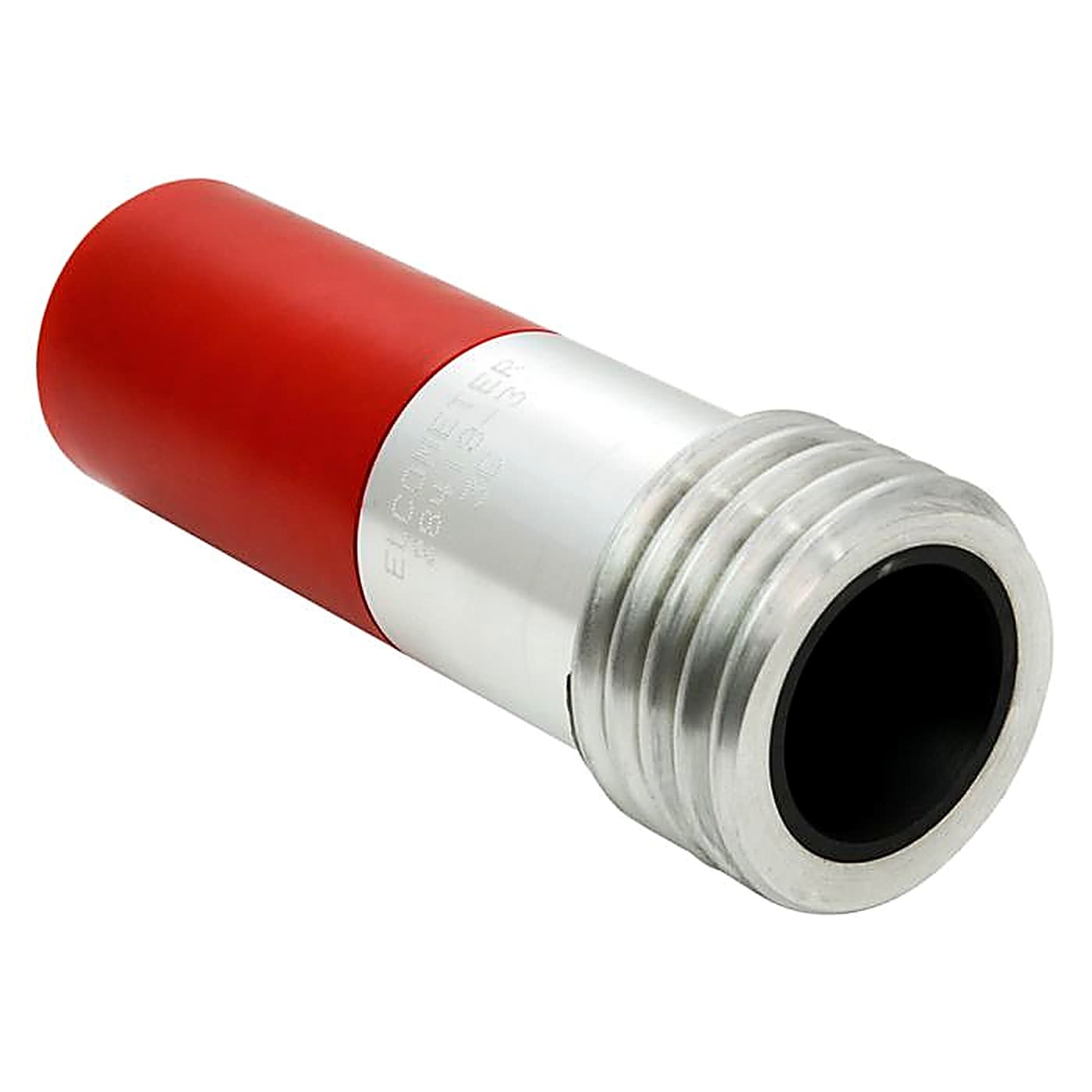

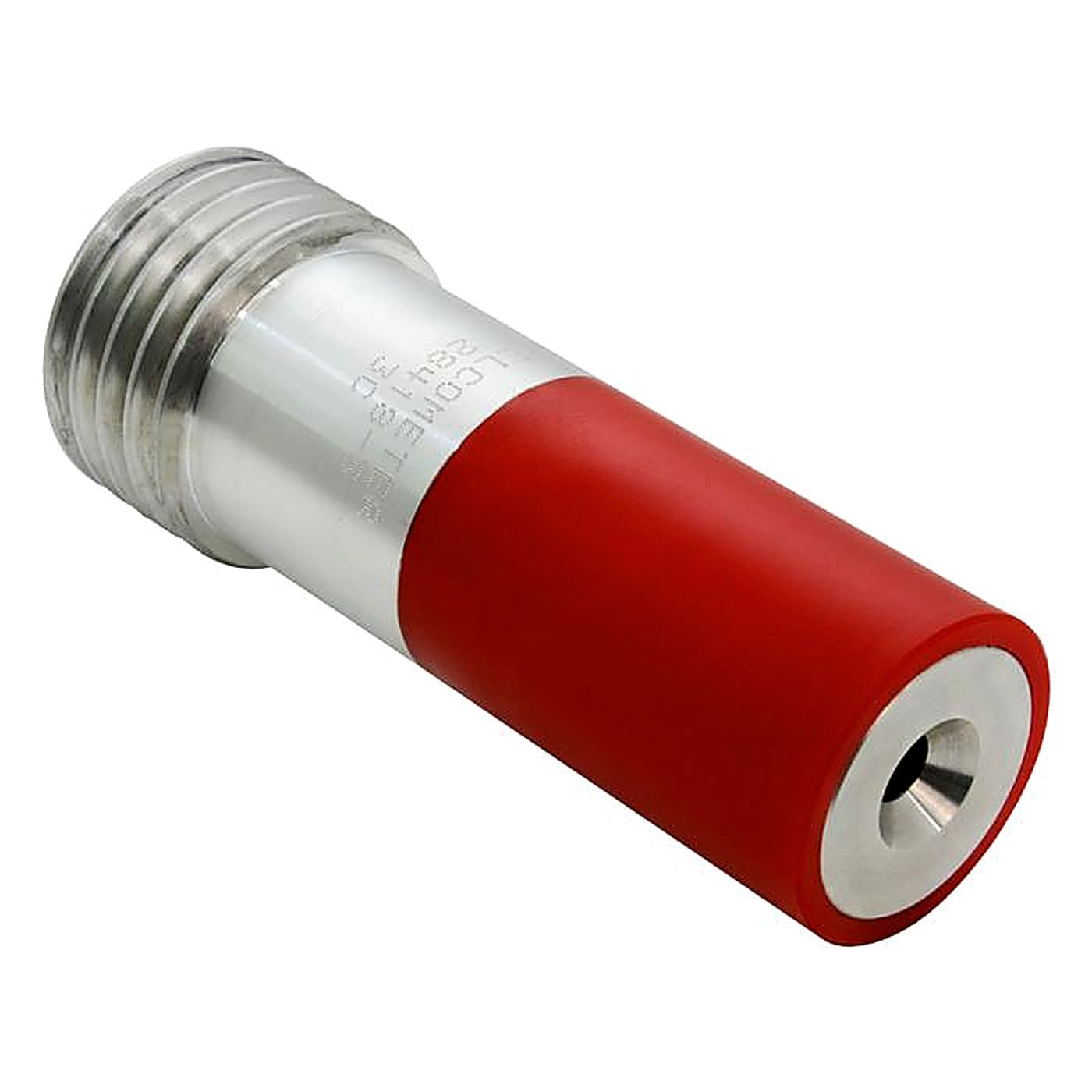

Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve
Product Description
Featuring a liner made from hot-pressed boron carbide, this abrasive blast nozzle offers chemical and wear resistance properties, making it ideal for abrasives such as garnet, aluminium oxide and steel grit to enter the nozzle.

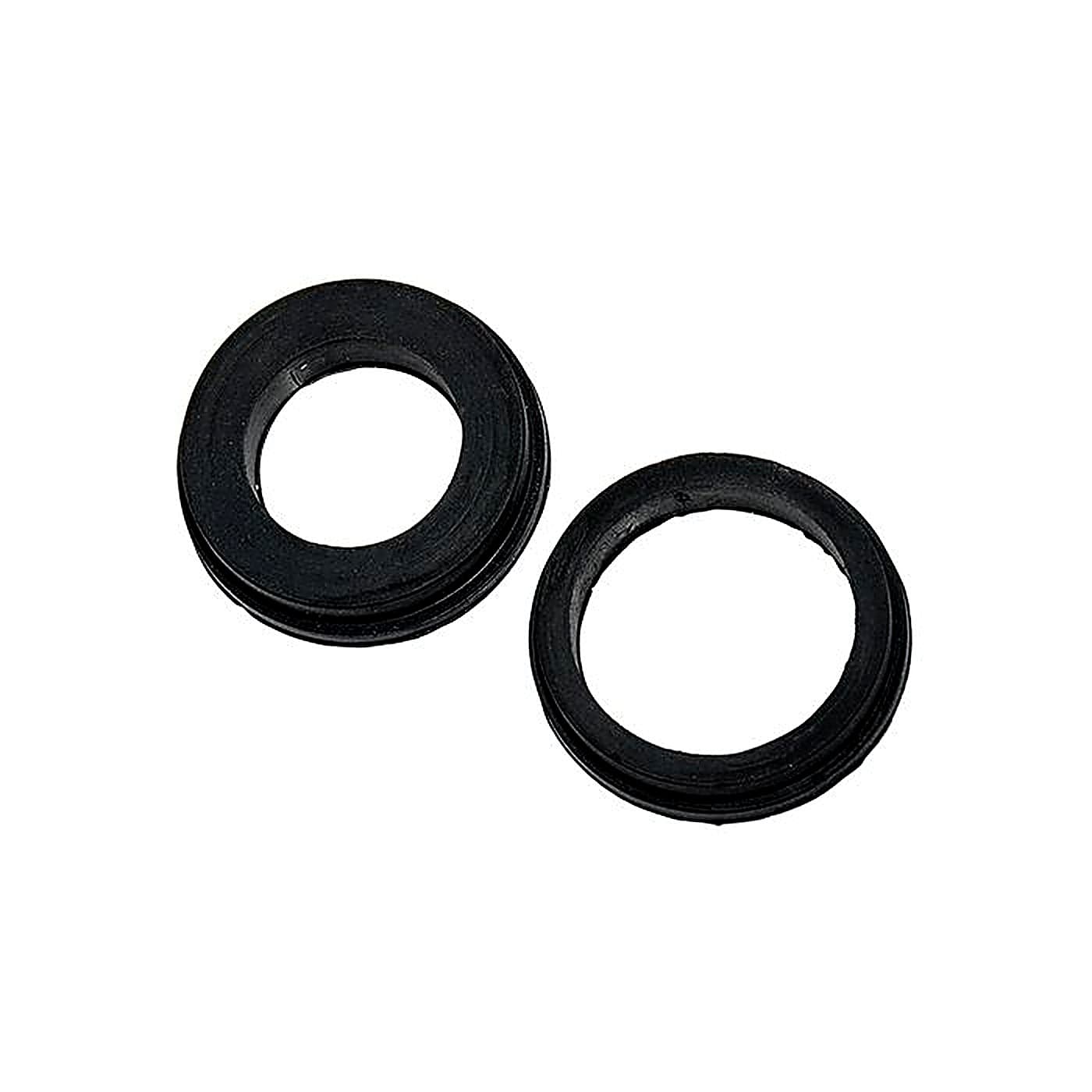

As well as being heat and corrosion resistant, the nozzle’s aluminium jacket makes it lightweight and its rubber sleeve is shock absorbent, preserving the internal liner. The abrasive blast nozzles are supplied with a rubber gasket.
Product Range
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.3
51mm Contractor Thread
- Orifice Diameter :4.8mm
- Length :135mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28418-3C
32mm NPSM Thread
- Orifice Diameter :4.8mm
- Length :135mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28418-3N
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.4
51mm Contractor Thread
- Orifice Diameter :6.35mm
- Length :140mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28418-4C
32mm NPSM Thread
- Orifice Diameter :6.35mm
- Length :140mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28418-4N
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.5
51mm Contractor Thread
- Orifice Diameter :8mm
- Length :145mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28418-5C
32mm NPSM Thread
- Orifice Diameter :8mm
- Length :145mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28418-5N
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.6
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :170mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28418-6C
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :170mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28418-6N
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.7
51mm Contractor Thread
- Orifice Diameter :11mm
- Length :190mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28418-7C
32mm NPSM Thread
- Orifice Diameter :11mm
- Length :190mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28418-7N
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.8
51mm Contractor Thread
- Orifice Diameter :12.5mm
- Length :220mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28418-8C
32mm NPSM Thread
- Orifice Diameter :12.5mm
- Length :220mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28418-8N
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.6 XL
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :350mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28439-6XLC
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :350mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28439-6XLN
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.7 XL
51mm Contractor Thread
- Orifice Diameter :11mm
- Length :350mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28439-7XLC
32mm NPSM Thread
- Orifice Diameter :11mm
- Length :350mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28439-7XLN
Boron Carbide Venturi Nozzle with Aluminium Jacket and Rubber Sleeve No.8 XL
51mm Contractor Thread
- Orifice Diameter :12.5mm
- Length :350mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28439-8XLC
32mm NPSM Thread
- Orifice Diameter :12.5mm
- Length :350mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28439-8XLN
Technical Specifications
PED
| Part Number 52mm Contractor Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28418-3C | #3 | 4.8mm | 135mm | 32mm |
| MT28418-4C | #4 | 6.35mm | 140mm | 32mm |
| MT28418-5C | #5 | 8mm | 145mm | 32mm |
| MT28418-6C | #6 | 9.5mm | 170mm | 32mm |
| MT28418-7C | #7 | 11mm | 190mm | 32mm |
| MT28418-8C | #8 | 12.5mm | 220mm | 32mm |
| The following nozzles are longer in length (350mm): | ||||
| MT28418-6XLC | #6 | 9.5mm | 350mm | 32mm |
| MT28418-7XLC | #7 | 11mm | 350mm | 32mm |
| MT28418-8XLC | #8 | 12.5mm | 350mm | 32mm |
ASME
| Part Number NPSM Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28418-3N | #3 | 4.8mm | 135mm | 32mm |
| MT28418-4N | #4 | 6.35mm | 140mm | 32mm |
| MT28418-5N | #5 | 8mm | 145mm | 32mm |
| MT28418-6N | #6 | 9.5mm | 170mm | 32mm |
| MT28418-7N | #7 | 11mm | 190mm | 32mm |
| MT28418-8N | #8 | 12.5mm | 220mm | 32mm |
| The following nozzles are longer in length (150mm): | ||||
| MT28418-6XLN | 350mm | 32mm | ||
| MT28418-7XLN | #7 | 11mm | 350mm | 32mm |
| MT28418-8XLN | #8 | 12.5mm | 350mm | 32mm |
