BEVS 2201 ATV Adhesion Tester Verifier can be used to verify the pull force of various pull off adhesion meters. The BEVS 2201 ATV has the characteristics of intuition and good reproducibility, and can accurately observe and verify the pulling force of each stage. With intuitive and simple touch screen control, users can set the dolly size and unit of the BEVS 2201 ATV.

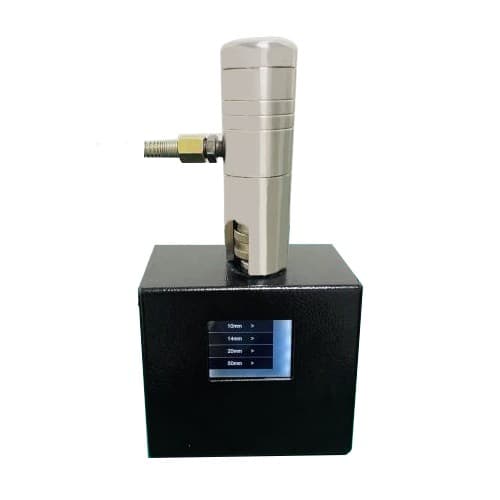

BEVS 2201 ATV Adhesion Tester Verifier
A verifier that checks the pull force of pull off adhesion testers, showing the force at each stage of the pull in real time. It reads from 0 to 100 MPa with a 10 mm dolly, with the dolly size and unit set on its touch screen.
- Real-time readings. Display real-time readings.
- MPa or psi. MPa/psi unit, switchable.
- Automatic shut-down. Automatic shut-down.
When to choose the BEVS 2201 ATV Adhesion Tester Verifier
The BEVS 2201 ATV verifies the pull force applied by pull off adhesion testers, so a lab or inspection company can check its own testers in-house.
- 1Checking that a pull-off adhesion tester still reads correctlyA pull-off tester's reading is only as good as its force measurement. The BEVS 2201 ATV verifies the pull force a tester applies, to ±0.5% of full scale over 0 to 100 MPa, so testers can be checked in-house, for example between calibrations or before an important job.
- 2Checking a tester through the whole pull, not just at the endThe BEVS 2201 ATV displays real-time readings, so you can observe and verify the pulling force of each stage and see whether a tester reads correctly throughout the pull rather than only at its final value.
- 3Checking a mixed fleet of testersIt is made to verify various pull off adhesion meters. The dolly size and the unit, MPa or psi, are set on its touch screen to suit each one, so testers from different makers or using different dolly sizes can all be checked with one verifier.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to choose the BEVS 2201 ATV Adhesion Tester Verifier
The BEVS 2201 ATV verifies the pull force applied by pull off adhesion testers, so a lab or inspection company can check its own testers in-house.
- 1Checking that a pull-off adhesion tester still reads correctlyA pull-off tester's reading is only as good as its force measurement. The BEVS 2201 ATV verifies the pull force a tester applies, to ±0.5% of full scale over 0 to 100 MPa, so testers can be checked in-house, for example between calibrations or before an important job.
- 2Checking a tester through the whole pull, not just at the endThe BEVS 2201 ATV displays real-time readings, so you can observe and verify the pulling force of each stage and see whether a tester reads correctly throughout the pull rather than only at its final value.
- 3Checking a mixed fleet of testersIt is made to verify various pull off adhesion meters. The dolly size and the unit, MPa or psi, are set on its touch screen to suit each one, so testers from different makers or using different dolly sizes can all be checked with one verifier.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Technical info
- Power supply
- Built-in rechargeable battery
- Charging adapter power supply
- DC 5V
- Unit
- MPa, psi
- Range
- 0-100MPa (dolly Φ10mm)
- Accuracy
- ±0.5% of full scale
- Resolution
- 0.01MPa (1psi)
- Size
- 130 x 85 x 135mm
- Weight
- 3.5kg
Downloads
Frequently asked questions
What does the BEVS 2201 ATV Adhesion Tester Verifier do?
It verifies the pull force of various pull off adhesion meters. It displays real-time readings, so the pulling force can be observed and verified at each stage.
What range and accuracy does the BEVS 2201 ATV have?
The range is 0 to 100 MPa with a Φ10 mm dolly, accuracy is ±0.5% of full scale, and resolution is 0.01 MPa (1 psi).
Can the BEVS 2201 ATV show psi as well as MPa?
Yes. The unit is switchable between MPa and psi on the touch screen of the BEVS 2201 ATV.
Can the BEVS 2201 ATV be set for different dolly sizes?
Yes. The dolly size and unit are set on its touch screen, so it can verify various pull off adhesion meters.
How is the BEVS 2201 ATV powered?
By a built-in rechargeable battery, charged through a DC 5V charging adapter. It has automatic shut-down.
How big and heavy is the BEVS 2201 ATV?
The BEVS 2201 ATV measures 130 x 85 x 135 mm and weighs 3.5 kg.
