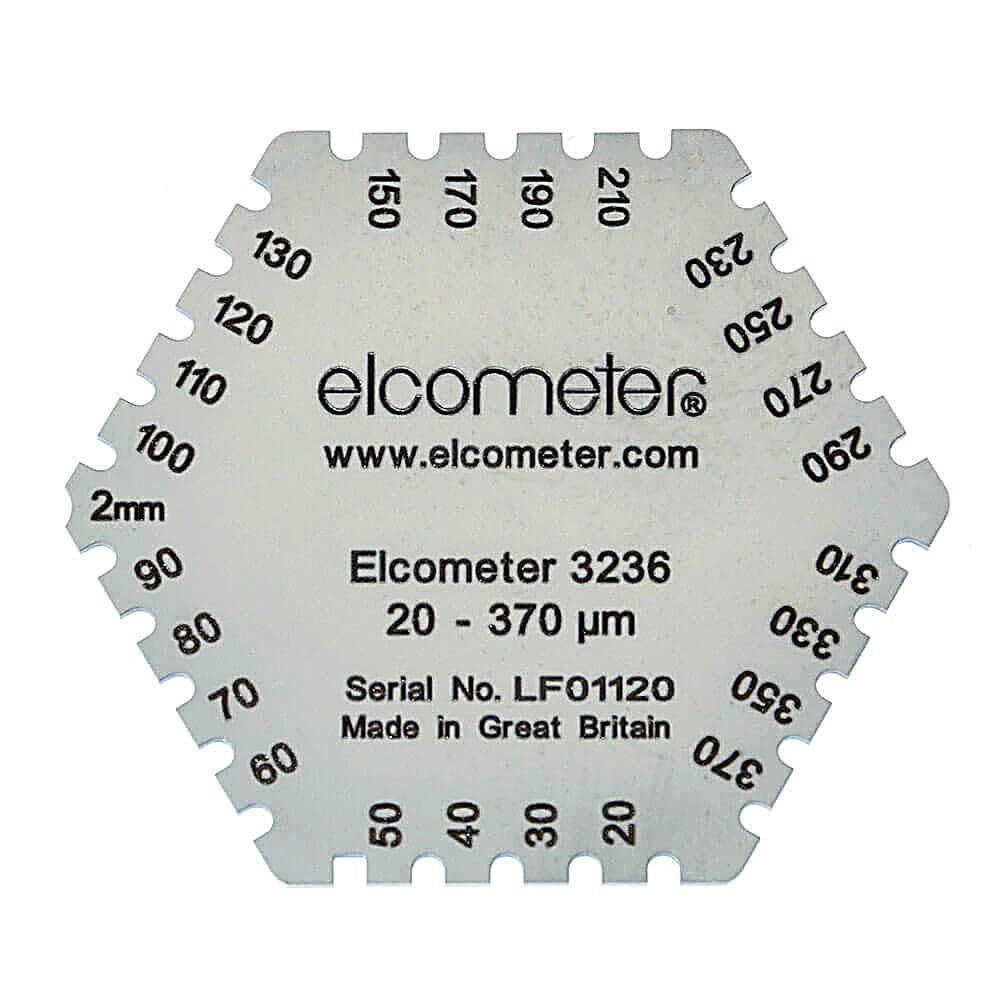

The Elcometer 112 and 3236 Hexagonal Stainless Steel Wet Film Combs are precision-formed combs used to measure the wet film thickness of a freshly applied coating. Checking thickness while the coating is still wet lets an applicator catch an under- or over-applied film immediately, before it cures, which is the practical way to control the resulting dry film and avoid the cost and rework of a coating applied outside specification.
Each six-sided comb has teeth of stepped lengths along its edges. The Elcometer 112 & 3236 Hexagonal Stainless Steel / Wet Film Comb is placed into the wet film and removed, and the wet thickness lies between the highest reading wet tooth and the lowest reading dry tooth. Depending on the comb, there are 24 or 36 measurement steps, giving finer resolution. Three ranges are available: 20 to 370µm, 25 to 2000µm and 25 to 3000µm, with accuracy of ±5% of the marked value or 3µm, whichever is greater. The combs are stainless steel, so they are long lasting and reusable, and weigh between 10g and 22g depending on size.
They can be used in accordance with ASTM D 4414-A, AS/NZS 1580.107.3, BS 3900-C5-7B, ISO 2808-1A, ISO 2808-7B, JIS K 5600-1-7, NF T30-125, US NAVY PPI 63101-000 and US NAVY NSI 009-32. Used by painters, applicators and coatings inspectors across industrial and protective coating work, they are supplied by BAMR, South Africa's authorised Elcometer distributor.
Elcometer 112 & 3236 Hexagonal Stainless Steel / Wet Film Combs
The Elcometer Hexagonal Wet Film Combs are designed for wet film thickness measurements and come in a range of thickness scales. The Elcometer 112 & 3236 Hexagonal Wet Film Combs are hexagonal precisions formed stainless steel wet film combs that are long lasting, reusable and supplied in a range of thicknesses measuring up to 3000μm.
- Hexagonal precision formed stainless steel Long lasting and reusable construction
- Range of thicknesses Measuring up to 3000μm
- Six sided combs with 24 or 36 measurement steps Provides increased accuracy depending upon the comb
- Wet film comb technique Teeth of various lengths on sides; dipped into wet film to determine thickness between biggest wet tooth and smallest dry tooth values
Also available to buy online at GaugeIt, our online store.
When to use the Elcometer 112 & 3236 Wet Film Combs
Reach for these stainless steel hexagonal combs when you need to check wet film thickness immediately after application, before the coating cures, so you can correct the build while the paint is still workable. They handle high-build jobs up to 3000 microns, and the choice between 24 and 36 measurement steps lets you trade range for finer resolution.
- 1Catch build errors before cureReading wet film while the coating is still fluid means you can add or remove material on the spot, rather than discovering an out-of-spec dry film once it has hardened and is costly to fix.
- 2Reusable stainless steelPrecision-formed stainless steel survives repeated dipping and cleaning across many shifts, so the same comb stays in service rather than being treated as a consumable.
- 3Holds to recognised standardsAccuracy of plus or minus 5 percent of the marked value or 3 microns, whichever is greater, plus conformance to ASTM D 4414-A and ISO 2808, means readings stand up in an inspection report.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 112 & 3236 Wet Film Combs
Reach for these stainless steel hexagonal combs when you need to check wet film thickness immediately after application, before the coating cures, so you can correct the build while the paint is still workable. They handle high-build jobs up to 3000 microns, and the choice between 24 and 36 measurement steps lets you trade range for finer resolution.
- 1Catch build errors before cureReading wet film while the coating is still fluid means you can add or remove material on the spot, rather than discovering an out-of-spec dry film once it has hardened and is costly to fix.
- 2Reusable stainless steelPrecision-formed stainless steel survives repeated dipping and cleaning across many shifts, so the same comb stays in service rather than being treated as a consumable.
- 3Holds to recognised standardsAccuracy of plus or minus 5 percent of the marked value or 3 microns, whichever is greater, plus conformance to ASTM D 4414-A and ISO 2808, means readings stand up in an inspection report.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
ο = certificate available
| Part Number | Range | Values | Certificate |
|---|---|---|---|
| K0003236M201 | 20 – 370µm | 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 150, 170, 190, 210, 230, 250, 270, 290, 310, 330, 350, 370µm | ο |
| K0003236M202 | 25 – 2000µm | 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000µm | ο |
| B112-1B | 25 – 3000µm | 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000µm | ο |
| Dimensions and | Elcometer 3236M201 | 53 x 50 x 1mm, 10g | |
| Weight | Elcometer 3236M202 | 77 x 90 x 1mm, 22g | |
| Elcometer 112 | 75 x 65 x 1mm, 20g |
- Accuracy
- ±5% of marked value or 3μm whichever is the greater
- Certificate
- Optional Calibration Certificate available
Packing List
Packing List
Standards
Standards
Downloads
Videos
Videos
Frequently asked questions
What accuracy do the Elcometer 112 and 3236 wet film combs offer?
Accuracy is plus or minus 5% of the marked value or 3 micrometres, whichever is greater. The combs are precision-formed from stainless steel and are reusable.
What measurement ranges are covered by the three part numbers?
K0003236M201 covers 20 to 370 micrometres, K0003236M202 covers 25 to 2,000 micrometres, and B112-1B covers 25 to 3,000 micrometres. All three are available with an optional calibration certificate.
Are the combs a one-time use item?
No. The 112 and 3236 series are stainless steel and described as long lasting and reusable.
