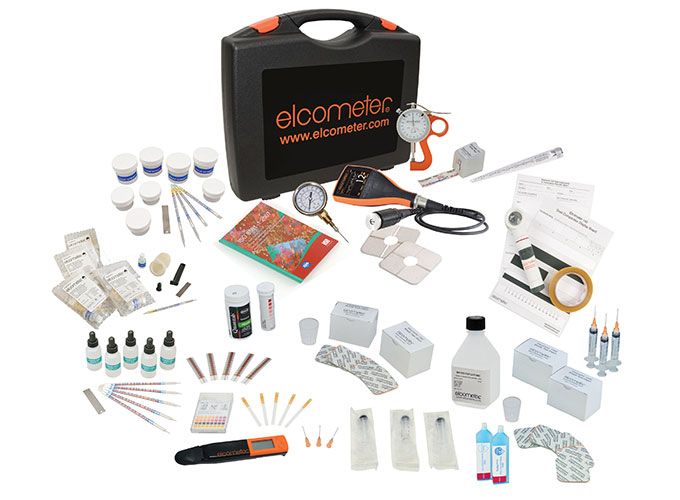

The Elcometer Blasting Inspection Kits (part numbers YKIT-BLAST-1M and YKIT-BLAST-2M) are surface preparation inspection kits that bring together a range of equipment to test the surface profile and surface contamination of blasted profiles. Surface preparation governs whether a coating bonds and lasts: an incorrect profile or residual salts, dust and other contamination left on a blasted steel surface lead to early adhesion failure and corrosion, so these kits let an inspector verify blast equipment, surface assessment, profile and contamination before any coating is applied.
The kits combine instruments including the Elcometer 128 pictorial standards, the Elcometer 102 needle pressure gauge, the Elcometer 103 blast nozzle gauge, the Elcometer 125 surface comparator (grit and shot), the Elcometer 122 Testex tape with the Elcometer 124 Testex dial thickness gauge, the Elcometer 224 surface profile separate gauge (Model T) with standard separate probe, and contamination test equipment such as the Elcometer 142 dust tape test kit, the Elcometer 134 Chlor*Test surface, abrasive and water testing kits, the Elcometer 138 Bresle salt kit and the Elcometer 138/2 surface contamination kit, together with ElcoMaster data management software and USB cable. Kit 1 measures 495 x 420 x 175 mm and Kit 2 575 x 475 x 205 mm. An Elcometer 456 gauge and probe can also be supplied, ordered separately if required.
The kits can be used in accordance with a wide range of standards including AS 3894.5, AS 3894.6-A, -C and -D, ASTM D 2200, ASTM D 4417-A, -B and -C, BS 7079-C5, IMO MSC.215(82) and MSC.244(83), ISO 8501-1, ISO 8502-3, -5, -6 and -9, ISO 8503-1, -2 and -5, NACE RP0287, SANS 5772, SS 55900, SSPC Guide 15, SSPC VIS 1 to 5, and US Navy NSI 009-32 and PPI 63101-000. These standards cover blast cleanliness grades, profile measurement and soluble salt and dust assessment. Used by blasting and coatings inspectors in marine, refinery, structural steel and corrosion protection work, and supplied by BAMR, South Africa's authorised Elcometer distributor.

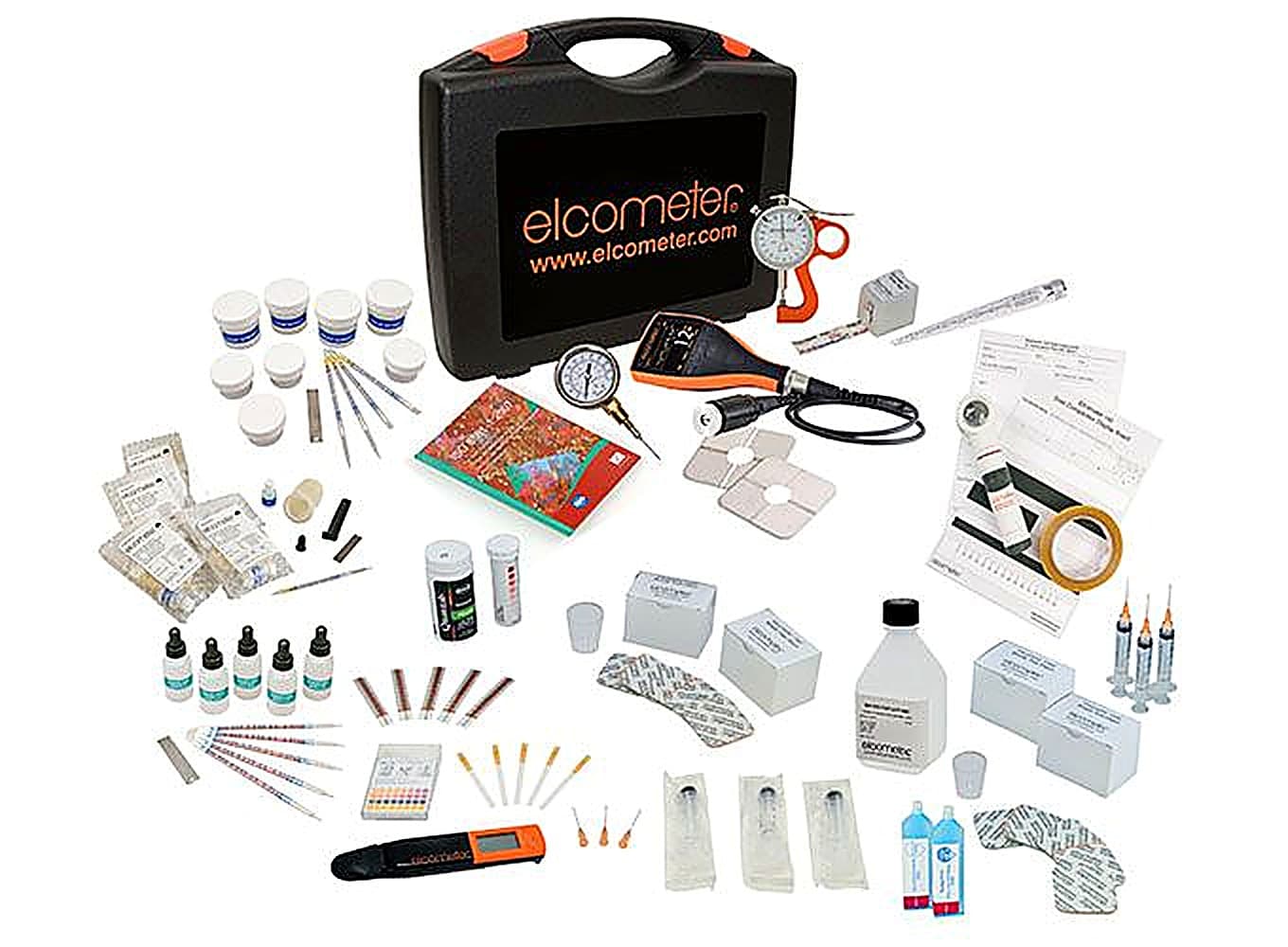

Elcometer Blasting Inspection Kits
The Elcometer Blasting Inspection Kit is a surface preparation inspection kit providing a range of inspection equipment to test surface profile and surface contamination of blasted profiles.
- Surface assessment
- Blast equipment inspection
- Surface profile
- Surface contamination
- An Elcometer 456 Gauge and probe can also be supplied. Order separately if required.
When to use the Elcometer Blasting Inspection Kits
After abrasive blasting, steel has to be checked for both surface profile and soluble salt contamination before any coating goes on. This kit gathers the equipment an inspector needs to assess blast quality and sign the surface off against the standard a contract calls up.
- 1Covers profile and salts togetherIt pairs the Elcometer 128 pictorial standards with the Elcometer 138 Bresle salt kit, so the two checks a blasted surface must pass, profile and soluble contamination, are handled from one case rather than two separate purchases.
- 2Matches the standard a contract specifiesIt conforms to a wide list including ISO 8501-1, ISO 8502-6, ISO 8503-2, ASTM D4417 and the SSPC VIS series, so the inspection record lines up with whichever standard the job is written to.
- 3Results can be recorded, not just readElcoMaster software and a USB cable are supplied, so blast inspection figures go into a report you can hand to the client instead of being noted on paper.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer Blasting Inspection Kits
After abrasive blasting, steel has to be checked for both surface profile and soluble salt contamination before any coating goes on. This kit gathers the equipment an inspector needs to assess blast quality and sign the surface off against the standard a contract calls up.
- 1Covers profile and salts togetherIt pairs the Elcometer 128 pictorial standards with the Elcometer 138 Bresle salt kit, so the two checks a blasted surface must pass, profile and soluble contamination, are handled from one case rather than two separate purchases.
- 2Matches the standard a contract specifiesIt conforms to a wide list including ISO 8501-1, ISO 8502-6, ISO 8503-2, ASTM D4417 and the SSPC VIS series, so the inspection record lines up with whichever standard the job is written to.
- 3Results can be recorded, not just readElcoMaster software and a USB cable are supplied, so blast inspection figures go into a report you can hand to the client instead of being noted on paper.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
■ = available / compatible with that option or model
| Model | Description | Kit 1 | Kit 2 |
|---|---|---|---|
| Elcometer 128 | Pictorial Standards1 | ■ | ■ |
| Elcometer 102 | Needle Pressure Gauge | ■ | ■ |
| Elcometer 103 | Blast Nozzle Gauge | ■ | ■ |
| Elcometer 125 | Surface Comparator, Grit | ■ | |
| Elcometer 125 | Surface Comparator, Shot | ■ | |
| Elcometer 122 | Testex Tape, Coarse | ■ | |
| Elcometer 122 | Testex Tape, Extra Coarse | ■ | |
| Elcometer 124 | Testex Dial Thickness Gauge | ■ | |
| Elcometer 224 | Surface Profile Separate Gauge, Model T | ■ | |
| Elcometer 224 | Standard Separate Probe | ■ | |
| Elcometer 142 | Dust Tape Test Kit | ■ | |
| Elcometer 134 | Chlor*Test Surface Testing Kit | ■ | ■ |
| Elcometer 134 | Chlor*Test Abrasive Testing Kit | ■ | ■ |
| Elcometer 134 | Chlor*Test Water Testing Kit | ■ | ■ |
| Elcometer 138 | Bresle Salt Kit2 | ■ | |
| Elcometer 138/2 | Surface Contamination Kit | ■ | |
| ElcoMaster® | Data Management Software & USB Cable | ■ |
- Elcometer 128
- Pictorial Standards
- Elcometer 138
- Bresle Salt Kit
- ElcoMaster
- Data Management Software and USB Cable
- Kit 1
- 495 x 420 x 175 mm
- Kit 2
- 575 x 475 x 205 mm
Standards
Standards
Downloads
Frequently asked questions
What is the difference between Blasting Inspection Kit 1 and Kit 2?
Kit 1 includes the Elcometer 125 surface comparators (grit and shot), Elcometer 122 Testex tape (coarse and extra coarse) and the Elcometer 124 Testex dial thickness gauge. Kit 2 instead includes the Elcometer 224 surface profile gauge with probe, the Elcometer 142 dust tape test kit, the Elcometer 138 Bresle salt kit, the Elcometer 138/2 surface contamination kit and ElcoMaster software with USB cable.
What surface contamination testing does each kit include?
Both kits include the Elcometer 134 Chlor*Test in three versions: surface testing, abrasive testing and water testing. Kit 2 additionally contains the Elcometer 138 Bresle salt kit and the Elcometer 138/2 surface contamination kit.
Does either kit include needle and nozzle pressure gauges?
Yes. Both Kit 1 and Kit 2 include the Elcometer 102 needle pressure gauge and the Elcometer 103 blast nozzle gauge.
What are the case dimensions for each kit?
Kit 1 measures 495 x 420 x 175mm. Kit 2 is larger at 575 x 475 x 205mm.
