The AZ 89321 Vane Anemometer (Temp/RH) is developed under high-quality manufacturing processes to ensure reliability and safety. The instrument is manufactured in an ISO 9001 certified environment. It has also been designed and tested to meet European EMC safety standards, namely CE EN 61326-1 and IEC 61000. With a 10cm vane, the AZ 89321 measures precise airflow and allows for more accurate psychrometric readings. This unit is ideal for the multi-purpose nature of climate condition testing.
The AZ 89321 Portable Wind Speed Meter can measure the Air Speed, Air Velocity, Air Volume, Temperature, and Humidity values (RH), making it an ideal choice of wind speed monitoring device for HVAC (Heating, Ventilation, Air Conditioning and Refrigerating) and industrial applications.
The portable AZ 89321 Air Flow Thermometer with Humidity has a 10 cm diameter vane type. It can attach to the specific air flow cone to measure the volume quickly. Simply install the compatible airflow cone and the meter will recognise the area for air volume calculations automatically. The air flow cone set has a round and square size, which is compatible for most applications.

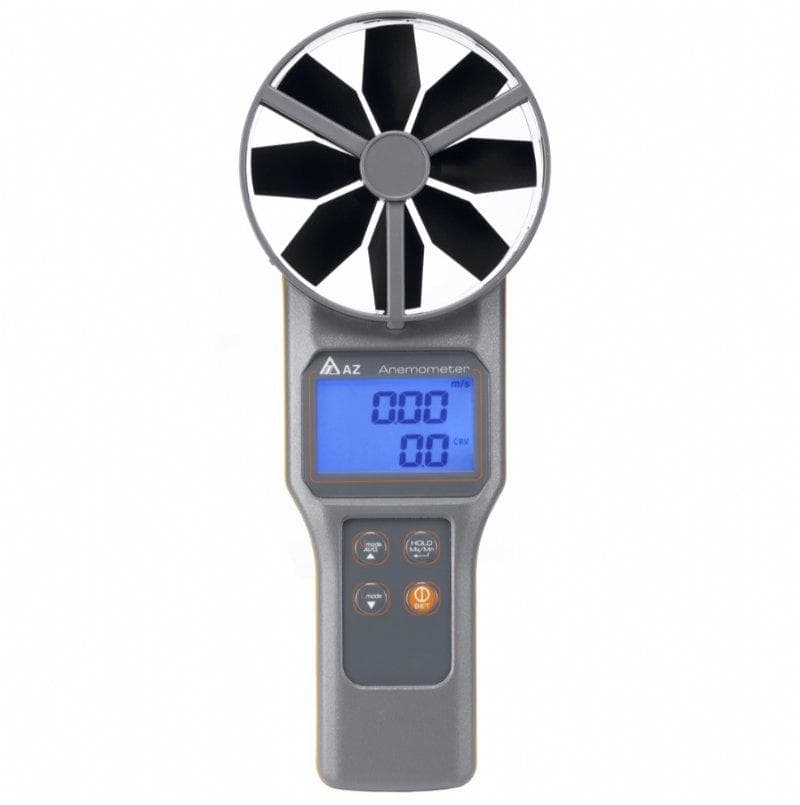

AZ 89321 Vane Anemometer
A handheld vane anemometer that measures air velocity from 0.20 to 30.00 m/s, along with air volume, temperature, relative humidity, dew point and wet bulb temperature. The 10 cm vane head takes an airflow cone for duct and grille work, and the meter recognises the fitted cone and calculates volume in CFM or CMM automatically.
- Measures air velocity, volume, temperature, humidity, dew point and wet bulb temperature
- Auto airflow cone recognition (square or round type)
- Wind speed is selectable between metric and imperial units
- Max. / min. value, hold function
- Unlimited points average auto calculation
- Time weighted average auto-calculation
- Inlet and outlet measurement of air flow
- Auto power off in 20 mins inactivity with a low battery indicator
- Blue backlight for dark area operation
- Calculate CFM and CMM instantly
Air velocity and volume
- Model
- AZ 89321 Anemometer
- Wind speed range
- 0.20 to 30.00 m/s
- Wind speed accuracy
- ± (1.5% of reading + 0.3 m/s) for under 20 m/s; ± (3% of reading + 0.3 m/s) for above 20 m/s
- Air volume display
- 0 to 99999 m3/minute
- Air volume resolution
- 0.1 (0 to 9999.9) or 1 (10000 to 99999)
Temperature and humidity
- Air temperature range
- -20 to 60 °C
- Air temperature resolution
- 0.1 °C
- Air temperature accuracy
- ±0.6 °C
- Air RH% range
- 0.1 %RH to 99.9 %RH
- Air RH% resolution
- 0.1 %RH
- Air RH% accuracy
- ± 3 %RH (at 25 °C, 10 to 90 %RH, others ±5 %RH)
- Temperature response time
- 60 seconds (typical)
- Air RH% response time
- 60 seconds (typical)
- Wet bulb temp. display
- -20 to 59.9 °C
- Dew point temp. display
- -5 to 59.9 °C
General
- LCD update
- Every second
- LCD size
- 54 (L) x 32.5 (W) mm
- Operating temperature
- 0 to 50 °C
- Operating RH%
- Humidity < 80%
- Storage temperature
- -10 to 50 °C
- Storage RH%
- Humidity < 90%
- Meter size
- 269 (L) x 106 (W) x 51 (H) mm
- Weight
- 200 g
- Battery
- 4 x AAA
Specifications
Air velocity and volume
- Model
- AZ 89321 Anemometer
- Wind speed range
- 0.20 to 30.00 m/s
- Wind speed accuracy
- ± (1.5% of reading + 0.3 m/s) for under 20 m/s; ± (3% of reading + 0.3 m/s) for above 20 m/s
- Air volume display
- 0 to 99999 m3/minute
- Air volume resolution
- 0.1 (0 to 9999.9) or 1 (10000 to 99999)
Temperature and humidity
- Air temperature range
- -20 to 60 °C
- Air temperature resolution
- 0.1 °C
- Air temperature accuracy
- ±0.6 °C
- Air RH% range
- 0.1 %RH to 99.9 %RH
- Air RH% resolution
- 0.1 %RH
- Air RH% accuracy
- ± 3 %RH (at 25 °C, 10 to 90 %RH, others ±5 %RH)
- Temperature response time
- 60 seconds (typical)
- Air RH% response time
- 60 seconds (typical)
- Wet bulb temp. display
- -20 to 59.9 °C
- Dew point temp. display
- -5 to 59.9 °C
General
- LCD update
- Every second
- LCD size
- 54 (L) x 32.5 (W) mm
- Operating temperature
- 0 to 50 °C
- Operating RH%
- Humidity < 80%
- Storage temperature
- -10 to 50 °C
- Storage RH%
- Humidity < 90%
- Meter size
- 269 (L) x 106 (W) x 51 (H) mm
- Weight
- 200 g
- Battery
- 4 x AAA
What's in the kit
What's in the kit
Conforms to
Conforms to
Optional accessories
Optional accessories
| Airflow cone (with soft carry case), square and round sizes, recognised automatically by the meter for air volume calculation. |
