The TIME TH5370 Portable Digital Hardness Tester is a smart Leeb hardness probe that connects to a mobile phone, currently limited to Android, over Bluetooth 4.2. The TIME TH5370 Portable Digital Hardness Tester transmits each hardness reading wirelessly and in real time to the "TIME Smart Test" app, supporting automatic recording, report generation and data sharing.
Hardness testing on site often means a measurement taken in one place has to be written down, carried back and re-entered before it can be used, which is slow and error prone. The TIME TH5370 Portable Digital Hardness Tester records data automatically and shares it as it is measured, which helps trace the quality control process and speeds up reporting, particularly when many parts are checked in a batch.
The TIME TH5370 Portable Digital Hardness Tester measures from 170 to 960 HLD and converts to HB, HRB, HRC, HRA, HV and HS scales, with a tolerance of plus or minus 6HLD and repeatability of 6HLD at HLD 760 plus or minus 30. The TIME TH5370 Portable Digital Hardness Tester identifies the impact direction automatically across 360 degrees, and upper and lower hardness limits can be set in advance to trigger an alarm during batch testing. A self-define material function lets users build their own conversion table by comparison test, and records can carry images, video and positioning for cloud storage, custom worksheets and report generation. The built-in lithium battery charges wirelessly, the probe is rated IP54 against dust and water, and runs for 8 hours from 0 to 40 degrees Celsius at just 85g.
Used in metal manufacturing, inspection and maintenance, the TIME TH5370 Portable Digital Hardness Tester is supplied by BAMR, South Africa's authorised distributor.

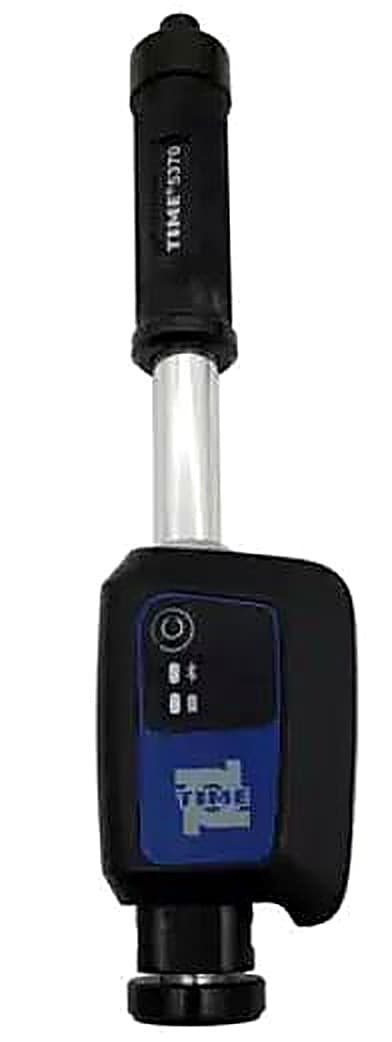

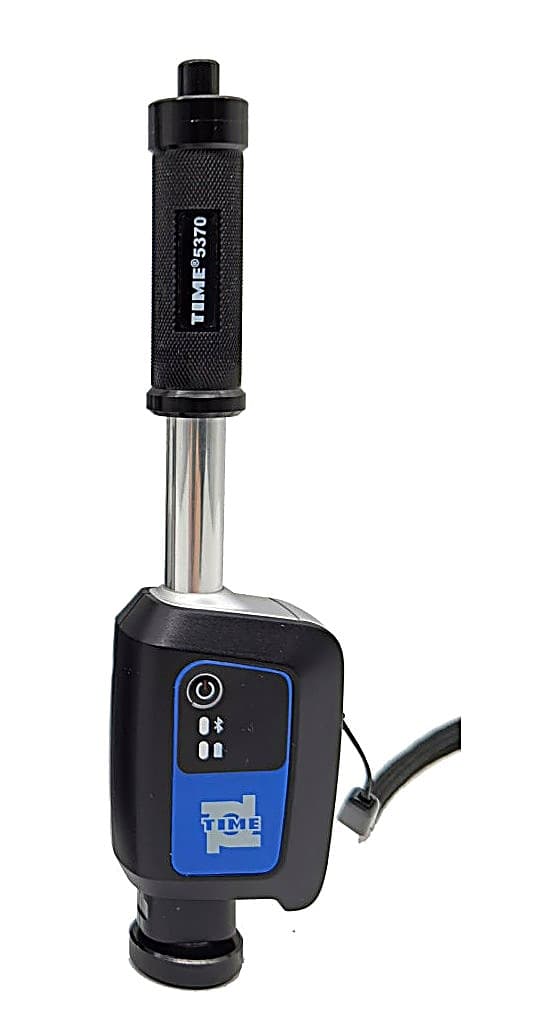

TIME TH5370 Portable Digital Hardness Tester
The TIME TH5370 is a smart probe which can test Leeb hardness by connecting to a mobile phone (currently limited to Android). It represents the first step that TIME Group Inc. goes towards the Cloud Measurement Technology and Internet of Things. Automatic recording, real-time sharing, convenient service.
- The smart probe can test Leeb hardness by connecting to a mobile phone (currently limited to Android), via Bluetooth
- The hardness value measured by the smart probe can be wirelessly transmitted to the smart phone in real time through the APP 'TIME Smart Test'
- The smart probe has good portability and size and is also supplied with a lanyard.
- The smart probe uses a built-in rechargeable lithium battery, which can be charged wirelessly.
- The dustproof and waterproof grade of the smart probe reaches IP54, which can adapt to the harsh environment.
- Automatically identify the impact directions.
- The upper and lower limits of the hardness value can be set in advance, and alarm when out of the limits, which is convenient when batch testing.
- With self-define material function, users can generate exclusive hardness conversion table through comparison test.
- Measurement records can add multiple types of additional information such as images, videos, and positioning.
- It can realize rich post-data processing, such as cloud storage, customized work sheets, real-time data sharing, report generation, etc.
Also available to buy online at GaugeIt, our online store.
When to use the TIME TH5370 Hardness Tester
Use the TH5370 when you want to test Leeb hardness and record results straight to a phone in the field. It is a smart probe that pairs over Bluetooth with an Android device and the TIME Smart Test app, with an IP54 rating for dust and water and a 170 to 960 HLD range across HL, HB, HRB, HRC, HRA, HV and HS scales.
- 1Records straight to the appHardness values transmit wirelessly to the phone in real time, so readings, images and positioning are captured together without manual logging.
- 2Rated for harsh sitesAn IP54 dust and water rating lets the probe work in the kind of dirty, wet conditions that would foul an open instrument.
- 3Auto impact-direction and limitsIt identifies impact direction automatically and alarms when readings fall outside preset limits, which speeds up batch testing and cuts setup errors.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the TIME TH5370 Hardness Tester
Use the TH5370 when you want to test Leeb hardness and record results straight to a phone in the field. It is a smart probe that pairs over Bluetooth with an Android device and the TIME Smart Test app, with an IP54 rating for dust and water and a 170 to 960 HLD range across HL, HB, HRB, HRC, HRA, HV and HS scales.
- 1Records straight to the appHardness values transmit wirelessly to the phone in real time, so readings, images and positioning are captured together without manual logging.
- 2Rated for harsh sitesAn IP54 dust and water rating lets the probe work in the kind of dirty, wet conditions that would foul an open instrument.
- 3Auto impact-direction and limitsIt identifies impact direction automatically and alarms when readings fall outside preset limits, which speeds up batch testing and cuts setup errors.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Measurement
- Measuring range
- (170-960) HLD
- Hardness scale
- HL, HB, HRB, HRC, HRA, HV, HS
- Measuring direction
- 360°
- Tolerance
- ±6HLD(when HLD=760±30)
- Repeatability
- 6HLD(when HLD=760±30)
- Interface
- Bluetooth 4.2
- Continuous working time
- 8 hours
- Power supply
- 6V/500mA
- Humidity
- ≤90%
- Operating temperature
- 0℃~40℃
- Dimensions (mm)
- 158×40×25
- Weight (g)
- 85g
Accessories
Accessories
| Leeb test block (high value) |
Downloads
Frequently asked questions
Does the TH5370 need a phone connection to operate, and does it work with iPhones?
The TH5370 is a smart probe that pairs with a mobile phone over Bluetooth 4.2 for automatic recording and real time sharing of readings. This connectivity is currently limited to Android, so iOS phones are not supported.
What hardness scales does the TH5370 report?
The TH5370 reports HL (Leeb), HB, HRB, HRC, HRA, HV and HS. Its measuring range is 170 to 960 HLD.
How accurate is the TH5370 across its measuring range?
Tolerance is ±6HLD and repeatability is 6HLD, both figures stated at HLD=760±30, across a full measuring range of 170 to 960 HLD.
Do I need to reposition the workpiece to test different orientations with the TH5370?
No. The TH5370 has a 360° measuring direction, so it can take readings at any angle without the workpiece needing to be repositioned.
How long does the TH5370 run before it needs recharging?
The TH5370 gives 8 hours of continuous working time on a single charge, powered by a 6V/500mA supply.
What operating conditions is the TH5370 rated for?
The TH5370 is rated for operating temperatures of 0°C to 40°C and humidity up to 90%.
