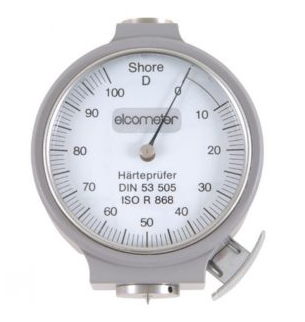

The Elcometer 3120 is a range of Shore A and Shore D Durometers widely used to test the hardness of soft materials such as rubbers, elastomers and plastics.
Shore hardness is a routine quality check for these materials, confirming that a moulded or cured part is neither too soft nor too hard for its application. A round point indents the material under a fixed force spring, and the hardness is read directly from the dial in Shore Hardness Units. The Elcometer 3120 can be used hand-held or fitted to an optional stand for increased repeatability, since a stand removes operator variation in how the durometer is pressed against the sample.
The range of the Elcometer 3120 covers several variants. These include the Shore Durometer A (part numbers K0003120M001 and K0003120M015), the Shore Durometer A with Max indicator (K0003120M008) and a version with a Max indicator and 10N weight (K0003120M025), plus the Shore Durometer D (K0003120M005 and K0003120M018) and the Shore Durometer D with Max indicator (K0003120M009), with calibration certificate options listed under separate part numbers. Each Elcometer 3120 gauge measures 50 x 50 x 110mm and weighs 300g, and is supplied with a check piece.
The Elcometer 3120 can be used in accordance with ASTM D 2240, BS 7442-3.2, DIN 53505, FIAT 50411, ISO 868, ISO 7267-2, NF T51-123 and NF T 51-174, the recognised Shore durometer standards. It is supplied by BAMR, South Africa's authorised Elcometer distributor.

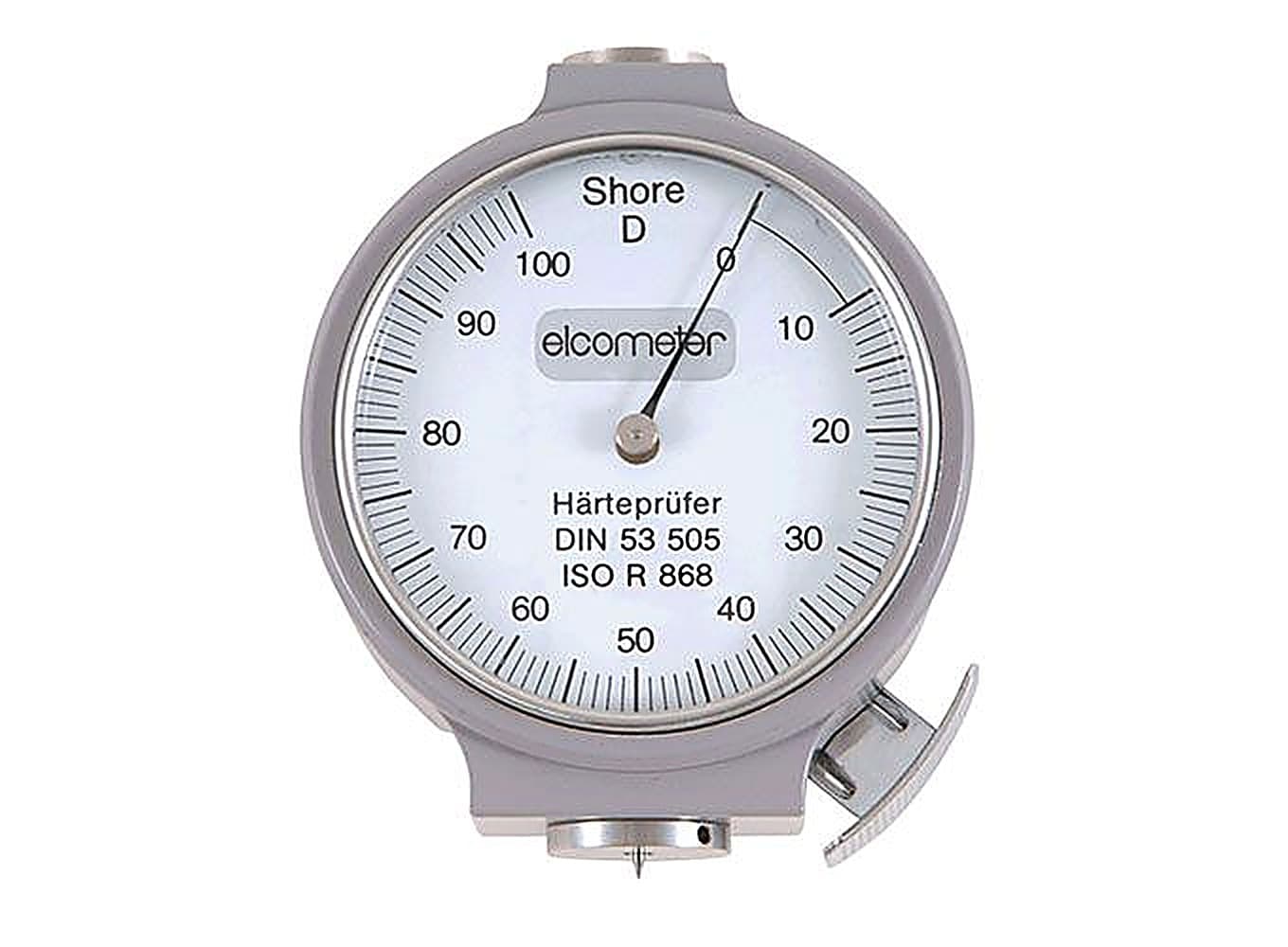

Elcometer 3120 Shore Durometer
The Elcometer 3120 range of Shore A and Shore D Durometers is widely used to test the hardness of soft materials. A round point indents the material under a fixed force spring and the hardness is displayed on the dial in Shore Hardness Units. The instrument can be used either hand-held or fitted to an optional stand for increased repeatability.
- Range of Shore A and Shore D Durometers Widely used to test the hardness of soft materials
- Round point indenter Indents the material under a fixed force spring with hardness displayed on the dial in Shore Hardness Units
- Hand-held or stand-mounted operation Can be used either hand-held or fitted to an optional stand for increased repeatability
- Multiple variants available Encompasses several hardness values including models with Max indicator and weight options
Also available to buy online at GaugeIt, our online store.
When to use the Elcometer 3120 Shore Durometer
Use the Elcometer 3120 to test the hardness of soft materials such as rubbers and plastics in Shore A or Shore D units. A round point indents the material under a fixed force spring and the result reads off the dial, with the option of a stand for tighter repeatability.
- 1Shore A and Shore D variantsChoosing the scale to suit the material means you read across the right hardness band rather than crowding results at one end of the dial.
- 2Hand-held or stand-mountedYou can spot-check by hand on the bench or fit the optional stand when repeatability matters, such as for a QC release test.
- 3Meets the recognised durometer standardsIt conforms to ASTM D 2240, ISO 868, DIN 53505 and others, so the hardness figure satisfies specs written around Shore testing.

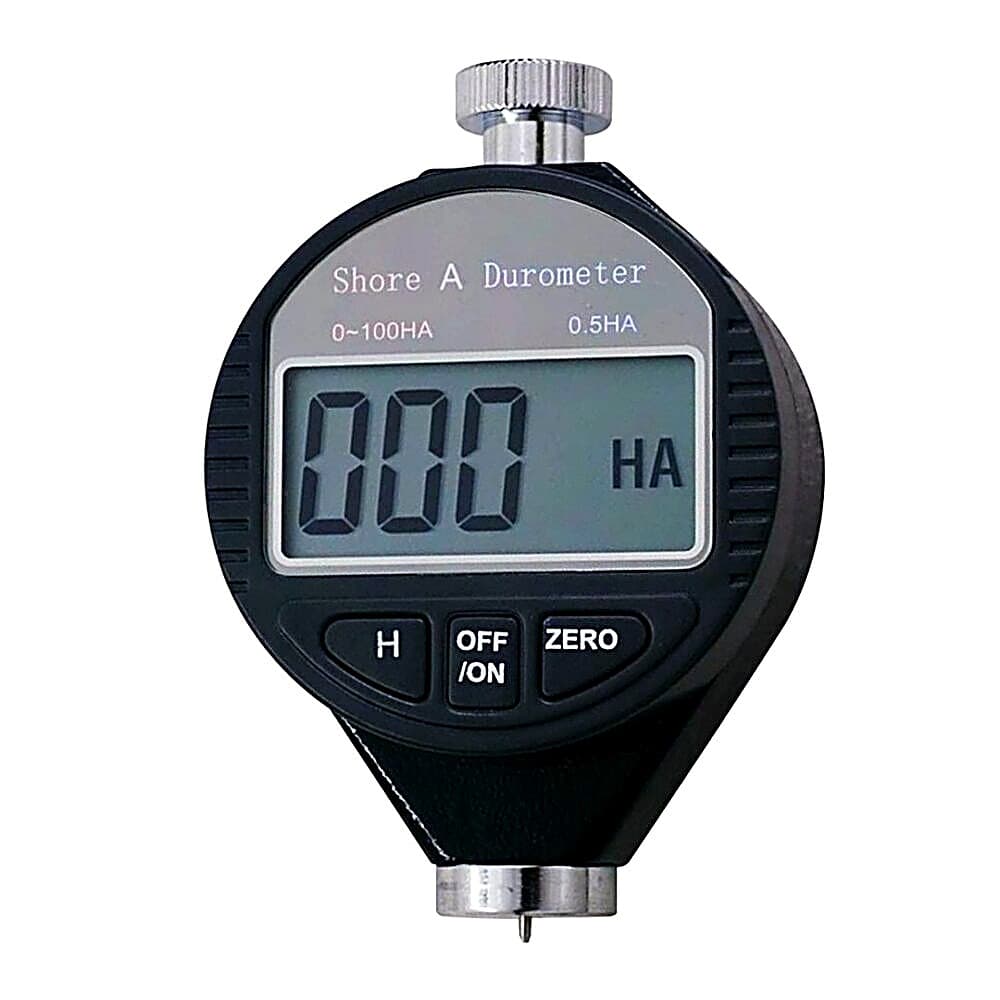

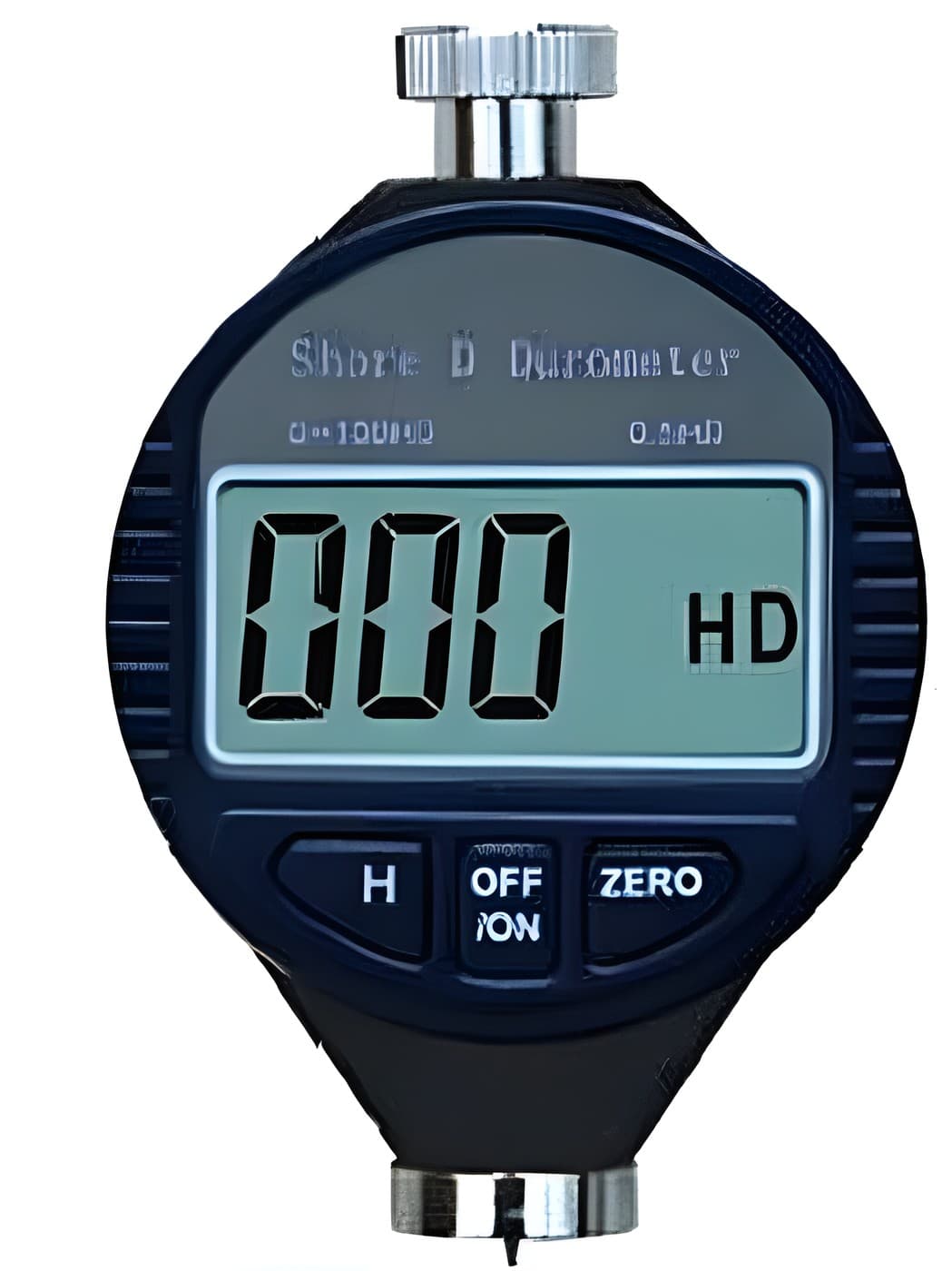

Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 3120 Shore Durometer
Use the Elcometer 3120 to test the hardness of soft materials such as rubbers and plastics in Shore A or Shore D units. A round point indents the material under a fixed force spring and the result reads off the dial, with the option of a stand for tighter repeatability.
- 1Shore A and Shore D variantsChoosing the scale to suit the material means you read across the right hardness band rather than crowding results at one end of the dial.
- 2Hand-held or stand-mountedYou can spot-check by hand on the bench or fit the optional stand when repeatability matters, such as for a QC release test.
- 3Meets the recognised durometer standardsIt conforms to ASTM D 2240, ISO 868, DIN 53505 and others, so the hardness figure satisfies specs written around Shore testing.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
ο = optional calibration certificate available on request (ordered under the separate part number listed)
| Part Number - Without Certificate | Part Number - With Certificate | Description | Certificate |
|---|---|---|---|
| K0003120M001 | K0003120M015 | Elcometer 3120 Shore Durometer A | ο |
| K0003120M008 | – | Elcometer 3120 Shore Durometer A with Max indicator | |
| – | K0003120M025 | Elcometer 3120 Shore Durometer A with Max indicator & 10N weight | ο |
| K0003120M005 | K0003120M018 | Elcometer 3120 Shore Durometer D | ο |
| K0003120M009 | – | Elcometer 3120 Shore Durometer D with Max indicator |
- Dimensions
- 50 x 50 x 110 mm
- Weight
- 300 g
What's in the kit
What's in the kit
Standards
Standards
Accessories
Accessories
| KT003120N002 | Test Stand BS 61 II with 10N Load for Shore A, B & O |
| KT003120N005 | Test Stand BS 61 II with 50N Load & Control Ring for Shore D, C & DO |
Downloads
Frequently asked questions
What Shore hardness scales does the Elcometer 3120 measure?
The 3120 range covers both Shore A and Shore D. Shore A is used for softer materials; Shore D for harder materials. Both types are available with or without a max indicator needle, and selected models include a calibration certificate.
How does the Elcometer 3120 operate?
A round point indenter presses into the material under a fixed spring force. The resulting hardness value is read directly from the dial in Shore Hardness Units. The instrument can be used hand-held or mounted in an optional stand for improved repeatability.
What configurations are available for the Elcometer 3120?
Available variants include Shore A, Shore A with max indicator, Shore A with max indicator and 10N weight, Shore D, and Shore D with max indicator. Calibration certificate options are available for Shore A and Shore D base models.
