The SH-A Shore A Digital Durometer Hardness Tester measures the hardness of soft rubber and other elastomer materials to ASTM-D-2240. Hardness governs how a soft component flexes, seals and wears, so a reliable reading confirms a batch is within specification and flags material that is too soft or too firm for its application. The Shore A scale covers softer materials, making the SH-A Shore A Digital Durometer Hardness Tester suited to general rubber, synthetic rubber, soft rubber, poly-resin, leather and wax, as well as printer rollers.
The SH-A Shore A Digital Durometer Hardness Tester presses a flat cone point indenter, 0.79 mm with a 35 degree included angle, into the surface under a force of 0.55 to 8.06 N, with a tip stroke of 2.5 mm. The SH-A Shore A Digital Durometer Hardness Tester reads across a measuring range of 0 to 100 HA with a resolution of 0.5 HA and an accuracy of plus or minus 1 HA, shown on a digital display for clear, intuitive reading. The simple structure and small, light body, weighing 0.5 kg, allow hand-held measurement, and the SH-A Shore A Digital Durometer Hardness Tester can also be placed in a cradle for a set load test where greater repeatability is required.
Conforming to ASTM-D-2240, the standard test method for durometer hardness, the SH-A Shore A Digital Durometer Hardness Tester is used in rubber, plastics and materials quality control. It is supplied by BAMR, South Africa's authorised distributor.

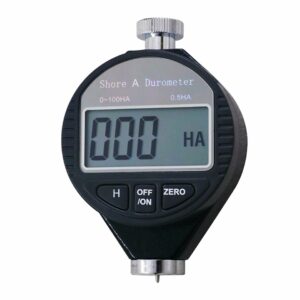

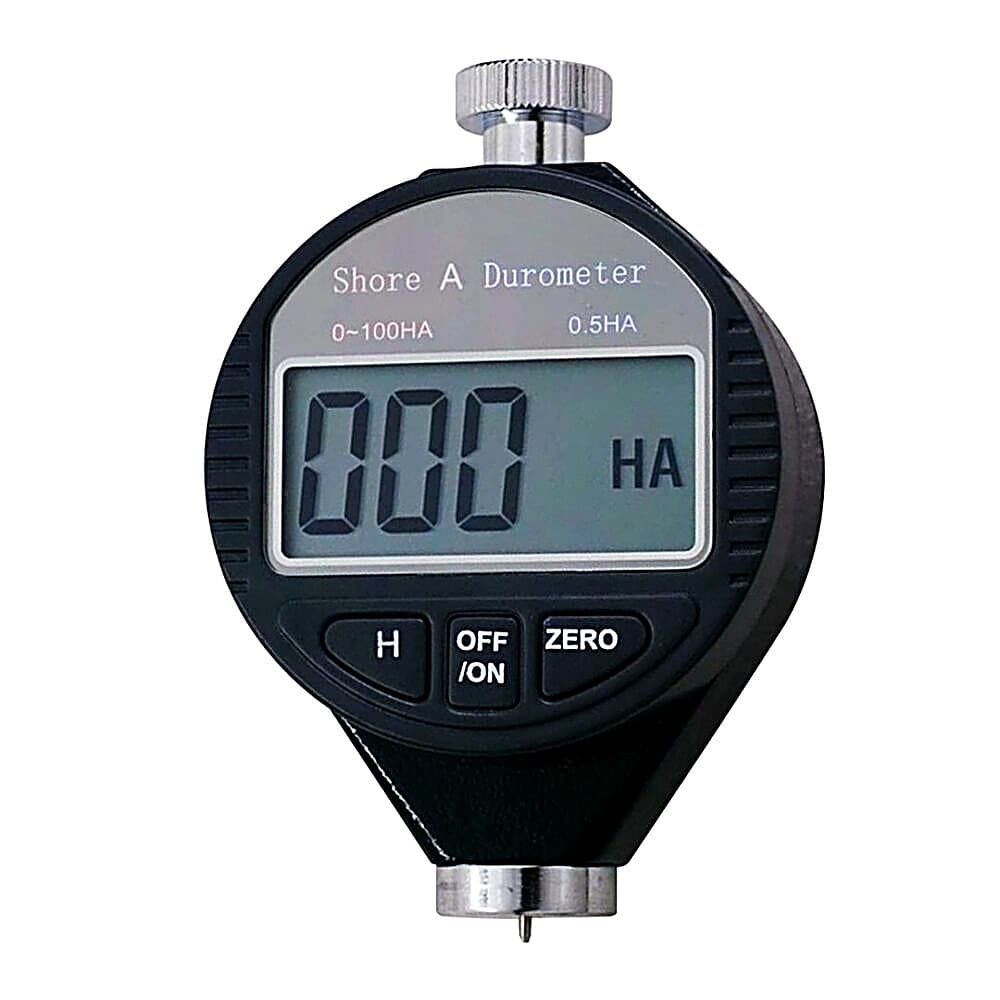

SH-A Shore A Digital Durometer Hardness Tester
The SH-A Shore A digital rubber hardness tester is designed for testing the hardness of soft rubber, printer rollers and other elastomer materials (ASTM-D-2240). This easy to use hardness tester with simple structure and small body us lightweight and gives intuitive readings. Taking hand-held measurements and can also be placed in a cradle with a set load test.
When to use the SH-A Shore A durometer
Use the SH-A to measure the hardness of soft rubbers and elastomers to ASTM-D-2240, including general and synthetic rubber, poly-resin, leather and wax. Its flat cone indenter and 0 to 100HA range cover the softer end of the hardness scale where Shore A applies.
- 1Built for the Shore A scaleThe flat cone indenter and 0 to 100HA range are made for soft rubbers and elastomers, where Shore A is the correct scale to report against.
- 2Conforms to ASTM-D-2240Readings follow the recognised durometer standard, so results hold up in QC records and against customer specifications rather than being an arbitrary number.
- 3Handheld or cradle mountedIt works hand-held for a quick spot check, or sits in a cradle with a set load test for more repeatable bench readings, with accuracy of plus or minus 1HA.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the SH-A Shore A durometer
Use the SH-A to measure the hardness of soft rubbers and elastomers to ASTM-D-2240, including general and synthetic rubber, poly-resin, leather and wax. Its flat cone indenter and 0 to 100HA range cover the softer end of the hardness scale where Shore A applies.
- 1Built for the Shore A scaleThe flat cone indenter and 0 to 100HA range are made for soft rubbers and elastomers, where Shore A is the correct scale to report against.
- 2Conforms to ASTM-D-2240Readings follow the recognised durometer standard, so results hold up in QC records and against customer specifications rather than being an arbitrary number.
- 3Handheld or cradle mountedIt works hand-held for a quick spot check, or sits in a cradle with a set load test for more repeatable bench readings, with accuracy of plus or minus 1HA.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Model
- Shore A
- Measuring range
- 0-100HA
- Resolution
- 0.5HA
- Accuracy
- ±1HA
- Force
- 0.55-8.06N
- Applications
- General rubber, synthetic rubber soft rubber, poly-resin, leather, wax, etc.
- Indenter shape
- Flat cone point 0.79mm 35º Included Angle
- Tip stroke
- 2.5mm
- Net weight
- 0.5kg
Standards
Standards
Downloads
Frequently asked questions
What materials is the SH-A Shore A durometer designed for?
The SH-A is designed for general rubber, synthetic rubber, soft rubber, poly-resin, leather, and wax. It conforms to ASTM D-2240 for Shore A hardness testing.
What is the measuring range and accuracy of the SH-A?
The SH-A measures 0 to 100 HA with a resolution of 0.5 HA and accuracy of plus or minus 1 HA. The applied force range is 0.55 to 8.06 N.
What indenter geometry does the SH-A use?
The SH-A uses a flat cone point indenter measuring 0.79 mm with a 35-degree included angle. Tip stroke is 2.5 mm.
Can the SH-A be used in a test stand?
Yes. As well as hand-held measurements, the SH-A can be placed in a compatible cradle with a set load test for improved repeatability on flat samples.
