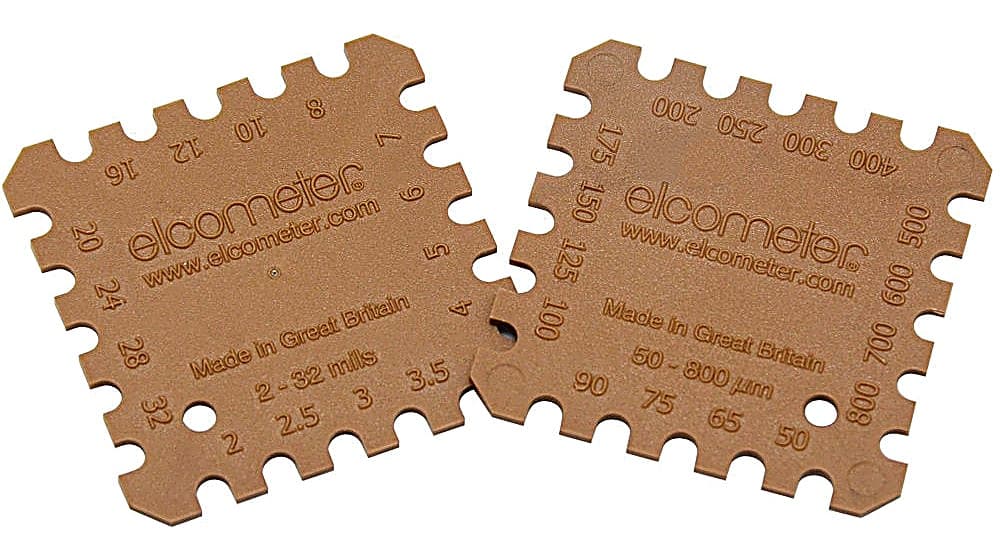

The Elcometer 154 Wet Film Combs (B154-1) are ABS plastic gauges used to measure the wet film thickness of a coating immediately after it is applied.
Wet film thickness is the only practical check made while the coating is still on the surface, and getting it right is what gives the correct dry film thickness once the coating cures. Measuring it as the work proceeds lets an applicator adjust the application before a fault becomes permanent. Each comb has stepped teeth of known heights; pressed into the wet film and removed, the wet film thickness lies between the largest wetted tooth and the smallest dry tooth.
The combs carry both metric and imperial scales on the same tool, reading 50 to 800 micrometres on one side and 2 to 32 mils on the other, with 16 measurement steps per comb. They are made of ABS plastic, intended for single use so each can be kept as a record of the measurement for quality assurance or customer requirements, and are supplied in packs of 25. Accuracy is to nominal values, each comb measures 40 x 40mm, and the pack weighs 900g.
The Elcometer 154 conforms to ISO 2808-1A, ISO 2808-7B, BS 3900-C5-7B, JIS K 5600-1-7 and NF T30-125, the standards for coating thickness measurement. It is used by coatings inspectors and applicators across protective coating, marine and industrial painting. Supplied by BAMR, South Africa's authorised distributor.
Elcometer 154 Wet Film Combs
The Elcometer 154 Wet Film Combs are made from ABS plastic and are designed to be used once, and kept as a record of wet film thickness measurement for quality assurance or customer requirements. Metric and Imperial values are on the same comb, 50 to 800µm on one side, 2 to 32mils on the other.
- ABS plastic construction Designed to be used once and kept as a record of wet film thickness measurement
- Dual measurement scales Metric and Imperial values on the same comb, 50 to 800µm on one side, 2 to 32mils on the other
- 16 measurement steps per comb
- Pack of 25 combs Supplied in a pack containing 25 combs
Also available to buy online at GaugeIt, our online store.
When to use the Elcometer 154 Wet Film Combs
Reach for the 154 combs when you need to check wet film thickness during application and keep the used comb as a physical record. Made from ABS plastic, each comb is used once and filed for quality assurance or to satisfy a customer requirement. They read 50 to 800µm on one side and 2 to 32mils on the other.
- 1A disposable record per checkEach comb is used once and kept, giving you a physical artefact of the wet film reading for a QA file or a customer who asks for proof of build.
- 2Metric and imperial on one combBoth scales sit on the same comb, 50 to 800µm on one side and 2 to 32mils on the other, so one tool covers jobs specified either way.
- 3Supplied in packs of 25With 25 combs to a pack and 16 measurement steps each, they suit operations that check often and need a fresh, clean comb every time.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 154 Wet Film Combs
Reach for the 154 combs when you need to check wet film thickness during application and keep the used comb as a physical record. Made from ABS plastic, each comb is used once and filed for quality assurance or to satisfy a customer requirement. They read 50 to 800µm on one side and 2 to 32mils on the other.
- 1A disposable record per checkEach comb is used once and kept, giving you a physical artefact of the wet film reading for a QA file or a customer who asks for proof of build.
- 2Metric and imperial on one combBoth scales sit on the same comb, 50 to 800µm on one side and 2 to 32mils on the other, so one tool covers jobs specified either way.
- 3Supplied in packs of 25With 25 combs to a pack and 16 measurement steps each, they suit operations that check often and need a fresh, clean comb every time.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Part Number
- B154-1
- Description
- Elcometer 154 Plastic Wet Film Combs
- Accuracy
- Nominal Values
- Dimensions
- 40 x 40mm
- Weight
- 900g
Packing List
Packing List
Standards
Standards
Test Method
Test Method

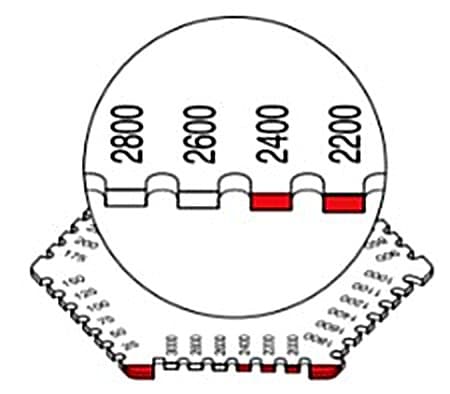

1. Hold the comb perpendicular to the wet film and press the edge of the comb into
2. the film until it is stable on the substrate.
3. Remove the comb from the wet film
4. Examine the teeth of the comb and locate the last tooth which is wetted.
5. Read the thickness value of this tooth. The wet film thickness is between this value and the thickness value of the next dry tooth. In the example shown, the wet film thickness lies between 2400µm and 2600µm To use the comb on pipes, ensure it is placed parallel to the longitudinal axis of the pipe
Downloads
Videos
Videos
Frequently asked questions
Are the Elcometer 154 wet film combs reusable?
No. The 154 is made from ABS plastic and is designed for single use. It is intended to be kept as a permanent record of the wet film measurement for quality assurance or customer documentation.
What measurement range does the 154 cover, and does it show metric and imperial values?
The 154 covers 50 to 800 micrometres on one side and 2 to 32 mils on the other, with both metric and imperial scales on the same comb.
