Site inspection requires a range of portable testing equipment. In order to make these products easily available and portable, Elcometer have developed a range of Coating Inspection Kits. All the gauges are conveniently stored in one hard plastic protective carrying case and are supplied with full operating instructions. Available as a Basic or
Top version, these digital inspection kits have been specifically designed to undertake the three principal inspection requirements in the Protective and Industrial Coatings Industry – climate, surface profile and dry film thickness. The Elcometer Basic Digital Inspection Kit is able to measure this.
The

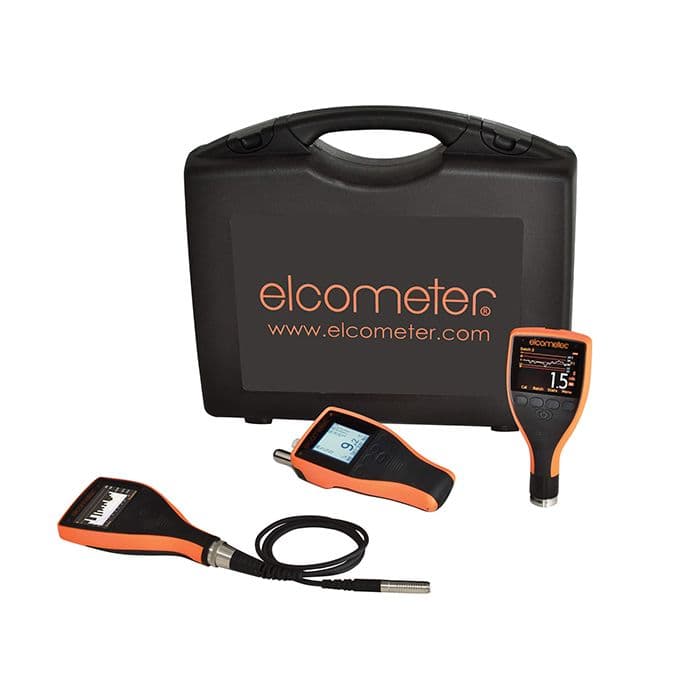

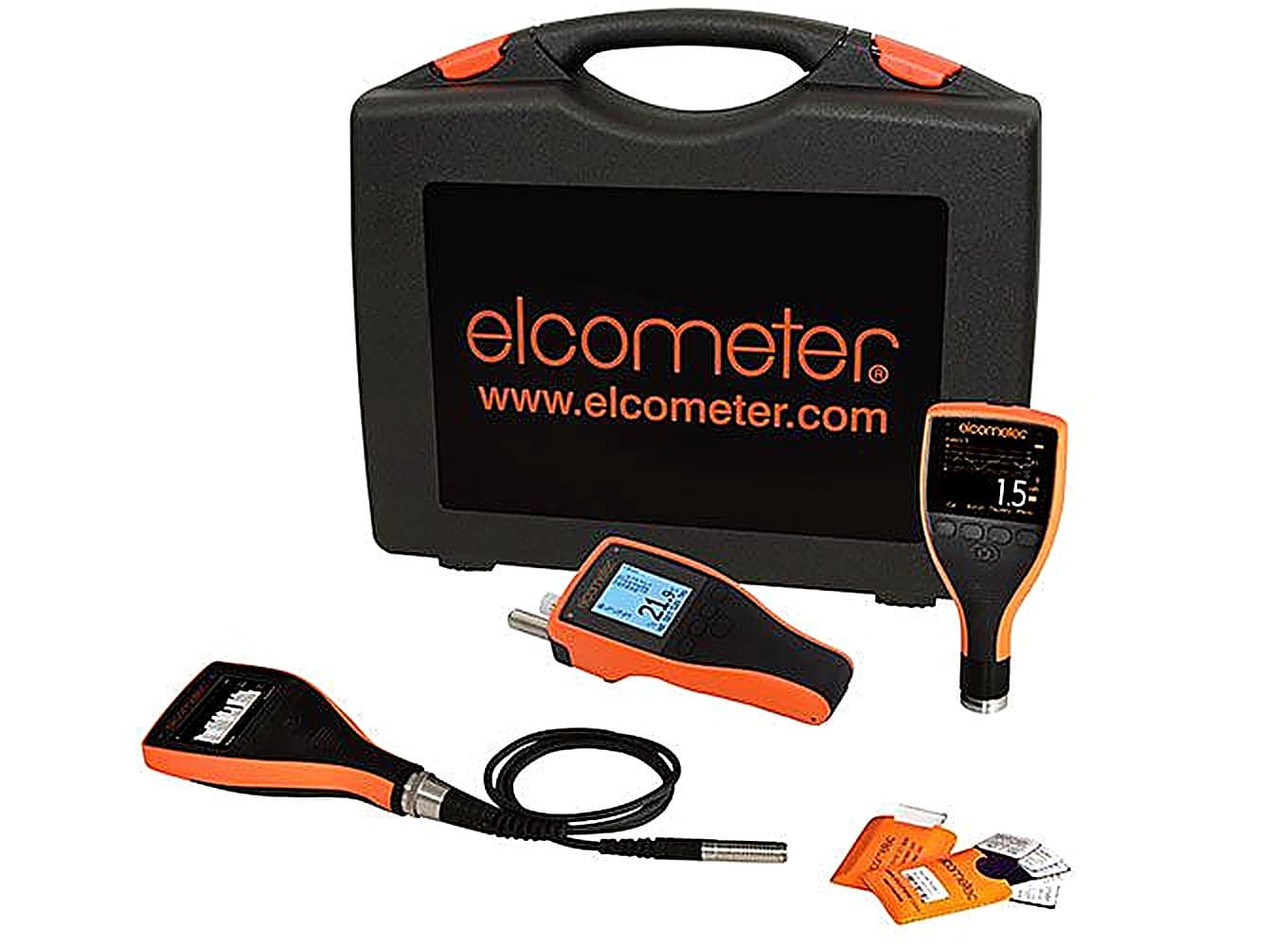

Elcometer Basic Digital Inspection Kit contains entry level digital inspection equipment designed for the less advanced user to carry out inspection tasks. The
Elcometer Basic Digital Inspection Kit contains :
The Gauges have on-screen statistics and a rolling memory for storing up to 10 readings.
Question : What do you plan to do with the readings once you have taken them?
If your answer is that you are going to write them down and possibly capture them or record them on a computer, then you should definitely consider the

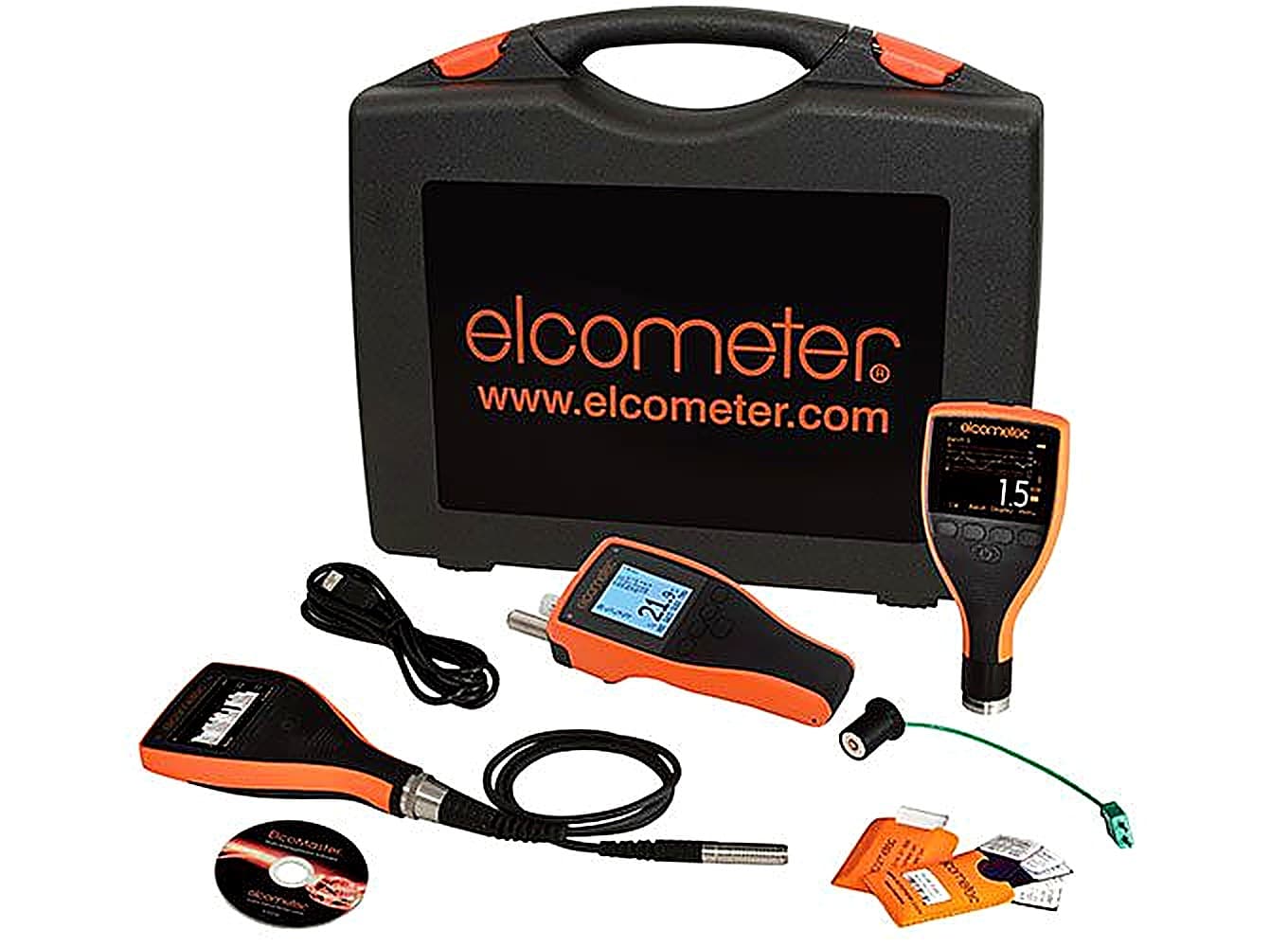

Elcometer Top Digital Inspection Kit which has the following features :
1. Gauges have memory which can store up to 150,000
b readings and Bluetooth® technology for cable free data transfer and are compatible with ElcoMaster
® Data Management Software, ideal for creating detailed, professional reports.
2. You can connect Elcometer Bluetooth
® enabled inspection gauges directly to iPhone, iPad and iPod or Android™ mobile phones and tablets via ElcoMaster
® Mobile App. allowing data analysis on site, without having to turn on a computer.
To find out more about the Top Kit that can store data for download then click here :
Elcometer Top Digital Inspection Kit
We have found that the ability to download the readings instead of writing them down and being able to generate a report at the touch of a button is the way the industry is heading and definitely worth the extra initial outlay.
Elcometer Basic Digital Inspection Kit – Specifications
Elcometer Basic Digital Inspection Kit Packing List
|
|
| Kit Content / Part Number |
YKIT- |
YKIT- |
YKIT- |
YKIT- |
|
|
DIGITAL-B |
DIGITAL-T |
DIGITALFNF-B |
DIGITALFNF-T |
| Elcometer 224 Integral Digital Surface Profile Gauge Scale Range: 0- 500μm |
Y |
Y |
Y |
Y |
|
|
Model B |
Model T |
Model B |
Model T |
| Complete with : |
|
|
|
|
|
calibration Test Foils – Nominal Values: 125 & 500μm |
|
|
|
|
|
Glass Zero Tile |
|
|
|
|
|
AA Batteries (x2), |
|
|
|
|
|
Probe Tip Protection Cap |
|
|
|
|
|
Wrist Strap |
|
|
|
|
|
Test Certificate |
|
|
|
|
|
|
|
|
|
|
| Elcometer 319 Digital Dewpoint Meter |
Y |
Y |
Y |
Y |
|
|
Standard |
Top |
Standard |
Top |
| Complete with : |
|
|
|
|
|
AA Batteries (x2), |
|
|
|
|
|
Wrist Strap |
|
|
|
|
|
Test Certificate |
|
|
|
|
|
|
|
|
|
|
| Elcometer 319 Magnetic Surface Probe |
O |
Y |
O |
Y |
|
|
|
|
|
|
| Elcometer 456 Ferrous Separate Digital Coating Thickness Gauge |
Y |
Y |
Y |
Y |
|
|
Ferrous |
Ferrous |
FNF |
FNF |
|
|
Model B |
Model T |
Model B |
Model T |
| Complete with : |
|
|
|
|
|
AA Batteries (x2), |
|
|
|
|
|
Wrist Strap |
|
|
|
|
|
Test Certificate |
|
|
|
|
|
|
|
|
|
|
| Elcometer 456 Ferrous Standard Separate Probe Scale Range: 0 – 1500μm |
Y |
Y |
Y |
Y |
|
|
Ferrous |
Ferrous |
FNF |
FNF |
| Complete with : |
|
|
|
|
|
Scale 1 Foil Set: 25, 50, 125, 250, 500 & 1000μm |
|
|
|
|
|
Test Certificate |
|
|
|
|
|
|
|
|
|
|
| Elcometer 456 Ferrous PINIP™ Probe Scale Range: 0 – 1500μm |
O |
O |
O |
O |
|
|
Ferrous |
Ferrous |
FNF |
FNF |
| Complete with : |
|
|
|
|
|
Scale 1 Foil Set: 25, 50, 125, 250, 500 & 1000μm |
|
|
|
|
|
Test Certificate |
|
|
|
|
|
|
|
|
|
|
| ElcoMaster® CD and USB Cable |
O |
Y |
O |
Y |
|
|
|
|
|
|
| oSpace in kit to fit, but not supplied. Order separately if required. |
|
|
|
|
Each kit contains a combination of the following digital inspection instruments required to perform the most common daily inspection tasks. Measure:
 |

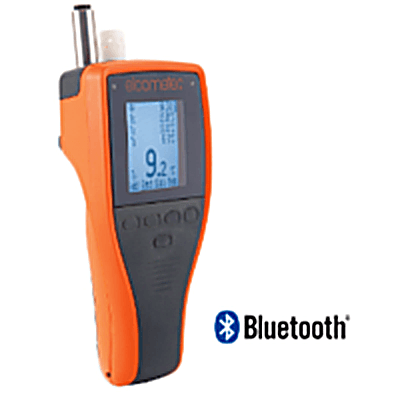

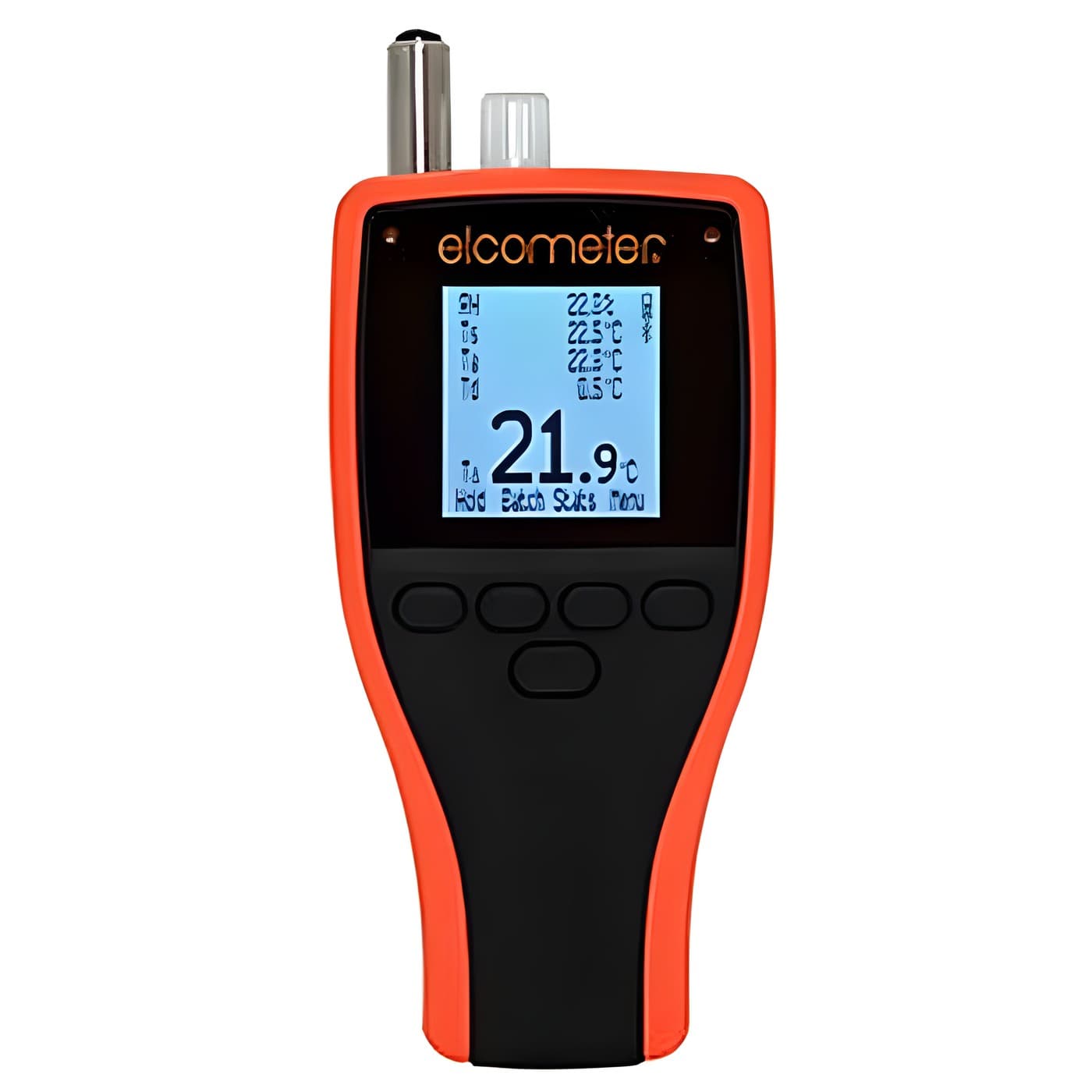

Climatic conditions using the Elcometer 319 Dewpoint Meter: The Elcometer 319 has been designed to incorporate all the features required for climate condition monitoring in a single gauge with memory and measurement options which make this one of the most versatile digital dewpoint meters available.The clear, illuminated display can show any combination of up to five climatic parameters including: % Relative Humidity, Specific Humidity, Surface Temperature, Ambient Air Temperature, Dewpoint Temperature, Delta T, Dry Bulb Temperature and Wet Bulb Temperature.The Standard Gauge has a 10 reading rolling memory whereas the Top Gauge can store up to 40,000 sets of readings in 999 batches. It also offers readings via Bluetooth® technology for cable free data transfer and are compatible with ElcoMaster® readings that can be stored and used to create professional reports. |
 |
Surface profile using the Elcometer 224 Digital Surface Profile Gauge: The Elcometer 224 provides the very latest in surface profile measuring technology. Accurate, fast and very user friendly, the Elcometer 224 Model B displays statistical values as readings are taken. The Model T has the advantage of a large built-in memory to accurately record up to 150,000 readings in 2,500 batches.
- Fast, accurate reading rate; 60+ readings per minute
- Tough, impact, water & dust resistant; equivalent to IP64
- Automatic rotating display; 0°, 90°, 180° & 270°
- Gauge software updates; via ElcoMaster®
- On screen statistics
- Limits; user definable audible & visual pass/fail warnings
|
 |

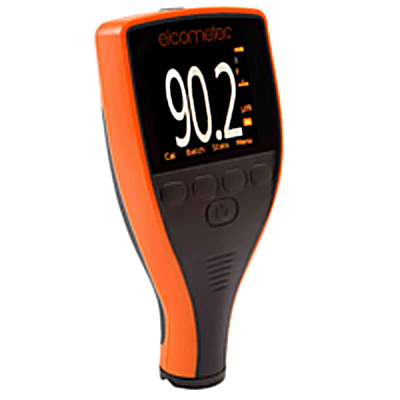

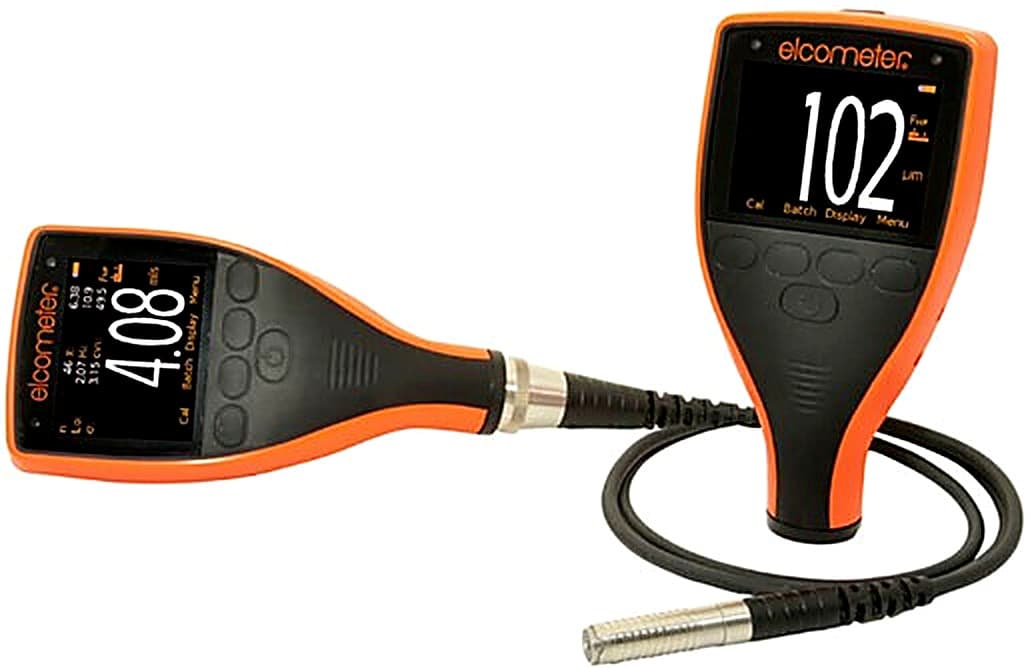

Dry film thickness using the Elcometer 456 Digital Coating Thickness Gauge: The new Elcometer 456 Coating Thickness Gauge sets new standards making measuring dry film thickness faster, reliable and accurate; helping you to become more efficient.
- Fast, accurate reading rate; 70+ readings per minute
- Tough, impact, water & dust resistant; equivalent to IP64
- Automatic rotating display; 0°, 90°, 180° & 270°
- Gauge software updates; via ElcoMaster®
- On screen statistics
- Multiple calibration methods
- Limits; user definable audible & visual pass/fail warnings
|
| Create professional reports using ElcoMaster® Data Management Software |
 |
ElcoMaster® Data Management Software is a fast, easy to use software solution for all your reporting requirements. With in-built report templates and easy access of all data, images and other associated files. ElcoMaster® makes managing your data simple.The software has been designed to be familiar and intuitive to any PC user. When the gauge is connected to the PC, individual readings can be sent directly into the software for real time analysis or simply ‘drag and drop’ a batch from the gauge to the software. All associated job or inspection files, health and safety reports etc. can be stored within ElcoMaster®. One programme holds all of your inspection information in one place. Viewing data and producing standard reports is achievable in just a few clicks. Fully customised reports can be produced quickly by using the ElcoMaster® Report Designer. In addition to the readings and charts, a digital photograph may be assigned to an individual batch of data, allowing the visual display of the inspection area in reports. Batches can be combined for immediate comparison of data from various areas of the job site. |
