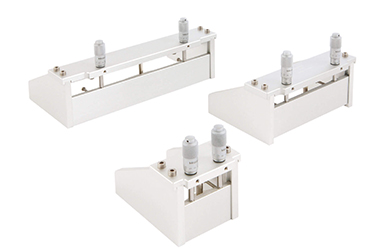

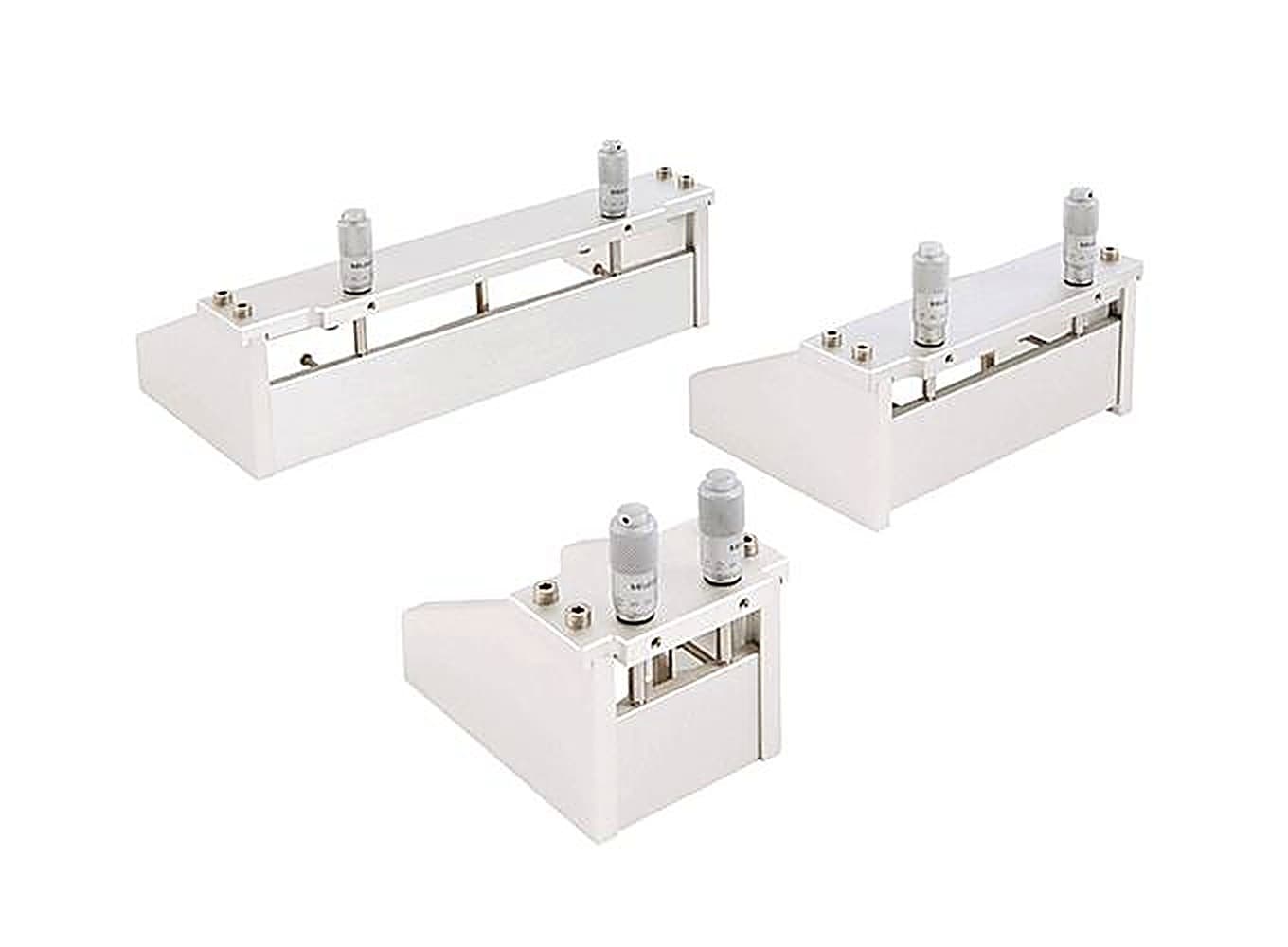

The Elcometer 3580 Casting Knife Film Applicators are anodised aluminium hand applicators with a bevelled blade applicator body, made for manually applying thick, high viscosity fluids onto solid, flat substrates. Extended sides confine the coating during application, which makes the Elcometer 3580 Casting Knife Film Applicators a practical laboratory gauge for casting controlled films.

Consistent film thickness is what allows coating tests to be repeated and compared: an uneven or uncontrolled draw-down produces results that cannot be trusted between samples or operators. The Elcometer 3580 Casting Knife Film Applicator sets thickness with two integrated micrometric screws, adjustable in 10 micron steps from 0 to 6mm, so the wet film is laid down to a defined and reproducible thickness.

The seven models of the Elcometer 3580 Casting Knife Film Applicators differ in film thickness range and width. The 3580/1 (K0003580M201) covers 0 to 5000μm at 50mm wide, while models 3580/2 through 3580/7 (part numbers K0003580M202 to K0003580M007) cover 0 to 6000μm in widths of 75mm, 100mm, 125mm, 150mm, 175mm and 200mm. The Elcometer 3580 Casting Knife Film Applicators can work in accordance with ASTM D 823-E, the practice for producing films of uniform thickness for test purposes. Used in coatings laboratories and quality control, the Elcometer 3580 Casting Knife Film Applicators are supplied by BAMR, South Africa's authorised distributor.
