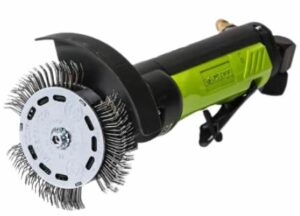

The MontiPower MBX Axial (SDB-201-BMC) is a pneumatic bristle blasting attachment built to remove corrosion in areas that conventional tools cannot reach, such as door rabbets, roof joints and wheel housings. The aim is to produce a blasted, angular surface that gives coatings and adhesives the anchor they need for lasting adhesion.
Poor surface preparation is the most common cause of premature coating failure, and tight or recessed geometry is where it tends to be skipped. The MontiPower MBX Axial is highly flexible in confined spaces, stripping rust, scale and oxidation as well as old paint, protective coatings and sealers, so the substrate is properly prepared before recoating rather than left as a weak point.
The MontiPower MBX Axial runs on flexible-wire MBX Belts and includes a swivel connector for easier hose routing. The MontiPower MBX Axial measures 300 mm long by 125 mm wide, weighs 1.1 kg and carries a belt outer diameter of 110 mm. Required flow pressure is 6.2 bar (90 psi) with average air consumption of 14.2 cfm (0.4 m3/min) and an idle speed of 2,700 rpm. The threaded air inlet is G 1/4 inch, the required interior hose diameter is 9.5 mm (3/8 inch), vibration is 1.45 m/sec2 and the sound pressure level is 84 dB(A).
Used in coatings, corrosion control and automotive surface preparation, the MontiPower MBX Axial is supplied by BAMR, South Africa's authorised distributor.
MontiPower MBX Axial
The MBX Axial is specially designed to remove corrosion in areas that are difficult to reach - like door rabbets, roof joints, wheel housings - to create a blasted surface for superior adhesion.
- Highly flexible in tight areas
- Removing corrosion and oxidation, rust and scale
- Removing paint, protective coatings and sealers
- Includes a swivel connector
Specifications
- Part Number
- SDB-201-BMC
- Length
- 300 mm
- Width
- 125 mm
- Weight
- 1.1 kg
- Belt diameter (outer)
- 110 mm
- Required flow pressure
- 6.2 bar | 90 psi
- Average air consumption
- 14.2 cfm | 0.4 m³/min
- Idle speed (± 5%)
- 2,700 rpm
- Threaded air inlet
- G 1/4"
- Required hose diameter (interior)
- 9.5 mm | 3/8"
- Vibration
- 1.45 m/sec2
- Sound pressure level
- 84 dB(A)
Specifications
Specifications
- Part Number
- SDB-201-BMC
- Length
- 300 mm
- Width
- 125 mm
- Weight
- 1.1 kg
- Belt diameter (outer)
- 110 mm
- Required flow pressure
- 6.2 bar | 90 psi
- Average air consumption
- 14.2 cfm | 0.4 m³/min
- Idle speed (± 5%)
- 2,700 rpm
- Threaded air inlet
- G 1/4"
- Required hose diameter (interior)
- 9.5 mm | 3/8"
- Vibration
- 1.45 m/sec2
- Sound pressure level
- 84 dB(A)
Downloads
Downloads
Videos
Videos
Frequently asked questions
Where should I use the MBX Axial?
The MBX Axial is designed to remove corrosion in difficult-to-reach areas such as door rabbets, roof joints, and wheel housings. It creates a properly blasted surface that promotes superior coating adhesion in these confined spaces.
What air compressor setup do I need for the MBX Axial?
The tool requires a minimum flow pressure of 6.2 bar (90 psi) and consumes an average of 14.2 cfm (0.4 m³/min). Ensure your compressor supplies this pressure consistently, and use an air hose with a 9.5 mm (3/8 inch) internal diameter fitted to the G 1/4 inch threaded inlet.
Is the MBX Axial portable?
Yes. At 1.1 kg and 300 mm long, the MBX Axial is lightweight and compact, making it ideal for carrying to confined spaces and different job sites without operator fatigue.
What is the belt diameter for the MBX Axial?
The belt has an outer diameter of 110 mm. Note this specification when ordering replacement belts for maintenance.
What noise and vibration levels does the MBX Axial produce?
Operating at 2,700 rpm, it produces a sound pressure level of 84 dB(A) and vibration of 1.45 m/sec squared. Use appropriate hearing protection and ensure compliance with your regional occupational health regulations for vibration exposure.
