The Elcometer 215 Oven Data Logger (part numbers G215---2S and G215---2T) measures and stores the temperature profiles of both the product and the oven during the curing process. During powder coating, parts pass through an oven where the powder melts, flows, gels and cures, and the final performance and appearance depend on reaching the correct temperature for the correct time. Hot or cold spots in the oven, or a product that does not get hot enough, cause coating failures, so recording the actual temperature the part experiences is what proves the cure was right.

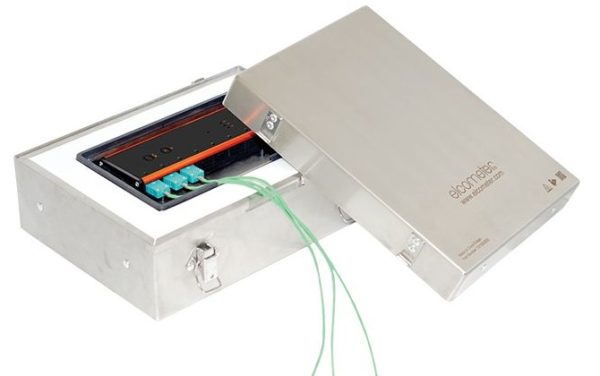

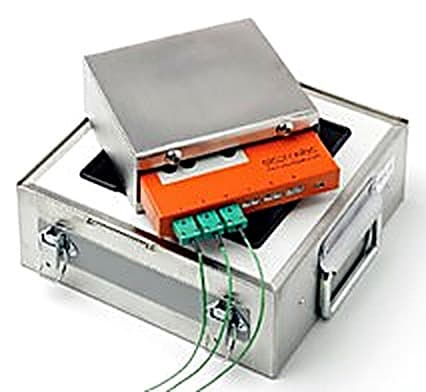

The Elcometer 215 Oven Data Logger travels through the oven inside a thermal barrier, with up to six K-type thermocouples reading air and surface temperatures at different points. The measurement range is -200 to 1300 degrees C with a resolution of 0.1 degrees C and accuracy of plus or minus 0.5 degrees C from 5 to 500 degrees C and plus or minus 1.0 degrees C above 500 degrees C. Measuring intervals are adjustable from 8 per second to 1 per hour, and memory holds 260,000 readings or 8 production runs. A quick display shows maximum temperature, a Cure-Index figure and a pass or fail for each probe. The Standard barrier protects the logger at, for example, 100 degrees C for 140 minutes, while the High Temperature barrier with heat sink extends this to 100 degrees C for 340 minutes for longer runs. Results download via USB to ElcoMaster software for reporting.
Used by powder and wet coating lines running batch or conveyor ovens, this model has been superseded by the Elcometer 215 Oven Temperature Profiling System. It is supplied by BAMR, South Africa's authorised Elcometer distributor.

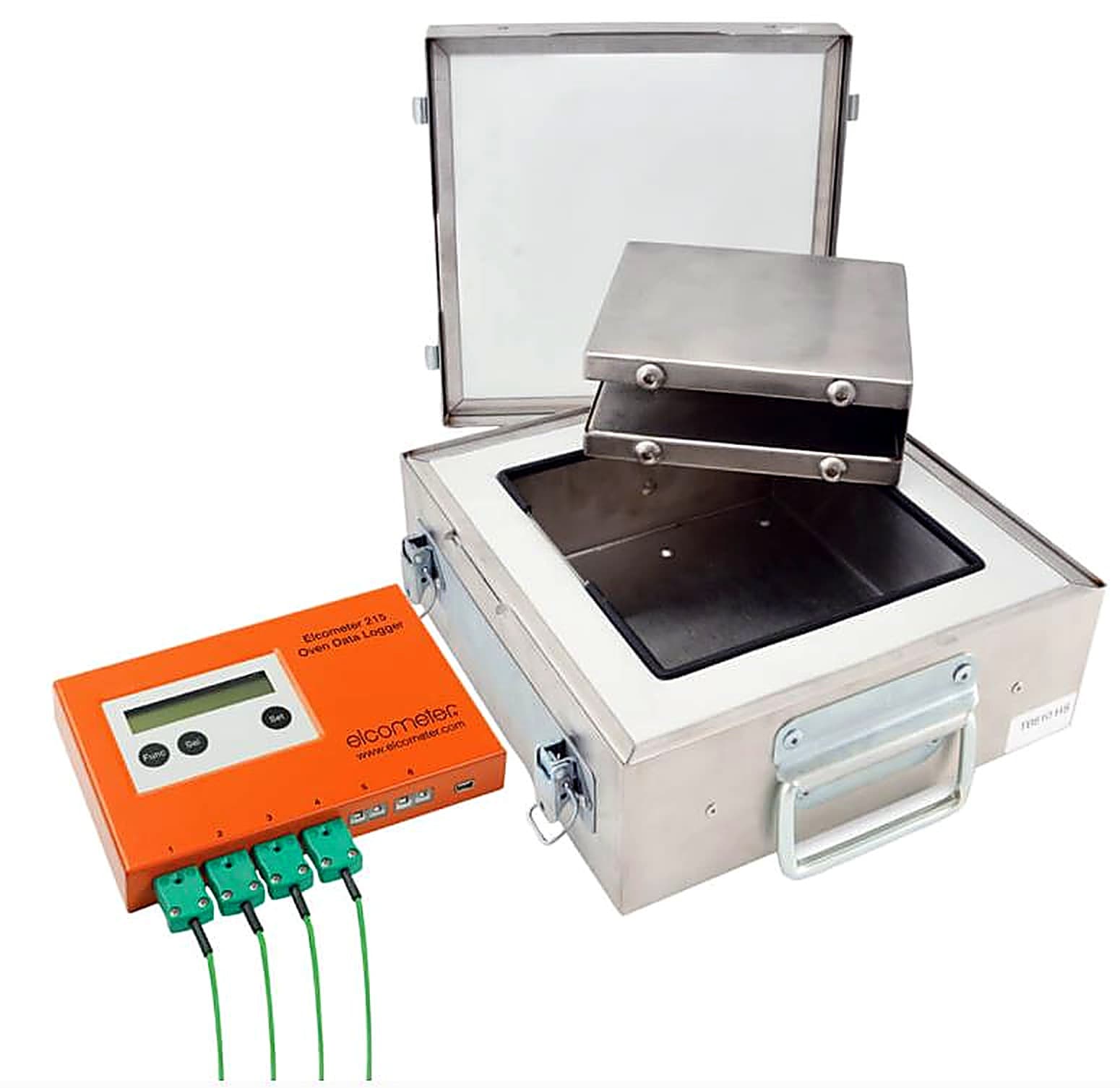

Elcometer 215 Oven Data Logger

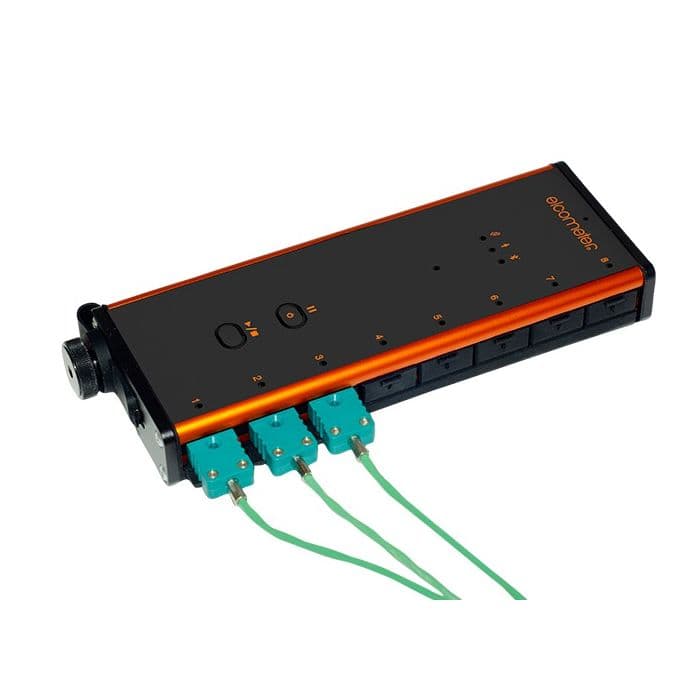

The Elcometer 215 Oven Data Logger is the easy-to-use oven temperature profile solution, used to measure and store the temperature profiles of both the sample and the oven during the cure process.
- Memory stores up to 260,000 readings
- Ideal for testing powder or liquid coatings in batch or conveyor ovens
- Variable measurement interval date, time, °C / °F
- High temperature resistant Teflon coated probe cables easy to clean after each run
- Quick display shows maximum temperature, Cure-Index figure and pass/fail for each probe
- Measure up to 6 different temperatures at one time
- Ideal in situations where powder coated thickness is inconsistent
- Start and stop logging at a pre-set temperature
- Large menu-driven display for easy operation
- Print full colour report directly to any HP printer
When to use the Elcometer 215 Oven Data Logger
Use the Elcometer 215 Oven Data Logger when you need to record the temperature profile of both the part and the oven through a powder or liquid coating cure, in batch or conveyor ovens. It logs up to six K-type channels at once, stores up to 260,000 readings and gives a quick pass or fail with a Cure-Index figure. It suits QC staff proving products reached the right time at temperature.
- 1Six channels at onceMeasuring up to six temperatures together lets you compare part against oven, or several points across a load, in a single run rather than repeating cures.
- 2Pass or fail at a glanceThe display shows maximum temperature, the Cure-Index figure and pass or fail for each probe, so an operator gets a clear verdict on each cure without interpreting raw curves.
- 3Handles inconsistent thicknessIt is suited to situations where powder coated thickness is inconsistent, helping confirm whether parts that vary still reached cure.
- 4Reports and ElcoMaster outputDirect full-colour printing to any HP printer plus USB output to ElcoMaster give a documented record for quality control and compliance.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Elcometer 215 Oven Data Logger
Use the Elcometer 215 Oven Data Logger when you need to record the temperature profile of both the part and the oven through a powder or liquid coating cure, in batch or conveyor ovens. It logs up to six K-type channels at once, stores up to 260,000 readings and gives a quick pass or fail with a Cure-Index figure. It suits QC staff proving products reached the right time at temperature.
- 1Six channels at onceMeasuring up to six temperatures together lets you compare part against oven, or several points across a load, in a single run rather than repeating cures.
- 2Pass or fail at a glanceThe display shows maximum temperature, the Cure-Index figure and pass or fail for each probe, so an operator gets a clear verdict on each cure without interpreting raw curves.
- 3Handles inconsistent thicknessIt is suited to situations where powder coated thickness is inconsistent, helping confirm whether parts that vary still reached cure.
- 4Reports and ElcoMaster outputDirect full-colour printing to any HP printer plus USB output to ElcoMaster give a documented record for quality control and compliance.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
General
- Measurement Range
- -200°C to 1300°C
- Operating Temperature
- -30°C to 65°C without thermal barriers
- Resolution
- 0.1°C
- Number of Channels
- 6 K-Type
- Measuring Intervals
- Adjustable from 8 per second to 1 per hour
- Memory
- 260,000 readings or 8 production runs
- Data Output
- USB / PLC3
- Power Supply
- 2 x AA batteries
- Dimensions (Logger Only)
- 153 x 101 x 23mm
- Weight (Logger Only)
- 450g
- Dimensions (Logger & Barrier)
- 245 x 245 x 115mm
Accuracy
- 5°C to 500°C
- ±0.5°C
- >500°C
- ±1.0°C
Thermal Barrier Kit - Thermal Characteristics
| Standard Thermal Barrier Kit | High Temperature Thermal Barrier Kit* | |
|---|---|---|
| 100°C | 140 minutes | 340 minutes |
| 150°C | 80 minutes | 195 minutes |
| 200°C | 60 minutes | 130 minutes |
| 250°C | 50 minutes | 100 minutes |
| 300°C | 30 minutes | |
| Weight (Logger & Barrier) | 4kg | 6kg |
Specifications
○ = certificate available
| Part Number | Description | Certificate |
|---|---|---|
| G215-2S | Elcometer 215 Oven Data Logger - Standard Thermal Barrier Kit | ○ |
| G215-2T | Elcometer 215 Oven Data Logger - High Temp Thermal Barrier Kit* | ○ |
Accessories - Probes
| Description | 1.5m | 3m | 6m |
|---|---|---|---|

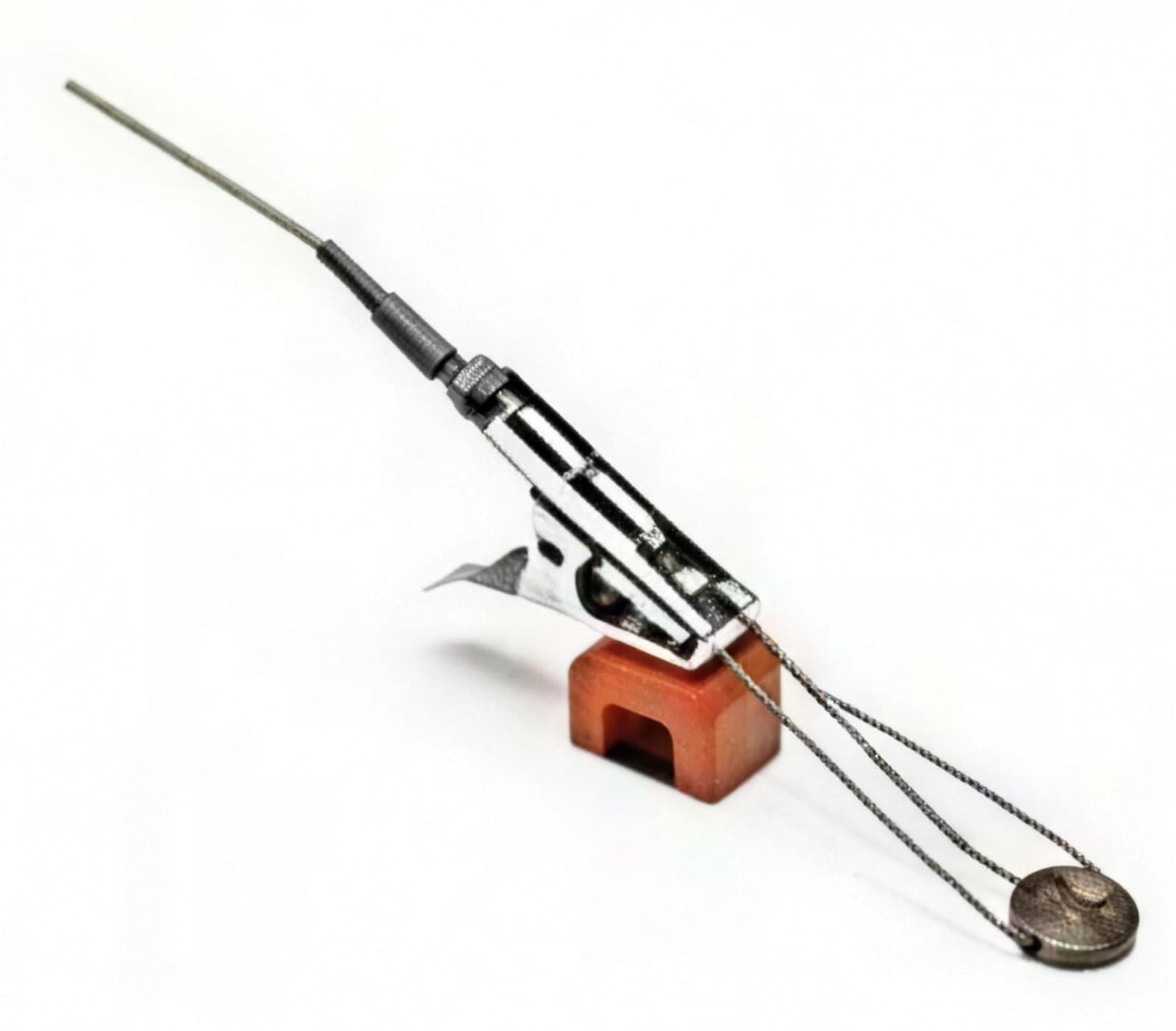

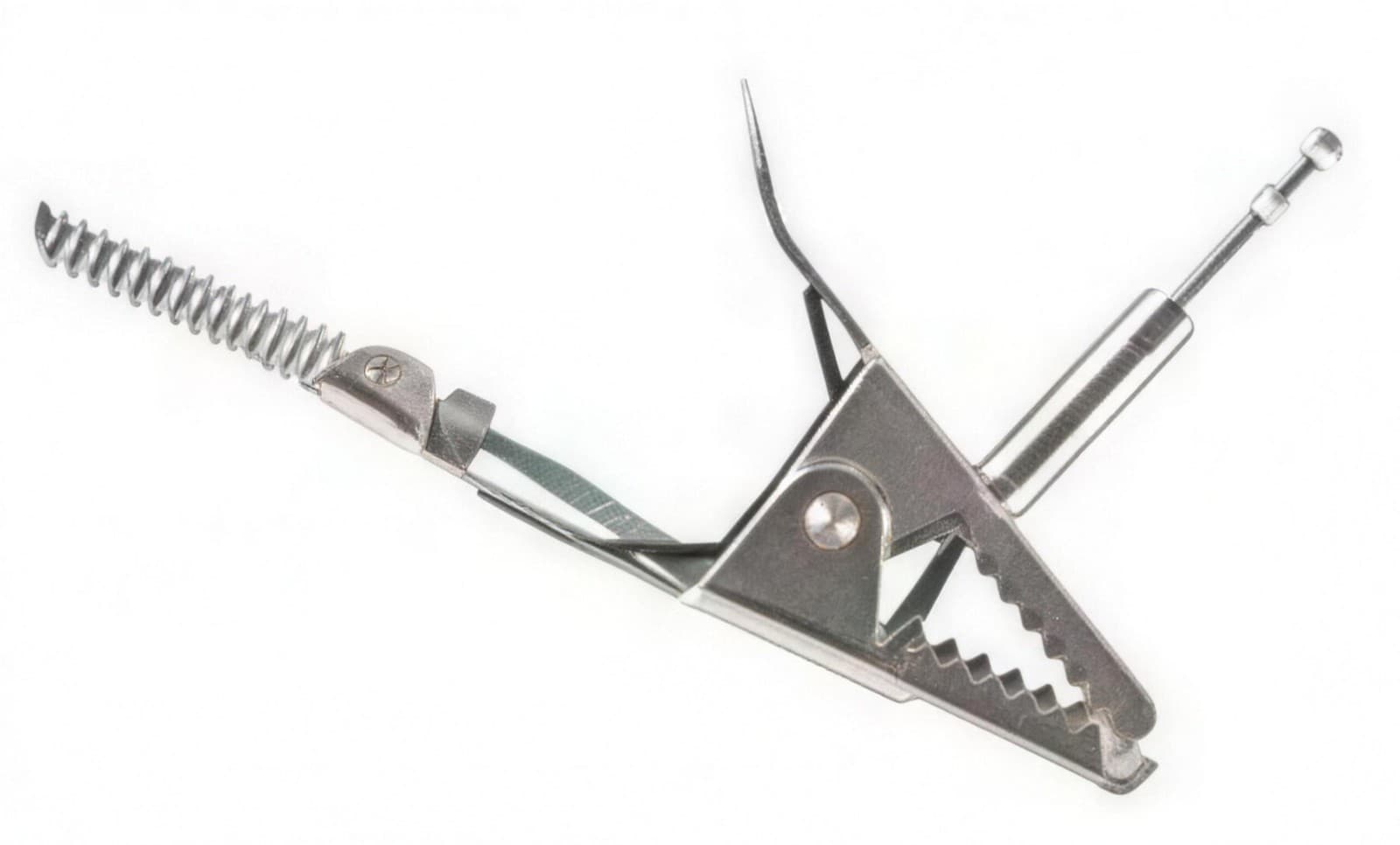

| Clamp Air Probe | T21521275 | T21521276 | T21521277 |
| Magnetic Air Probe | T21521287 | T21521288 | T21521569 |

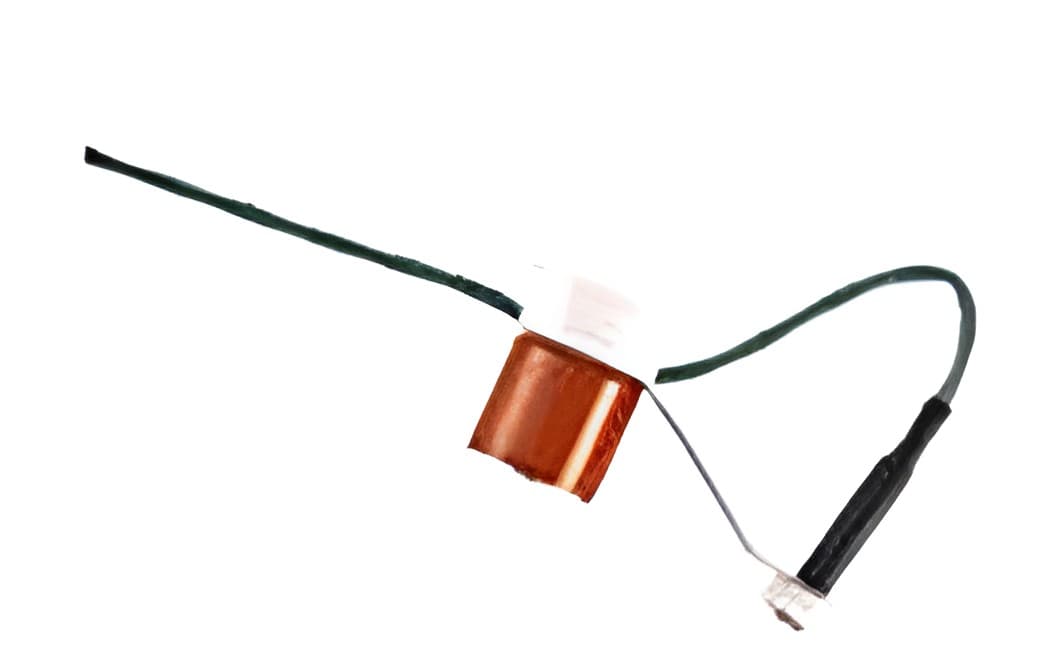

| Clamp Surface Probe | T21521278 | T21521279 | T21521280 |
| Magnetic Surface Probe | T99921281 | T99921282 | T99921283 |
| Combined Magnetic Clamp Air & Surface Probe | T21521284 | T21521285 | T21521286 |
Packing List
Packing List
Accessories
Accessories

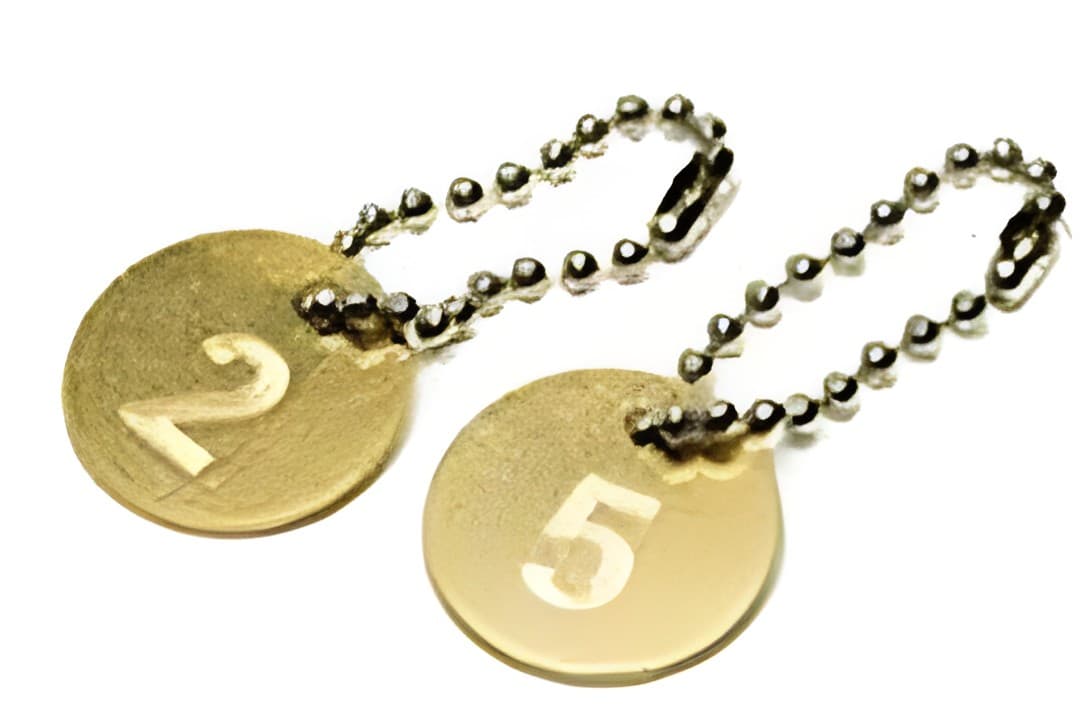

| Probe Identification Tags (Pack of 6) logger | T21521241 |
| Standard Thermal Barrier | T21521222 |
| High Temperature Thermal Barrier for Elcometer 215 Model T (Heat Sink Block not included) | T21521217 |
| Heat Sink Block for High Temperature Thermal Barrier | T21521219 |
| Data Logger to PC USB Cable | T21521220 |
Software
Software
ElcoMaster® Oven Profiling Software
ElcoMaster® is the easy to use software solution designed specifically for the management and assessment of your temperature profile, allowing you to generate professional inspection reports in seconds.
Key Features Explained: Oven Logger
Set Up - Create and store unique oven profile setups, name each of the 6 channels, set sampling rates, number of batch runs, start/stop triggers and transfer them to the gauge. Coating Parameters - Set up a library of individual paint types incorporating min, mid & max cure temperatures as well as the maximum absolute and minimum cross link temperatures.
Coating Datasheets - Save a copy of the coating's data sheet as a permanent record. Product Probe Maps - Simply drag and drop up to 6 probe ID markers on to your product photo or drawing to record exact probe placement for each production run.
Customisable Templates - Create your own comprehensive inspection profile - simply choose a relevant gauge setup, paint parameter and product probe map from your library and assign them to your logger data, providing instant, meaningful and professional reports. Elcometer Cure Value - Using the industry accepted cure value calculation ElcoMaster® provides instant Pass/Fail information by comparing the production run temperature to the coating supplier's cure requirements.
Graphical Reporting - Standard temperature profile graph, cure process and individual profile/cure graphs combined with the product probe map are available as standard. Combined Reports - Fully customisable reports can be quickly generated - allowing oven profile reports to be combined with data from coating thickness, gloss & adhesion gauges.
This easy to use software solution designed specifically for the management and assessment of your oven temperature profile, allows you to generate professional inspection reports in seconds. ElcoMaster® Software Oven Profiling Key Features:
- Oven Logger set up & programming
- Paint/Powder parameter library
- Product probe maps
- Fully customisable inspection templates
- Selectable probe/channel traces
- Statistical analysis by probe/channel
- Max, Min, standard deviation, coefficient of variation
- Temperature profile, cure progress, histogram & individual cure value graphs against product
- Time at temperature, time of peak difference
- Time above maximum absolute & minimum cross link temperatures
- Fully customisable inspection reports
- Combined reports - coating thickness, gloss, adhesion, profile, climate, surface cleanliness
- Report generator wizard & PDF generator
- Email or export data
- Import photo's, data sheets, critical data, inspection notes, etc & include on inspection reports
- Cloud computing - allows for cross site collaboration, including internal text messaging tool
- Overlay temperature profiles, review and compare multiple oven profiles over time
- Use additional data loggers for multiple channels or run overlays Create and store unique oven profile setups and transfer them to the gauge Set up a library of individual paint parameters Individual product probe maps record the exact probe placement for each component Standard temperature profile and cure Process graphs can be viewed at any time Statistical analysis by probe/channel
Product Features
Product Features
Memory stores up to 260,000 readings Ideal for testing for powder or liquid coatings in batch or conveyor ovens Variable measurement interval, date, time, °C / °F High temperature resistant Teflon coated probe cables are easy to clean after each run Quick display shows maximum temperature, Cure-Index figure and pass/fail for each probe Measure up to 6 different temperatures at one time Ideal in situations where powder coated thickness is inconsistent Start and stop logging at a pre-set temperature Large menu-driven display for easy operation Print full colour report directly to any HP printer USB data output to ElcoMaster® software and combine with other key inspection measurements Logging both the product's surface temperature and the air temperature in the oven, the Elcometer 215 identifies the achieved "Temperature Profile" and provides the User with information to ensure consistent quality. Suitable for powder coating, wet coating, batch and conveyor ovens, the Elcometer 215's measurements, analysis capabilities and tailor-made reporting options generate comprehensive details of the curing processes.
The data logger is fitted with a large display for easy menu-driven operation and an immediate display of the measurement results.
- Maximize productivity: Reduce rejects and reworks due to poor oven performance.
- Minimize energy costs: Avoid running the ovens at unnecessarily high temperatures or with long through-put times.
- Optimise finishing quality: Logging temperature profiles provides the information required to ensure consistent quality.
- Datalogger software: Comprehensive calculations and fully customised reports are easily produced with the Elcometer 215 Software supplied as standard with each gauge.
- Choice of kits available: Standard and Top models available Standard Thermal Barrier Kit with thermal barrier - ideal for single runs High Temperature Barrier Kit Thermal barrier & heat sinks for longer time at temperature
Frequently asked questions
What does the Elcometer 215 Oven Data Logger measure?
It measures and stores the temperature profiles of both the sample and the oven during the cure process. It is an easy-to-use oven temperature profile solution.
What is the measurement range and accuracy of the Elcometer 215 Data Logger?
The measurement range is -200 to 1300 degrees C with a resolution of 0.1 degrees C. Accuracy is plus or minus 0.5 degrees C from 5 to 500 degrees C, and plus or minus 1.0 degrees C above 500 degrees C.
How many channels does the Elcometer 215 Data Logger support and what sensor type does it use?
It supports 6 K-Type channels. Available probes include clamp air, magnetic air, clamp surface, magnetic surface, and combined magnetic clamp air-and-surface probes in 1.5m, 3m, and 6m lengths.
How much data can the Elcometer 215 Data Logger store?
The logger stores up to 260,000 readings or 8 production runs. Measuring intervals are adjustable from 8 readings per second to 1 per hour.
How long do the thermal barriers protect the logger inside an oven?
The standard thermal barrier sustains up to 60 minutes at 200 degrees C. The high temperature barrier extends this to 130 minutes at 200 degrees C and up to 30 minutes at 300 degrees C.
How is the Elcometer 215 Data Logger powered and what data output does it offer?
It runs on 2 x AA batteries. Data is transferred via USB.
