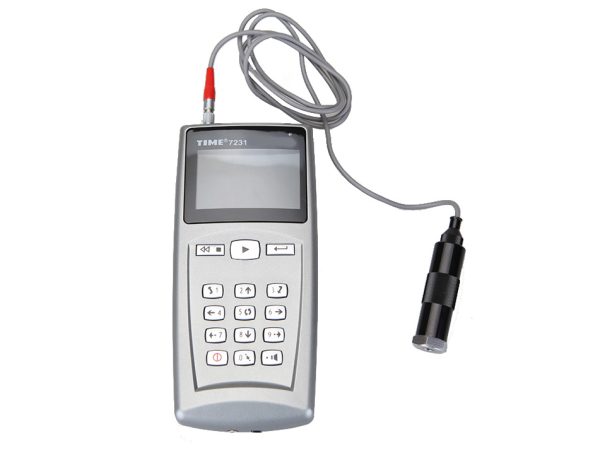

The Portable Vibration Tester TV 7231 is a handheld instrument for measuring and analysing machine vibration, reporting acceleration, velocity, displacement, rotation speed and frequency. Unbalanced, misaligned or worn rotating equipment generates characteristic vibration signatures, and catching a change in those signatures early is what separates a planned repair from an unplanned breakdown. The Portable Vibration Tester TV 7231 gives maintenance teams a portable way to take those readings on the plant floor.
The Portable Vibration Tester TV 7231 carries a low sensitivity probe suited to strong vibration signals, and offers two display modes: a digital value mode and a spectrum mode. Its full graphic 300 x 200 matrix LCD with backlight shows the spectrum chart in real time, and an alarm sounds and switches the unit into spectrum mode when vibration exceeds the set limit, which speeds up diagnosis. Measuring ranges of the Portable Vibration Tester TV 7231 cover acceleration from 1 m/s² to 392 m/s² (peak), velocity from 0.1 cm/s to 80 cm/s (RMS) and displacement from 0.01 mm to 18.1 mm (peak-peak), at an accuracy of ±5%. A large memory holds 100 x 100 measured results plus 100 spectral charts, and RS-232 output sends results to a printer or PC.
Weighing 230 g and powered by rechargeable Li-ion batteries, the Portable Vibration Tester TV 7231 suits condition monitoring of motors, pumps and other rotating machinery. Supplied by BAMR, South Africa's authorised distributor.

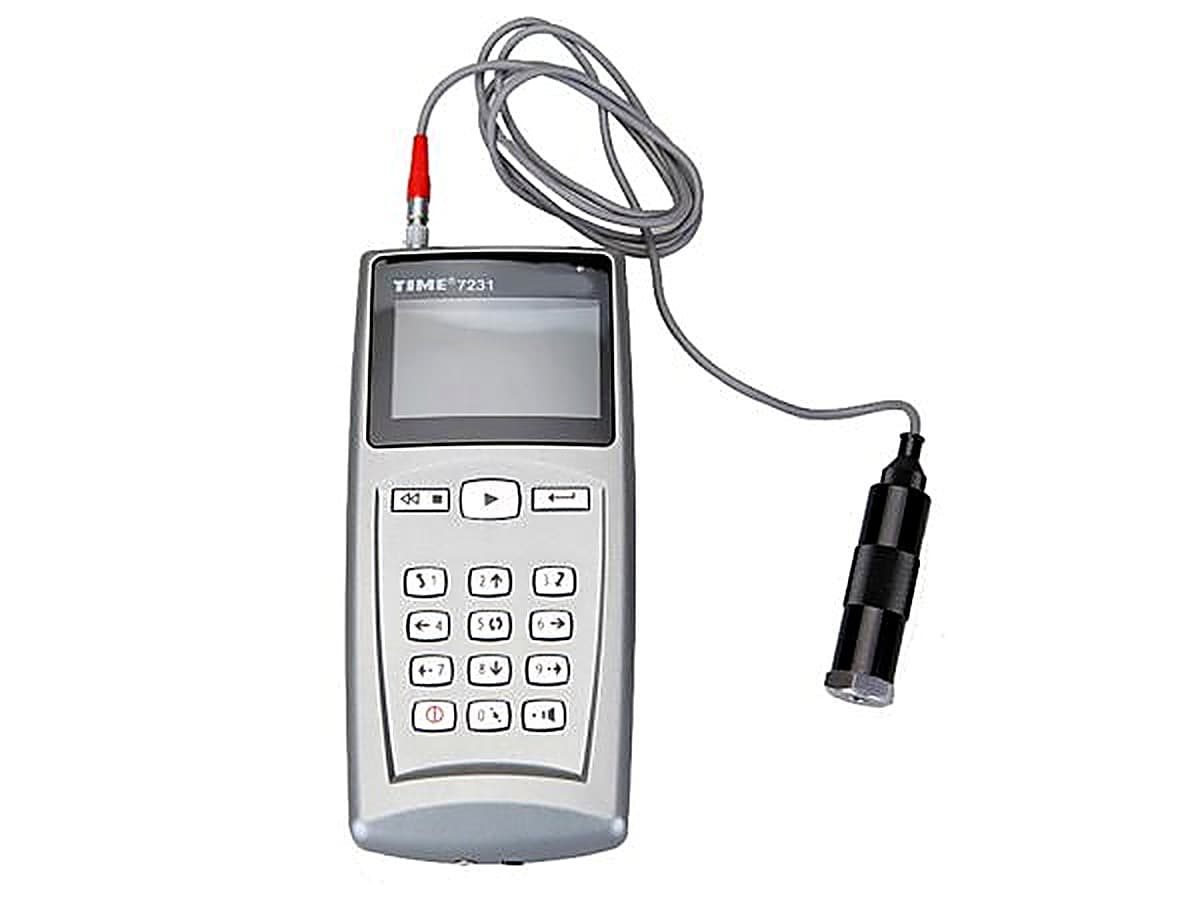

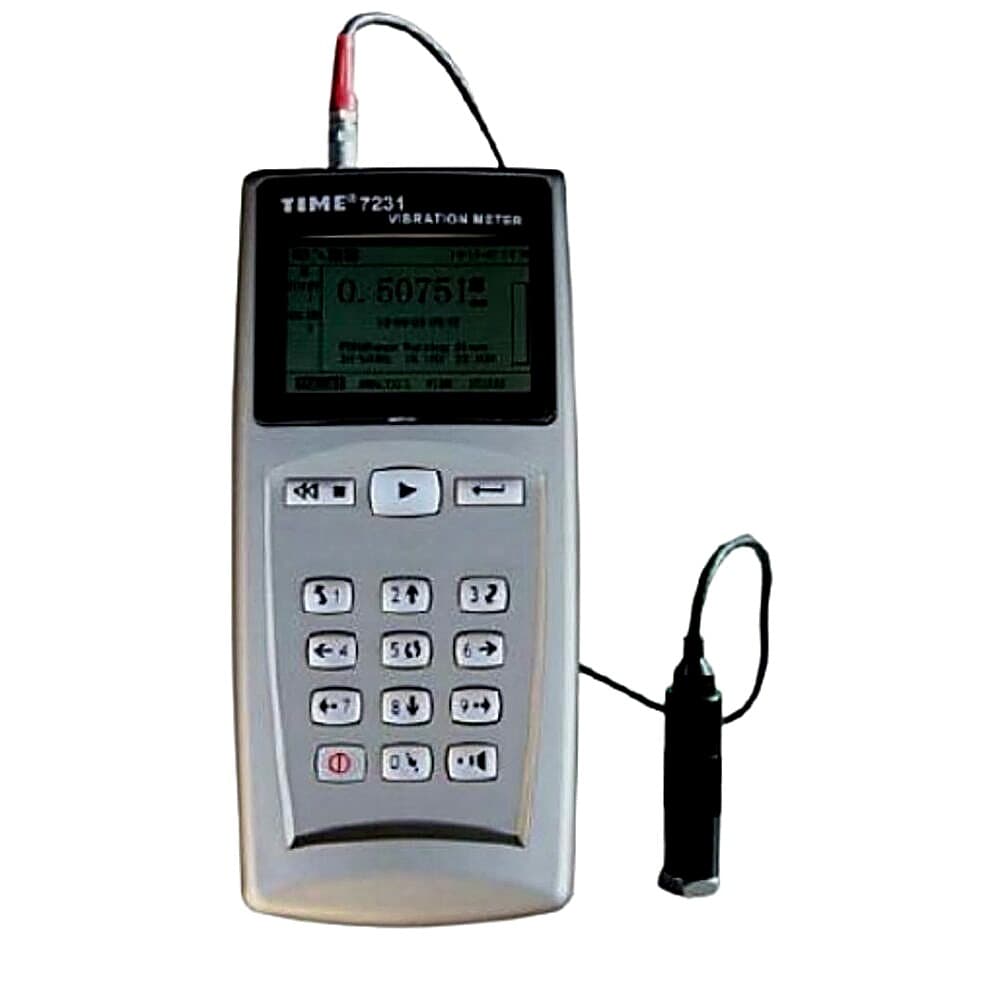

Portable Vibration Tester TV 7231
The Portable Vibration Tester TV 7231 with full graphic LCD and Spectrum Analysis has a large measuring range with a displacement up to 18.1. It analyzes acceleration, velocity, displacement, rotation speed and frequency.
- Low sensitivity probe Suitable for testing strong vibration signal
- Two display modes Digital value mode and spectrum mode
- Large memory function 100×100 measured results (100 testing points, 100 data can be stored in each testing points); 100 Spectral chart
- Spectrum chart display Can display in real time
- Easy diagnosis Alarm is sounded when vibration goes over limit set, and get into spectrum mode
- Testing results and spectrum chart can be printed out When connected to printer
- 300×200 matrix LCD display With backlight
- RS-232 output For printer or PC (optional software)
Also available to buy online at GaugeIt, our online store.
When to use the Portable Vibration Tester TV 7231
You are diagnosing rotating machinery in the field and need more than a single overall number. The TV 7231 reads acceleration, velocity, displacement, rotation speed and frequency, and shows results as both digital values and a live spectrum chart.
- 1Spectrum analysis on siteA real-time spectrum chart lets you trace a vibration back to its frequency and likely source rather than only confirming that a level is high.
- 2Alarm-triggered diagnosisAn alarm sounds when vibration passes the limit you set and the meter switches into spectrum mode, so an over-limit reading immediately gives you something to act on.
- 3Stores and prints resultsMemory for 100 testing points with up to 100 readings each, plus spectrum charts, with print and RS-232 output, supports route-based monitoring and record keeping.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the Portable Vibration Tester TV 7231
You are diagnosing rotating machinery in the field and need more than a single overall number. The TV 7231 reads acceleration, velocity, displacement, rotation speed and frequency, and shows results as both digital values and a live spectrum chart.
- 1Spectrum analysis on siteA real-time spectrum chart lets you trace a vibration back to its frequency and likely source rather than only confirming that a level is high.
- 2Alarm-triggered diagnosisAn alarm sounds when vibration passes the limit you set and the meter switches into spectrum mode, so an over-limit reading immediately gives you something to act on.
- 3Stores and prints resultsMemory for 100 testing points with up to 100 readings each, plus spectrum charts, with print and RS-232 output, supports route-based monitoring and record keeping.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
| Measuring Range: | Acceleration | 1m/s2 to 392 m/s2 (Peak) |
|---|---|---|
| Velocity | 0.1cm/s to 80cm/s (RMS) | |
| Displacement | 0.01mm to 18.1mm (Peak-Peak) | |
| Frequency range | Acceleration | 10Hz – 200Hz, 10Hz – 500Hz, 10Hz – 1KHz, 10Hz – 10KHz |
| Velocity | 10Hz -200Hz,10Hz – 500Hz, 10Hz – 1KHz | |
| Displacement | 10Hz – 500Hz | |
| Accuracy: | ±5% | |
| Operating temperature: | 0 – 40 ˚C | |
| Humidity Range: | <80% | |
| Dimensions | 171 x 78 x 28 mm | |
| Weight | 230g |
- Power supply:
- Li-ion rechargeable batteries – charging time 12 hours
- Acceleration
- 1 m/s² to 392 m/s² (Peak)
Packing List
Packing List
Frequently asked questions
What parameters does the TV 7231 measure?
The TV 7231 measures acceleration, velocity, displacement, rotation speed, and frequency, with full spectrum analysis on a graphic LCD. Displacement range extends to 18.1 mm peak-to-peak.
What are the measurement ranges for acceleration, velocity, and displacement?
Acceleration: 1 to 392 m/s2 (peak). Velocity: 0.1 to 80 cm/s (RMS). Displacement: 0.01 to 18.1 mm (peak-to-peak). Overall accuracy is plus or minus 5%.
What frequency ranges does the TV 7231 cover?
For acceleration: 10 Hz to 200 Hz, 500 Hz, 1 kHz, or 10 kHz selectable. For velocity: 10 Hz to 200 Hz, 500 Hz, or 1 kHz. For displacement: 10 Hz to 500 Hz.
How is the TV 7231 powered?
The TV 7231 uses a rechargeable Li-ion battery with a charging time of 12 hours. Operating temperature range is 0 to 40 degrees C with humidity below 80%.
