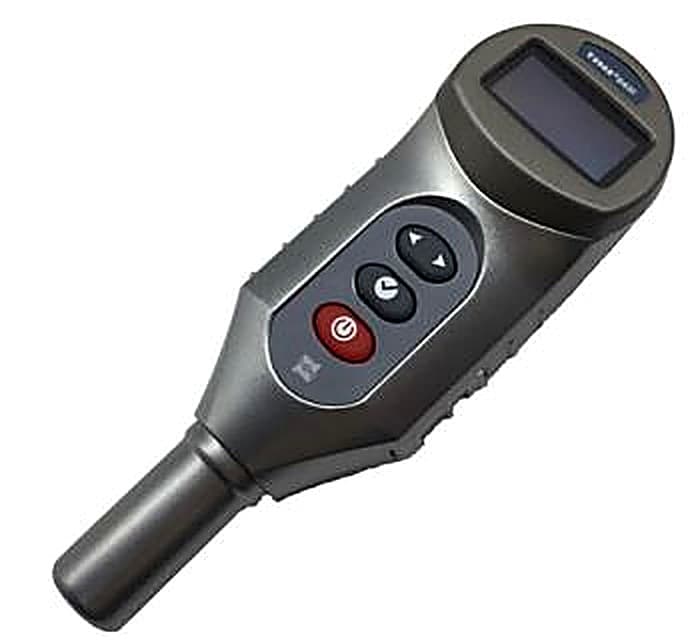

The TIME TH5431 Digital Shore D Durometer Hardness Tester (part number TH5431) is a handheld instrument for testing the hardness of hard plastics and rubbers on the Shore D scale. Material hardness governs how a component resists indentation and wear, so a reliable Shore D reading helps confirm that mouldings, profiles and rubber parts meet specification before they go into service.
The TIME TH5431 Digital Shore D Durometer Hardness Tester uses a built-in displacement sensor to measure indentation hardness across a range of 0 to 100HD, with a stated tolerance of less than or equal to plus or minus HD across 20 to 90HD. Readings appear on a 1.3-inch OLED display with a 128 x 64 graphic dot matrix. Two testing modes are provided: a real-time mode and a peak-value-lock mode for capturing the maximum reading. Up to 200 groups of average peak values can be stored on the TIME TH5431 Digital Shore D Durometer Hardness Tester, and pre-set upper and lower limits with an out-of-limit alarm support batch testing.
A USB interface connects the TIME TH5431 Digital Shore D Durometer Hardness Tester to a PC, and optional data processing software outputs results in Microsoft Word or Excel for quality control and management reports. An optional operation stand is available for repeatable bench testing of the TIME TH5431 Digital Shore D Durometer Hardness Tester. The unit measures 173 x 56 x 42mm, weighs 200g, runs on a built-in rechargeable lithium battery and operates from 0 to 40 degrees C, with an adjustable automatic shutdown. The TIME TH5431 Digital Shore D Durometer Hardness Tester is supplied by BAMR, South Africa's authorised distributor.
TIME TH5431 Digital Shore D Durometer Hardness Tester
The NEW TH5431 Digital Shore D Hardness Tester is ideal for testing hardness of hard plastics and rubbers.
- Built-in displacement sensor Compact size, easy to carry and convenient to use.
- 1.3-inch OLED display screen 128 x 64 graphic dot matrix, clear to read information.
- Two testing modes Real-time testing mode and Peak-value-lock mode to meet actual measuring requirements.
- Optional operation stand
- 200 groups of average peak values can be stored
- USB interface to connect with PC
- Optional Data processing software Output in Microsoft Word or Excel for quality control and management reports.
- Pre-set upper/lower limits and out-of-limit alarm For batch testing.
- Display voltage status and low voltage prompt
- Automatic shutdown which is adjustable The function can be turned off as needed.
Also available to buy online at GaugeIt, our online store.
When to use the TIME TH5431 Shore D Durometer
Use the TH5431 when you are testing the hardness of hard plastics and rubbers on the Shore D scale. It reads 0 to 100 HD on a 1.3-inch OLED display, offers real-time and peak-value-lock modes, and outputs to a printer and PC for quality-control reports.
- 1Sized for hard materialsThe Shore D scale is intended for hard plastics and rubbers, the materials this durometer is built to test.
- 2Two modes for the jobReal-time and peak-value-lock modes let you watch a reading settle or capture the peak, matching how different specifications require the value to be taken.
- 3Batch testing with alarmsPreset upper and lower limits with an out-of-limit alarm flag failures during batch testing, so the operator does not have to read every value manually.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the TIME TH5431 Shore D Durometer
Use the TH5431 when you are testing the hardness of hard plastics and rubbers on the Shore D scale. It reads 0 to 100 HD on a 1.3-inch OLED display, offers real-time and peak-value-lock modes, and outputs to a printer and PC for quality-control reports.
- 1Sized for hard materialsThe Shore D scale is intended for hard plastics and rubbers, the materials this durometer is built to test.
- 2Two modes for the jobReal-time and peak-value-lock modes let you watch a reading settle or capture the peak, matching how different specifications require the value to be taken.
- 3Batch testing with alarmsPreset upper and lower limits with an out-of-limit alarm flag failures during batch testing, so the operator does not have to read every value manually.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Model
- TIME® TH5431 Digital Shore D Durometer Hardness Tester
- Hardness Test Scale
- Shore D
- Data Output
- RS232 to printer
- Measuring Range
- 0 - 100HD
- Tolerance
- ≤± HD (20-90HD)
- Power supply
- Built in rechargeable Lithium battery
- Operating temperature
- 0 - 40°C
- Dimensions
- 173 x 56 x 42mm
- Weight
- 200g
What's in the kit
What's in the kit
Accessories
Accessories
| PC Software |
| USB Communication Cable |
| Operation Stand |
Downloads
Frequently asked questions
What materials is the TIME TH5431 designed to test?
The TH5431 is designed for testing the hardness of hard plastics and rubbers using the Shore D hardness scale.
What is the measuring range of the TH5431?
The measuring range is 0 to 100HD on the Shore D scale. A tolerance applies across the 20 to 90HD range.
How is the TH5431 powered and what data output does it support?
The unit is powered by a built-in rechargeable lithium battery. Data can be output via a USB interface to a PC, with optional software that exports results to Microsoft Word or Excel.
What are the operating temperature range and physical dimensions of the TH5431?
Operating temperature is 0 to 40 degrees C. The instrument measures 173 x 56 x 42mm and weighs 200g.
