The 8706 Hygro Thermometer, also called a thermo hygrometer, is a pocket instrument for measuring temperature, relative humidity, dew point and wet bulb temperature. These four readings matter because climatic conditions decide whether a coating or process succeeds, and knowing dew point in particular tells a painting contractor whether a surface is safe to coat or at risk of condensation that would spoil the finish.
The microprocessor-based design of the 8706 Hygro Thermometer uses a Rotronic electronic capacitance humidity sensor with an electronic capacitance polymer film element, and condensation will not affect the meter's accuracy. A dual display shows temperature and humidity together, with dew point, wet and dry bulb temperature calculated electronically, so there is no water, no twirling and no reading of charts. The temperature range is -20 to +50 degrees C with an external probe range of -20 to 70 degrees C, relative humidity covers 0 to 100% RH, wet bulb runs -21.6 to 50.0 degrees C and dew point -78.7 to 50.0 degrees C. Accuracy is plus or minus 1 degree C on temperature and plus or minus 3% RH at 25 degrees C, with 0.1 degree resolution and a typical 60 second response time.
The 8706 Hygro Thermometer is pocket sized at 24.7 x 48.4 x 178.5 mm, runs on two 1.5V AAA batteries and ships with an external temperature probe (VZ87P6). Self-calibration is available for the 8706 Hygro Thermometer using HR33 and HR75 salt solutions, and an optional external liquid temperature probe extends its use. The 8706 Hygro Thermometer suits HVAC engineers, painting contractors and similar trades. It is supplied by BAMR, South Africa's authorised distributor of precision measurement and inspection instruments.

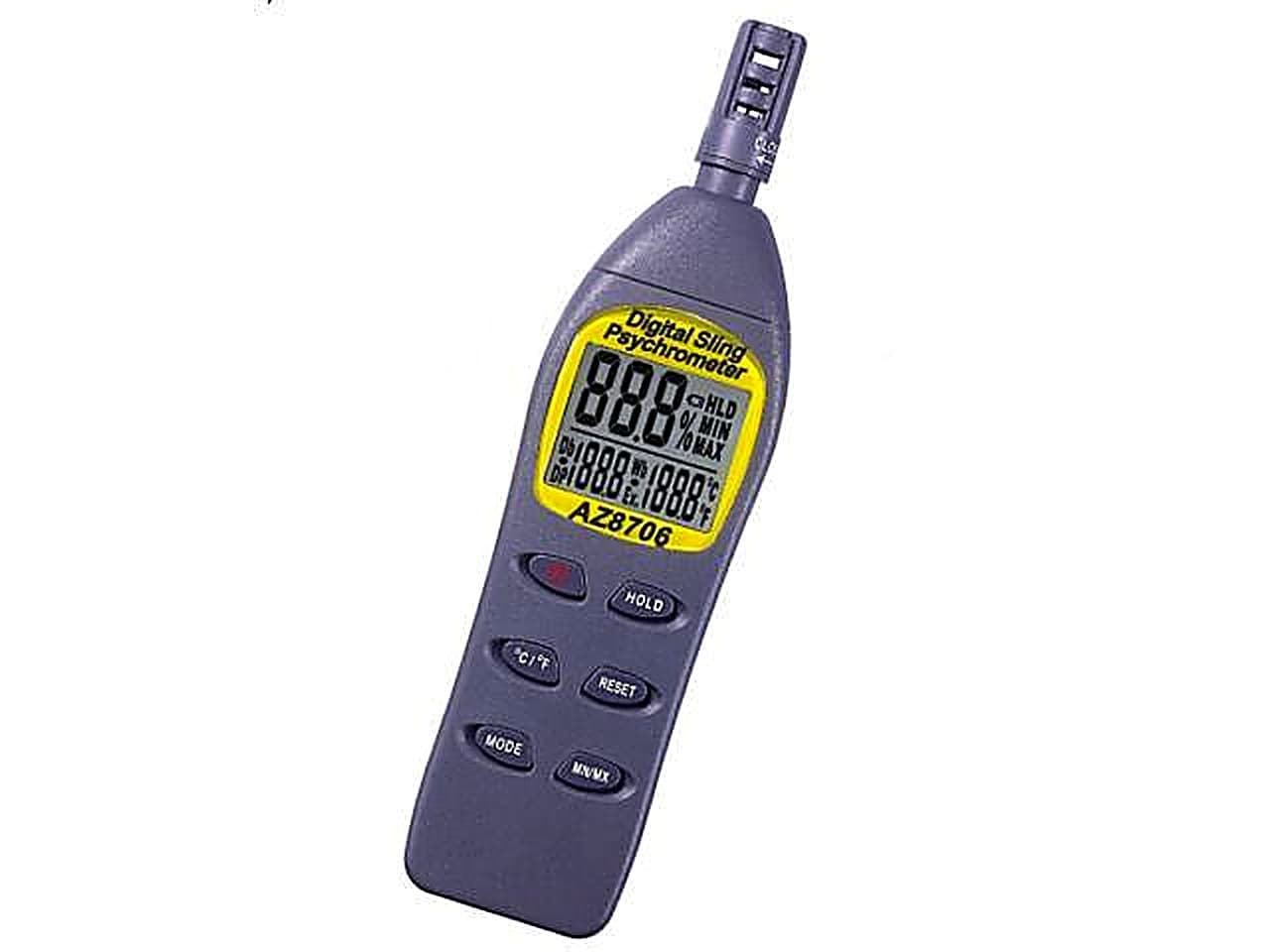

8706 Hygro Thermometer
The 8706 Hygro Thermometer / Thermo Hygrometer is ideal for measuring temperature, relative humidity (RH), dew point and wet bulb.
- Micro processor-based design
- A must device for HVAC engineers!
- 0°C or 0°F unit switchable
- Battery low indication
- Self-calibration available for longer life by salt solution
- Fast response, high accuracy
- Data Hold freezes the reading
- Auto power off and disablement
- Display resolution 0.1°C of reading
- Condensation will not affect meters' accuracy
Also available to buy online at GaugeIt, our online store.
When to use the 8706 Hygro Thermometer
Reach for this when you need to confirm climatic conditions before coating, or monitor temperature and humidity in an HVAC setting. It reads temperature, relative humidity, dew point and wet bulb on a dual display with no water, twirling or charts required. It suits inspectors and HVAC engineers who need a fast pocket reading.
- 1Four readings, one deviceTemperature, relative humidity, dew point and wet bulb are calculated and displayed together, so you get the climatic picture for a coating decision in one check.
- 2No water or charts neededThe capacitance humidity sensor removes the wet-bulb wicking and reading-chart steps of a sling hygrometer, which speeds repeat readings on site.
- 3Condensation does not affect accuracyBecause condensation will not throw the reading, you can trust measurements taken in damp or dew-point conditions where coating risk is highest.
- 4Self-calibration by salt solutionOptional salt solutions let you recalibrate the humidity sensor for longer working life, keeping the instrument trustworthy over time.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
When to use this
When to use the 8706 Hygro Thermometer
Reach for this when you need to confirm climatic conditions before coating, or monitor temperature and humidity in an HVAC setting. It reads temperature, relative humidity, dew point and wet bulb on a dual display with no water, twirling or charts required. It suits inspectors and HVAC engineers who need a fast pocket reading.
- 1Four readings, one deviceTemperature, relative humidity, dew point and wet bulb are calculated and displayed together, so you get the climatic picture for a coating decision in one check.
- 2No water or charts neededThe capacitance humidity sensor removes the wet-bulb wicking and reading-chart steps of a sling hygrometer, which speeds repeat readings on site.
- 3Condensation does not affect accuracyBecause condensation will not throw the reading, you can trust measurements taken in damp or dew-point conditions where coating risk is highest.
- 4Self-calibration by salt solutionOptional salt solutions let you recalibrate the humidity sensor for longer working life, keeping the instrument trustworthy over time.
Lower-budget alternatives
Ten minutes on a call with one of our specialists usually saves you from buying the wrong instrument.
Book a 10-minute callOr , our product assistant, for an instant answer.
Specifications
Specifications
- Temp. range
- -20 to +50°C
- RH% range
- 0 to 100%RH
- Wet bulb range
- -21.6 to 50.0°C
- Dew point range
- -78.7 to 50.0°C
- External temp. range
- -20 to 70°C
- Accuracy (RH%)
- ±3% at 25°C
- Accuracy (Temperature)
- ±1°C
- Pocket size
- 24.7 x 48.4 x 178.5mm
- Response time
- 60 seconds typical
- Extension cable length
- 116cm (with phone jack 2.5mm)
- Probe (with handle)
- 20cm (approx)
- Package
- Gift box, Battery, Manual, External temp. probe : VZ87P6
- Power
- 2 x 1.5V AAA battery
- Optional accessory
- Humidity calibration salt solution (HR33, HR75); External Liquid Temperature Probe
Applications
Applications
Application - Used in the following Industries : Painting Contractors (Dew Point) Wood & Furniture Industry General Use Paper Mills Industrial HVAC (Heat, Ventilation, Air Conditioning) Textile Laboratory Printing Tobacco Cellophane Chemical Clean Rooms Computer Rooms Floral Industry Green Houses Hospitals Incubation Nurseries Pharmaceuticals Photographic Film Processing Snow-making
Frequently asked questions
What parameters does the 8706 measure?
The 8706 measures temperature, relative humidity, dew point and wet bulb temperature. An external temperature probe is included, with an external temperature range of minus 20 to plus 70 degrees C.
What are the measurement ranges and accuracy?
Temperature range is minus 20 to plus 50 degrees C, accurate to plus or minus 1 degree C. RH range is 0 to 100% RH, accurate to plus or minus 3% at 25 degrees C. Dew point range is minus 78.7 to plus 50 degrees C, and wet bulb range is minus 21.6 to plus 50 degrees C.
How long does the sensor take to respond?
Typical response time is 60 seconds.
What is the extension cable length for the external probe?
The extension cable is 116cm long with a 2.5mm phone jack connector. The probe with handle is approximately 20cm long.
