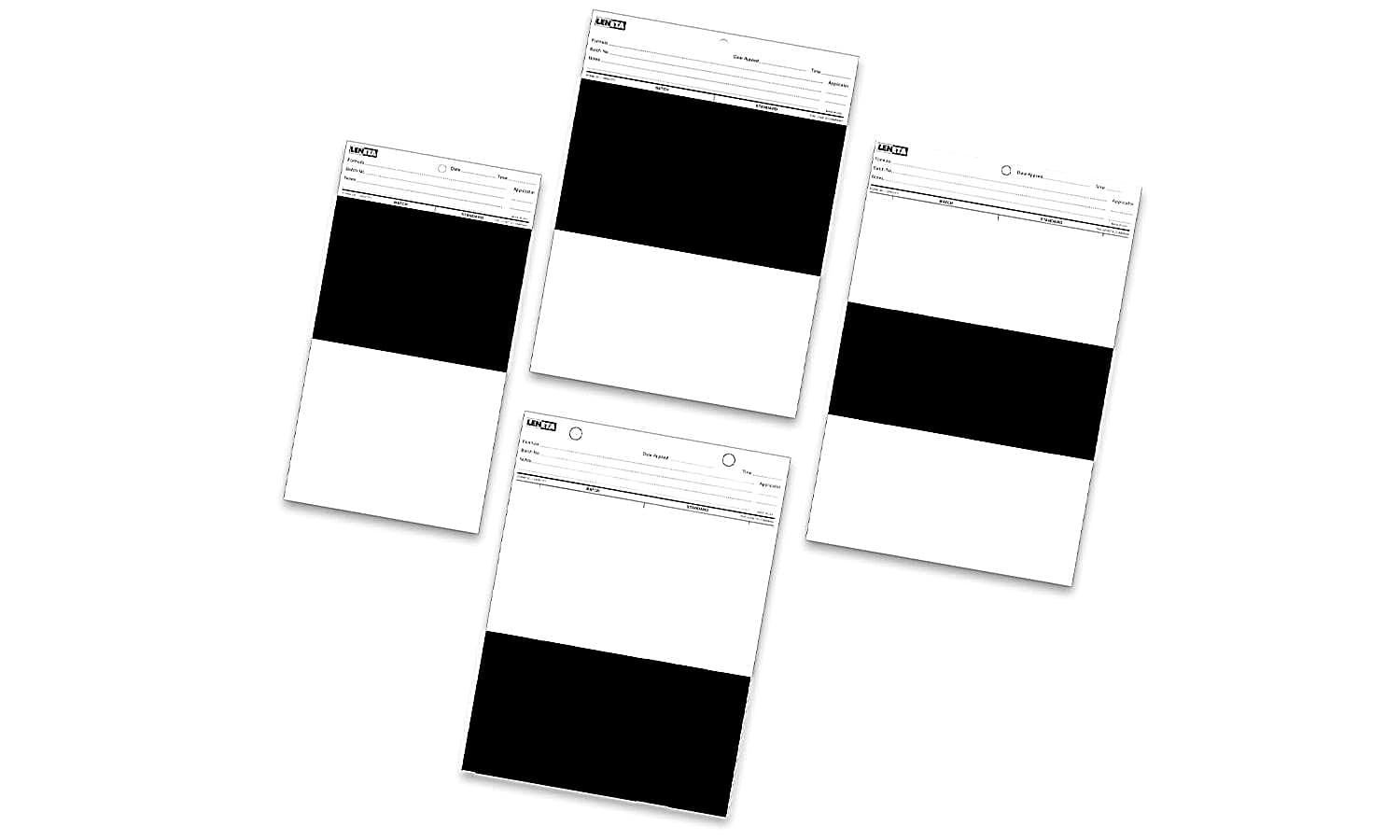

Elcometer 4695 Plain White & Plain Black Charts
Product Description
Elcometer supplies a wide range of Leneta Test Charts, from plain white to those having different patterns of black and white. Made from naturally bright, non-fluorescent white paper, these charts contain no optical brighteners that can affect instrumental color measurements.
Leneta Test Charts are the market standard in today’s coatings industry. Foil Card substrates of steel, aluminum, glass and plastic are also available. Leneta Test Charts are available in boxes & cases.

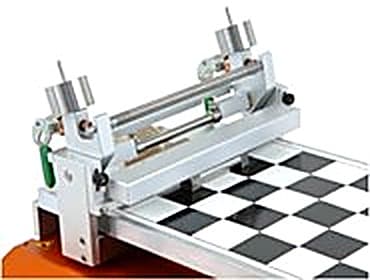

Charts can be used with the Elcometer 4340 Motorised Film Applicator
Plain White & Plain Black Charts
Designed for informal brushout applications, thicker paper is used for the testing of coatings applied with a brush or roller.
The paper stock is almost twice the thickness of regular chart paper to give greater rigidity for more convenient handling – nominal thickness 0.5mm.

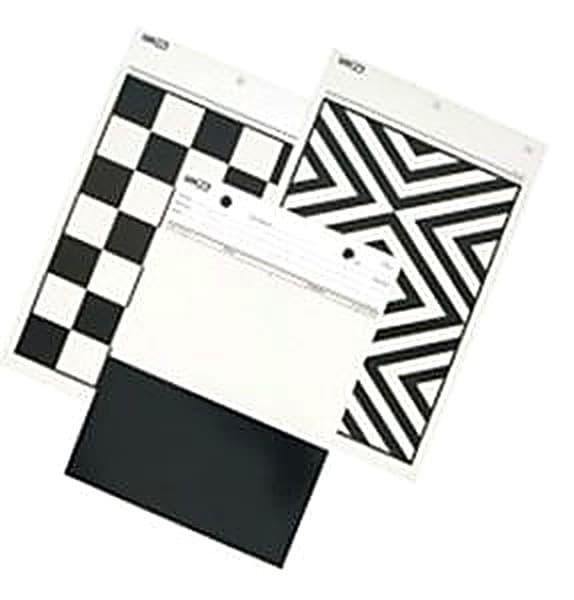

Brushout Cards are also used widely for drawdowns and colourimetric measurements
The Elcometer 4695 Leneta Test Charts can be used in accordance with:
• AS/NZS 1580.213.1
• ASTM D 344
• ASTM D2805
• ASTM D 2486
• ASTM D 5150
• ASTM D 6441
• BS 3900-D4*
• DIN 53162-2
• FTMS 141 4121
• ISO 2814
* Standards not in bold have been superseded but are still recognised in some industries
Specifications
| Part Number | Description | Chart Dimensions | Box Weight | Quantity per Box | Boxes per Case | |
| Box | Case | |||||
| Card thickness 0.5mm | ||||||
| K0004695M102 | K0004695M302 | Leneta Chart WDX | 98 x 152 mm | 3.18kg | 500 | 4 |
| Card thickness 0.3mm | ||||||
| K0004695M098 | K0004695M298 | Leneta Chart WA | 140 x 254 mm | 2.72kg | 250 | 6 |
| K0004695M103 | – | Leneta Chart WF | 76 x 184 mm | 2.27kg | 500 | 6 |
| K0004695M107 | K0004695M307 | Leneta Chart WK | 219 x 286 mm | 5kg | 250 | 4 |
| K0004695M049 | K0004695M249 | Leneta Chart BH | 286 x 438 mm | 5kg | 125 | 4 |
| K0004695M050 | K0004695M250 | Leneta Chart BK | 219 x 286 mm | 5kg | 250 | 4 |
Data Sheet
Standards
The Elcometer 4695 Leneta Test Charts can be used in accordance with:
• AS/NZS 1580.213.1
• ASTM D 344
• ASTM D2805
• ASTM D 2486
• ASTM D 5150
• ASTM D 6441
• BS 3900-D4*
• DIN 53162-2
• FTMS 141 4121
• ISO 2814
* Standards not in bold have been superseded but are still recognised in some industries
