To support online measurement of fluid viscosity, ensure the best process operating environment and product quality, and improve production efficiency, BEVS has developed the online Krebs viscometer. The BEVS 1136 Online Viscometer measures the viscosity of coatings, paints, adhesives, pastes and inks online.
The BEVS 1136 uses a modular, split structure suited to integration with a variety of online automatic measurement systems, and its software communication interface supports a range of communication protocols to enable fully automatic detection and measurement. This bracket fixed type mounts the sensor on a stand for stationary, hands-free operation.

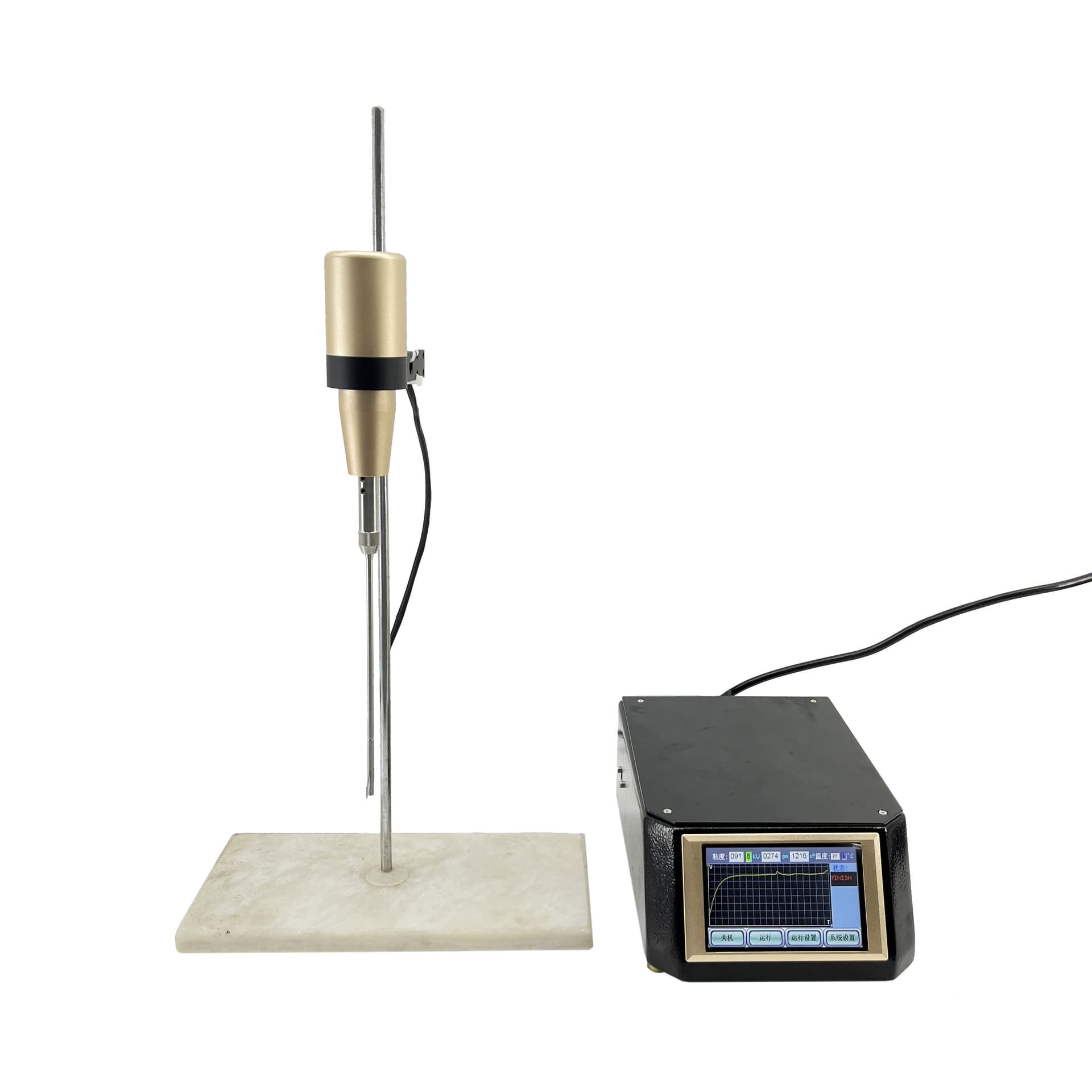

BEVS 1136 Online Viscometer
The BEVS 1136 Online Viscometer is an online Krebs viscometer for measuring the viscosity of coatings, paints, adhesives, pastes and inks in the production process. It uses a modular, split structure suited to integration with online automatic measurement systems, and this bracket fixed type mounts the sensor on a stand for stationary, hands-free operation.
- Flexible operation can be used online or handheld
- Humanised design
- Touch-screen control
- Simultaneous display of KU, g and cP units
- Test start time and test duration can be pre-set
- Real-time display of the viscosity/time curve
- Real-time display of test environment temperature
- Sample temperature measurement
- Measurement report output
- Compatible with multiple communication protocols
Specifications
- Measuring range
- 40 - 141 KU / 27 - 5274 cP / 32 - 1099 g
- Resolution
- 0.1 KU, 5 cP, 1 g
- Accuracy
- ±1% (full range)
- Repeatability
- ±0.5% (full range)
- Rotation speed
- 200 rpm ± 1 rpm
- Power
- Maximum 18 W
- Power supply
- 100 - 250 V, 50 - 60 Hz
Specifications
Specifications
- Measuring range
- 40 - 141 KU / 27 - 5274 cP / 32 - 1099 g
- Resolution
- 0.1 KU, 5 cP, 1 g
- Accuracy
- ±1% (full range)
- Repeatability
- ±0.5% (full range)
- Rotation speed
- 200 rpm ± 1 rpm
- Power
- Maximum 18 W
- Power supply
- 100 - 250 V, 50 - 60 Hz
