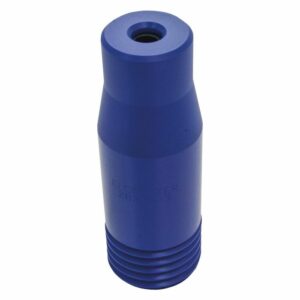

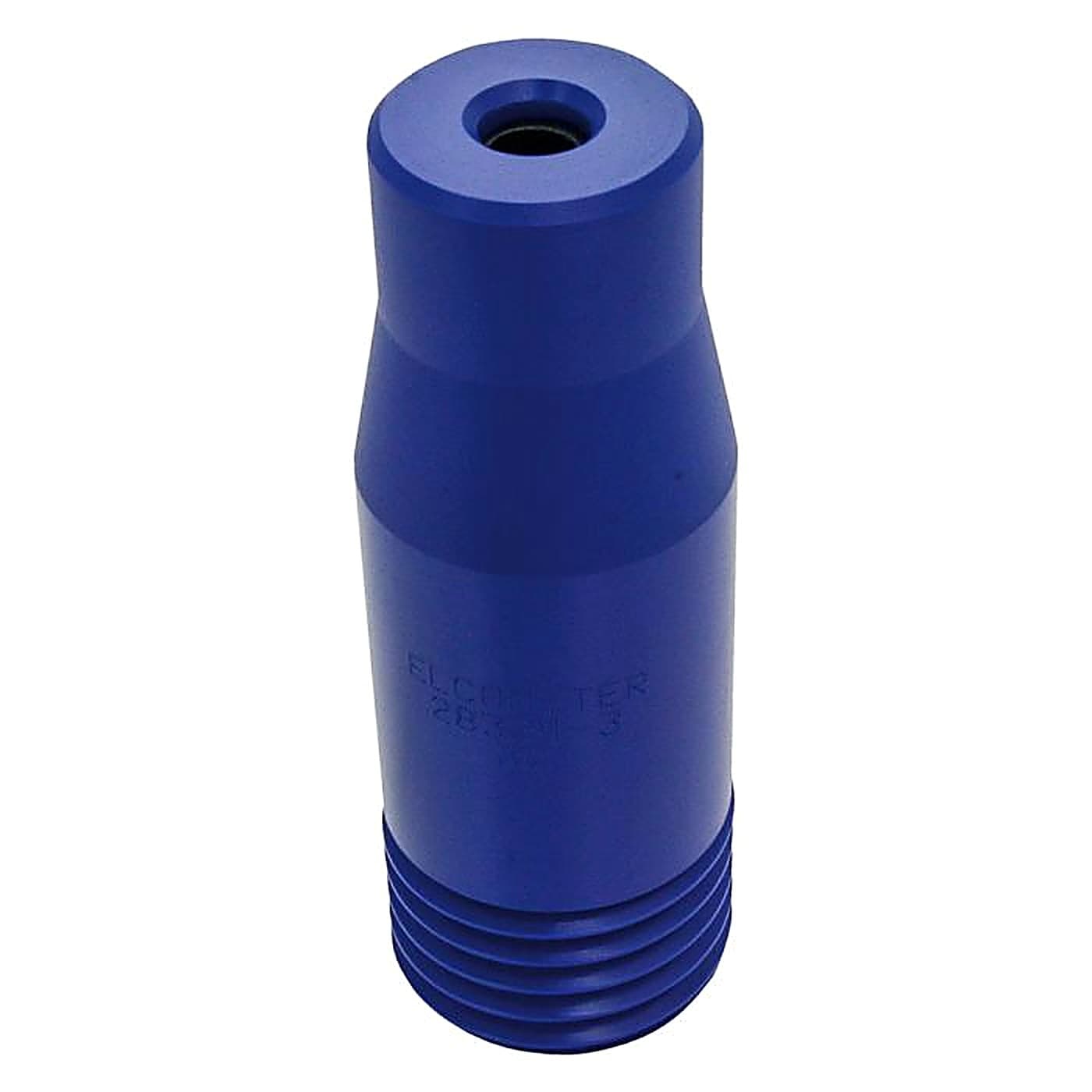

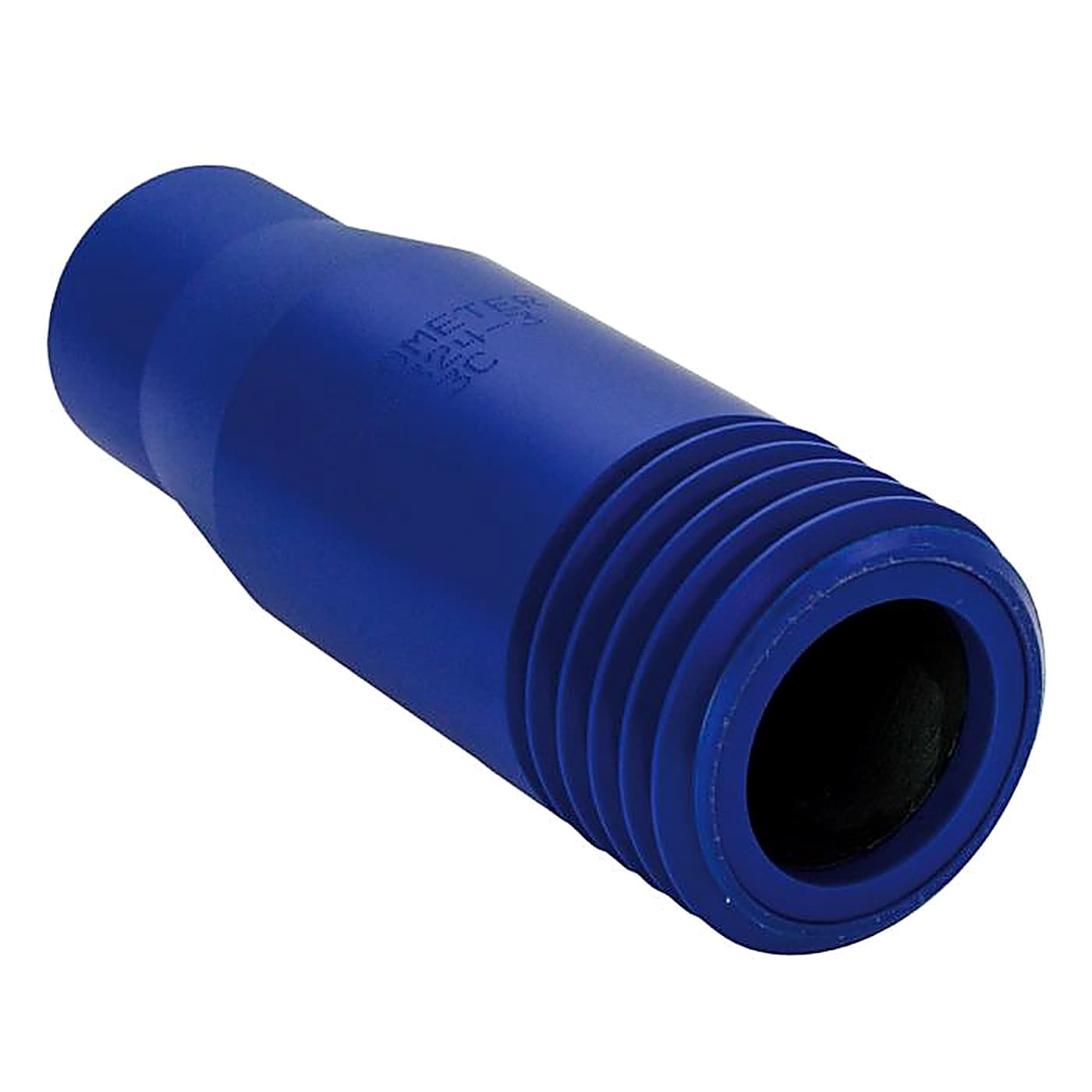

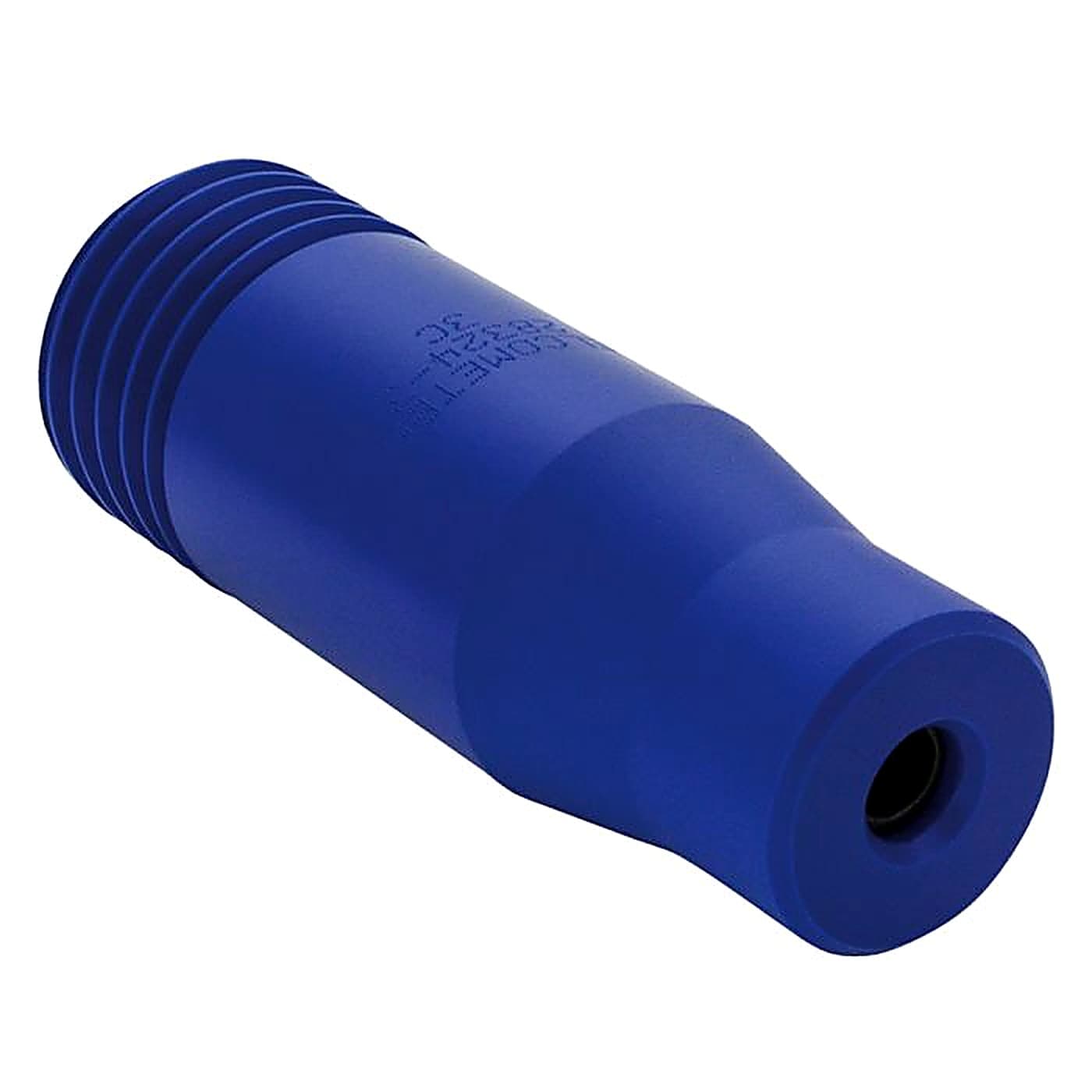

Silicon Carbide Venturi Nozzle with Acetal Jacket
Product Description
The Silicon Carbide Venturi Nozzle features an acetal jacket offering high impact protection. Designed to have a prolonged lifespan, this nozzle is ideal for use with harder abrasives such as chilled iron and aluminium oxide.
Supplied with a rubber gasket, the nozzles have a silicon carbide liner which offers impact resistance and durability whilst remaining lightweight.
Product Range
Silicon Carbide Venturi Nozzle with Acetal Jacket No.3
51mm Contractor Thread
- Orifice Diameter :4.8mm
- Length :140mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28324-3C
32mm NPSM Thread
- Orifice Diameter :4.8mm
- Length :135mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28324-3N
Silicon Carbide Venturi Nozzle with Acetal Jacket No.4
51mm Contractor Thread
- Orifice Diameter :6.35mm
- Length :140mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28324-4C
32mm NPSM Thread
- Orifice Diameter :6.35mm
- Length :135mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28324-4N
Silicon Carbide Venturi Nozzle with Acetal Jacket No.5
51mm Contractor Thread
- Orifice Diameter :8mm
- Length :150mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28324-5C
32mm NPSM Thread
- Orifice Diameter :8mm
- Length :145mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28324-5N
Silicon Carbide Venturi Nozzle with Acetal Jacket No.6
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :175mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28324-6C
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :170mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28324-6N
Silicon Carbide Venturi Nozzle with Acetal Jacket No.7
51mm Contractor Thread
- Orifice Diameter :11mm
- Length :205mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28324-7C
32mm NPSM Thread
- Orifice Diameter :11mm
- Length :200mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28324-7N
Silicon Carbide Venturi Nozzle with Acetal Jacket No.8
51mm Contractor Thread
- Orifice Diameter :12.5mm
- Length :235mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28324-8C
32mm NPSM Thread
- Orifice Diameter :12.5mm
- Length :230mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28324-8N
Accessories
Technical Specifications
PED
| Part Number 51mm Contractor Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28324-3C | #3 | 4.8mm | 140mm | 32mm |
| MT28324-4C | #4 | 6.35mm | 140mm | 32mm |
| MT28324-5C | #5 | 8mm | 150mm | 32mm |
| MT28324-6C | #6 | 9.5mm | 175mm | 32mm |
| MT28324-7C | #7 | 11mm | 205mm | 32mm |
| MT28324-8C | #8 | 12.5mm | 235mm | 32mm |
ASME
| Part Number NPSM Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28324-3N | #3 | 4.8mm | 135mm | 32mm |
| MT28324-4N | #4 | 6.35mm | 135mm | 32mm |
| MT28324-5N | #5 | 8mm | 145mm | 32mm |
| MT28324-6N | #6 | 9.5mm | 170mm | 32mm |
| MT28324-7N | #7 | 11mm | 200mm | 32mm |
| MT28324-8N | #8 | 12.5mm | 230mm | 32mm |
