The Silicon Nitride "Syalon" Syclone Venturi Nozzle with Acetal Jacket is an abrasive blast nozzle range (part numbers MT28446-4C through MT28446-8N) used to direct and accelerate grit during abrasive blast cleaning. Operator fatigue and nozzle wear both add cost to a blasting job, and the Silicon Nitride "Syalon" Syclone Venturi Nozzle with Acetal Jacket addresses the first by cutting weight and the second through a hard, durable liner material.
The silicon nitride liner reduces the weight of the Silicon Nitride "Syalon" Syclone Venturi Nozzle with Acetal Jacket by approximately 50%, which eases handling over a working shift. The liner also offers high temperature resistant properties and resistance to corrosion by many acids and alkalis, widening where the nozzle can be used. The acetal jacket adds improved impact protection against the knocks and drops common on site, and each Silicon Nitride "Syalon" Syclone Venturi Nozzle with Acetal Jacket is supplied with a rubber gasket for sealing to the hose coupling.
The venturi bore is offered in nozzle numbers 4 to 8, with orifice diameters from 6.35mm up to 12.5mm, lengths from 135mm to 235mm, and a common 32mm entry diameter, so the Silicon Nitride "Syalon" Syclone Venturi Nozzle with Acetal Jacket can be matched to compressor output and the surface being cleaned. The range of the Silicon Nitride "Syalon" Syclone Venturi Nozzle with Acetal Jacket conforms to the European Union PED and the American Society of Mechanical Engineers ASME requirements across the contractor and NPSM thread versions. Supplied by BAMR, South Africa's authorised distributor.

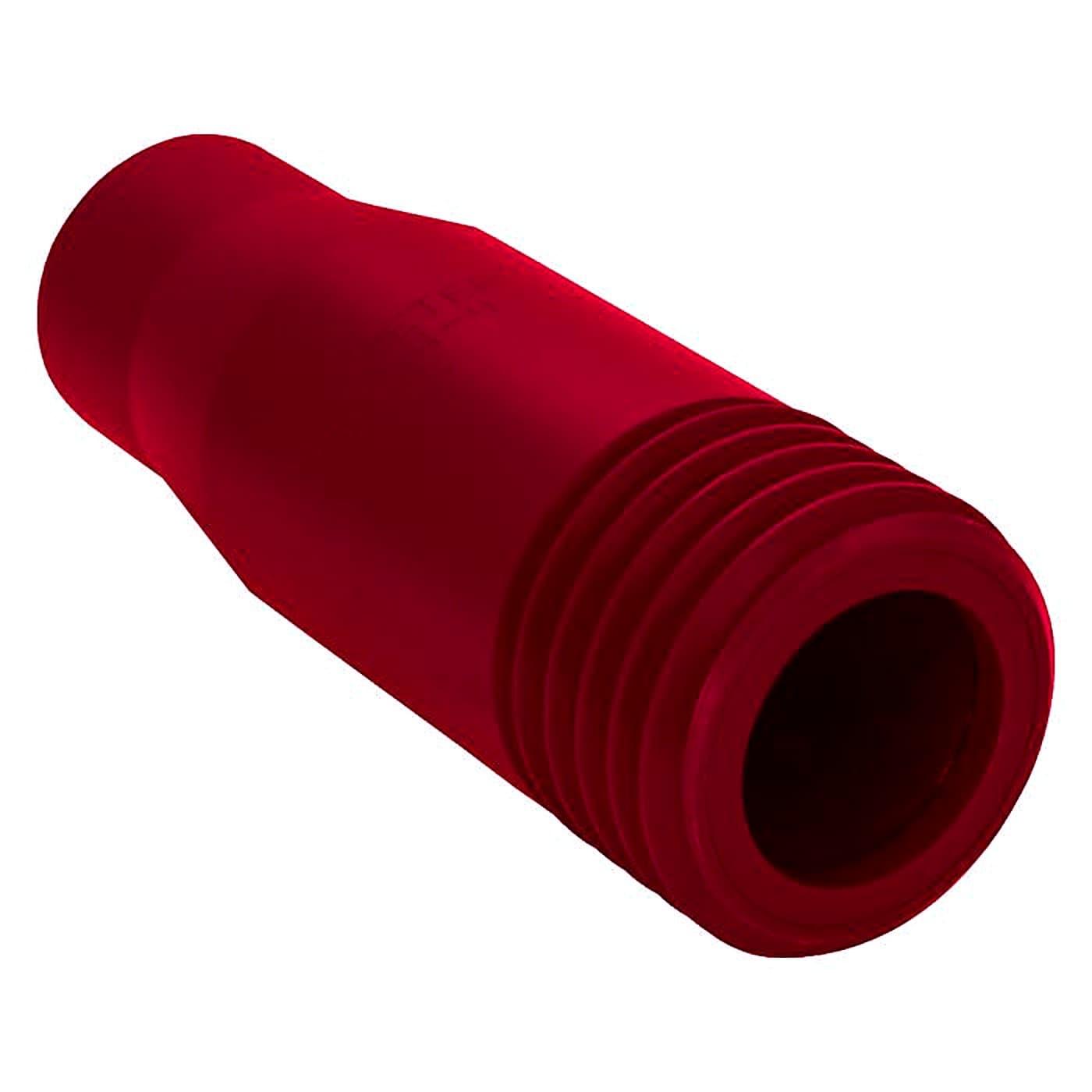

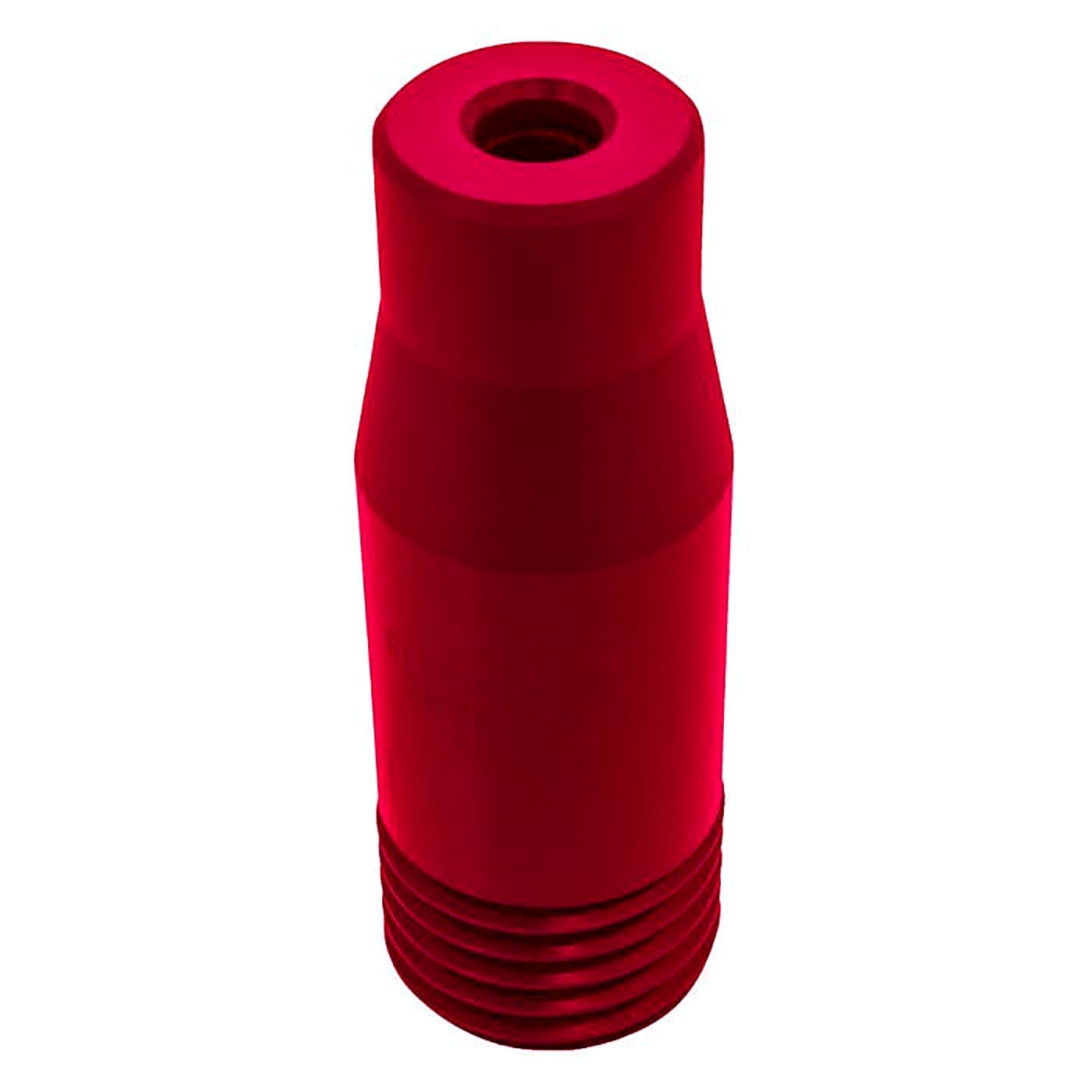

Silicon Nitride "Syalon" Syclone Venturi Nozzle with Acetal Jacket
Designed to be hard wearing and long lasting, this abrasive blast nozzle features a silicon nitride liner which reduces the weight of the abrasive blast nozzle by approximately 50%. Supplied with a rubber gasket, the abrasive blast nozzle offers high temperature resistant properties, making it resistant to corrosion by many acids and alkalis. The acetal jacket also offers improved impact protection to the abrasive blast nozzle.
- Silicon nitride liner reduces weight by approximately 50%
- High temperature resistant properties
- Resistant to corrosion by many acids and alkalis
- Supplied with rubber gasket
- Acetal jacket offers improved impact protection
Technical Specifications
| Part Number 51mm Contractor Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
|---|---|---|---|---|
| MT28446-4C | #4 | 6.35mm | 140mm | 32mm |
| MT28446-5C | #5 | 8mm | 150mm | 32mm |
| MT28446-6C | #6 | 9.5mm | 175mm | 32mm |
| MT28446-7C | #7 | 11mm | 205mm | 32mm |
| MT28446-8C | #8 | 12.5mm | 235mm | 32mm |
| Part Number NPSM Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
|---|---|---|---|---|
| MT28446-4N | #4 | 6.35mm | 135mm | 32mm |
| MT28446-5N | #5 | 8mm | 145mm | 32mm |
| MT28446-6N | #6 | 9.5mm | 170mm | 32mm |
| MT28446-7N | #7 | 11mm | 200mm | 32mm |
| MT28446-8N | #8 | 12.5mm | 235mm | 32mm |
Specifications
Technical Specifications
| Part Number 51mm Contractor Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
|---|---|---|---|---|
| MT28446-4C | #4 | 6.35mm | 140mm | 32mm |
| MT28446-5C | #5 | 8mm | 150mm | 32mm |
| MT28446-6C | #6 | 9.5mm | 175mm | 32mm |
| MT28446-7C | #7 | 11mm | 205mm | 32mm |
| MT28446-8C | #8 | 12.5mm | 235mm | 32mm |
| Part Number NPSM Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
|---|---|---|---|---|
| MT28446-4N | #4 | 6.35mm | 135mm | 32mm |
| MT28446-5N | #5 | 8mm | 145mm | 32mm |
| MT28446-6N | #6 | 9.5mm | 170mm | 32mm |
| MT28446-7N | #7 | 11mm | 200mm | 32mm |
| MT28446-8N | #8 | 12.5mm | 235mm | 32mm |
What's in the kit
What's in the kit
Standards
Standards
Accessories
Accessories
| Blast Nozzle Rubber Gasket – 5 pack |
| Blast Nozzle Rubber Gasket – 25 pack |
Frequently asked questions
What thread types are available?
The Syclone is supplied in 51mm Contractor Thread and NPSM Thread variants.
What orifice sizes are offered?
Five sizes are available (#4 to #8) with orifice diameters from 6.35 mm to 12.5 mm.
Is a gasket supplied?
Yes, each nozzle comes with a rubber gasket, ready to install.
Can this nozzle handle corrosive environments?
The silicon nitride liner resists corrosion from many acids and alkalis, and offers high temperature resistance for demanding chemical applications.
What does the acetal jacket do?
The acetal jacket provides improved impact protection to the nozzle during handling and use, extending service life.
