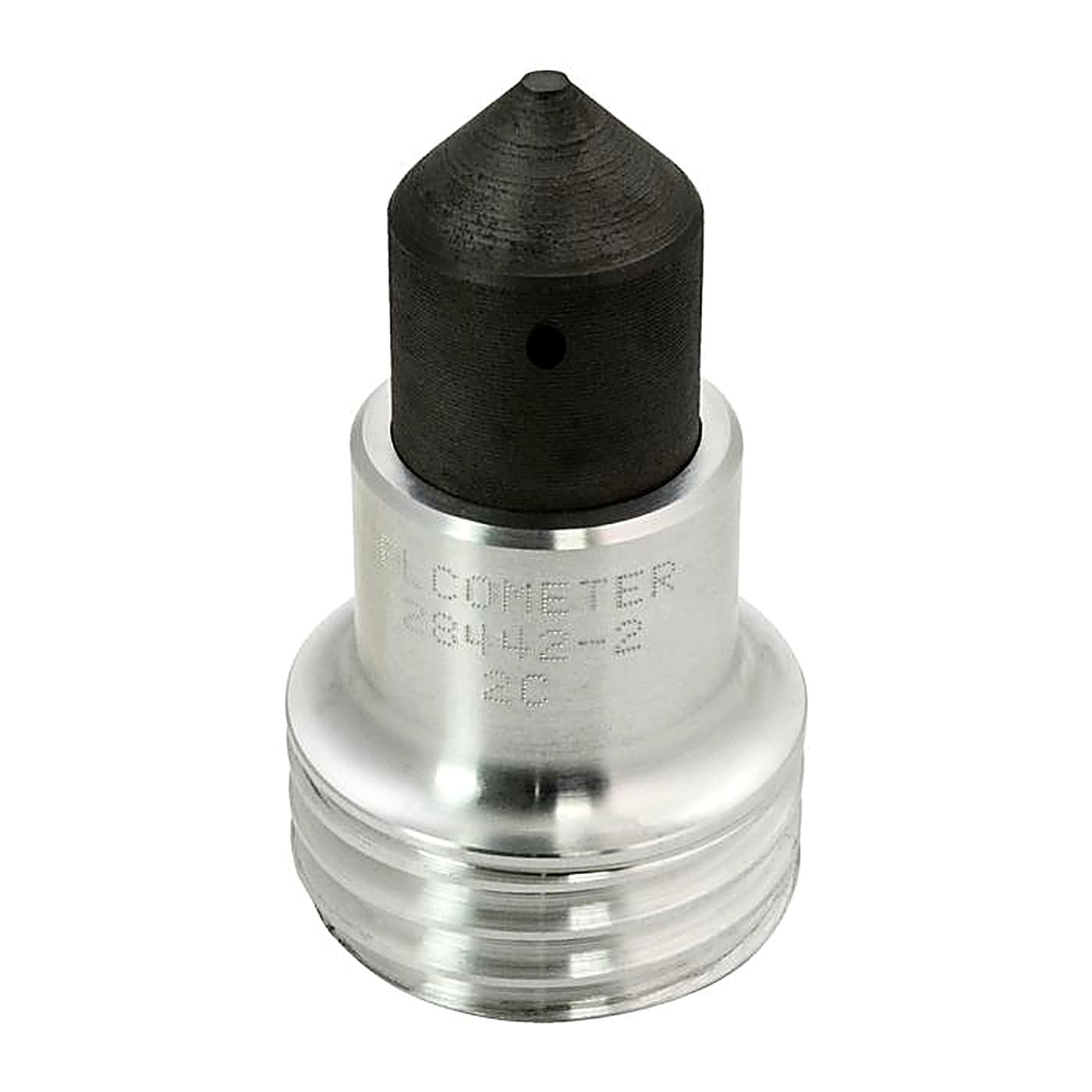

Tungsten Carbide 45° Angled Liner with Aluminium Jacket
Product Description
The abrasive blast (sandblast) nozzle is ideal for getting inside tight or hard to reach places such as behind flanges, around corners or inside pipes.
The angled nozzle is compact, shoots out the abrasive at a 45° angle and has an aluminium jacket providing strength and endurance.
Product Range
1 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.2
51mm Contractor Thread
- Orifice Diameter :3.2mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :1
- Part Number :MT28442-2C
32mm NPSM Thread
- Orifice Diameter :3.2mm
- Length :83mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :1
- Part Number :MT28442-2N
2 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.2
51mm Contractor Thread
- Orifice Diameter :3.2mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :2
- Part Number :MT28443-2C
32mm NPSM Thread
- Orifice Diameter :3.2mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :2
- Part Number :MT28443-2N
3 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.2
51mm Contractor Thread
- Orifice Diameter :3.2mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :3
- Part Number :MT28444-2C
32mm NPSM Thread
- Orifice Diameter :3.2mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :3
- Part Number :MT28444-2N
1 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.3
51mm Contractor Thread
- Orifice Diameter :4.8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :1
- Part Number :MT28442-3C
32mm NPSM Thread
- Orifice Diameter :4.8mm
- Length :83mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :1
- Part Number :MT28442-3N
2 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.3
51mm Contractor Thread
- Orifice Diameter :4.8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :2
- Part Number :MT28443-3C
32mm NPSM Thread
- Orifice Diameter :4.8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :2
- Part Number :MT28443-3N
3 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.3
51mm Contractor Thread
- Orifice Diameter :4.8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :3
- Part Number :MT28444-3C
32mm NPSM Thread
- Orifice Diameter :4.8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :3
- Part Number :MT28444-3N
1 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.4
51mm Contractor Thread
- Orifice Diameter :6.35mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :1
- Part Number :MT28442-4C
32mm NPSM Thread
- Orifice Diameter :6.35mm
- Length :83mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :1
- Part Number :MT28442-4N
2 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.4
51mm Contractor Thread
- Orifice Diameter :6.35mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :2
- Part Number :MT28443-4C
32mm NPSM Thread
- Orifice Diameter :6.35mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :2
- Part Number :MT28443-4N
3 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.4
51mm Contractor Thread
- Orifice Diameter :6.35mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :3
- Part Number :MT28444-4C
32mm NPSM Thread
- Orifice Diameter :6.35mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :3
- Part Number :MT28444-4N
1 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.5
51mm Contractor Thread
- Orifice Diameter :8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :1
- Part Number :MT28442-5C
32mm NPSM Thread
- Orifice Diameter :8mm
- Length :83mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :1
- Part Number :MT28442-5N
2 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.5
51mm Contractor Thread
- Orifice Diameter :8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :2
- Part Number :MT28443-5C
32mm NPSM Thread
- Orifice Diameter :8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :2
- Part Number :MT28443-5N
3 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.5
51mm Contractor Thread
- Orifice Diameter :8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :3
- Part Number :MT28444-5C
32mm NPSM Thread
- Orifice Diameter :8mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :3
- Part Number :MT28444-5N
1 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.6
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :1
- Part Number :MT28442-6C
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :83mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :1
- Part Number :MT28442-6N
2 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.6
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :2
- Part Number :MT28443-6C
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :2
- Part Number :MT28443-6N
3 Hole Tungsten Carbide 45° Angled Liner with Aluminium Jacket No.6
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Number of Holes :3
- Part Number :MT28444-6C
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :88mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Number of Holes :3
- Part Number :MT28444-6N
Accessories
Technical Specifications
PED
| Part Number 51mm Contractor Thread | Nozzle No. | Orifice Diameter | Number of Holes | Length | Entry Diameter |
| MT28442-2C | #2 | 3.2mm | 1 | 88mm | 25mm |
| MT28443-2C | #2 | 3.2mm | 2 | 88mm | 25mm |
| MT28444-2C | #2 | 3.2mm | 3 | 88mm | 25mm |
| MT28442-3C | #3 | 4.8mm | 1 | 88mm | 25mm |
| MT28443-3C | #3 | 4.8mm | 2 | 88mm | 25mm |
| MT28444-3C | #3 | 4.8mm | 3 | 88mm | 25mm |
| MT28442-4C | #4 | 6.35mm | 1 | 88mm | 25mm |
| MT28443-4C | #4 | 6.35mm | 2 | 88mm | 25mm |
| MT28444-4C | #4 | 6.35mm | 3 | 88mm | 25mm |
| MT28442-5C | #5 | 8mm | 1 | 88mm | 25mm |
| MT28443-5C | #5 | 8mm | 2 | 88mm | 25mm |
| MT28444-5C | #5 | 8mm | 3 | 88mm | 25mm |
| MT28442-6C | #6 | 9.5mm | 1 | 88mm | 25mm |
| MT28443-6C | #6 | 9.5mm | 2 | 88mm | 25mm |
| MT28444-6C | #6 | 9.5mm | 3 | 88mm | 25mm |
ASME
| Part Number NPSM Thread | Nozzle No. | Orifice Diameter | Number of Holes | Length | Entry Diameter |
| MT28442-2N | #2 | 3.2mm | 1 | 83mm | 25mm |
| MT28443-2N | #2 | 3.2mm | 2 | 88mm | 25mm |
| MT28444-2N | #2 | 3.2mm | 3 | 88mm | 25mm |
| MT28442-3N | #3 | 4.8mm | 1 | 83mm | 25mm |
| MT28443-3N | #3 | 4.8mm | 2 | 88mm | 25mm |
| MT28444-3N | #3 | 4.8mm | 3 | 88mm | 25mm |
| MT28442-4N | #4 | 6.35mm | 1 | 83mm | 25mm |
| MT28443-4N | #4 | 6.35mm | 2 | 88mm | 25mm |
| MT28444-4N | #4 | 6.35mm | 3 | 88mm | 25mm |
| MT28442-5N | #5 | 8mm | 1 | 83mm | 25mm |
| MT28443-5N | #5 | 8mm | 2 | 88mm | 25mm |
| MT28444-5N | #5 | 8mm | 3 | 88mm | 25mm |
| MT28442-6N | #6 | 9.5mm | 1 | 83mm | 25mm |
| MT28443-6N | #6 | 9.5mm | 2 | 88mm | 25mm |
| MT28444-6N | #6 | 9.5mm | 3 | 88mm | 25mm |
