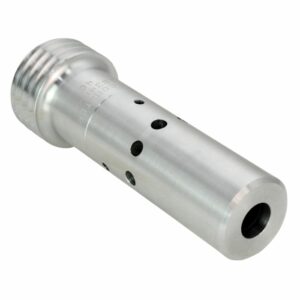

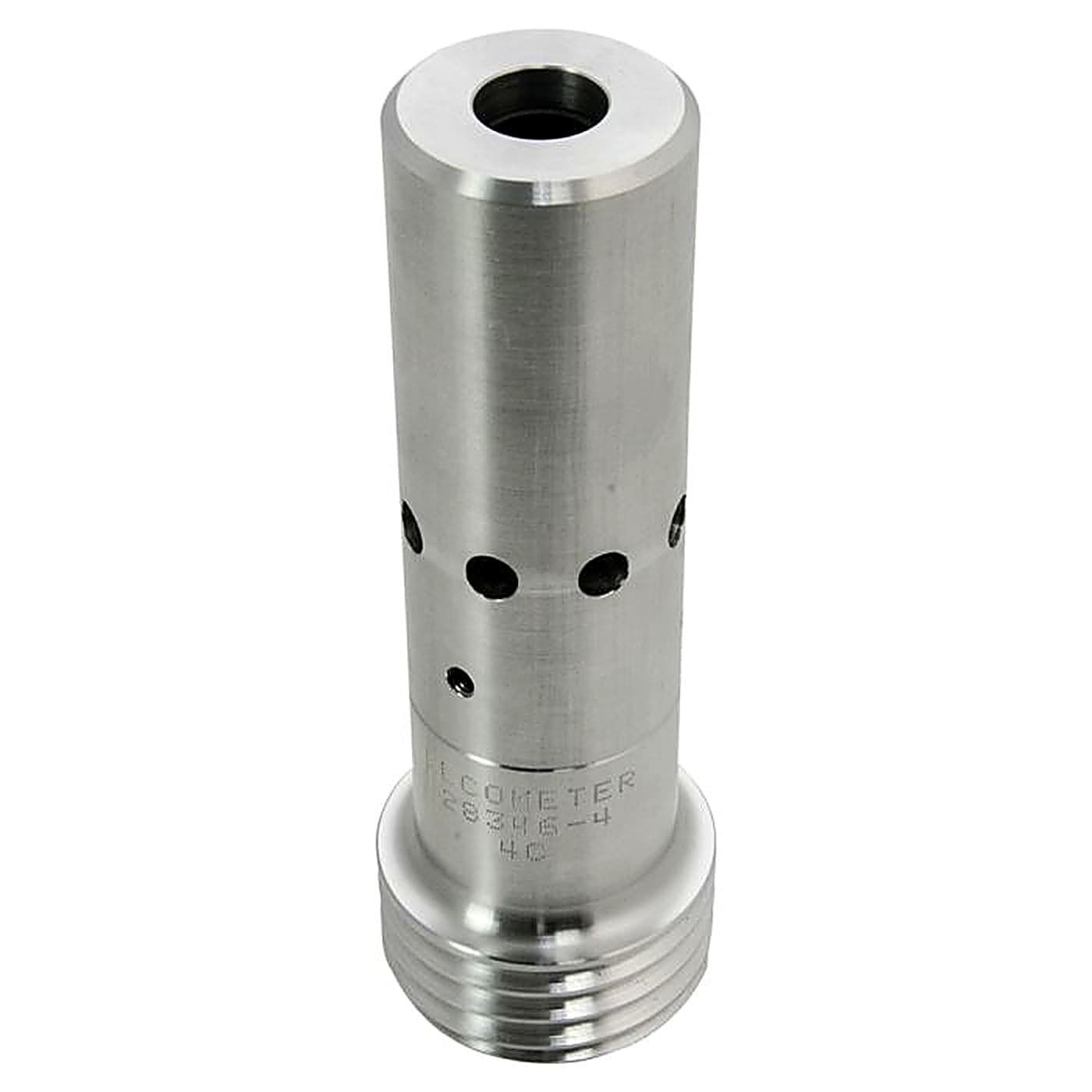

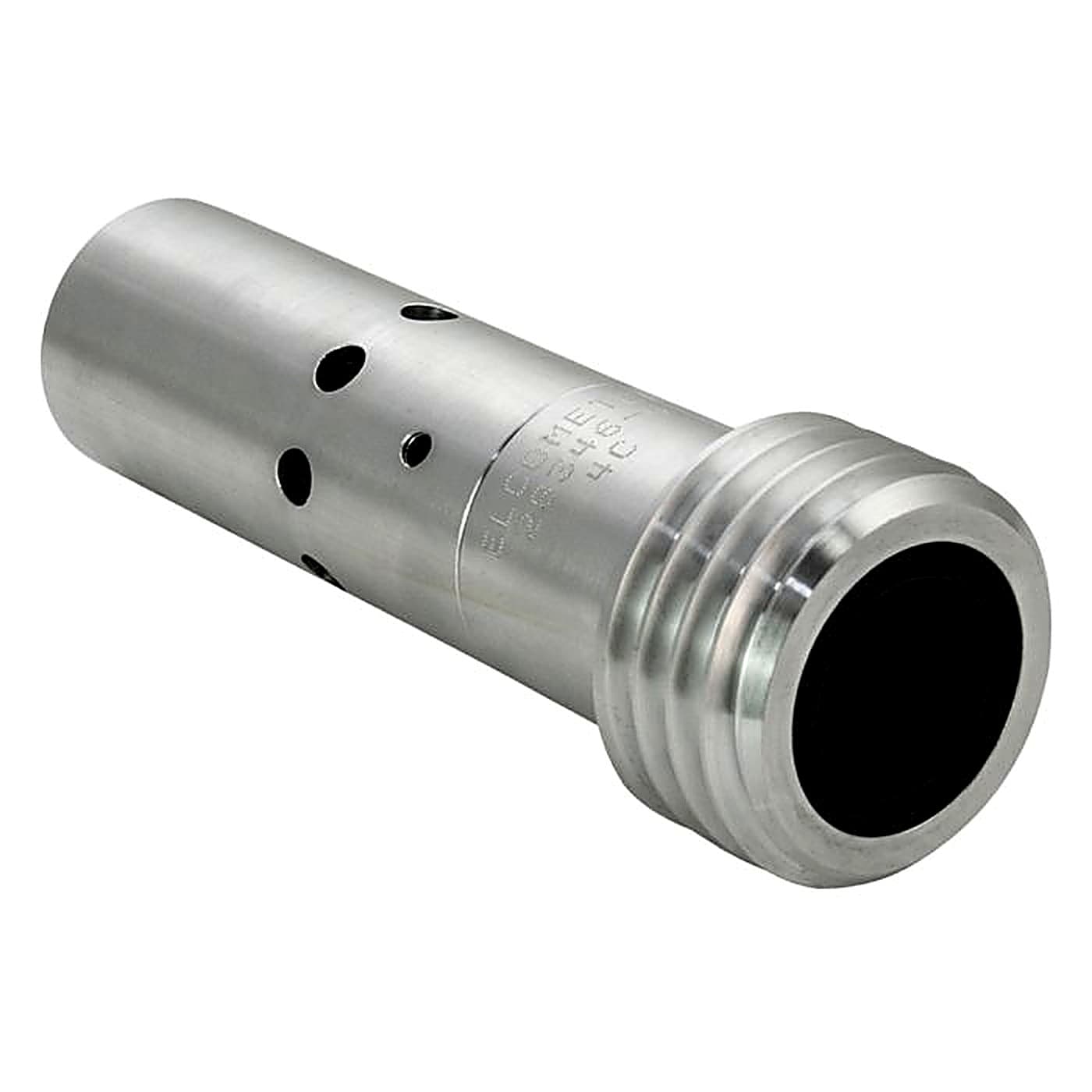

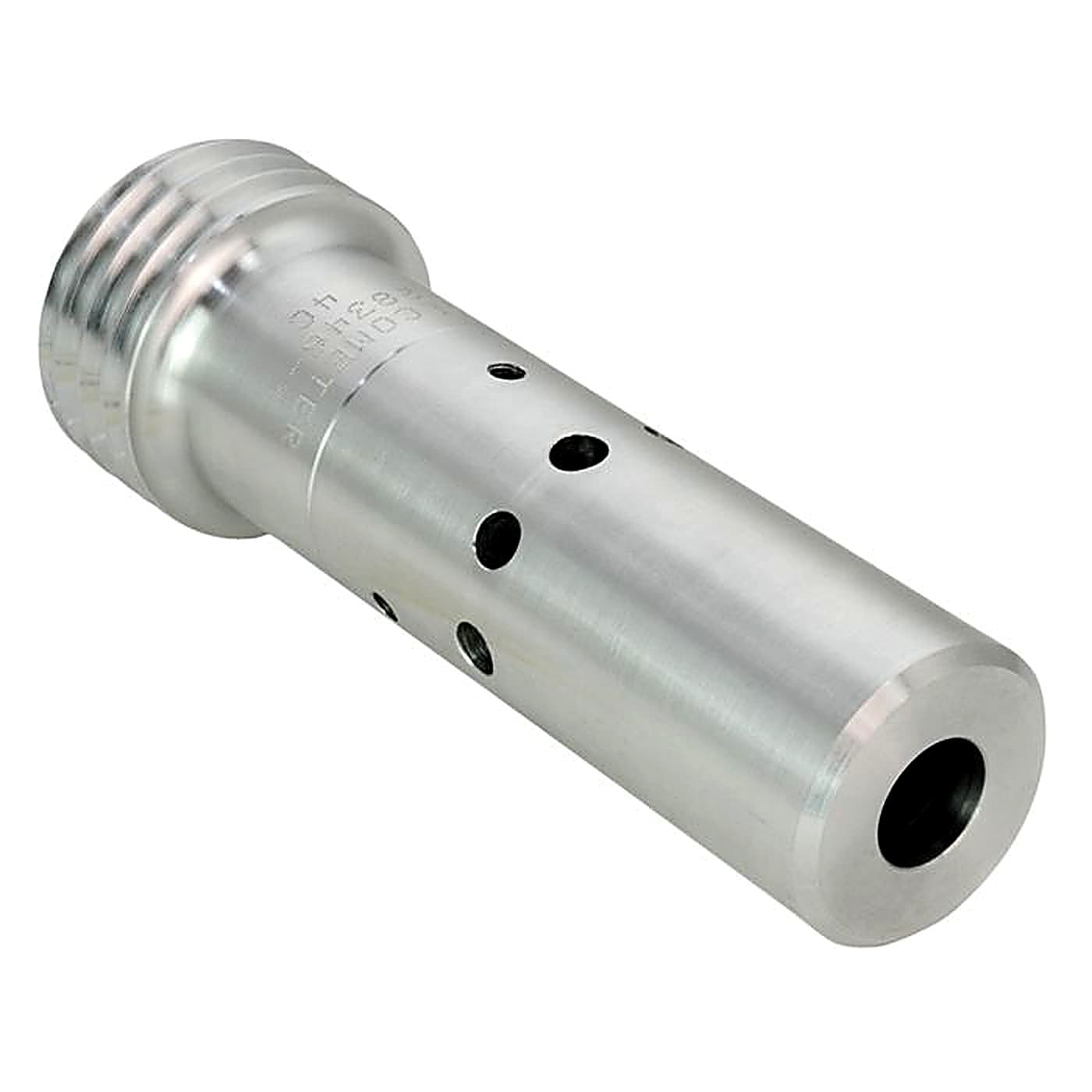

Tungsten Carbide Double Venturi Blast Nozzle with Aluminium Jacket
Product Description
This abrasive blast nozzle offers a 35% larger blast pattern than a standard Venturi nozzle with only a small loss in abrasive velocity.
Designed to be used on jobs where a more even dispersion of abrasive is required through a larger blast pattern. Supplied with a rubber gasket, it is ideally suited for use with plastic and cereal type abrasive media.
Product Range
Tungsten Carbide Double Venturi Blast Nozzle with Aluminium Jacket No.4
51mm Contractor Thread
- Orifice Diameter :6.35mm
- Length :149mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28346-4C
32mm NPSM Thread
- Orifice Diameter :6.35mm
- Length :149mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28346-4N
Tungsten Carbide Double Venturi Blast Nozzle with Aluminium Jacket No.5
51mm Contractor Thread
- Orifice Diameter :8mm
- Length :162mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28346-5C
32mm NPSM Thread
- Orifice Diameter :8mm
- Length :162mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28346-5N
Tungsten Carbide Double Venturi Blast Nozzle with Aluminium Jacket No.6
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :176mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28346-6C
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :176mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28346-6N
Tungsten Carbide Double Venturi Blast Nozzle with Aluminium Jacket No.7
51mm Contractor Thread
- Orifice Diameter :11mm
- Length :216mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28346-7C
32mm NPSM Thread
- Orifice Diameter :11mm
- Length :216mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28346-7N
Tungsten Carbide Double Venturi Blast Nozzle with Aluminium Jacket No.8
51mm Contractor Thread
- Orifice Diameter :12.5mm
- Length :235mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28346-8C
32mm NPSM Thread
- Orifice Diameter :12.5mm
- Length :235mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28346-8N
Accessories
Technical Specifications
PED
| Part Number 51mm Contractor Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28346-4C | #4 | 6.35mm | 149mm | 25mm |
| MT28346-5C | #5 | 8mm | 162mm | 25mm |
| MT28346-6C | #6 | 9.5mm | 176mm | 25mm |
| MT28346-7C | #7 | 11mm | 216mm | 25mm |
| MT28346-8C | #8 | 12.5mm | 235mm | 25mm |
| Part Number NPSM Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28346-4N | #4 | 6.35mm | 149mm | 25mm |
| MT28346-5N | #5 | 8mm | 162mm | 25mm |
| MT28346-6N | #6 | 9.5mm | 176mm | 25mm |
| MT28346-7N | #7 | 11mm | 216mm | 25mm |
| MT28346-8N | #8 | 12.5mm | 235mm | 25mm |
