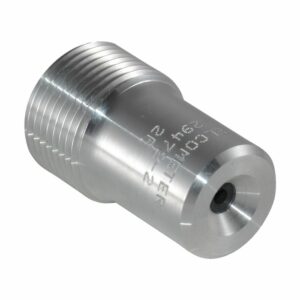

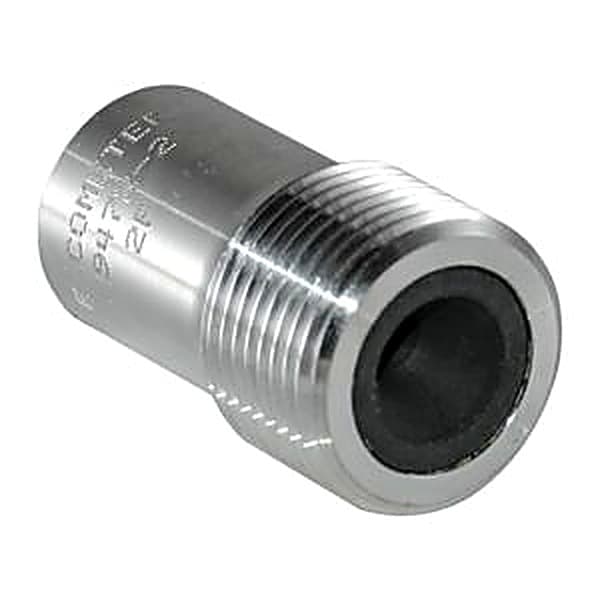

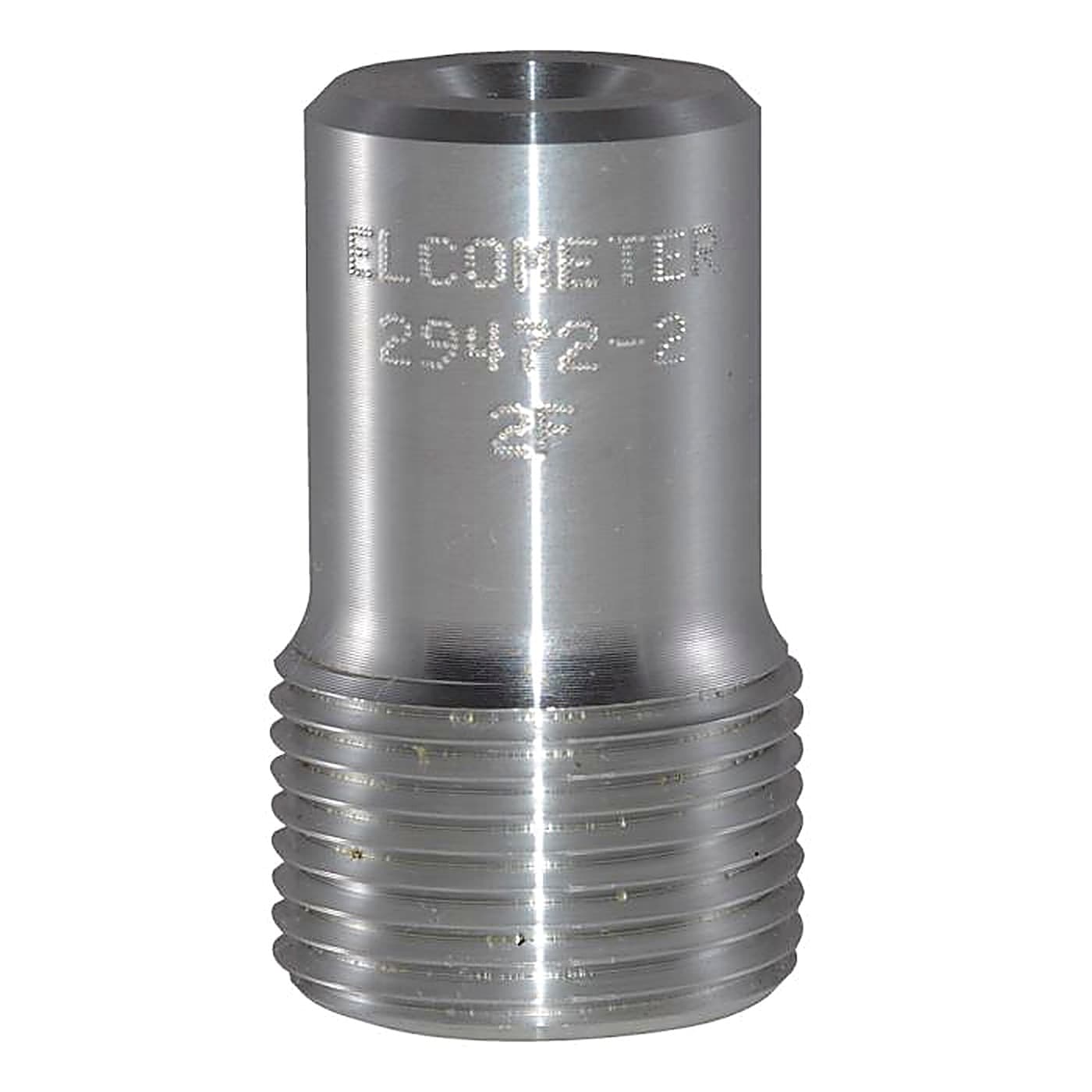

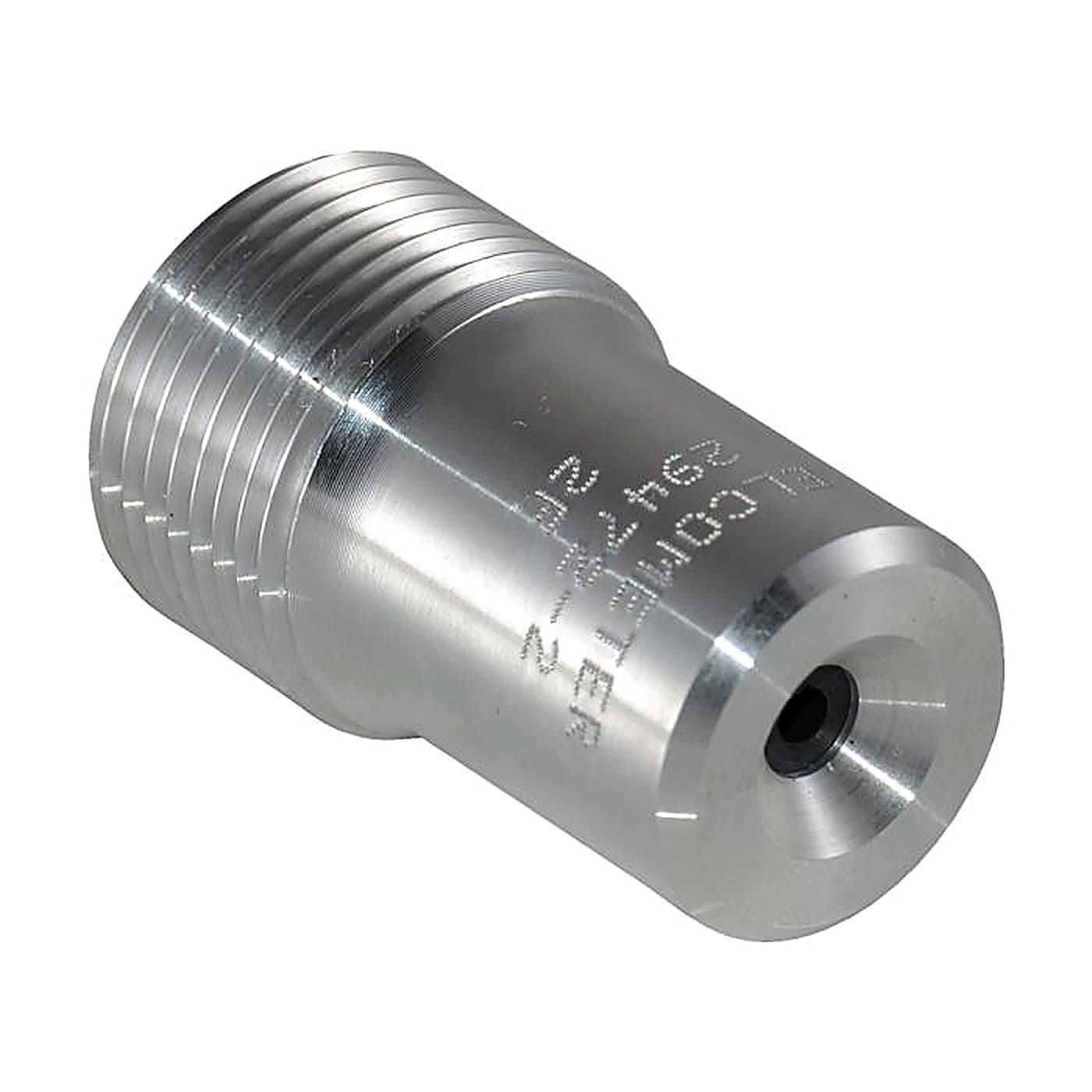

Tungsten Carbide Straight Bore Nozzle with Aluminium Jacket
Product Description
Ideal for close up cleaning of small parts, this abrasive blast (sandblast) nozzle features a tungsten carbide liner encased in an aluminium jacket, offering the greatest resistance to impact or flexing.
Supplied with a rubber gasket, these abrasive blast nozzles are suitable for use with the Elcometer 1020 Abrasive Blast Machine
Product Range
Tungsten Carbide Straight Bore Nozzle (for 10”) with Aluminium Jacket No.2
Universal
- Orifice Diameter :3.2mm
- Length :45mm
- Entry Diameter :13mm
- Thread Type :19mm Fine
- Part Number :MT29472-2F
Tungsten Carbide Straight Bore Nozzle (for 10”) with Aluminium Jacket No.3
Universal
- Orifice Diameter :4.8mm
- Length :45mm
- Entry Diameter :13mm
- Thread Type :19mm Fine
- Part Number :MT29472-3F
Tungsten Carbide Straight Bore Nozzle (for 10”) with Aluminium Jacket No.4
Universal
- Orifice Diameter :6.35mm
- Length :45mm
- Entry Diameter :13mm
- Thread Type :19mm Fine
- Part Number :MT29472-4F
Tungsten Carbide Straight Bore Nozzle (for 10”) with Aluminium Jacket No.5
Universal
- Orifice Diameter :8mm
- Length :45mm
- Entry Diameter :13mm
- Thread Type :19mm Fine
- Part Number :MT29472-5F
Tungsten Carbide Straight Bore Nozzle (for 10”) with Aluminium Jacket No.6
Universal
- Orifice Diameter :9.5mm
- Length :45mm
- Entry Diameter :13mm
- Thread Type :19mm Fine
- Part Number :MT29472-6F
Tungsten Carbide Straight Bore Nozzle (for 10”) with Aluminium Jacket No.8
Universal
- Orifice Diameter :12.5mm
- Length :45mm
- Entry Diameter :13mm
- Thread Type :19mm Fine
- Part Number :MT29472-8F
Accessories
Technical Specifications
| Part Number 3/4” Contractor Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT29472-2F | #2 | 3.2mm | 45mm | 13mm |
| MT29472-3F | #3 | 4.8mm | 45mm | 13mm |
| MT29472-4F | #4 | 6.35mm | 45mm | 13mm |
| MT29472-5F | #5 | 8mm | 45mm | 13mm |
| MT29472-6F | #6 | 9.5mm | 45mm | 13mm |
| MT29472-8F | #8 | 12.5mm | 45mm | 13mm |
