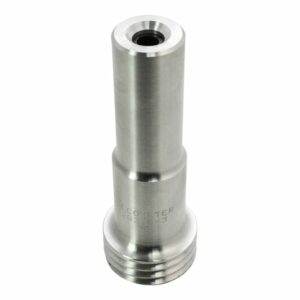

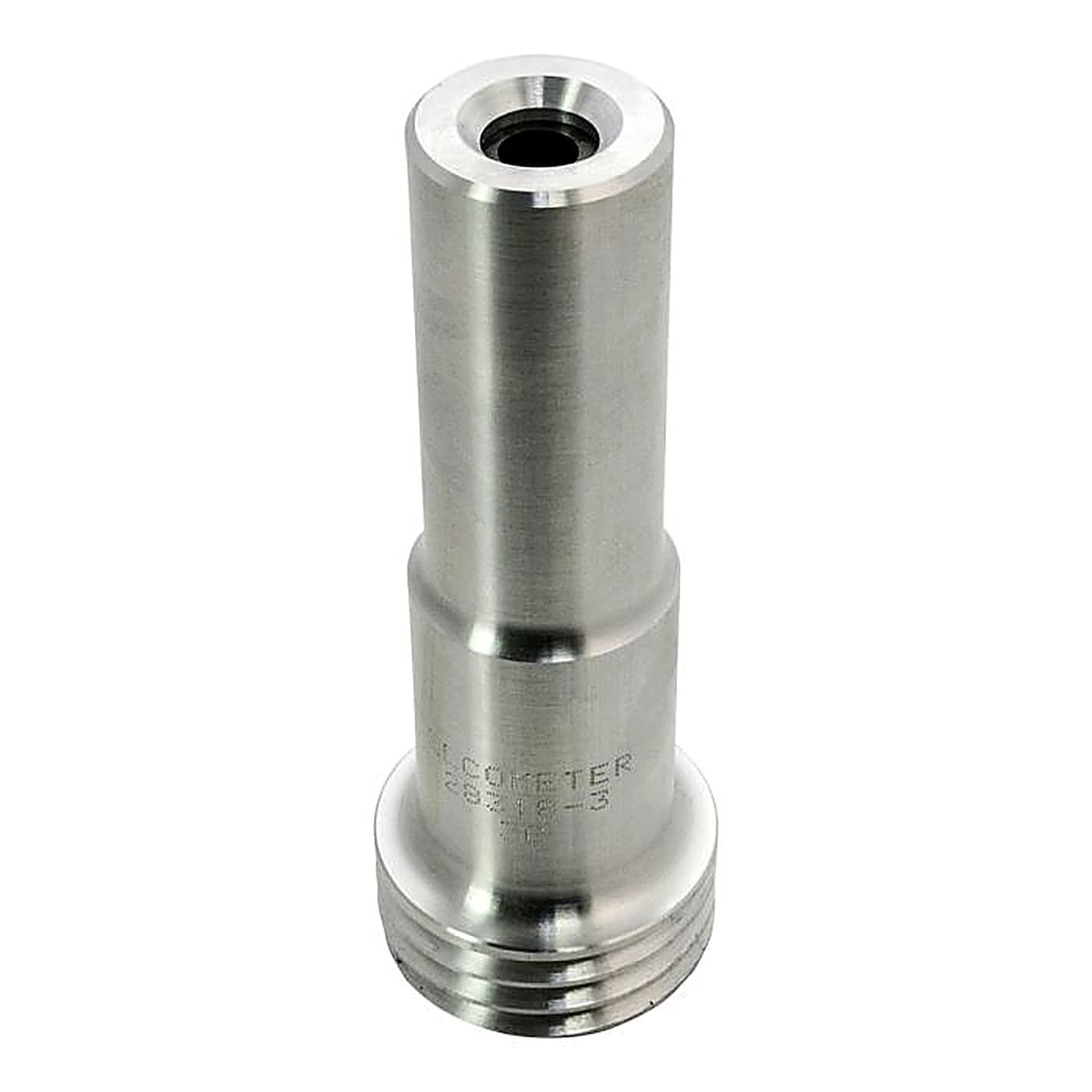

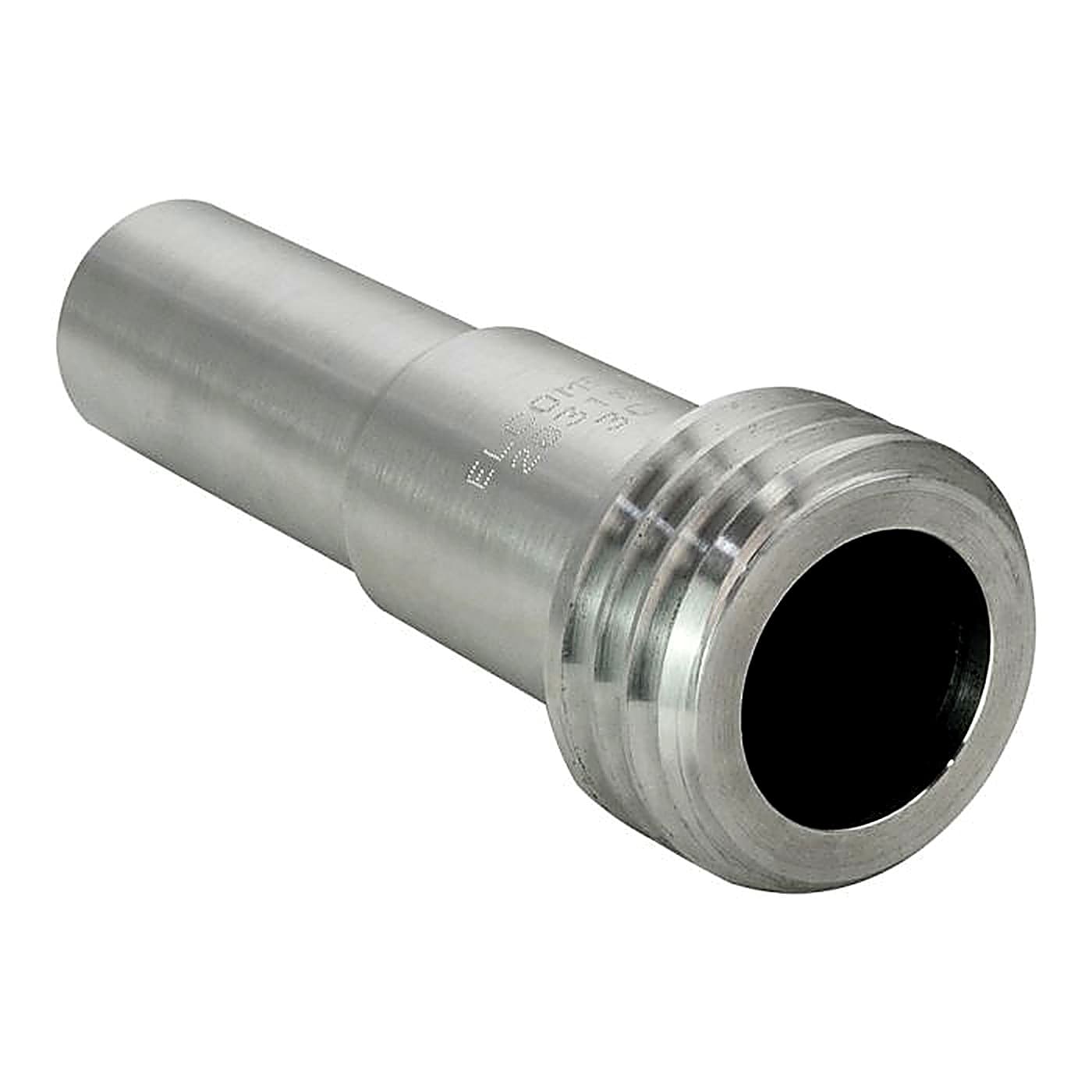

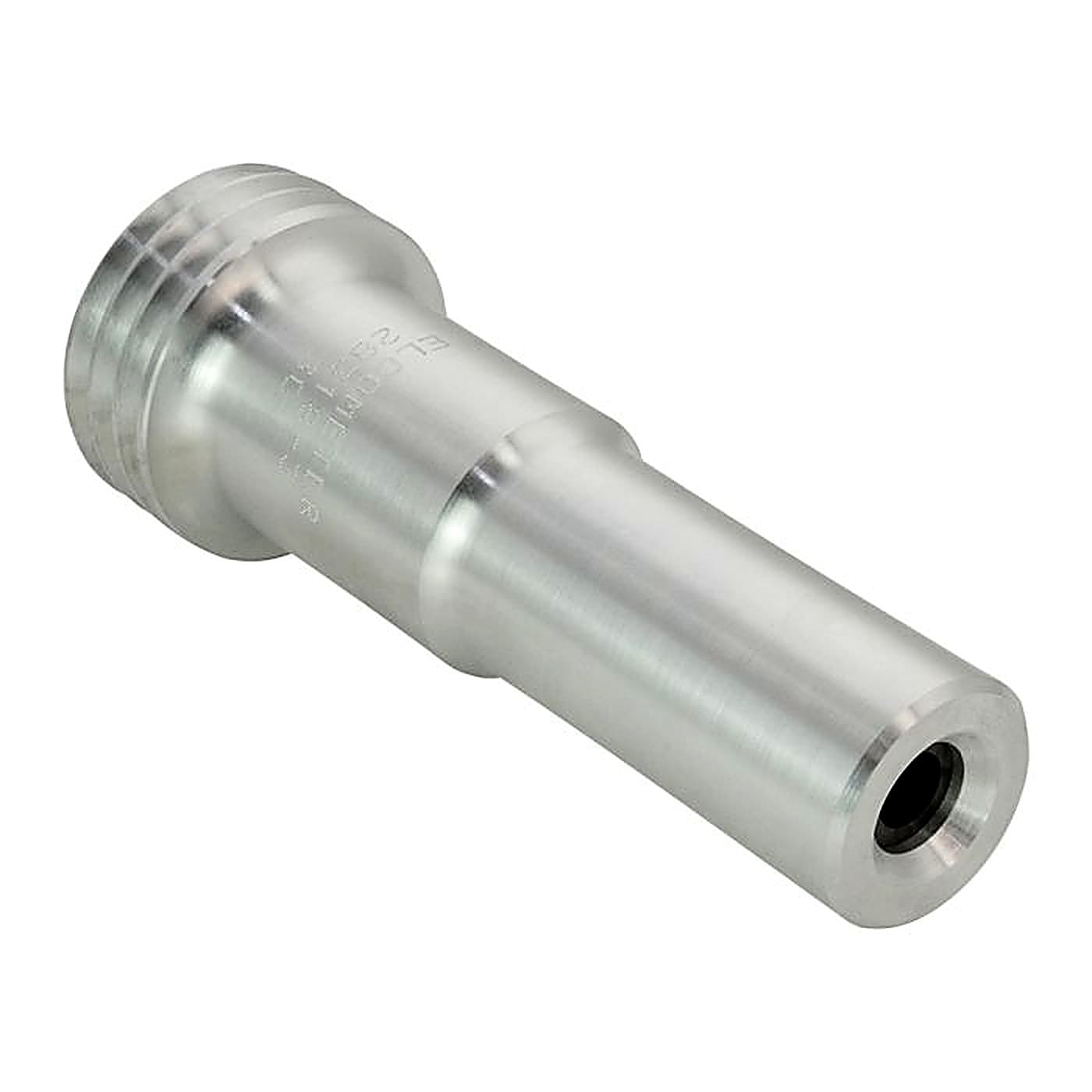

The Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket (part numbers MT28318-3C to MT28318-12N) is a general purpose abrasive blast nozzle for blasting large surfaces. The venturi bore creates a wide blast pattern and greatly increases the velocity of the abrasive, which means more surface is cleaned per pass and surface preparation work is completed faster than a straight bore would allow.

The Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket features a tungsten carbide insert protected by an aluminium jacket. Tungsten carbide withstands the wear of abrasive passing through the bore, while the aluminium jacket adds durability and toughness so the nozzle holds up to handling on site. Each nozzle is supplied with a rubber gasket.

Eight orifice sizes are offered, from the #3 at 4.8mm up to the #12 at 19mm, all with a 32mm entry diameter. Larger orifices pass more abrasive for clearing wide areas. Each size comes in two thread variants: the C versions carry a 51mm contractor thread, and the N versions a 32mm NPSM thread, with lengths varying by both size and thread (for example the #8 contractor MT28318-8C is 235mm). Choose the variant to match your blast machine fitting.

Used in surface preparation, coatings and corrosion work, these nozzles are supplied by BAMR, South Africa's authorised distributor.
