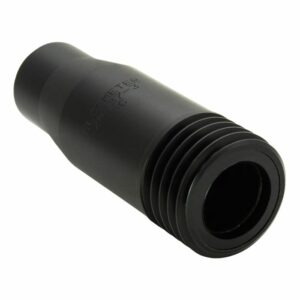

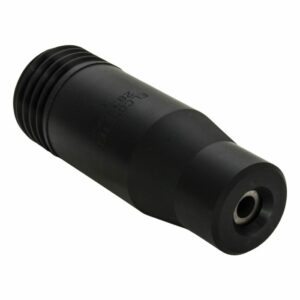

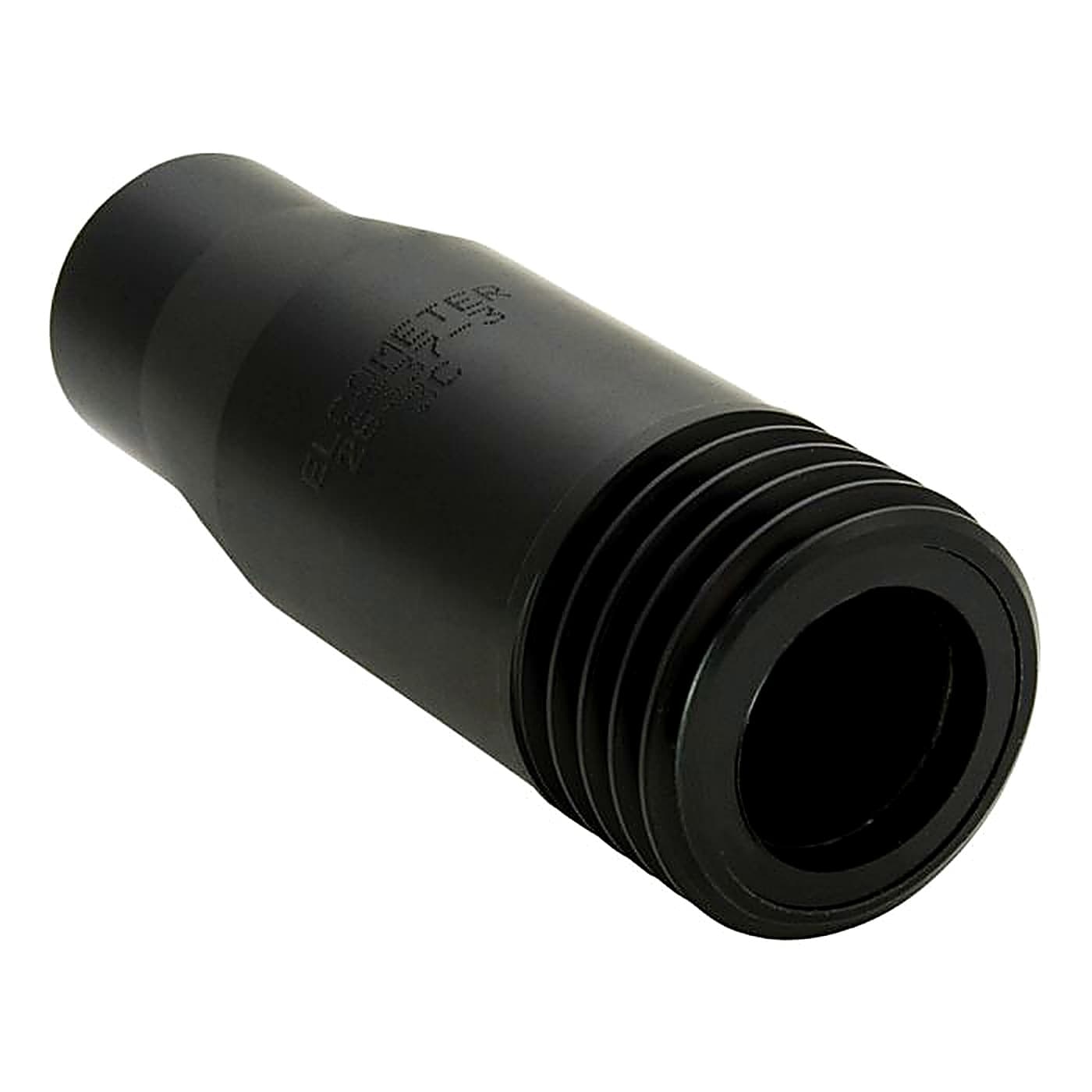

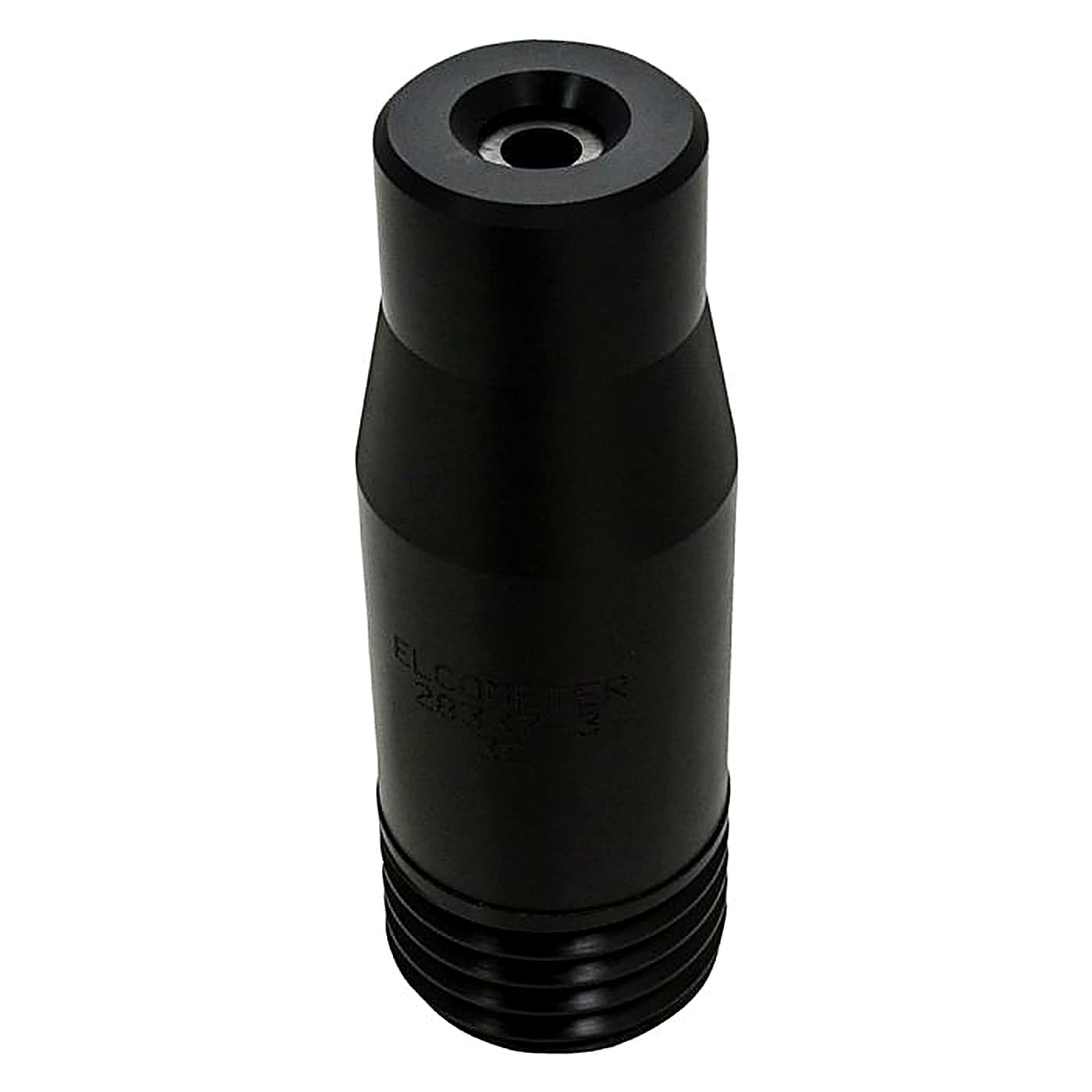

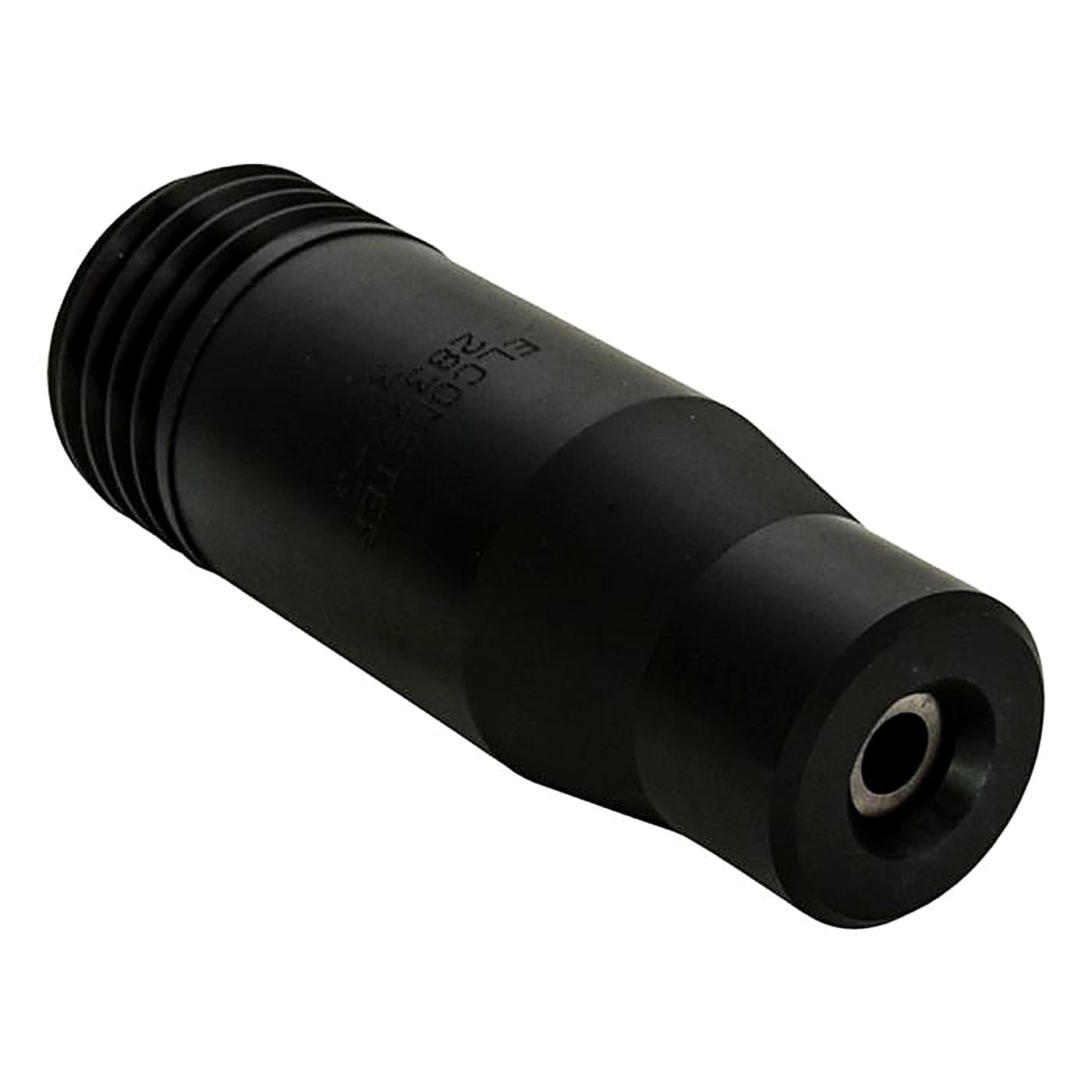

Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket
Product Description

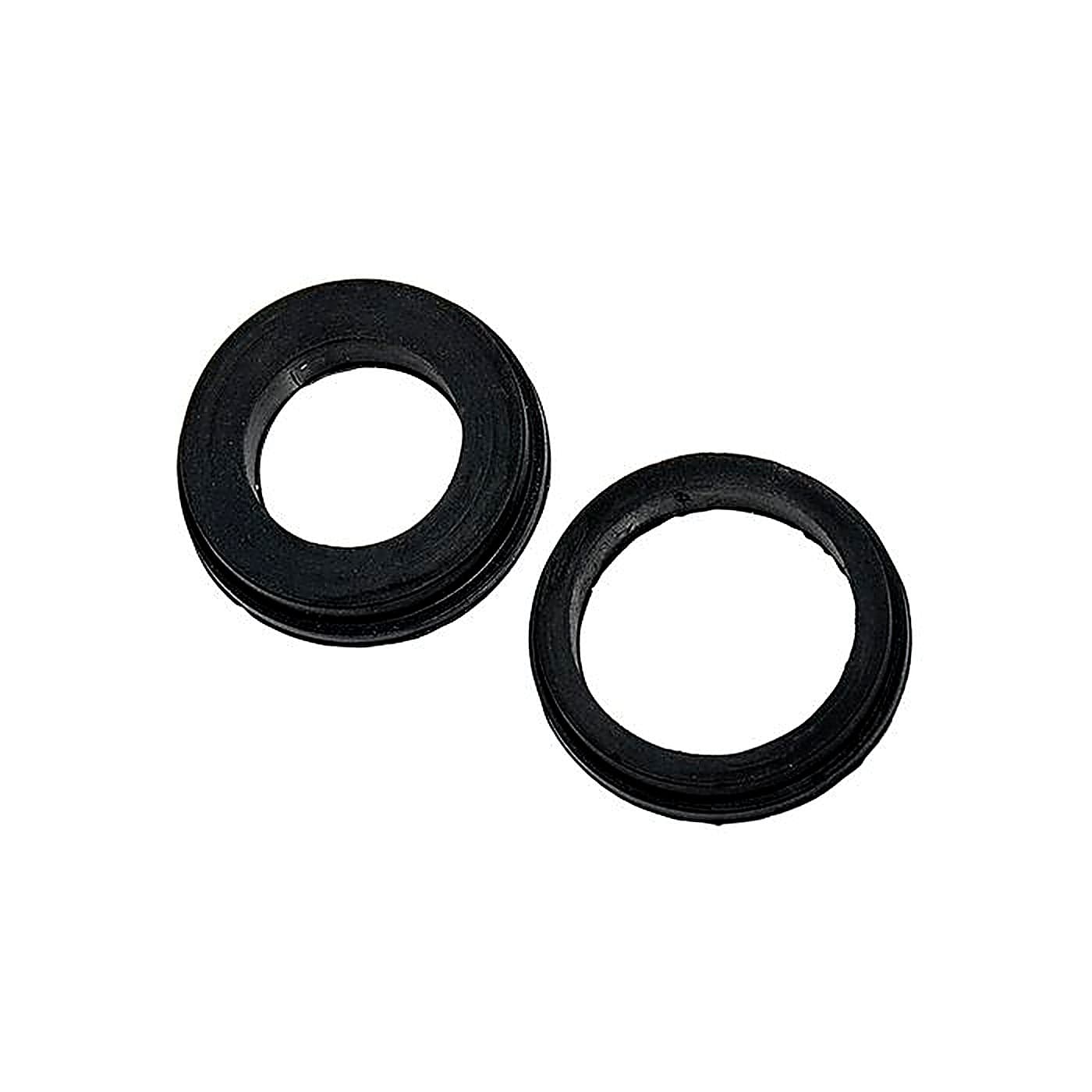

Built to be impact resistant and long wearing, the Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket is ideal for use with aggressive abrasives. Supplied with a rubber gasket, the abrasive blast nozzle’s acetal jacket protects the tungsten carbide liner, prolonging it’s lifespan whilst keeping the abrasive blast nozzle lightweight, causing less operator strain and increasing productivity.
Product Range
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.3
51mm Contractor Thread
- Orifice Diameter :4.8mm
- Length :140mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28337-3C
32mm NPSM Thread
- Orifice Diameter :4.8mm
- Length :135mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28337-3N
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.4
51mm Contractor Thread
- Orifice Diameter :6.35mm
- Length :140mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28337-4C
32mm NPSM Thread
- Orifice Diameter :6.35mm
- Length :135mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28337-4N
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.5
51mm Contractor Thread
- Orifice Diameter :8mm
- Length :150mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28337-5C
32mm NPSM Thread
- Orifice Diameter :8mm
- Length :145mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28337-5N
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.6
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :175mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28337-6C
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :170mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28337-6N
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.7
51mm Contractor Thread
- Orifice Diameter :11mm
- Length :205mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28337-7C
32mm NPSM Thread
- Orifice Diameter :11mm
- Length :200mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28337-7N
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.8
51mm Contractor Thread
- Orifice Diameter :12.5mm
- Length :235mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28337-8C
32mm NPSM Thread
- Orifice Diameter :12.5mm
- Length :230mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28337-8N
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.10
51mm Contractor Thread
- Orifice Diameter :16mm
- Length :235mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28337-10C
32mm NPSM Thread
- Orifice Diameter :16mm
- Length :230mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28337-10N
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.12
51mm Contractor Thread
- Orifice Diameter :19mm
- Length :235mm
- Entry Diameter :32mm
- Thread Type :51mm Contractor
- Part Number :MT28337-12C
32mm NPSM Thread
- Orifice Diameter :19mm
- Length :230mm
- Entry Diameter :32mm
- Thread Type :32mm NPSM
- Part Number :MT28337-12N
Accessories
Technical Specifications
PED
| Part Number 51mm Contractor Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28337-3C | #3 | 4.8mm | 140mm | 32mm |
| MT28337-4C | #4 | 6.35mm | 140mm | 32mm |
| MT28337-5C | #5 | 8mm | 150mm | 32mm |
| MT28337-6C | #6 | 9.5mm | 175mm | 32mm |
| MT28337-7C | #7 | 11mm | 205mm | 32mm |
| MT28337-8C | #8 | 12.5mm | 235mm | 32mm |
| MT28337-10C | #10 | 16mm | 235mm | 32mm |
| MT28337-12C | #12 | 19mm | 235mm | 32mm |
ASME
| Part Number NSPM Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28337-3N | #3 | 4.8mm | 135mm | 32mm |
| MT28337-4N | #4 | 6.35mm | 135mm | 32mm |
| MT28337-5N | #5 | 8mm | 145mm | 32mm |
| MT28337-6N | #6 | 9.5mm | 170mm | 32mm |
| MT28337-7N | #7 | 11mm | 200mm | 32mm |
| MT28337-8N | #8 | 12.5mm | 230mm | 32mm |
| MT28337-10N | #10 | 16mm | 230mm | 32mm) |
| MT28337-12N | #12 | 19mm | 230mm | 32mm |
