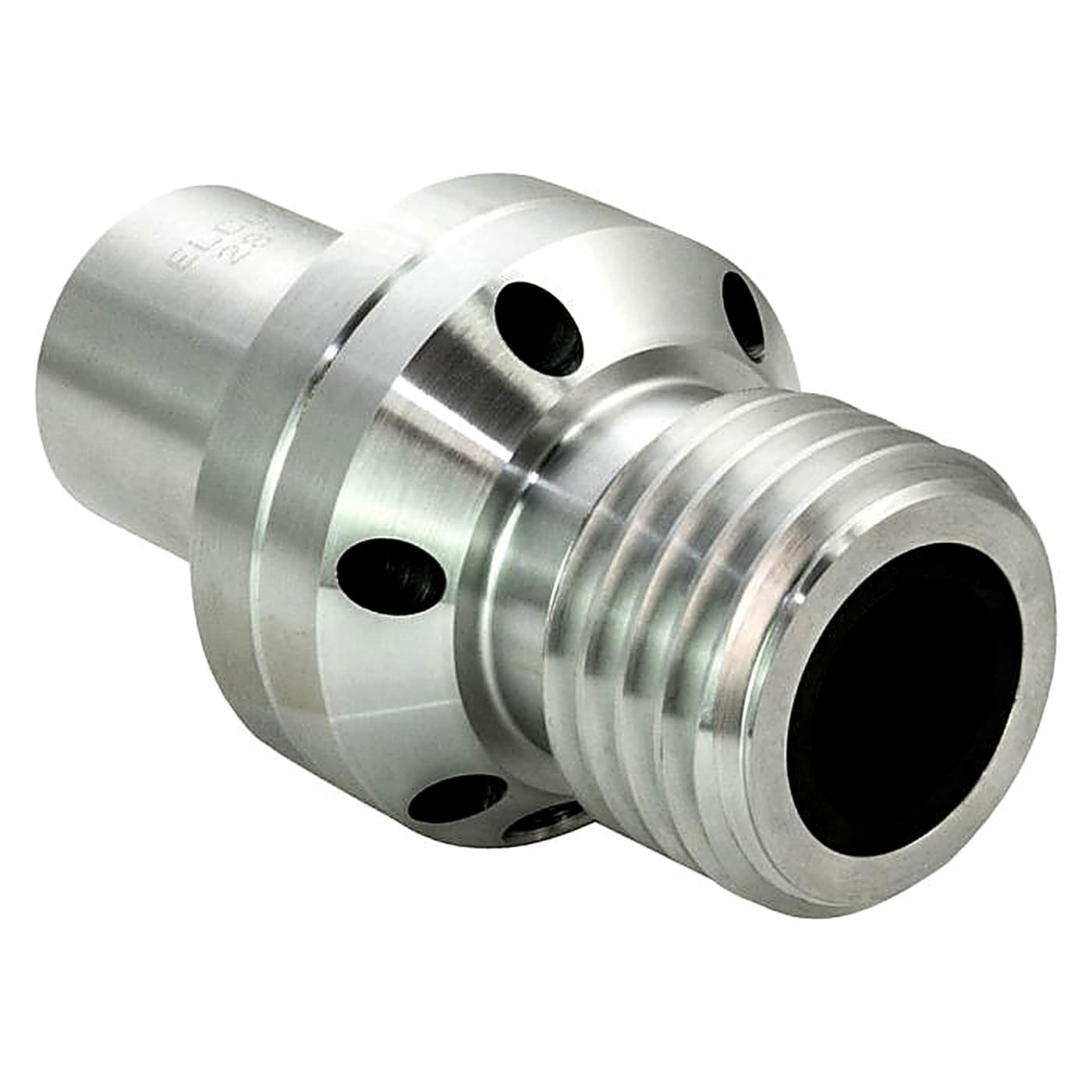

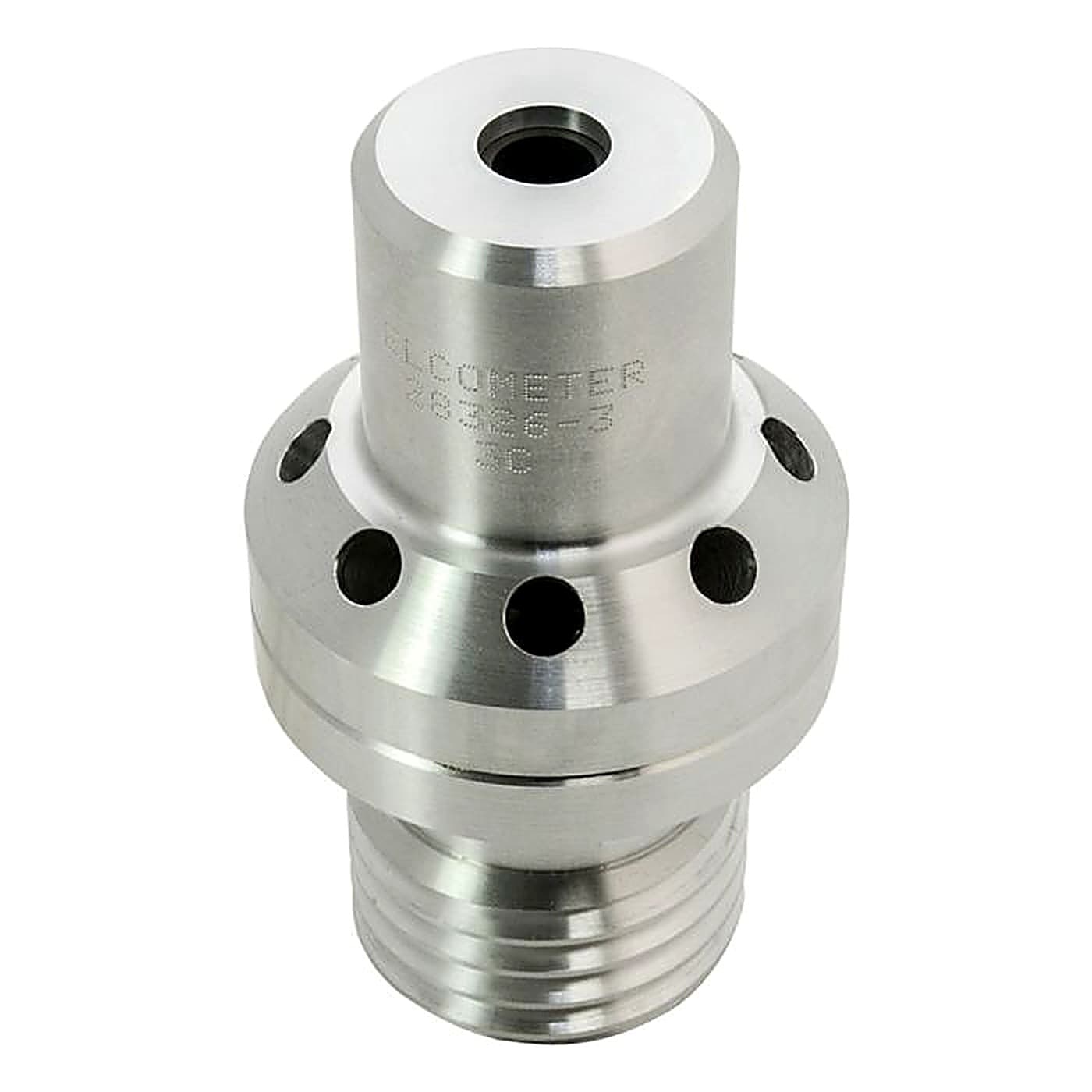

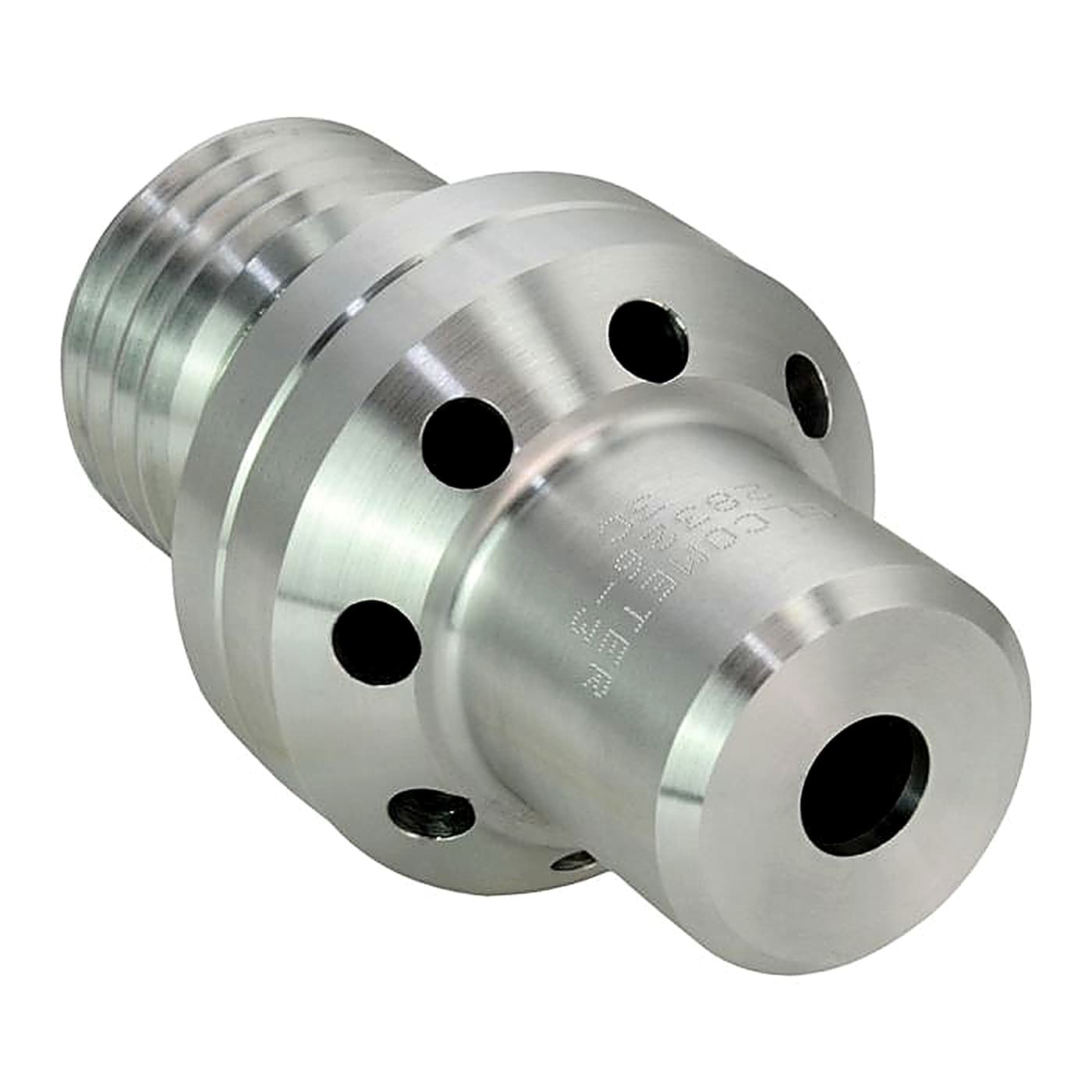

Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System
Product Description
Ideal for use in situations when dust control is needed, this abrasive blast nozzle mixes water with the abrasive, reducing the amount of dust displaced into the atmosphere.
Featuring an aluminium jacket which provides strength and endurance, this abrasive blast nozzle is recommended for use with harder abrasives.

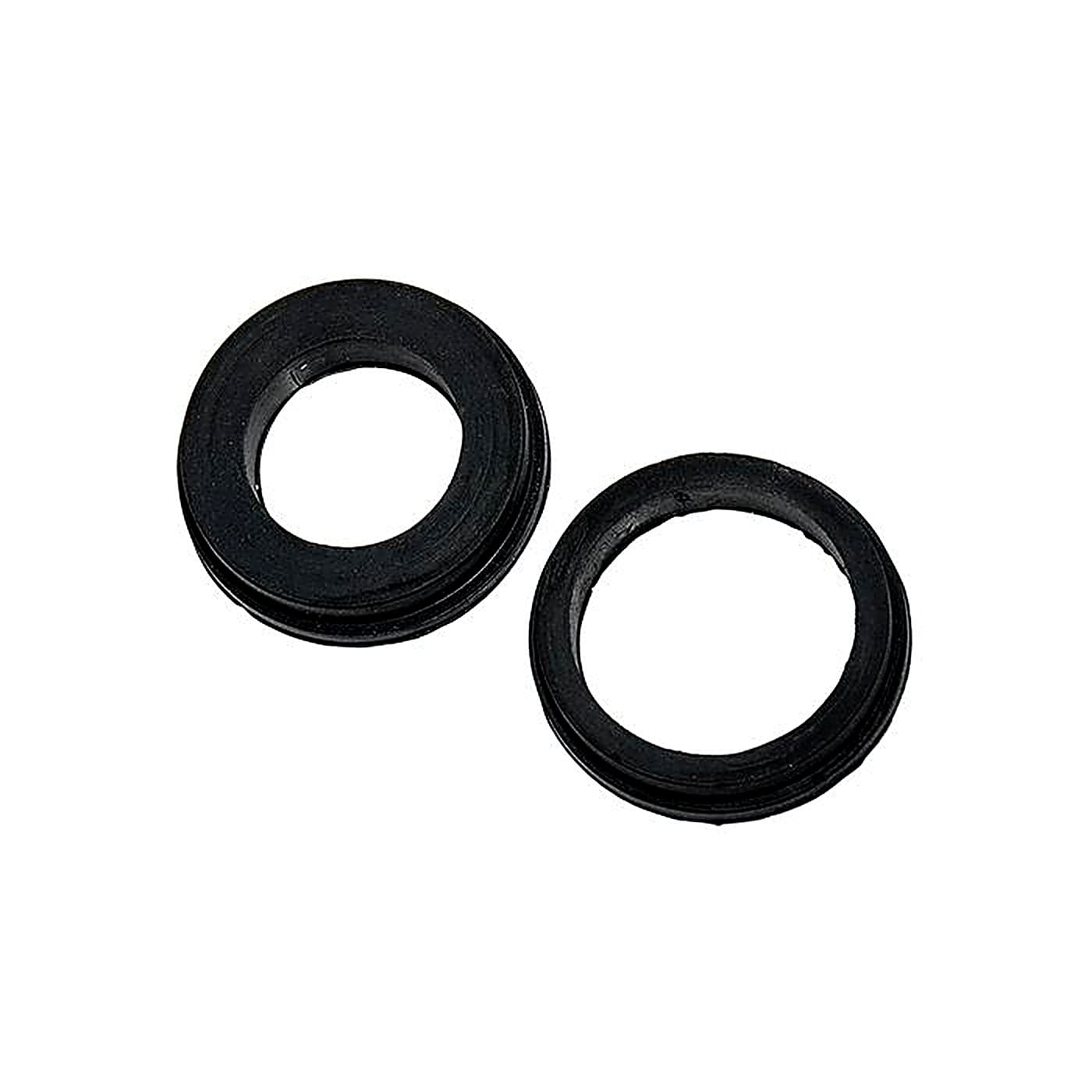

The abrasive blast nozzles are supplied with a rubber gasket.
Product Range
Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System No.3
51mm Contractor Thread
- Orifice Diameter :4.8mm
- Length :120mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28326-3C
32mm NPSM Thread
- Orifice Diameter :4.8mm
- Length :120mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28326-3N
Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System No.4
51mm Contractor Thread
- Orifice Diameter :6.35mm
- Length :150mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28326-4C
32mm NPSM Thread
- Orifice Diameter :6.35mm
- Length :150mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28326-4N
Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System No.5
51mm Contractor Thread
- Orifice Diameter :8mm
- Length :160mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28326-5C
32mm NPSM Thread
- Orifice Diameter :8mm
- Length :160mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28326-5N
Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System No.6
51mm Contractor Thread
- Orifice Diameter :9.5mm
- Length :175mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28326-6C
32mm NPSM Thread
- Orifice Diameter :9.5mm
- Length :170mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28326-6N
Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System No.7
51mm Contractor Thread
- Orifice Diameter :11mm
- Length :210mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28326-7C
32mm NPSM Thread
- Orifice Diameter :11mm
- Length :210mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28326-7N
Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System No.8
51mm Contractor Thread
- Orifice Diameter :12.5mm
- Length :230mm
- Entry Diameter :25mm
- Thread Type :51mm Contractor
- Part Number :MT28326-8C
32mm NPSM Thread
- Orifice Diameter :12.5mm
- Length :230mm
- Entry Diameter :25mm
- Thread Type :32mm NPSM
- Part Number :MT28326-8N
Accessories
Technical Specifications
PED
| Part Number 51mm Contractor Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28326-3C | #3 | 4.8mm | 120mm | 25mm |
| MT28326-4C | #4 | 6.35mm | 150mm | 25mm |
| MT28326-5C | #5 | 8mm | 160mm | 25mm |
| MT28326-6C | #6 | 9.5mm | 175mm | 25mm |
| MT28326-7C | #7 | 11mm | 210mm | 25mm |
| MT28326-8C | #8 | 12.5mm | 230mm | 25mm |
ASME
| Part Number NPSM Thread | Nozzle No. | Orifice Diameter | Length | Entry Diameter |
| MT28326-3N | #3 | 4.8mm | 120mm | 25mm |
| MT28326-4N | #4 | 6.35mm | 150mm | 25mm |
| MT28326-5N | #5 | 8mm | 160mm | 25mm |
| MT28326-6N | #6 | 9.5mm | 170mm | 25mm |
| MT28326-7N | #7 | 11mm | 210mm | 25mm |
| MT28326-8N | #8 | 12.5mm | 230mm | 25mm |
