The Elcometer AGV Automatic General Valve (part numbers AGV-B and AGV-N) is a pinch style abrasive metering valve for blast machines, providing precision abrasive control and fail-safe shut down of both the blast stream and media flow. Uncontrolled or wasteful abrasive flow drives up media costs and gives an uneven blast, so a valve that meters accurately and shuts off completely improves both finish quality and running cost.
The Elcometer AGV Automatic General Valve is built for heavy or aggressive abrasives such as shot, grit and aluminium oxide. Its design keeps the valve body out of contact with the abrasive stream, so only the long life elcoTOUGH rubber valve liner touches the media. A built-in fail-safe shuts off both the blast stream and media flow at the handle quickly and safely, giving 100% abrasive shut off and reducing wastage. A built-in media flow indicator lets the operator adjust media flow even while blasting, for an even, regulated flow, and a separate indicator shows rubber liner wear.
The Elcometer AGV Automatic General Valve is tested to a maximum working pressure of 15bar and fits most abrasive blast machines on the market. Servicing is fast: the elcoTOUGH rubber valve liner of the Elcometer AGV Automatic General Valve can be replaced with just two bolts, without removing the valve from the blast machine. Used in abrasive blasting and surface preparation, the Elcometer AGV Automatic General Valve is supplied by BAMR, South Africa's authorised distributor.

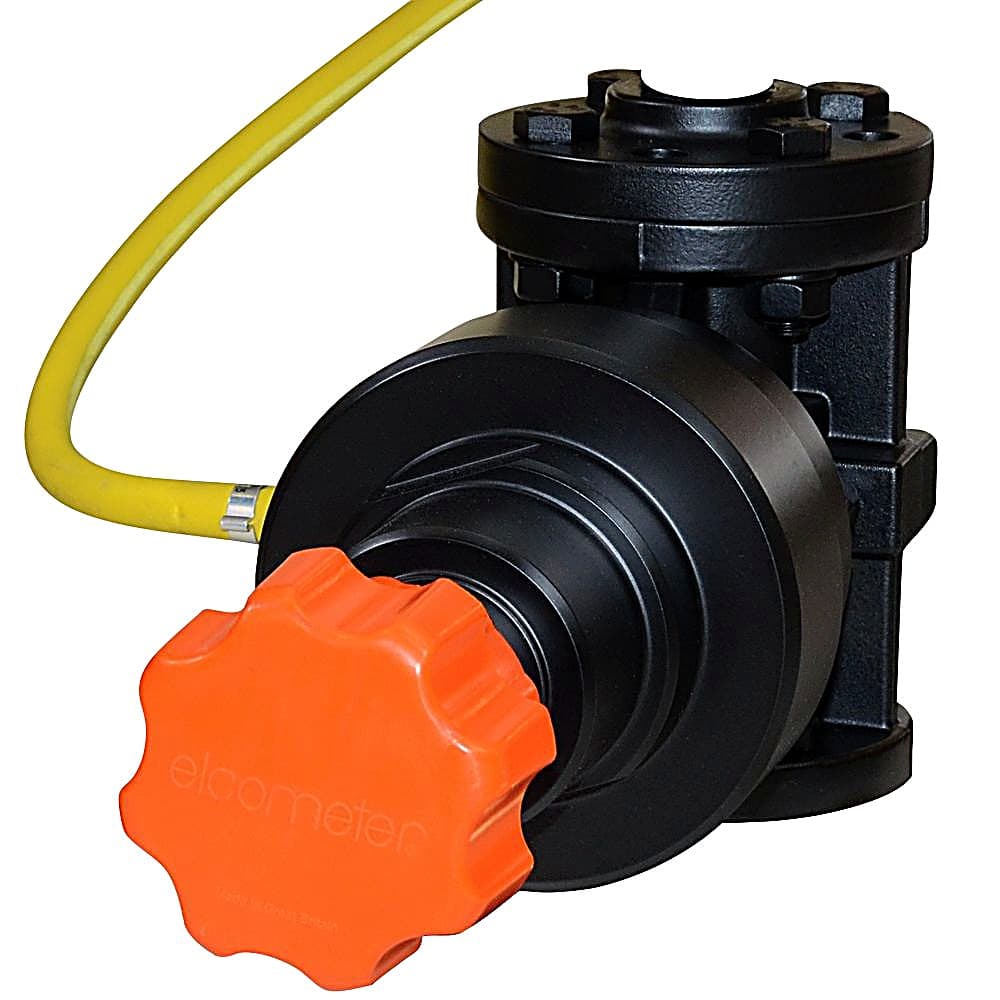

Elcometer AGV Automatic General Valve
Elcometer AGV Automatic General Valve ensures precision abrasive control and fail-safe shut down of both the blast stream and media flow.

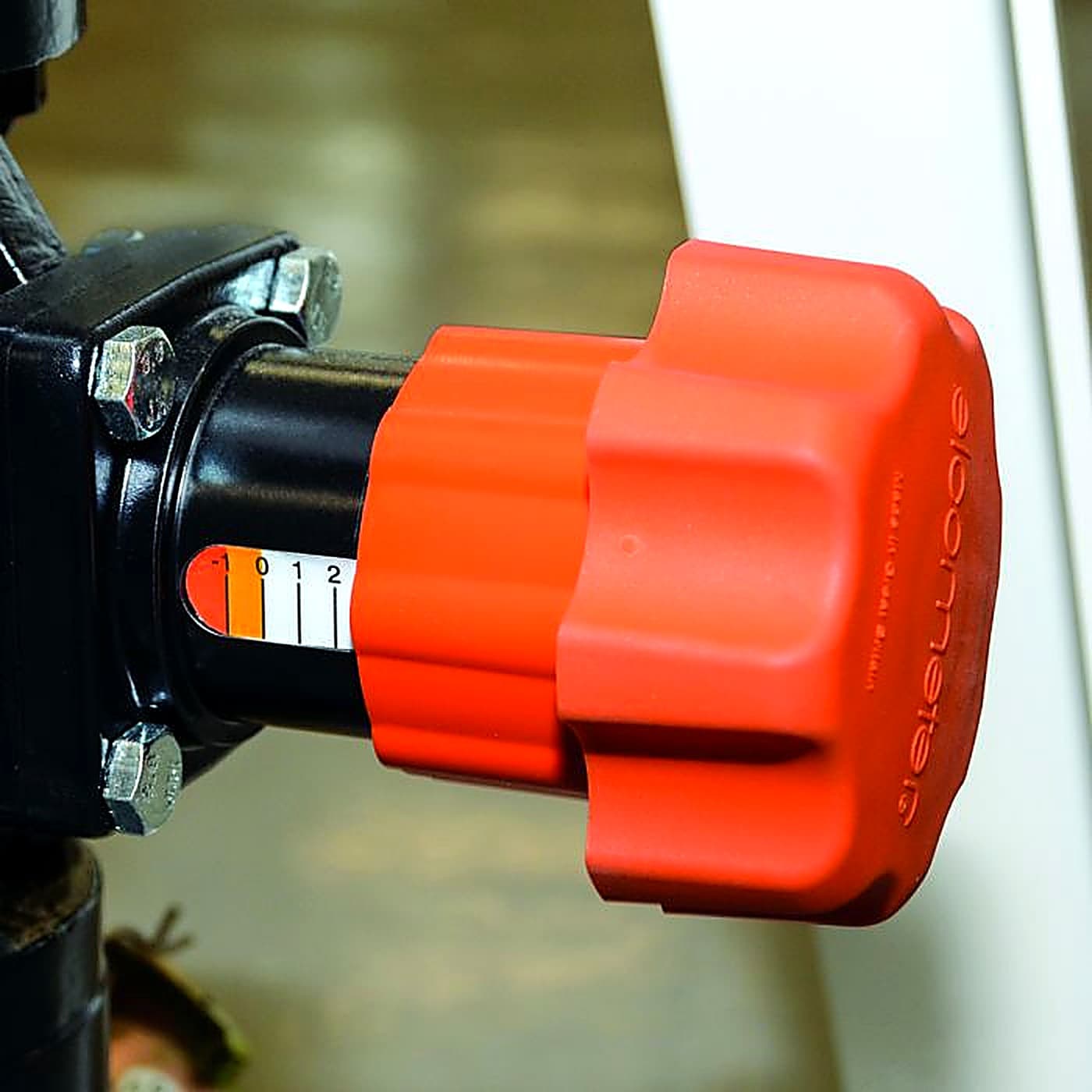

- Media flow indicator and rubber liner wear indicator
- Tested to a maximum working pressure of 15bar
- Precision abrasive control to ensure maximum efficiency even whilst blasting
- Safely adjust media flow when in use to save time
- Complete with elcoTOUGH™ rubber liner that can be quickly replaced without disconnecting the valve
- 100% abrasive shut off - reducing wastage

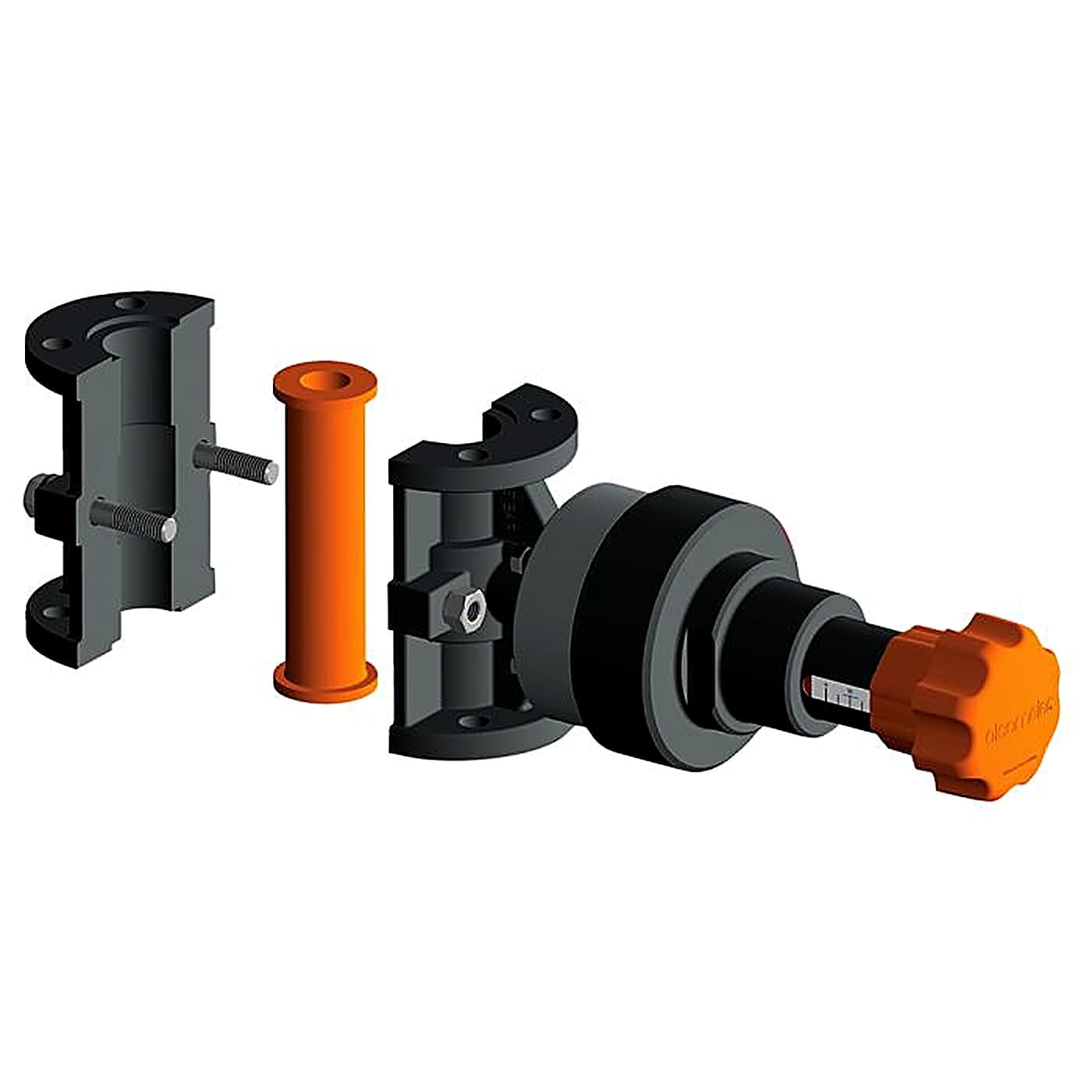

- Replace the elcoTOUGH™ rubber valve liner with just 2 bolts
Standards Reference
- British Standard
- BS4518
Specifications
Standards Reference
- British Standard
- BS4518
Accessories
Accessories

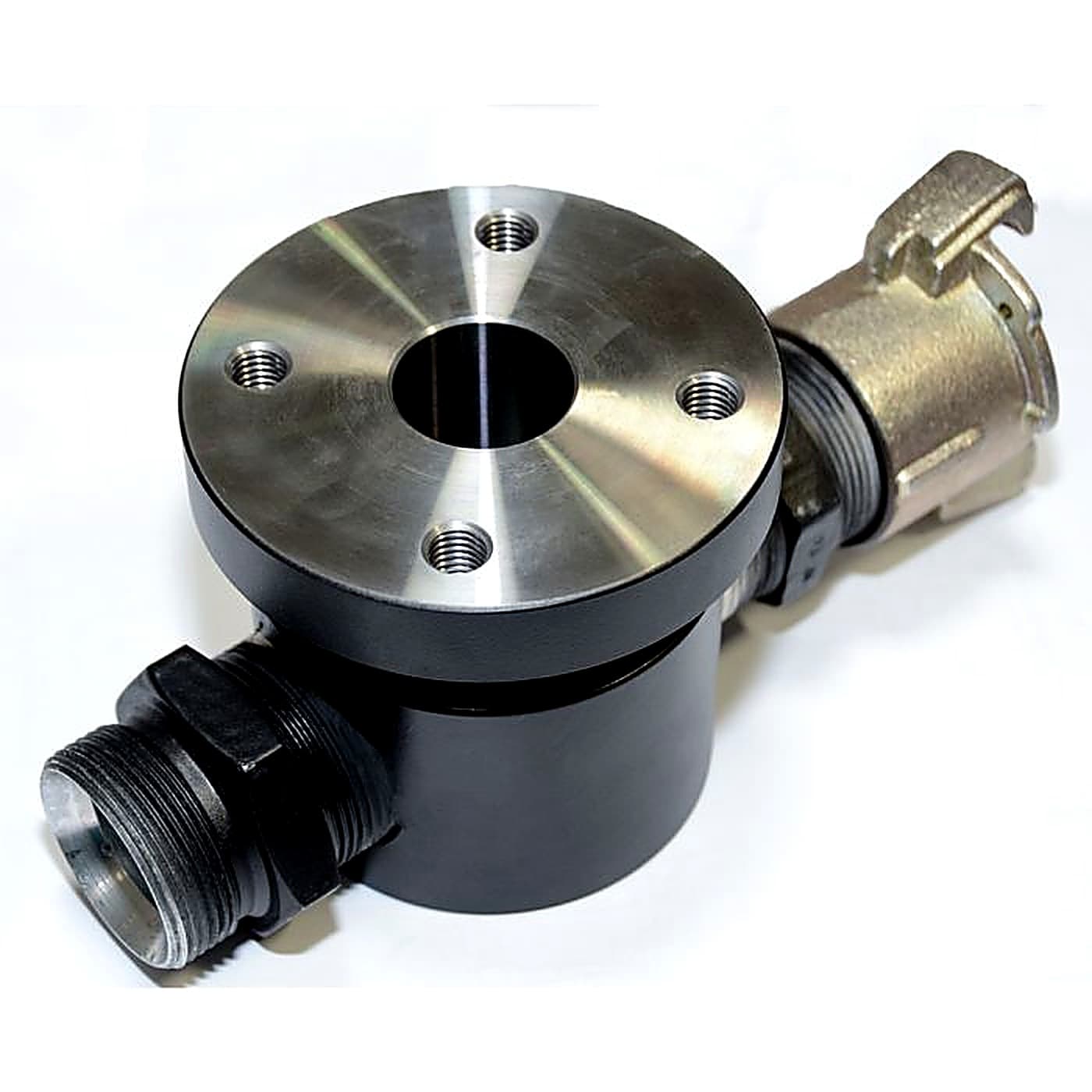

| Mixer T for Elcometer GV and AGV Abrasive Media Valves 38mm |

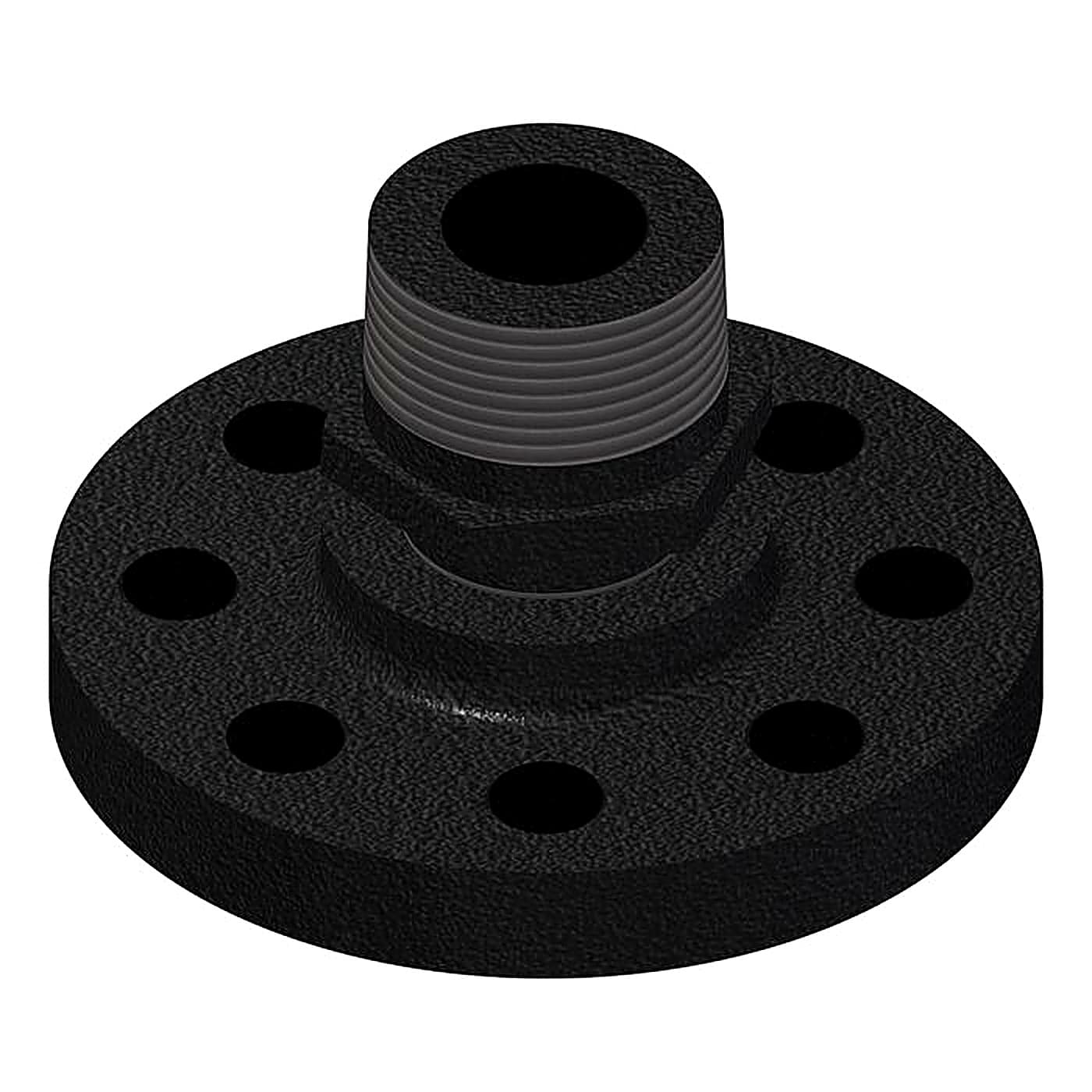

| 8 Hole Pot Flange |

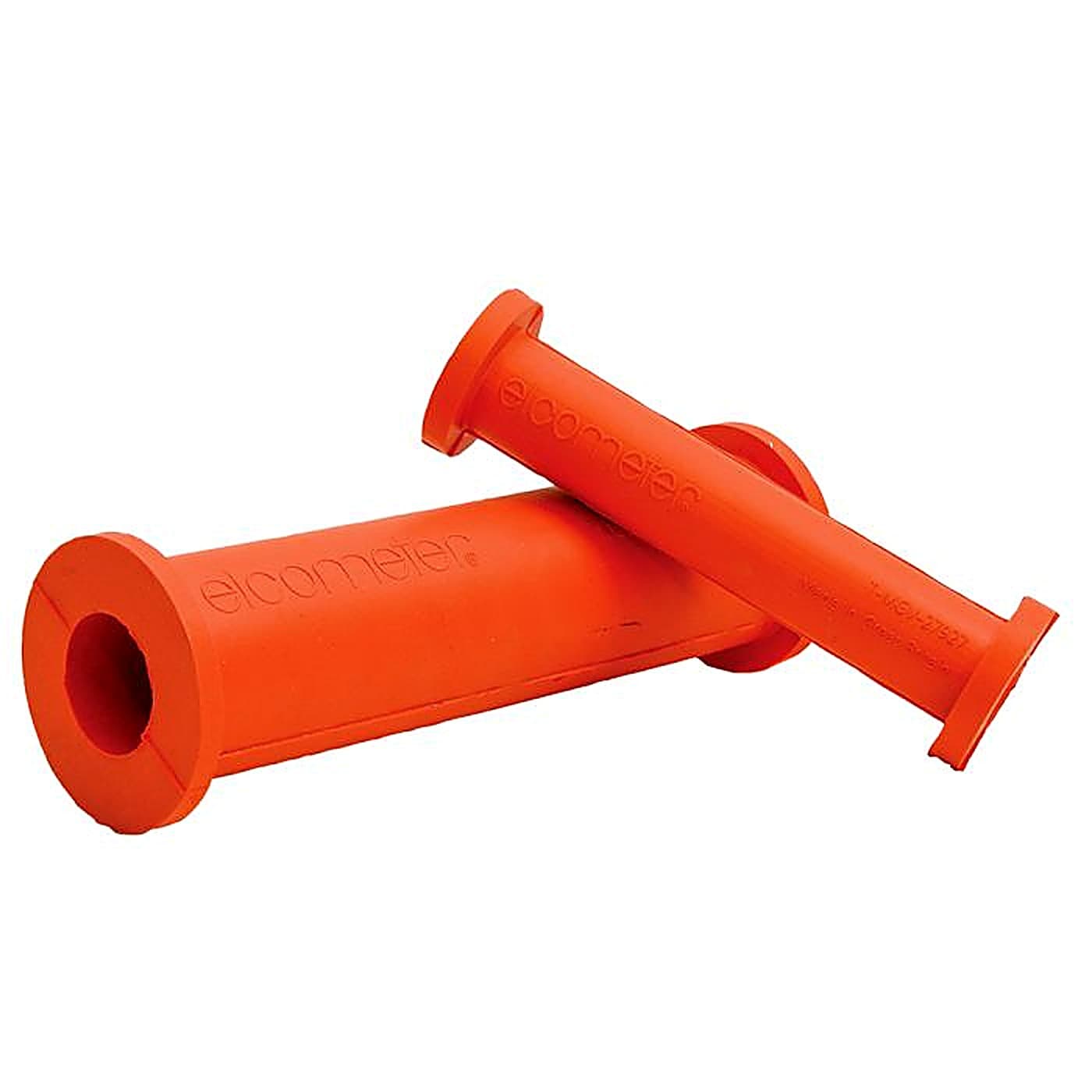

| GV & AGV elcoTOUGH™ Rubber Valve Liner 25mm |
Spare Parts
Spare Parts
- M8 Steel Spring Washer (x4)
- KIT 1
- M8 x 20mm BSP Hex Bolt Grade 4.6 (x4)
- KIT 1
- M12 Zinc Plated Steel Nut (x2)
- KIT 2
- M12 Steel Spring Washer (x2)
- KIT 2
- Rubber Valve Liner
- GV-LINER1
- AGV Valve Housing Body
- MT29993
- M12 Zinc Plated Steel Washer (x2)
- KIT 2
- M12 x 70 Zinc Plated Hex Bolt (x2)
- KIT 2
- AGV Valve Handwheel & Shaft
- MT29994
- O Ring 3mm Cord x 44.5 ID
- KIT 4
- Valve Indicator Label
- KIT 4
- Actuator Spring Housing
- MT29995
- Spring 56mm OD x 110mm
- MT29996
- Actuator Stop Ring
- KIT 4
- Piston Seal 101.6 OD 88.9 ID
- KIT 4
- M12 Zinc Plated Steel Nut
- KIT 3
- M12 Steel Spring Washer (x2)
- KIT 3
- Actuator Piston
- MT29997
- Piston Seal 35 OD 25 ID
- KIT 4
- Actuator Cylinder
- MT29998
- Rod Wiper Seal Ø25mm Shaft
- KIT 4
- Plunger Shaft
- MT29999
- O Ring BS4518 0116-24
- KIT 4
- Valve Plunger
- MT30001
- AGV Service Kit 1 (contains items 1 & 2)
- MT30044
- AGV Service Kit 2 (contains items 3, 4, 7 & 8)
- MT30045
- AGV Service Kit 3 (contains items 16 & 17)
- MT30047
- AGV Service Kit 4 (contains items 10, 11, 14, 15, 19, 21 & 23)
- MT29598
- Elcometer 1440 Full AGV Assembly complete with Pusher Line, Mixer T, AGV Automatic Genera...
- MT30065-1
- Elcometer 1460 Full AGV Assembly complete with Pusher Line, Mixer T, AGV Automatic Genera...
- MT30065-2
- Elcometer 20100 Full AGV Assembly complete with Pusher Line, Mixer T, AGV Automatic Gener...
- MT30065-3
- Elcometer 24200 Full AGV Assembly complete with Pusher Line, Mixer T, AGV Automatic Gener...
- MT30065-4
- Elcometer 24285 Full AGV Assembly complete with Pusher Line, Mixer T, AGV Automatic Gener...
- MT30065-5
- 1 1 ⁄ 2 " 15bar Pusher Line Assembly complete with Swaged Hose
- MT28609-1 MT28609-3 MT28609-5 MT28609-6 MT28609-6
- Elcometer Airline Assembly
- MT29580-2 MT29580-3 MT29580-4 MT29580-5 MT29580-6
Spare Parts - Pusher Line and Valve Assembly (PED)
- 1.5 Male/Male BSP Adaptor - 60 Cone
- MT29710
- 1.5 Male BSP - 45 Cone
- MT28553
- 1 Male BSP / 1 Female BSP Equal Union Taper Seat
- MT29014
- 1 Hex Nipple
- MT30002
- 1 Equal Tee
- MT28552
- 1 Close Nipple
- MT30089
- 1 Equal Union Taper Seat
- MT30086
- AGV Service Kit 5
- MT30048
Spare Parts - Pusher Line and Valve Assembly (ASME)
- 1.5 Male/Male Adaptor - 60 Cone
- MT29710N
- 1.5 Male - 45 Cone
- MT28553N
- 1 Male / 1 Female Equal Union Taper Seat
- MT29014N
- 1 Hex Nipple
- MT30002N
- 1 Equal Tee
- MT28552N
- 1 Close Nipple
- MT30089N
- 1 Equal Union Taper Seat
- MT30086N
Downloads
Frequently asked questions
What function does the AGV Automatic General Valve perform in a blast system?
The AGV gives precision control over abrasive flow and provides fail-safe shut down of both the blast stream and the media flow.
Can I buy the AGV as part of a complete blasting assembly rather than the valve alone?
Yes. Full AGV assemblies, which include the pusher line, mixer T and the AGV Automatic General Valve, are listed for Elcometer 1440, 1460, 20100, 24200 and 24285.
Are the pusher line and valve assembly parts different for PED and ASME systems?
Yes. Spare parts for the pusher line and valve assembly are catalogued separately for PED and ASME configurations, each with its own adaptors, unions, nipples and tee part numbers, so order from the list matching your system.
What service kits are available for routine AGV maintenance?
Four AGV Service Kits (1 to 4) cover different groups of wear parts such as seals, springs, washers and bolts. A fifth kit, AGV Service Kit 5, is listed specifically under the PED pusher line and valve assembly parts.
Can I replace individual AGV components instead of buying a full kit?
Yes. Parts such as the rubber valve liner, valve housing body, handwheel and shaft, actuator piston, actuator cylinder and the various o-rings and piston seals are all listed as separate spares.
Is there a standard reference for the o-ring seals used in the AGV?
One of the o-rings (part 0116-24) is specified to British Standard BS4518 for its dimensions. This reference applies to that seal, not to the valve as a whole.
