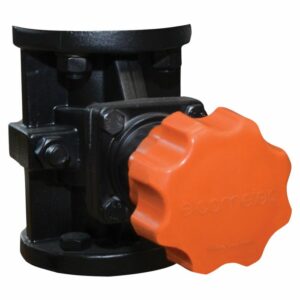

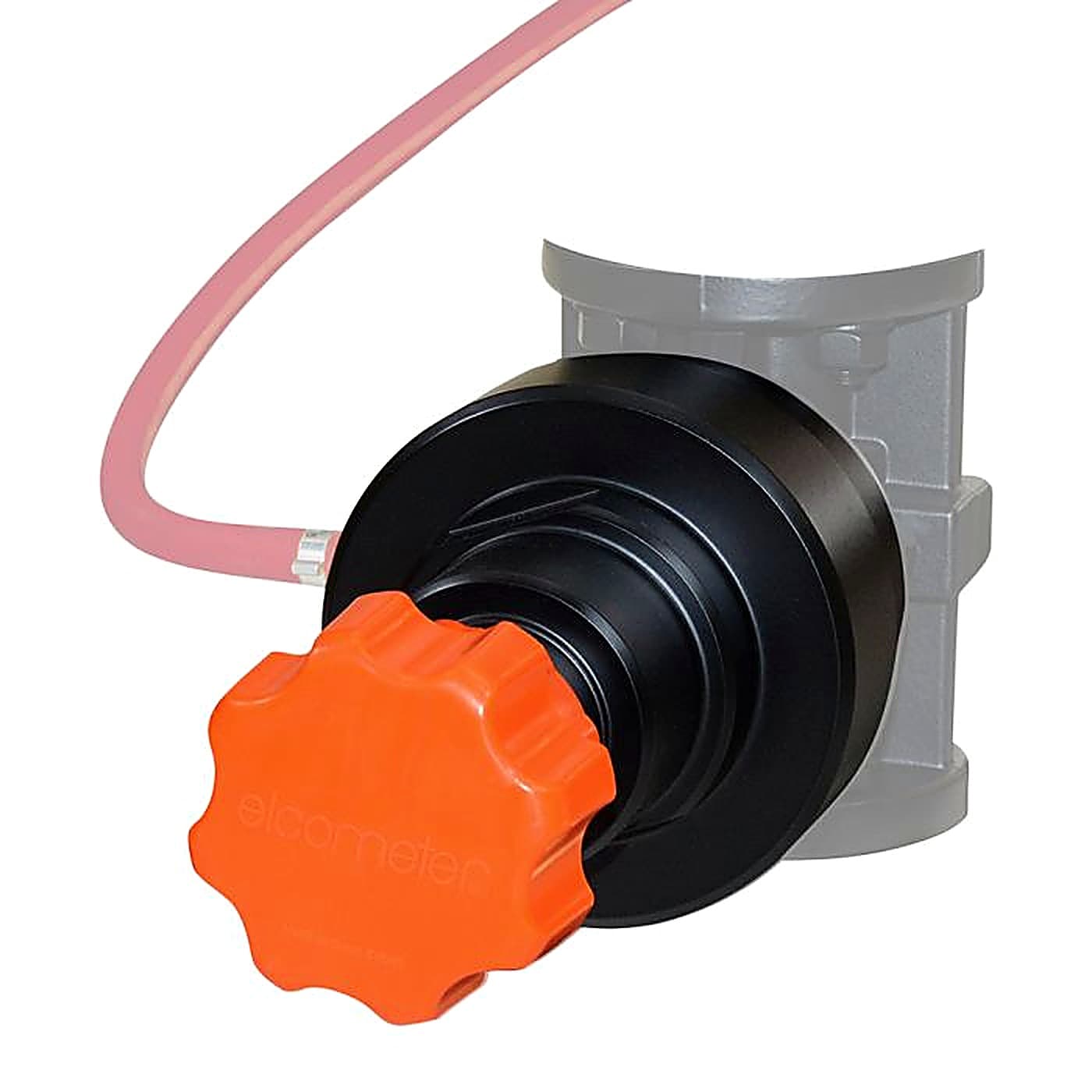

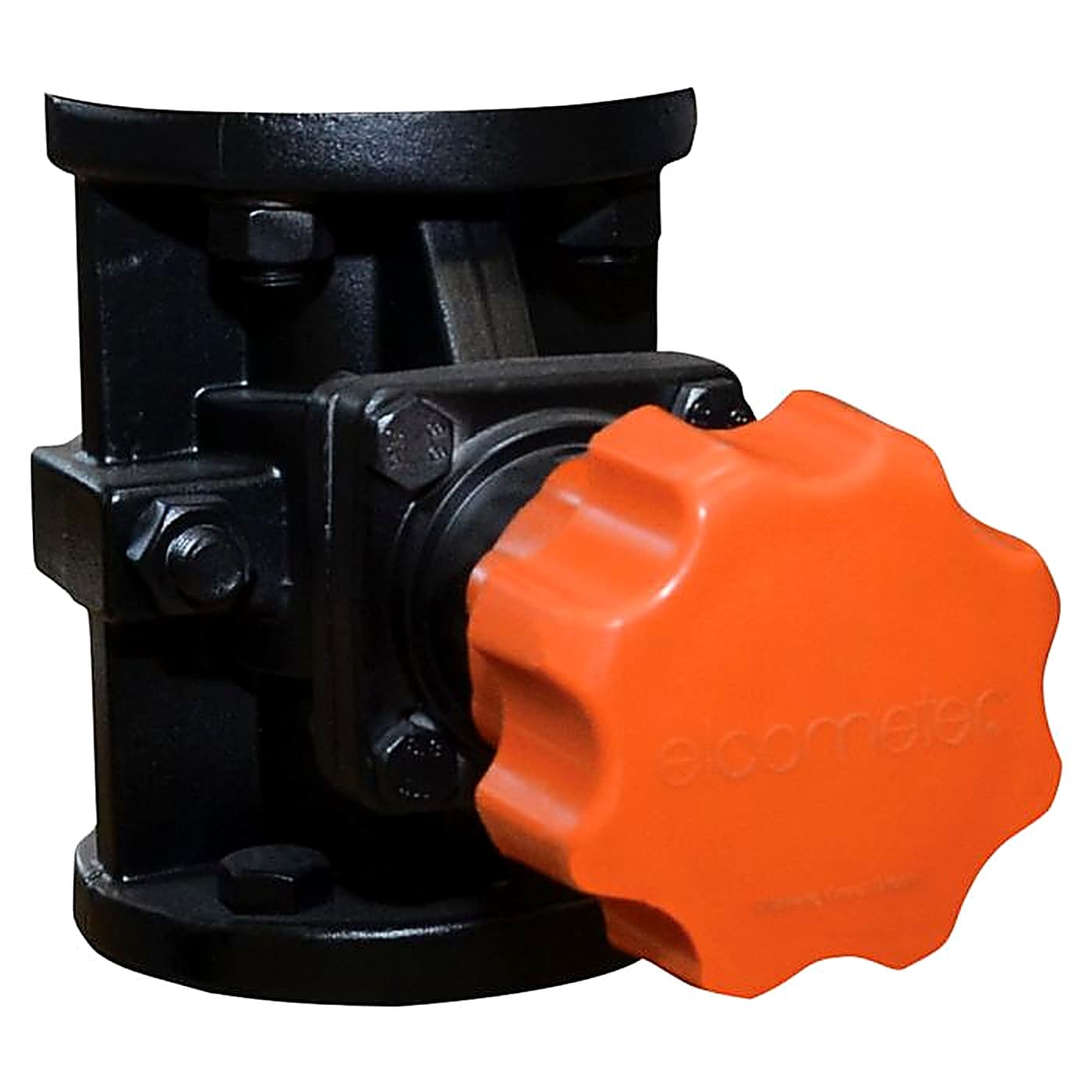

Elcometer GV General Valve
Product Description
The Elcometer General Valve ensures precise abrasive metering for an even, regulated flow. With its long life rubber liner it is highly durable, incredibly fast and easy to service – reducing downtime.

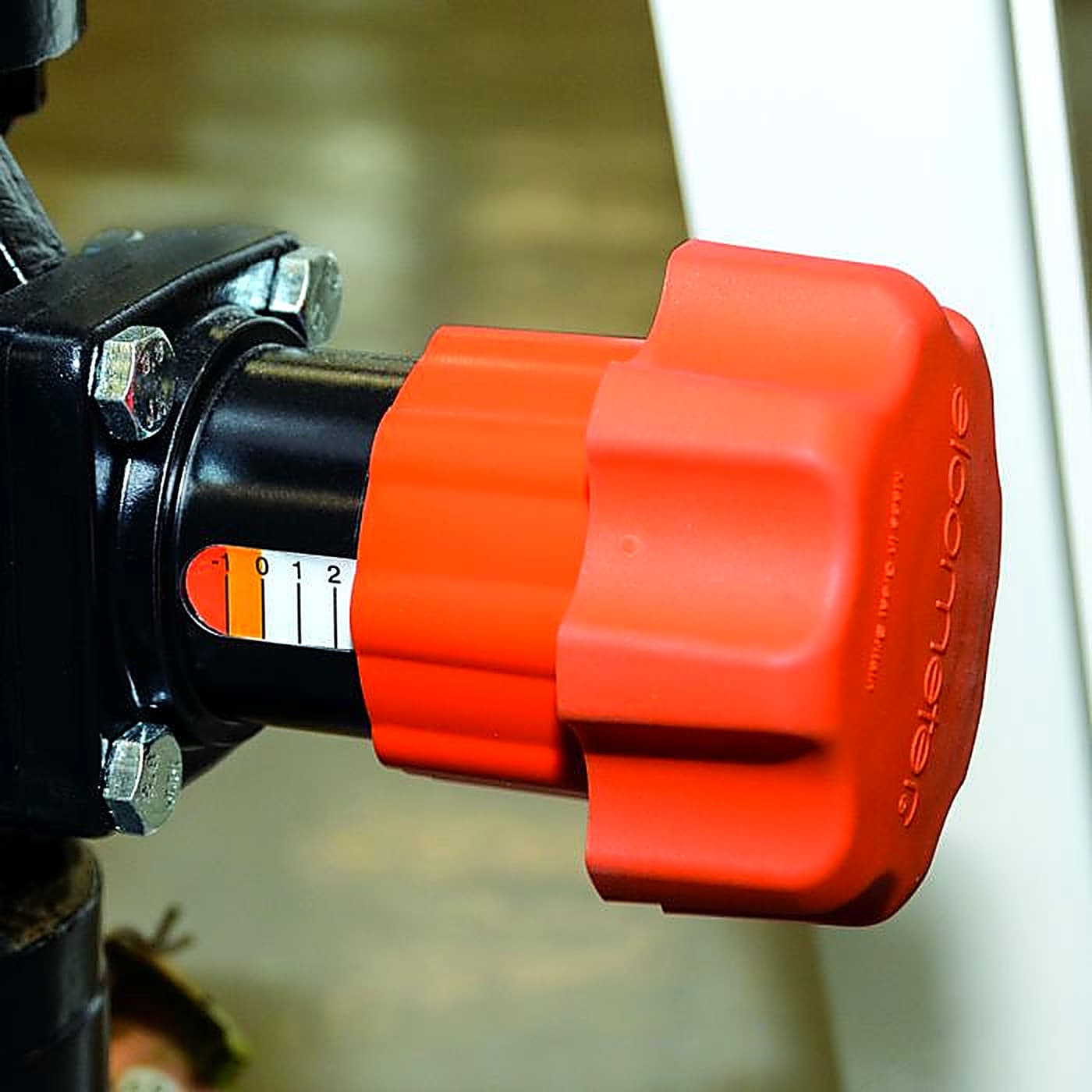

- Media flow indicator and rubber liner wear indicator
- Tested to a maximum working pressure of 15bar
- Precision abrasive control to ensure maximum efficiency
- Safely adjust media flow when in use to save time
- Complete with elcoTOUGH™ rubber liner that can be quickly replaced without disconnecting the valve
- 100% abrasive shut off – reducing wastage
- Replace the elcoTOUGH™ rubber valve liner with just 2 bolts
- Can be upgraded to an Elcometer AGV using an upgrade kit

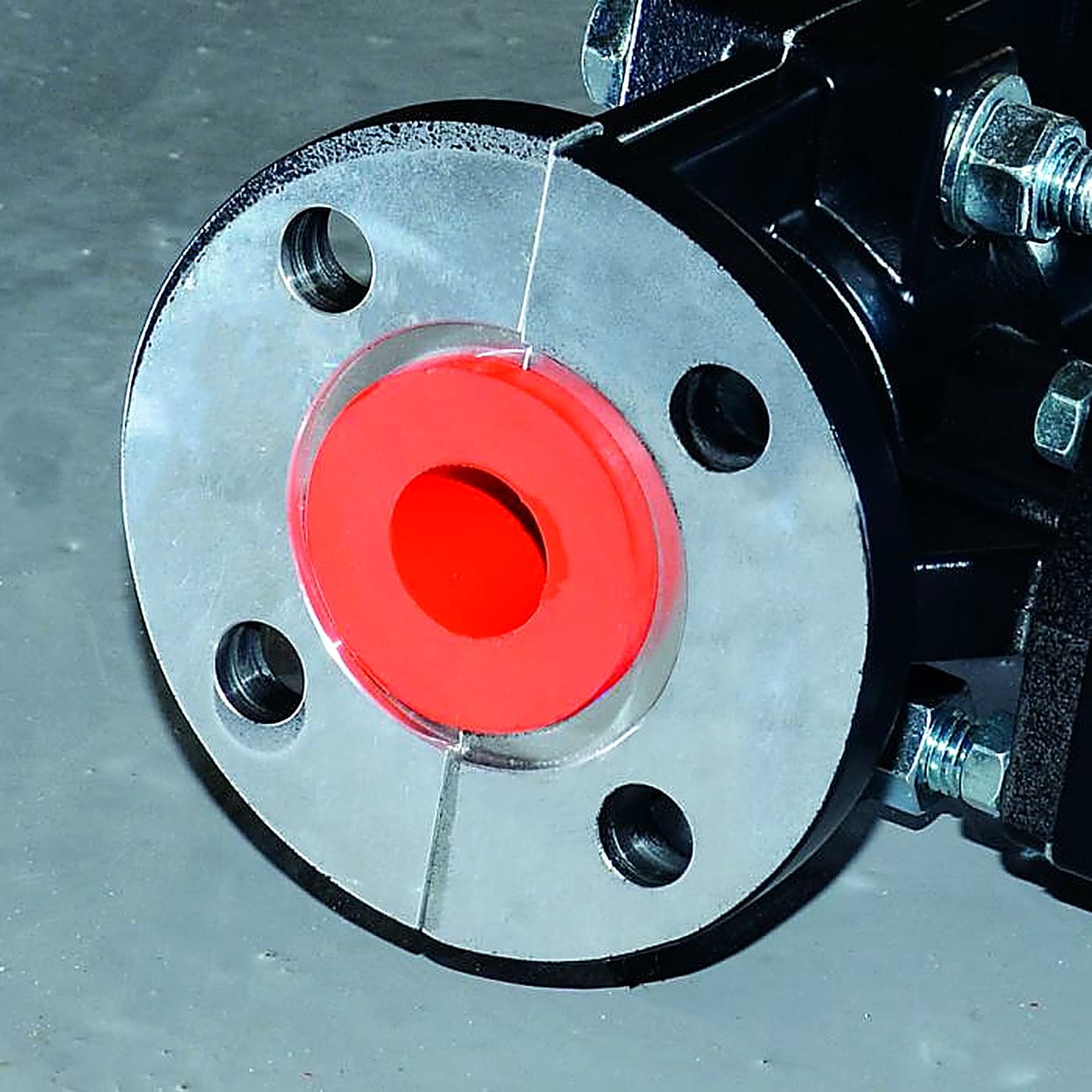

Suitable for all media types, the design prevents the valve body from coming into contact with the abrasive stream as the abrasive stream only touches the elcoTOUGH™ rubber valve liner, which may be quickly replaced when worn.
Efficient
With a built in media flow indicator Elcometer General Valves allow the operator to adjust the media flow when in use, ensuring precise abrasive metering for an even, regulated flow.
Easy to Use
Accurate, wear resistant and suitable for all abrasive media types, the Elcometer General Valve is ideal for metering heavy or aggressive abrasive materials, such as steel shot, grit or aluminium oxide.
Flexible
Available in two versions, the Elcometer Mini General Valve for the Elcometer 1020 Blast Machine and the larger 25mm Elcometer General Valves fit most abrasive blast machines on the market.
Product Range
Elcometer GV General Valve
PED
- Part Number :GV-B
ASME
- Part Number :GV-N
Spare Parts
PED
| Elcometer General Valve Spare Parts | |||||||
| Item | Part Number | Description | |||||
| 1 | MT28557 | GV Valve Stem Assembly | |||||
| 2 | KIT 1 | M8 x 30mm BSP Hex Bolt Grade 4.6 (x4) | |||||
| 3 | KIT 3 | GV Valve Indicator Label | |||||
| 4 | MT29993 | GV Valve Housing Body | |||||
| 5 | KIT 1 | M8 Steel Spring Washer (x4) | |||||
| 6 | KIT 1 | M8 Zinc Plated Steel Nut (x4) | |||||
| 7 | KIT 2 | M12 Steel Spring Washer (x2) | |||||
| 8 | KIT 2 | M12 Zinc Plated Steel Nut (x2) | |||||
| 9 | GV-LINER1 | Rubber Valve Liner | |||||
| 10 | KIT 2 | M12 Zinc Plated Steel Washer (x2) | |||||
| 11 | KIT 2 | M12 x 70 Zinc Plated Hex Bolt (x2) | |||||
| 12 | MT30166 | GV Valve Handwheel & Shaft | |||||
| 13 | KIT 3 | O Ring 3mm Cord x 44.5 ID | |||||
| 14 | KIT 3 | General Valve Indicator Label | |||||
| 15 | MT30076 | Grit Valve Stem Housing | |||||
| 16 | KIT 3 | M6 Flat Nylon Washer | |||||
| 17 | MT30077 | Valve Nut | |||||
| 18 | KIT 3 | M12 Steel Spring Washer | |||||
| 19 | KIT 3 | M6 x 25 Cap HD SKT Screw, ST STL | |||||
| 20 | MT30001 | Valve Plunger | |||||
| – | MT30049 | GV Service Kit 1 (contains items 2, 5 & 6) | |||||
| – | MT30045 | GV Service Kit 2 (contains items 7, 8, 10 & 11) | |||||
| – | MT30050 | GV Service Kit 3 (contains items 13, 14, 16, 18 & 19) | |||||
| Elcometer General Valve Pusher Line Assembly | |||||||
| Part Number | Description | ||||||
| MT30066-1 | Elcometer 1440 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| MT30066-2 | Elcometer 1460 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| MT30066-3 | Elcometer 20100 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| MT30066-4 | Elcometer 24200 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| MT30066-5 | Elcometer 24285 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| Spare Parts | |||
| Item | Description | Model | Part Number |
| 1 | 11⁄2” 15bar Pusher Line Assembly complete with Swaged Hose |
|
|
| 2 | 11⁄2” Male/Male BSP Adaptor – 60° Cone | MT29710 | |
| 3 | 11⁄2” Mixer T | MT28553 | |
| 4 | 11⁄2” BSP Forged Hex Nipple 3000lb | MT29014 | |
| 5 | 11⁄2” BSP Claw Coupling | MT30002 | |
| 6 | GV Main Assembly | GV-B | |
| 7 | 11⁄4” to 1″ Reducing Nipple Flange Assembly | MT28552 | |
| 8 | M12 x 50 Zinc Plated Hex Bolt (x4) | KIT 5 | |
| 9 | M12 Zinc Plated Steel Nut (x4) | KIT 5 | |
| 10 | M12 x 40 Zinc Plated Hex Bolt (x4) | KIT 5 | |
| 11 | M12 Zinc Plated Steel Washer Grade A (x12) | KIT 5 | |
| GV Service Kit 5 (contains items 8, 9, 10 & 11) | MT30048 | ||
ASME
| Elcometer General Valve Spare Parts | |||||||
| Item | Part Number | Description | |||||
| 1 | MT28557 | GV Valve Stem Assembly | |||||
| 2 | KIT 1 | M8 x 30mm Hex Bolt Grade 4.6 (x4) | |||||
| 3 | KIT 3 | GV Valve Indicator Label | |||||
| 4 | MT29993 | GV Valve Housing Body | |||||
| 5 | KIT 1 | M8 Steel Spring Washer (x4) | |||||
| 6 | KIT 1 | M8 Zinc Plated Steel Nut (x4) | |||||
| 7 | KIT 2 | M12 Steel Spring Washer (x2) | |||||
| 8 | KIT 2 | M12 Zinc Plated Steel Nut (x2) | |||||
| 9 | GV-LINER1 | Rubber Valve Liner | |||||
| 10 | KIT 2 | M12 Zinc Plated Steel Washer (x2) | |||||
| 11 | KIT 2 | M12 x 70 Zinc Plated Hex Bolt (x2) | |||||
| 12 | MT30166 | GV Valve Handwheel & Shaft | |||||
| 13 | KIT 3 | O Ring 3mm Cord x 44.5 ID | |||||
| 14 | KIT 3 | General Valve Indicator Label | |||||
| 15 | MT30076 | Grit Valve Stem Housing | |||||
| 16 | KIT 3 | M6 Flat Nylon Washer | |||||
| 17 | MT30077 | Valve Nut | |||||
| 18 | KIT 3 | M12 Steel Spring Washer | |||||
| 19 | KIT 3 | M6 x 25 Cap HD SKT Screw, ST STL | |||||
| 20 | MT30001 | Valve Plunger | |||||
| – | MT30049 | GV Service Kit 1 (contains items 2, 5 & 6) | |||||
| – | MT30045 | GV Service Kit 2 (contains items 7, 8, 10 & 11) | |||||
| – | MT30050 | GV Service Kit 3 (contains items 13, 14, 16, 18 & 19) | |||||
| Elcometer General Valve Pusher Line Assembly | |||||||
| Part Number | Description | ||||||
| MT30066-1N | Elcometer 1440 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| MT30066-2N | Elcometer 1460 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| MT30066-3N | Elcometer 20100 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| MT30066-4N | Elcometer 24200 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| MT30066-5N | Elcometer 24285 Full GV Assembly complete with Pusher Line, Mixer T, GV General Valve, Pot Flange, Pot Coupling & Airline Assembly | ||||||
| Spare Parts | |||
| Item | Description | Model | Part Number |
| 1 | 11⁄2” 15bar Pusher Line Assembly complete with Swaged Hose |
|
|
| 2 | 11⁄2” Male/Male Adaptor – 60° Cone | MT29710N | |
| 3 | 11⁄2” Mixer T | MT28553N | |
| 4 | 11⁄2” Forged Hex Nipple 3000lb | MT29014N | |
| 5 | 11⁄2” Claw Coupling | MT30002N | |
| 6 | GV Main Assembly | GV-N | |
| 7 | 11⁄4” to 1″ Reducing Nipple Flange Assembly | MT28552N | |
| 8 | M12 x 50 Zinc Plated Hex Bolt (x4) | KIT 5 | |
| 9 | M12 Zinc Plated Steel Nut (x4) | KIT 5 | |
| 10 | M12 x 40 Zinc Plated Hex Bolt (x4) | KIT 5 | |
| 11 | M12 Zinc Plated Steel Washer Grade A (x12) | KIT 5 | |
| GV Service Kit 5 (contains items 8, 9, 10 & 11) | MT30048 | ||
Accessories

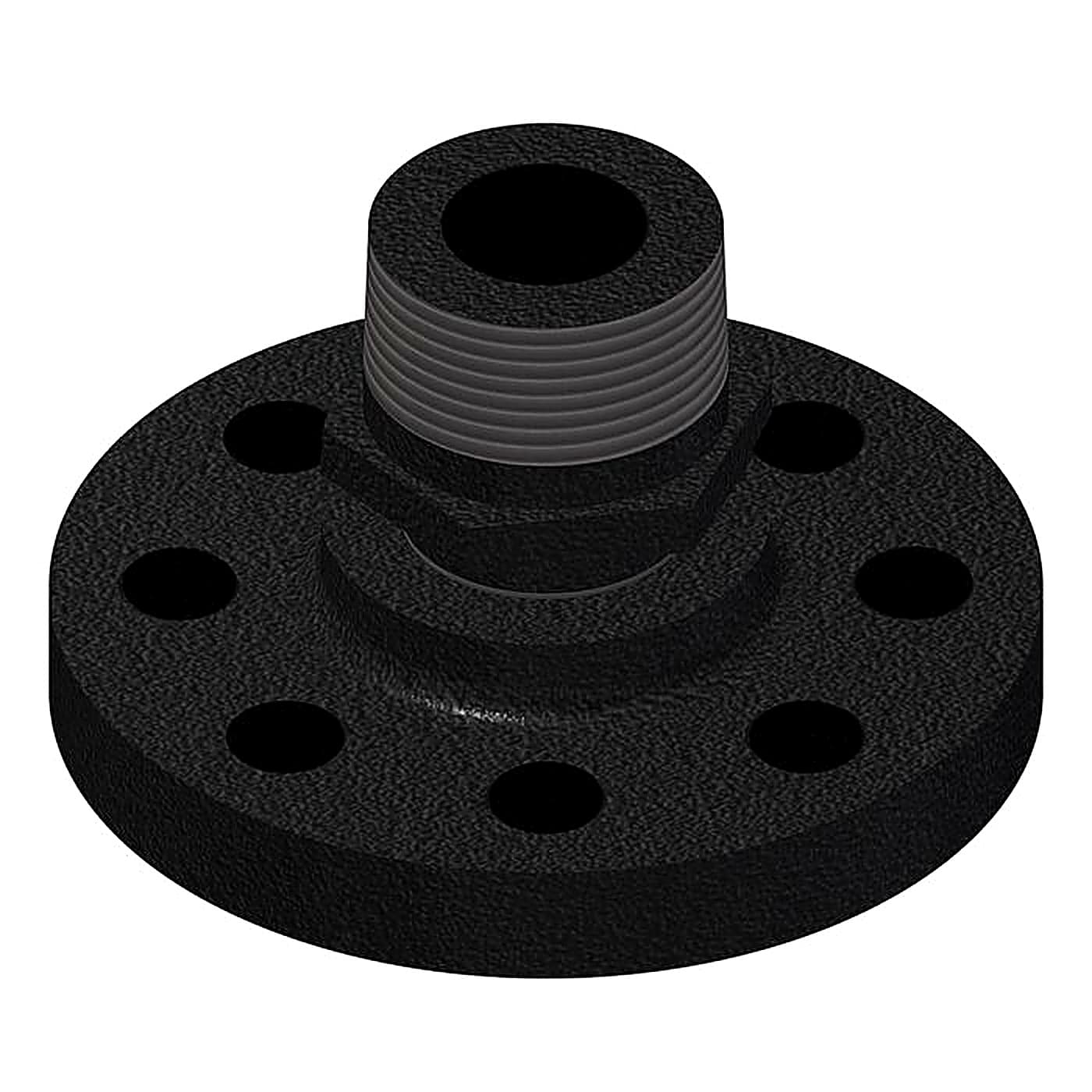

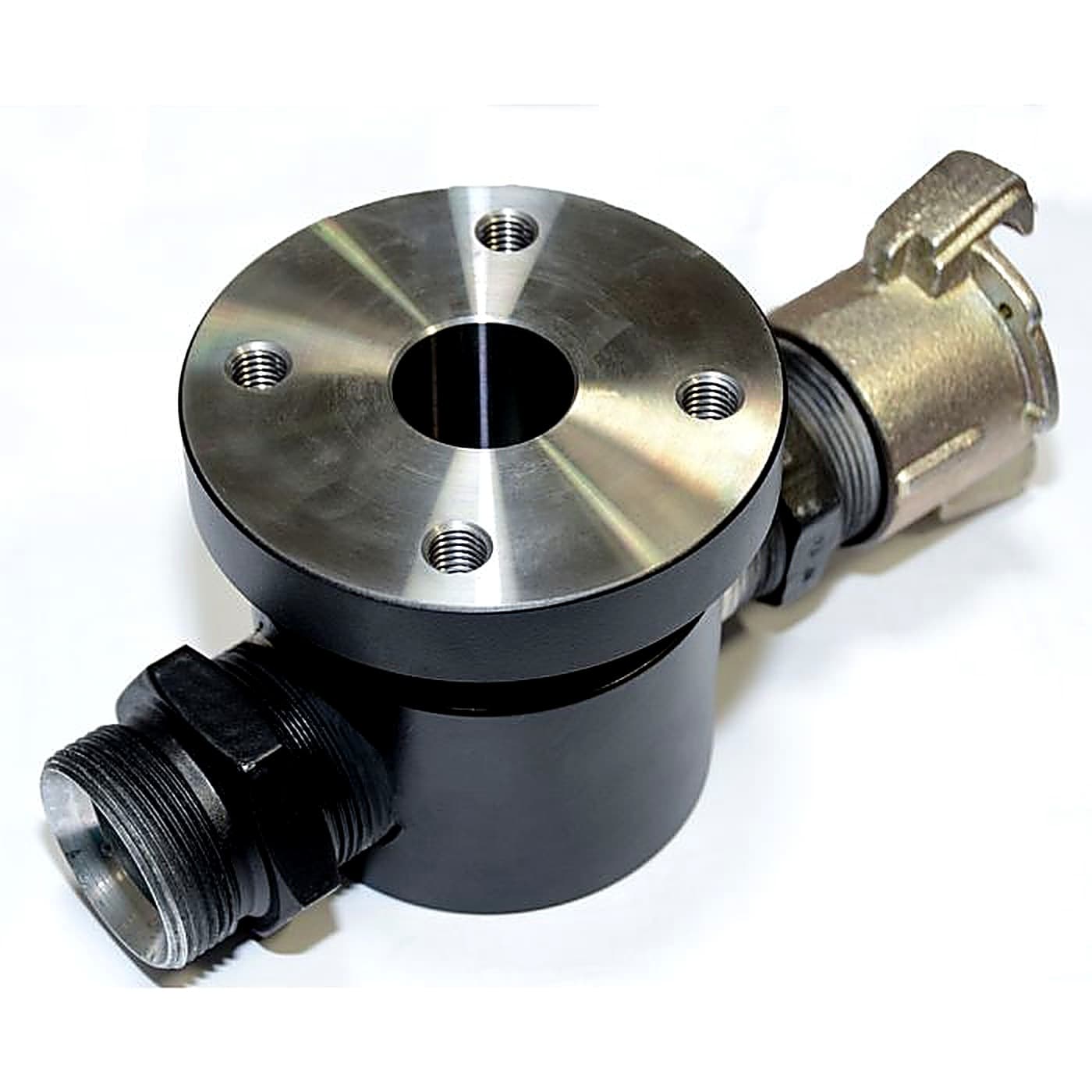

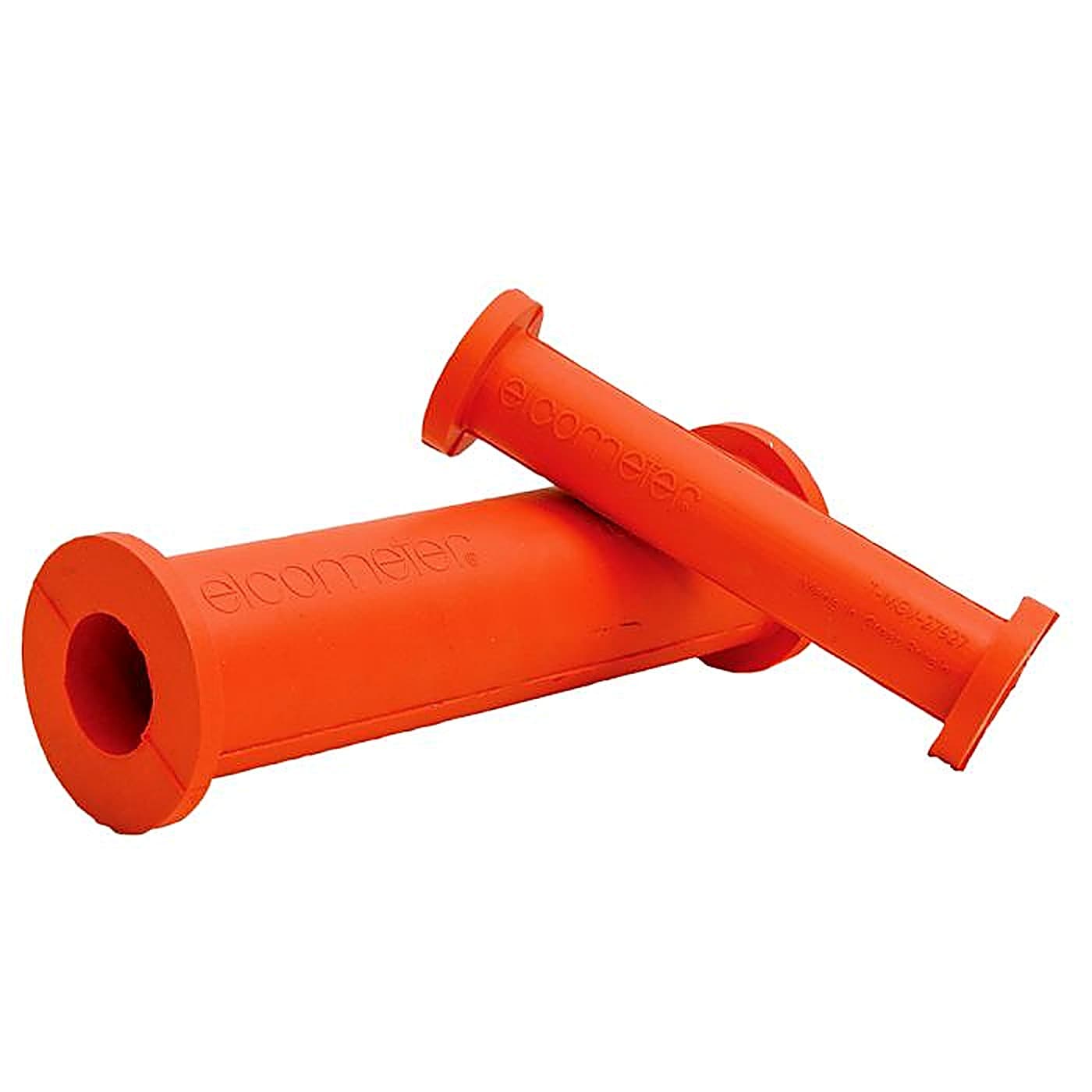

Mixer T for Elcometer GV and AGV 8 Hole Pot Flange GV & AGV elcoTOUGH™ Rubber Valve Liner 25mm
