Elcometer P60B Lower Outlet Pressure Tank

Specialist pick

Image 1 / 6

About this product

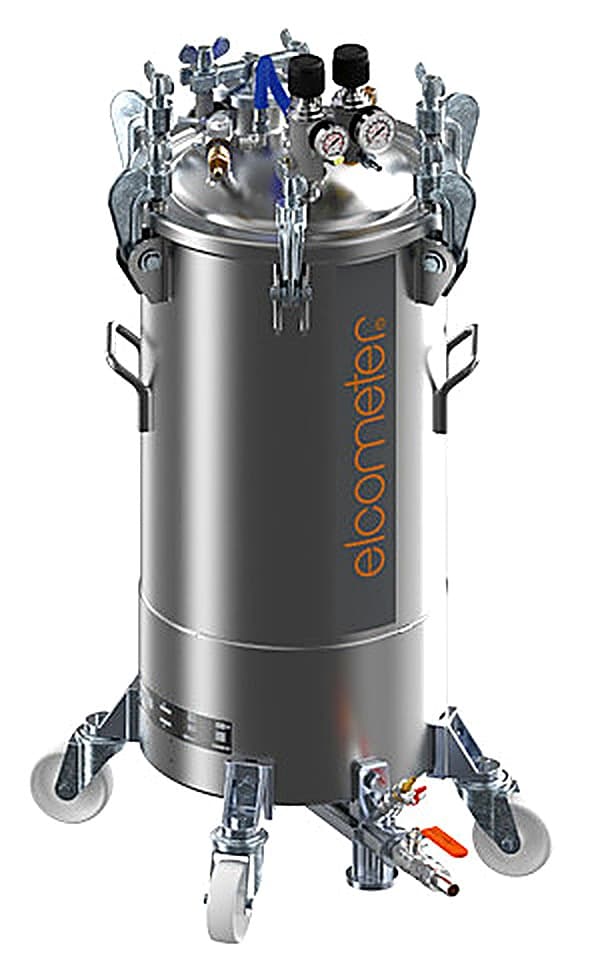

The Elcometer P60B Lower Outlet Pressure Tank (part number PP60B) is a 60 litre fluid supply tank for spray application, suitable for use with solvent and water-based paints and for material of high or standard viscosity. The lower outlet draws material from the base of the tank, which suits dense, heavy-bodied products and keeps two spray guns supplied for long runs without the interruptions of a cup-fed gun.

The body and lid are stainless steel. There are two lower outlet ports, a dual air regulator with discharge valve to set spray gun and pot pressure safely, and a lid port for faster refills and material level observation. Robust castor wheels make it easy to move around site. Working pressure is rated to a maximum of 7 bar, with the air pressure gauge reading 0 to 8 bar and the product pressure gauge 0 to 12 bar. The air inlet is 6.35mm BSP male, the product outlet is 9.52mm male BSP, and the Elcometer P60B Lower Outlet Pressure Tank operates from 0 to 50 degrees C. It measures 880 x 880 x 1050mm and weighs 58kg.

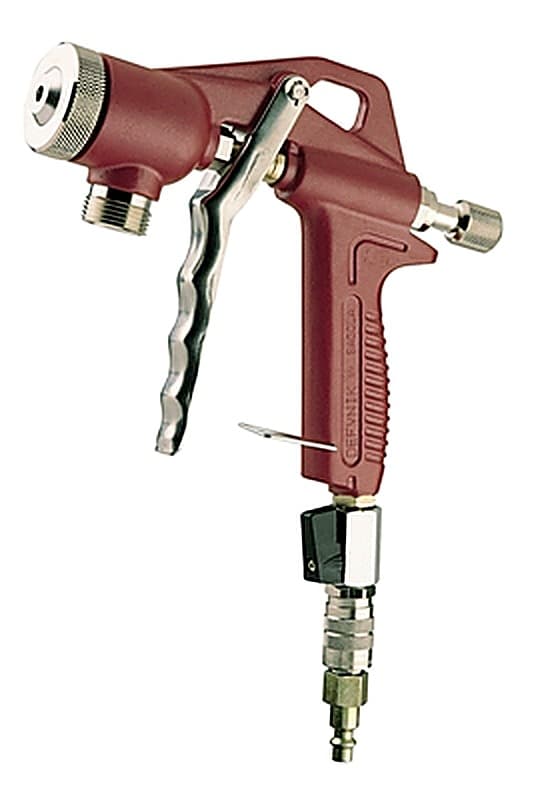

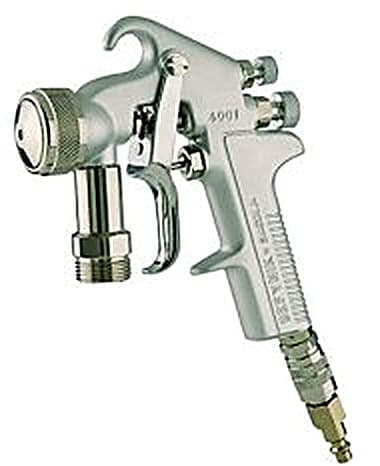

There is no agitator on this model. The standard kit supplies the tank with an 11m air hose, and variants come pre-matched to a Sagola Premium 419 spray gun (PP60B-419) or a Sagola Classic Stucco spray gun with a 2.8B aircap (PP60B-4001-28B28) for dense materials. The tank is safety compliant to international standards and conforms to ATEX 2 II GX, covering use in potentially explosive atmospheres. Used in industrial finishing on high-volume coating work, it is supplied by BAMR, South Africa's authorised Elcometer distributor.

Elcometer

Elcometer P60B Lower Outlet Pressure Tank

SKU · PP60B (+2 more - see Part Numbers)

The Elcometer P60B Pressure Tank has a 60 Litre tank capacity and is suitable for solvent and water-based paints.

Suitable for solvent and water-based paints
Safety compliant to International Standards
Body and lid in stainless steel
Lower outlet connection with two outlet ports
Dual air regulator with discharge valve to regulate spray gun and pot pressure safely
Ideal for two spray guns
Lid port for faster refills and material level observation
Robust castor wheels for easy transportation around site
Suitable for material with high or standard viscosities and solvent and water-based paints

Indicative price

Specialist-built quote, by close of business

Used by inspection teams in

RefiningMarineMiningBridge / civil

Specifications

Tank Capacity: 60 Litre
Agitator Type: None
Product Outlet Position: Lower outlet connection (x2)
Construction Material: Stainless Steel Body & Lid
Working Pressure (Max): 7bar
Air Inlet Connection: 6.35mm BSP Male
Product Outlet Connection: 9.52mm Male BSP
Air Pressure Gauge: 0 - 8bar
Product Pressure Gauge: 0 - 12bar
Operating Temperature: 0 - 50°C
Dimensions (with agitator): 880 x 880 x 1050mm
Weight: 58kg
Packing List: Elcometer P60B Lower Outlet (x2) Pressure Pot; 60 Litre & 11m Air Hose

Part Numbers

Elcometer P60B Lower Outlet (x2) Pressure Pot; 60 Litre: PP60B
10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections: PT56414112
ELCOMETER P60B 60L Stainless Steel Pressure Tank with Sagola Premium 419 spray gun, 4.5,...: PP60B
-419 ELCOMETER P60B 60L Stainless Steel Pressure Tank with Sagola Classic Stucco spray gu...: PP60B

Part Number: Part Number : PT56414112
Part Number: Part Number : PP60B-419
Part Number: Part Number : PP60B-4001-28B28

Specifications

Tank Capacity: 60 Litre
Agitator Type: None
Product Outlet Position: Lower outlet connection (x2)
Construction Material: Stainless Steel Body & Lid
Working Pressure (Max): 7bar
Air Inlet Connection: 6.35mm BSP Male
Product Outlet Connection: 9.52mm Male BSP
Air Pressure Gauge: 0 - 8bar
Product Pressure Gauge: 0 - 12bar
Operating Temperature: 0 - 50°C
Dimensions (with agitator): 880 x 880 x 1050mm
Weight: 58kg
Packing List: Elcometer P60B Lower Outlet (x2) Pressure Pot; 60 Litre & 11m Air Hose

Part Numbers

Elcometer P60B Lower Outlet (x2) Pressure Pot; 60 Litre: PP60B
10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections: PT56414112
ELCOMETER P60B 60L Stainless Steel Pressure Tank with Sagola Premium 419 spray gun, 4.5,...: PP60B
-419 ELCOMETER P60B 60L Stainless Steel Pressure Tank with Sagola Classic Stucco spray gu...: PP60B

Part Number: Part Number : PT56414112
Part Number: Part Number : PP60B-419
Part Number: Part Number : PP60B-4001-28B28

What's in the kit

Elcometer P60B Lower Outlet (x2) Pressure Pot; 60 Litre

11m Air Hose

Standards

ATEX 2 II GX

Certificate No. AP 1035

Accessories

Anti-static Air Hose - 6m Ø 8x15mm: PT56414024
Anti-static Air Hose - 11m Ø 8x15mm: PT56414025
Anti-static Air Hose - 16m Ø 8x15mm: PT56414027
Anti-static Air Hose - 26m Ø 8x15mm: PT56414026
1.8m Covered Anti-Static Air & Nylon Product Hose: PT56414130
5m Covered Anti-Static Air & Nylon Product Hose: PT56414039
7.5m Covered Anti-Static Air & Nylon Product Hose: PT56414044
10m Covered Anti-Static Air & Nylon Product Hose: PT56414040
15m Covered Anti-Static Air & Nylon Product Hose: PT56414041
20m Covered Anti-Static Air & Nylon Product Hose: PT56414042
Anti-static Air Hose - 21m Ø 8x15mm: PT56414028
6m Thermo Rubber Product Hose with 3/8″ Female Connection: PT56414116
11m Thermo Rubber Product Hose with 3/8″ Female Connection: PT56414117
16m Thermo Rubber Product Hose with 3/8″ Female Connection: PT56414115
10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections: PT56414112
5m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections: PT56414111
15m Product Hose (ID: 19mm x OD: 23mm) with 3/4″ Female Swivel Coupling Connections: PT56414113
21m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection: PT56414118
26m Thermo Rubber, ID: 8mm x OD: 16mm with 3/8″ Female Connection: PT56414119

Part Numbers

Description	Part Numbers
Elcometer P60B Lower Outlet (x2) Pressure Pot; 60 Litre	PP60B
10m Product Hose (ID: 8mm x OD: 16mm) with 3/8″ Female Swivel Coupling Connections	PT56414112
ELCOMETER P60B 60L Stainless Steel Pressure Tank with Sagola Premium 419 spray gun, 4.5, 6 & 8 aircaps,	PP60B-419
ELCOMETER P60B 60L Stainless Steel Pressure Tank with Sagola Classic Stucco spray gun, 2.8B aircap, 2.80 needle & nozzle	PP60B-4001-28B28

Downloads

PDF

Elcometer P60B Lower Outlet Pressure Tank Data Sheet

Answers

Frequently asked questions

Is the Elcometer P60B suitable for both solvent-based and water-based paints?

Yes. The 60 litre P60B tank is suitable for solvent and water-based paints.

What is the maximum working pressure on the P60B, and what do the two gauges show?

Maximum working pressure is 7bar. The air pressure gauge reads 0 to 8bar and the product pressure gauge reads 0 to 12bar, so you can monitor air supply and product pressure separately.

Does the P60B have a built-in agitator for mixing paint in the tank?

No. Agitator type for the P60B is listed as none, so this tank does not include a mixing agitator.

What air and product connections does the P60B use, so I can check it against my compressor and hoses?

The air inlet connection is 6.35mm BSP male and the product outlet connection is 9.52mm BSP male, with two lower outlet connections on the tank. Check these against your compressor outlet and hose couplings before ordering.

What comes in the box, and can I get a longer hose than what's supplied?

The standard pack includes the P60B lower outlet (x2) pressure pot, 60 litre, with an 11m air hose. Product hoses are sold separately in lengths from 5m to 26m in anti-static and thermo rubber options.

Can I buy the P60B already bundled with a spray gun instead of the tank on its own?

Yes. Alongside the tank-only PP60B, it is also available as PP60B-419 with a Sagola Premium 419 spray gun, or as PP60B-4001-28B28 with a Sagola Classic Stucco spray gun.
