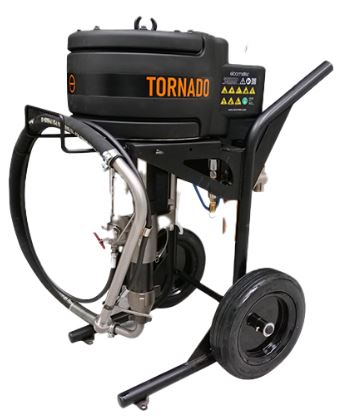

Engineered to quietly deliver high performance in the harsh environments of the protective coatings industry, the Elcometer TORNADO Airless Pump is ready for work.

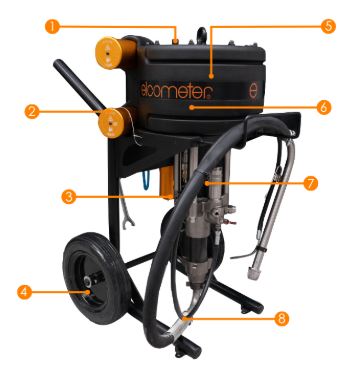

1. Insulated Poppet Switches – Incorporates aerospace technology to prevent icing. Quick access for servicing.

2. Whisper Quiet Exhausts – Eliminates internal icing. Ensures quiet operation.

3. Accessible & Protected Air Controls & Filters – Avoids accidental knocks. Integrated moisture separator to ensure good quality air.

4. All Terrain Cart – Lightweight and balanced. Robust roller-bearing airless tyres. Integrated spray gun and hose hooks. Pre-fitted hopper attachment points.

5. Reliable & Robust Air Motor – Smooth & crisp changeovers. Operates in hot & cold environments. Low pulsation even with two spray guns. Quiet, reliable operation.

6. Integrated Tool Storage – Ideal for storing essential tools, spray tips, filters and lubricating oils

7. High Performance Pump Lower – Ideal for protective & marine coatings. Available as 71:1 and 43:1 ratio pumps. Supports up to two spray guns.Field replaceable elcoTOUGH™ long-life packings. Quick release piston lower. Easily removable with a hammer.

8. Rapid Change Suction Hose – Smooth flow elbow joint for easy cleaning. Safe to use fluid purge hose. User-replaceable fluid hose. Integrated drip hook.

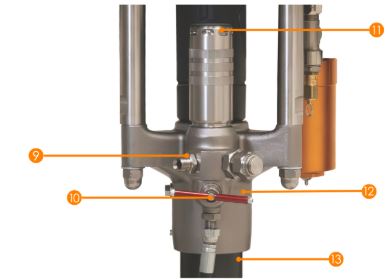

9. Two Gun Outlets – Supports two spray guns.

10. Accessible Bleed Valve – Safe and ensures greater control when purging under high pressure.

11. Fluid Filter – Integrated pump filter. Accessible for easy maintenance.

12. Powerful Pump Lower – Suitable for use with protective and marine coatings. Long-life stainless steel balls and tungsten carbide seats.

13. Piston Guard – Prevents finger trap. Keeps debris out of the throat wet cup.

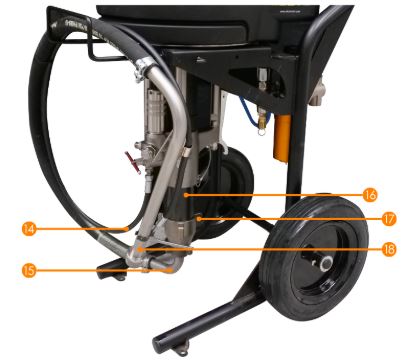

14. Recirculation / Flush Hose – Longer recirculation / flush hose to relieve pressure build up.

15. Minimise Product Build Up – Smooth flow angled elbow to ensure there is no product build up.

16. Unique 2-Way Seat Technology¹ – Rapidly switch between low / standard and high viscosity coatings in the field, in less than 5 minutes.

17. Quick Release Assembly – Quick dismantle pump lower housing for easy onsite maintenance. Easy to service with standard tools.

18. Suction Hose – Easy to remove and clean. Main hose is replaceable with any compatible paint hose. Smooth flow angled elbow helps to ensure no product build up. Integrated product filter supplied as standard.

¹Patent applied for
²UHMWPE

Tested for Ultimate Reliability & Durability

Three years in development, over 3,640 hours of laboratory and field trials with a wide range of marine and protective coatings, in temperatures from -3 to 52ºC, completing over 13.2 million pump cycles – you can have confidence in the Elcometer Tornado’s reliability and durability.

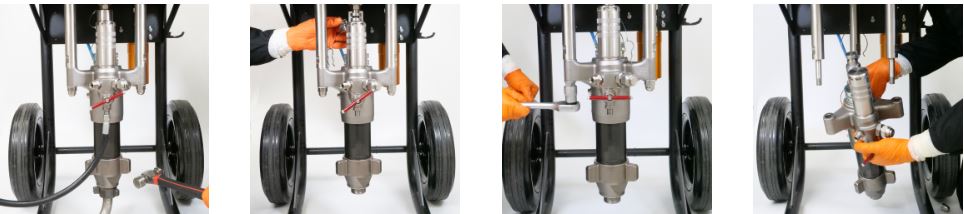

Easy Onsite Maintenance

Save time and money with maintenance in less than 20 minutes with no special tools!

Durable Stainless Steel Hoppers

The Hopper fits directly on to the Elcometer Tornado trolley mount, providing a 38 litre (10 US Gallon) gravity fed system. The secure quick lock mechanism simply clicks into the product inlet, feeding the pump.

Sagola PSAM 500 Airless Pressure Spray Guns

Designed for airless systems up to 500bar (7,252psi), Elcometer’s Sagola PSAM 500 offers fast, high product output with minimum overspray.

The Elcometer TORNADO is suitable for use with…

The Elcometer TORNADO is suitable for use with Solvent Based and Water Based materials as well a wide range of products.

Elcometer Tornado Airless Pumps Data Sheet
