Elcometer 1020 Portable Abrasive Blast Machine 20 litre – 12bar

Product Description

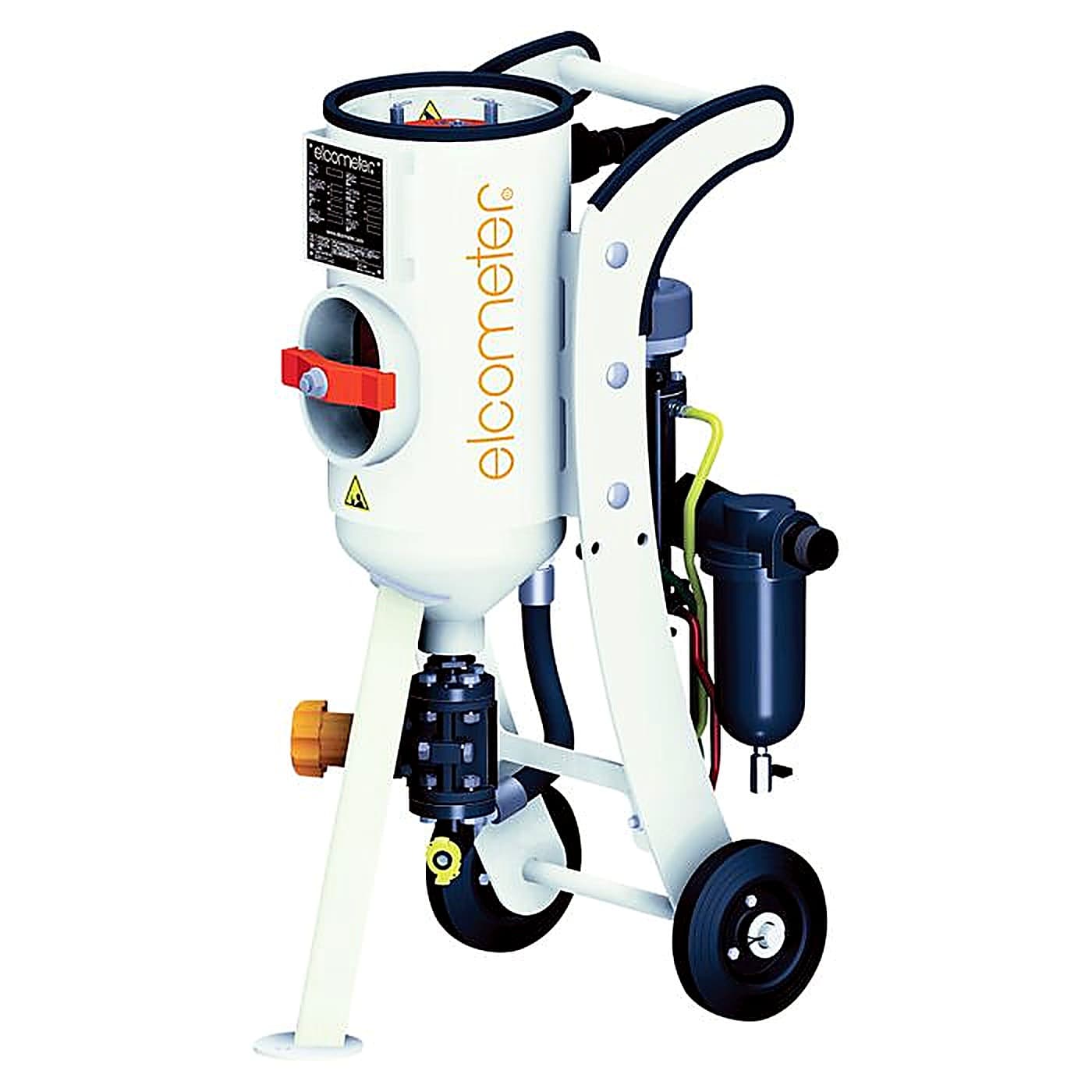

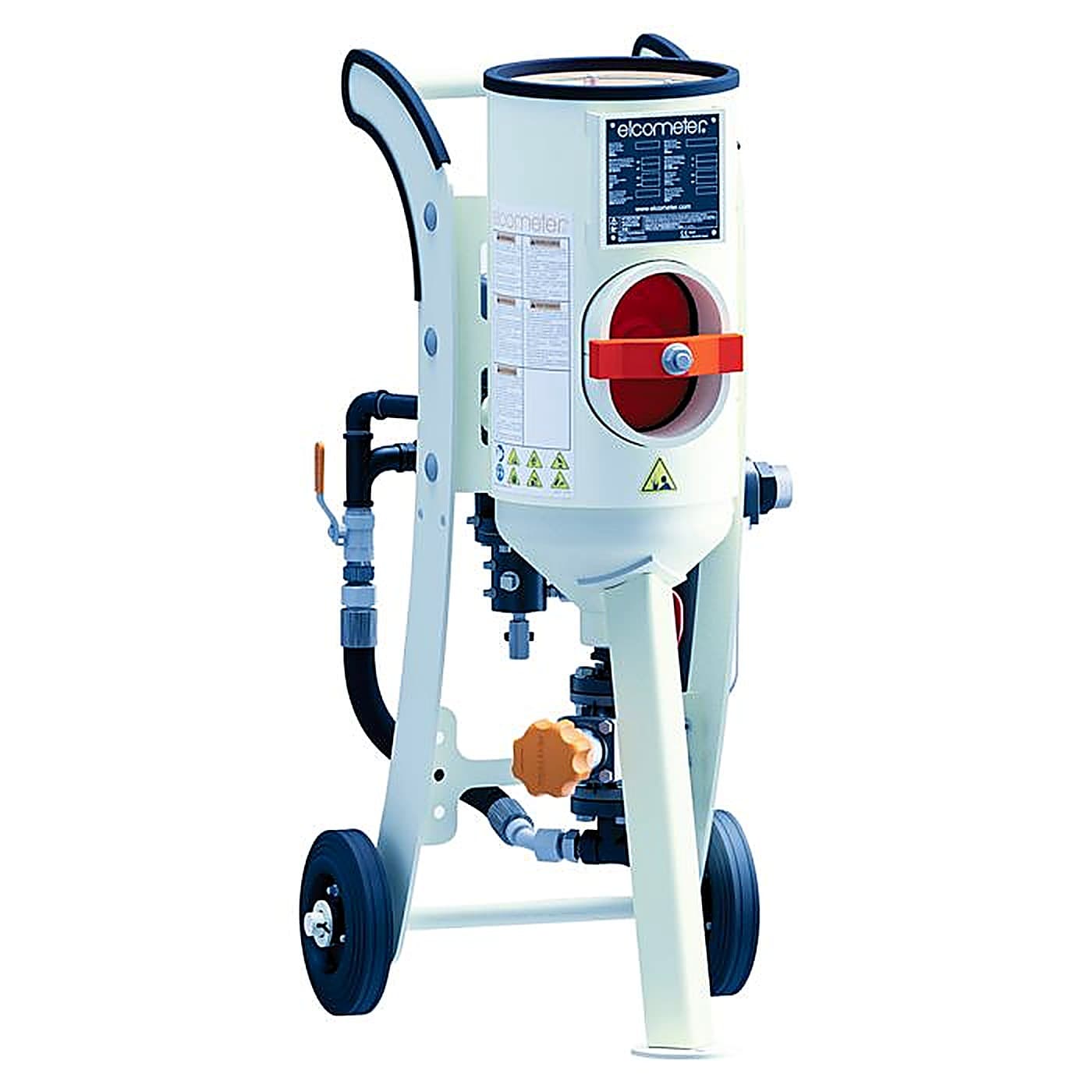

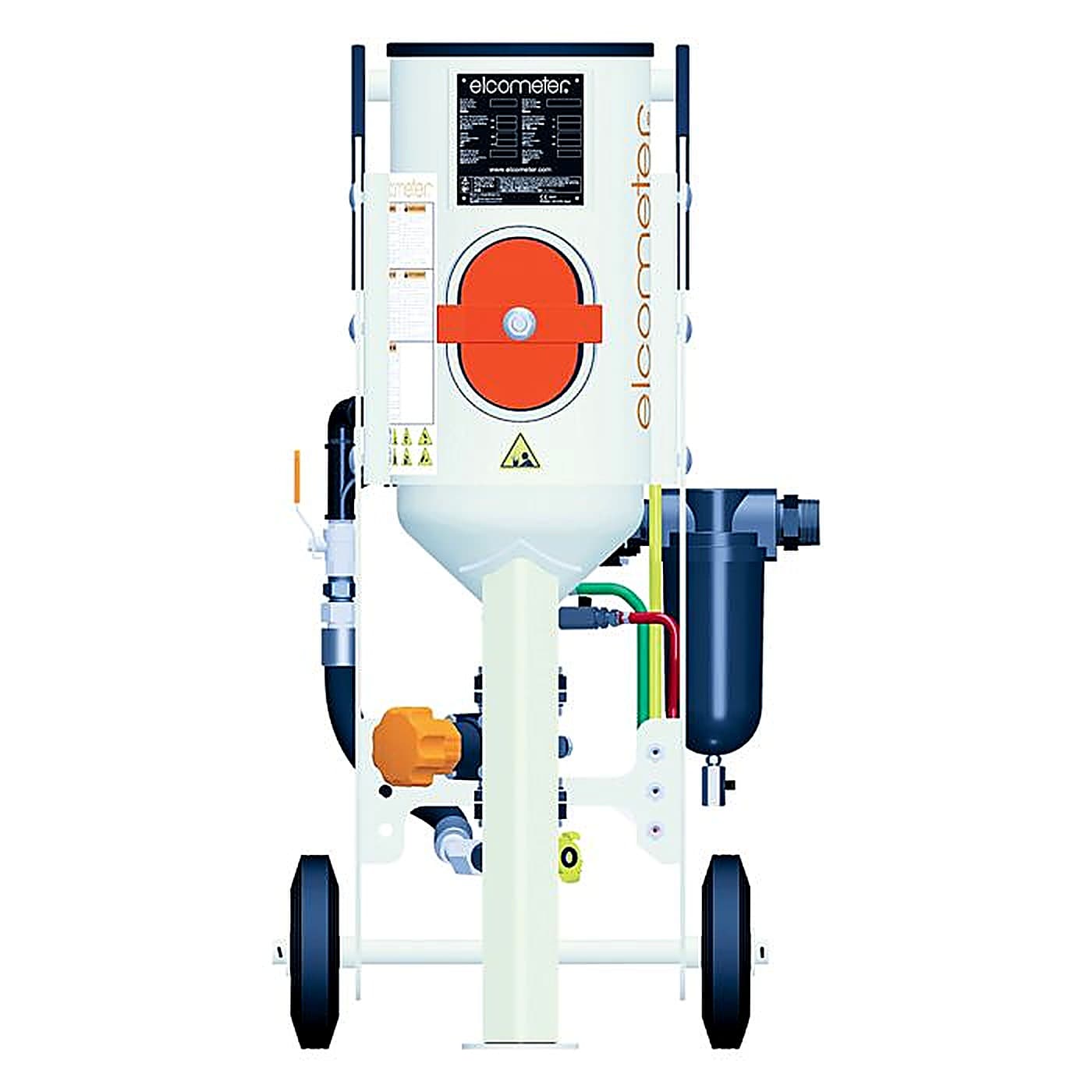

The Elcometer 1020 is a 20 litre 10″ portable blast pot ideal for small blasting applications and touch up work.

  • Compact, low profile size is easy to fill with blast media
  • Heavy duty wheels are ideal for manoeuvring the portable abrasive blast machine in small spaces
  • Available with a range of grit valves to suit your blast machine
  • Tough 6mm construction ensures long life span
  • Easy and quick to service

Enhance Your Performance

The Elcometer 1020 Portable Blast Machine is engineered to work harder, last longer and be faster to maintain. For more information on the efficiency of the blast pot’s efficiency and how to maximise your up time.

Safe & Reliable

Rugged, reliable and easy to use, the Elcometer 1020 Portable Abrasive Blast Machine & Valves are supplied with a full 12 month warranty and are engineered & tested to be incredibly efficient, durable and safe. For more information on the safety features included within the Elcometer 1020 Abrasive Blast Machine.

Elcometer Engineered

The Elcometer 1020 Blast Pot is manufactured to an industry leading specification and designed and engineered by Elcometer experts for maximum sandblasting efficiency. For more information about the high quality components of the Elcometer 1020 Portable Abrasive Blast Machine, including the high flow pipework, precision grit valves and hardwearing mixer T’s.

Product Range

Elcometer 1020 Portable Abrasive Blast Machine Kit 1 with Mini General Valve- 12bar

Kit includes:
  • 10″ 20 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 10m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • Mini General Valve with Flanged T and Metal Pot Coupling
  • Moisture Separator
PED
  • Maximum Working Pressure :12bar
  • Valve Type :MGV
  • Part Number :M1020-MGV1-B
ASME
  • Maximum Working Pressure :174psi
  • Valve Type :MGV
  • Part Number :M1020-MGV1-N

Elcometer 1020 Portable Abrasive Blast Machine Kit 2 with Mini General Valve – 12bar

Kit includes:
  • 10″ 20 litre  Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 10m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • Mini General Valve with Flanged T and Metal Pot Coupling
  • Moisture Separator
  • 10m 13mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder
  • Externally Mounted Sieve and Lid
PED
  • Maximum Working Pressure :12bar
  • Valve Type :MGV
  • Part Number :M1020-MGV2-B
ASME
  • Maximum Working Pressure :174psi
  • Valve Type :MGV
  • Part Number :M1020-MGV2-N

Spare Parts

PED

Elcometer 1020 Portable Abrasive Blast Machine Spare Parts



Elcometer 1020 Portable Abrasive Blast Machine Spare Parts
ItemPart NumberDescription
1MT28622Pop Up Valve
2MT28631-125mm Pop Up Shaft for Elcometer 1020
3MT2966125mm Female 90° Equal Elbow
4MT2966338mm Hex Nipple
5MT28617Moisture Separator Assembly
6MT2966238mm Male/Male Union Taper Seat
7MT296646mm Bulkhead Connector (x3)
8MT29665Elcometer 1020 Twin Airline Hose Assembly (Yellow & Green)
9MT29666Airline Assembly for Elcometer 1020 (Red)
10MT28627-5Pop Up Valve O-Ring (x5)
11MT29601Protective Edging Strip Kit 2.7m
12MT29667Spring Cotter Pin Type E (x3)
13MT29668Short Deflector Plate Spacer – 9mm (x3)
14MT29669Long Deflector Plate Spacer -18mm (x3)
15MT29670Deflector Plate
16MT28629-1Deflector Plate Shaft – 33mm (x3)
17MT2967225mm Backnut (Recessed)
18MT2967325mm Female/Female Union Taper Seat
19MT2967925mm Hex Nipple
20MT2968025mm Exhaust T Assembly (complete with MT29681 Exhaust Plug)
21MT2968125mm Exhaust Plug
22MT2968225mm Pipe for Elcometer 1020 (98mm)
23MT2968325mm Socket
24MT2968525 x 19mm Reducing Bush
25MT2968419mm Male/Female Equal Union Taper Seat
26MT2968619mm Pipe for Elcometer 1020 (92mm)
27MT2968719mm Male/Female 90° Elbow
28MT2859919mm Reinforced Union Elbow
29MT2968819mm Hex Nipple
30MT29465Elcometer RCV4000+ Remote Control Valve
31MT29656Petcock Valve Assembly – (Red Handle)
32MT2859538 x 19mm Reducing Bush
33MT2968919mm Equal Pitcher T
34MT3009519mm Choke Valve Handle
35MT2861019mm Choke Valve Assembly (includes MT30095 Choke Valve Handle)
36MT2969119mm 60° Cone Male/Male Adaptor
37MT2965819mm Ball Valve Assembly – (Black Handle)
38MT2966019mm Airline Ball Valve Assembly (Black Handle)
39MT28597Exhaust Silencer Assembly
40MT29692-1Protection Guard for Elcometer 1020
41MT29693Elcometer Inspection Hatch Door for Elcometer 1020
42MT28613ElcoFit™ Door Sealing Gasket
43MT29695Elcometer Inspection Door Hatch Bolt – M16 x 110mm
44MT28615Inspection Hatch Door Yoke
45MT29696M16 Hexagon Flanged Nut
46MT28635Ø200mm Diameter Wheel (x1)
47MT29697Flat Washer (x8)
48MT29698Split Cotter Pin (x4)
–MT29490-1Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange)
–MT29180Elcometer Safety Label Kit



ASME



Elcometer 1020 Portable Abrasive Blast Machine Spare Parts
ItemPart NumberDescription
1MT28622Pop Up Valve
2MT28631-1N25mm Pop Up Shaft for Elcometer 1020
3MT29661N25mm Female 90° Equal Elbow
4MT31013-3N38mm Hex Nipple
5MT28617NMoisture Separator Assembly
6MT30553-1N38mm Close Nipple
7MT31018-5N6mm Union Brass Seat
8MT29664N6mm Bulkhead Connector (x3)
9MT29665NElcometer 1020 Twin Airline Hose Assembly (Yellow & Green)
10MT29666NAirline Assembly for Elcometer 1020 (Red)
11MT28627-5Pop Up Valve O-Ring (x5)
12MT29601Protective Edging Strip Kit 2.7m
13MT29667Spring Cotter Pin Type E (x3)
14MT29668Short Deflector Plate Spacer – 9mm (x3)
15MT29669Long Deflector Plate Spacer – 18mm (x3)
16MT29670Deflector Plate
17MT28629-1Deflector Plate Shaft – 33mm (x3)
18MT29672N1″ Backnut
19MT31018-3N1″ Union Brass Seat
20MT31013-2N25mm Hex Nipple
21MT30574-2N25mm Equal Tee
22MT30574-2N25mm Solid Plug
23MT29681N25mm SCH 40 Pipe Tube
24MT31017N25mm Machine Socket
25MT30555N19mm x 25mm Reducing Hex Nipple
26MT31018-2N19mm Union Brass Seat
27MT30564-1N19mm Pipe Tube – Length 85mm
28MT31019-1N19mm Street Elbow 90°
29MT31013-1N19mm Hex Nipple
30MT28599N19mm Union Elbow Male
31MT30564-2N19mm Pipe Tube – Length 46mm
32MT29465NElcometer RCV4000+ Remote Control Valve
33MT29656NPetcock Valve Assembly – (Red Handle)
34MT30554N19mm x 25mm Reducing Hex Nipple
35MT30574-1N19mm Equal Tee
36MT30095N19mm Choke Valve Handle
37MT28610N19mm Choke Valve Assembly (includes MT30095N Choke Valve Handle)
38MT29691N19mm NPTF Male x 22.23cm JIC Male Adaptor
39MT29658N6mm Ball Valve Assembly – (Black Handle)
40MT29660N6mm Airline Ball Valve Assembly (Black Handle)
41MT28597NExhaust Silencer Assembly
42MT29692-1Protection Guard for Elcometer 1020
43MT29693Elcometer Inspection Hatch Door for Elcometer 1020
44MT28613
ElcoFit™ Door Sealing Gasket
45MT29695NElcometer Inspection Door Hatch Bolt – 5/8” x 41/3” (M16 x 110mm)
46MT28615Inspection Hatch Door Yoke
47MT29696N5/8” (M16) Hexagon Flanged Nut
48MT28635Ø200mm  Diameter Wheel (x1)
49MT29697Flat Washer (x8)
50MT29698Split Cotter Pin (x4)
–MT29490-1NElcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange)
–MT29180Elcometer Safety Label Kit

Technical Specifications

Elcometer 1020 Abrasive Blast Machine – 12bar
Capacity1
Volume20 Litres
Garnet Grit47kg
Steel Shot88kg
Pot Diameter:254mm
Height:880mm
Width:565mm
Depth:562mm
Weight:70kg
Pipework Diameter:19mm
Maximum Working Pressure (WP)2:12bar
Operating Temperature Range:0 to 60oC



PED

Kit SelectionPart Numbers
Elcometer Blast Machines Kits are available with:

Portable

Kit 1                                            Kit 2

Mini General Valve (MG)M1020MGV1-BM1020MGV2-B
10″ 20 litre Abrasive Blast Machine

■

■

Pressure Test Certificate

■

■

RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

■

■

10m Pneumatic Control Hose and Deadman’s Handle (DMHII)

■

■

Choke Valve and Pusher Line

■

■

Abrasive Metering Valve with Flanged T and Metal Pot Coupling

MG

MG

Moisture Separator

■

■

10m, 13mm  ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder



■

Externally Mounted Sieve and Lid



■


1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.

2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.



ASME

Kit SelectionPart Numbers
Elcometer Blast Machines Kits are available with:

Portable

Kit 1                                            Kit 2

Mini General Valve (MG)M1020-MGV1-NM1020-MGV1-N
10″ 20 litre Abrasive Blast Machine

■

■

Pressure Test Certificate

■

■

RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

■

■

10m Pneumatic Control Hose and Deadman’s Handle (DMHII)

■

■

Choke Valve and Pusher Line

■

■

Abrasive Metering Valve with Flanged T and Metal Pot Coupling

MG

MG

Moisture Separator

■

■

10m, 13mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder



■

Externally Mounted Sieve and Lid



■


1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.

2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.




Accessories

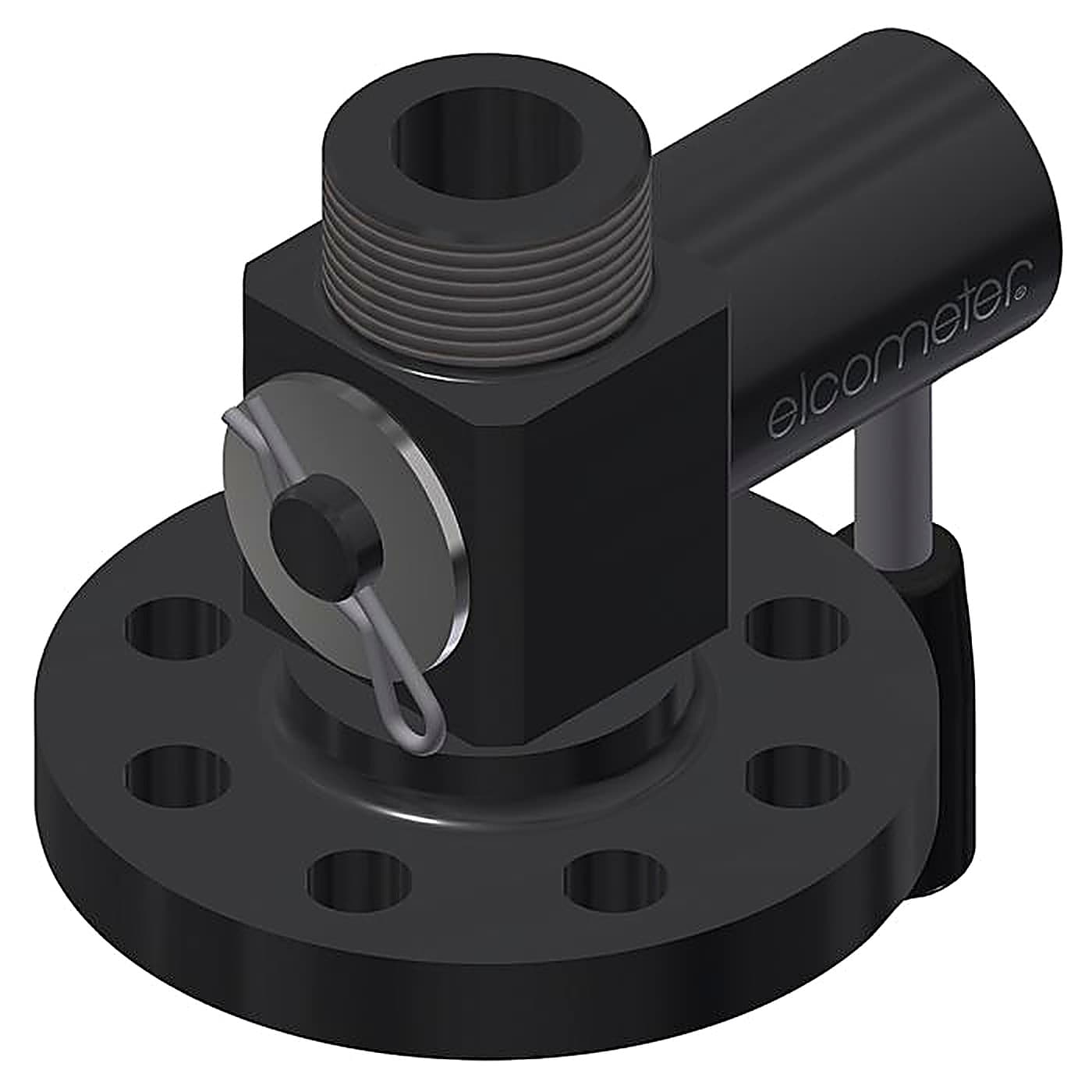

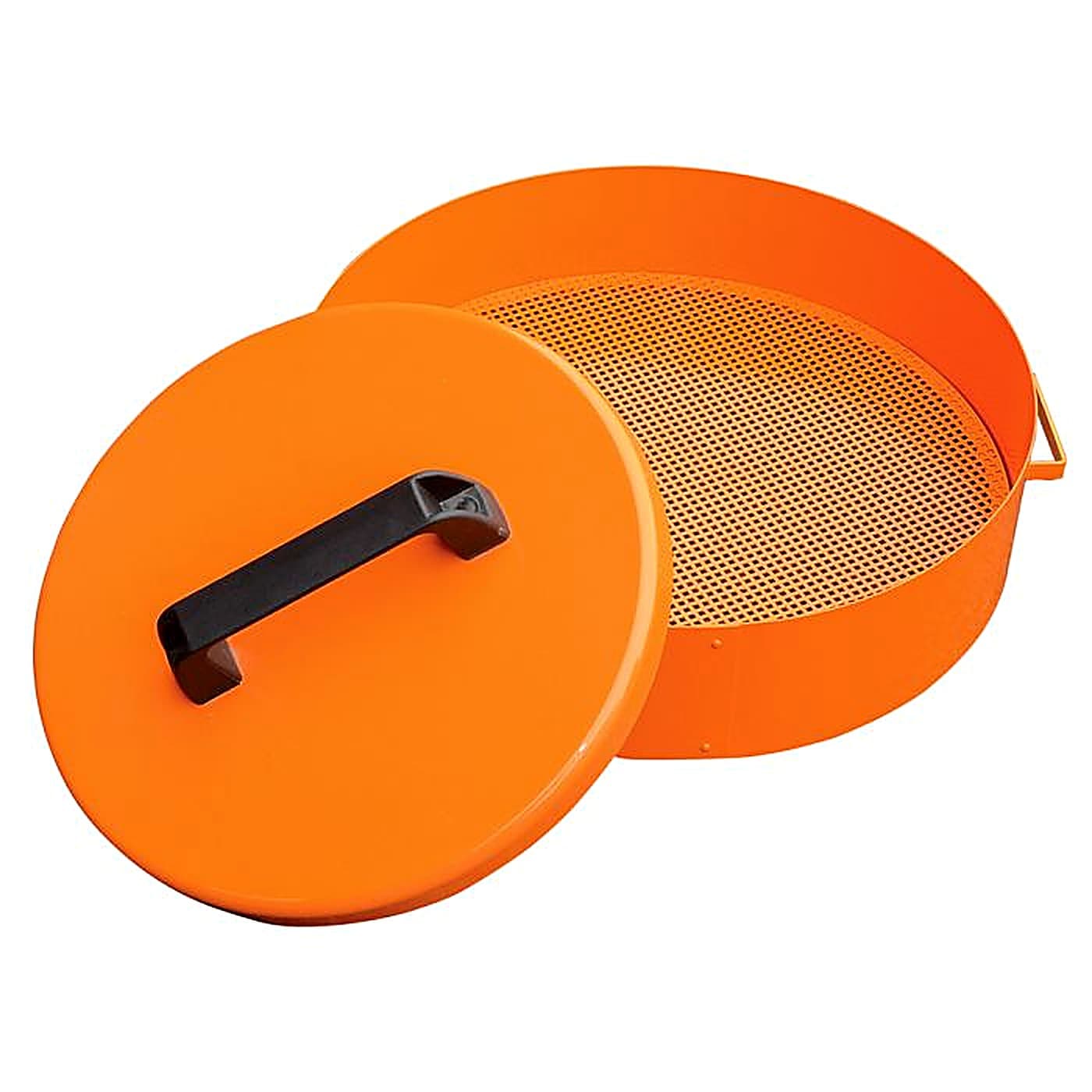

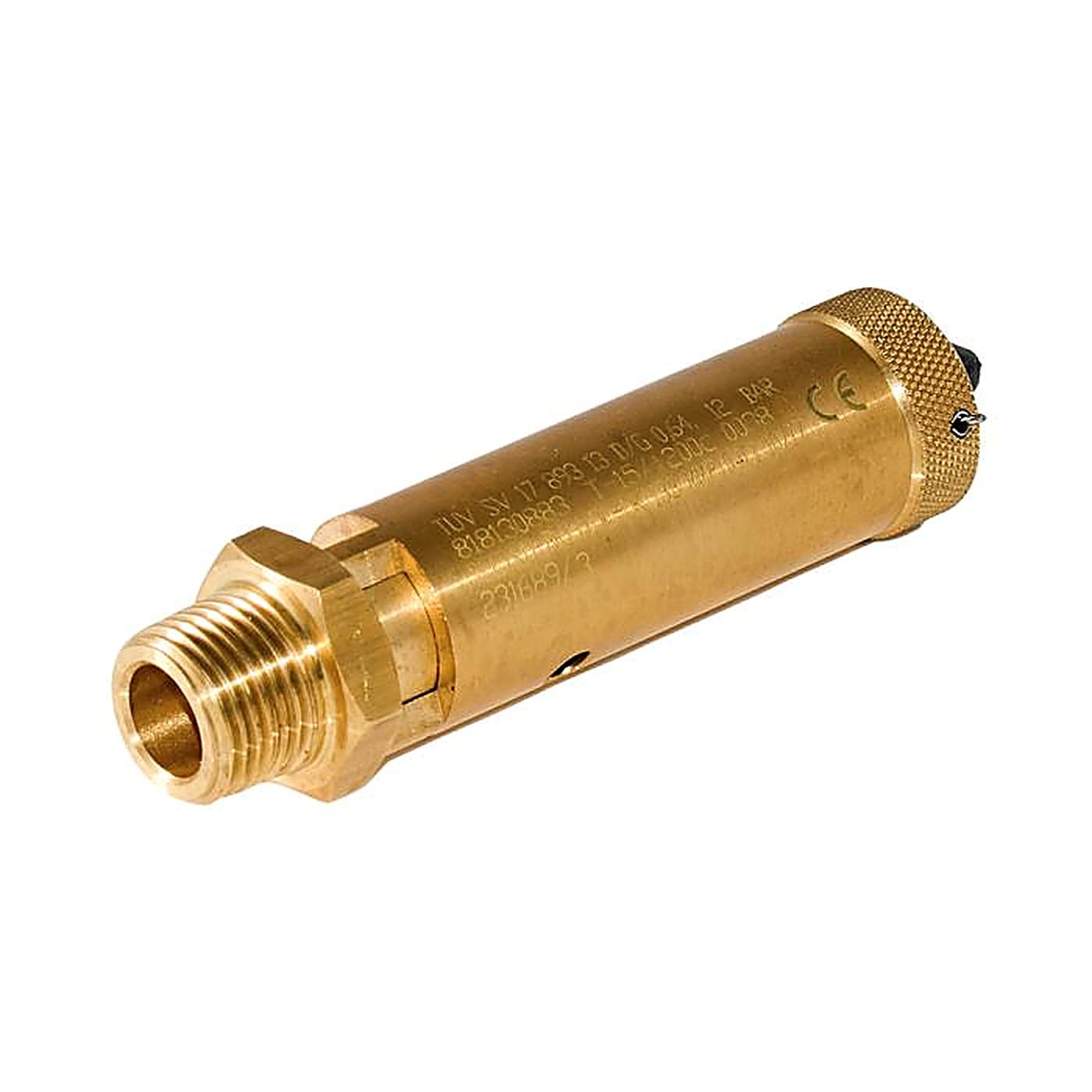

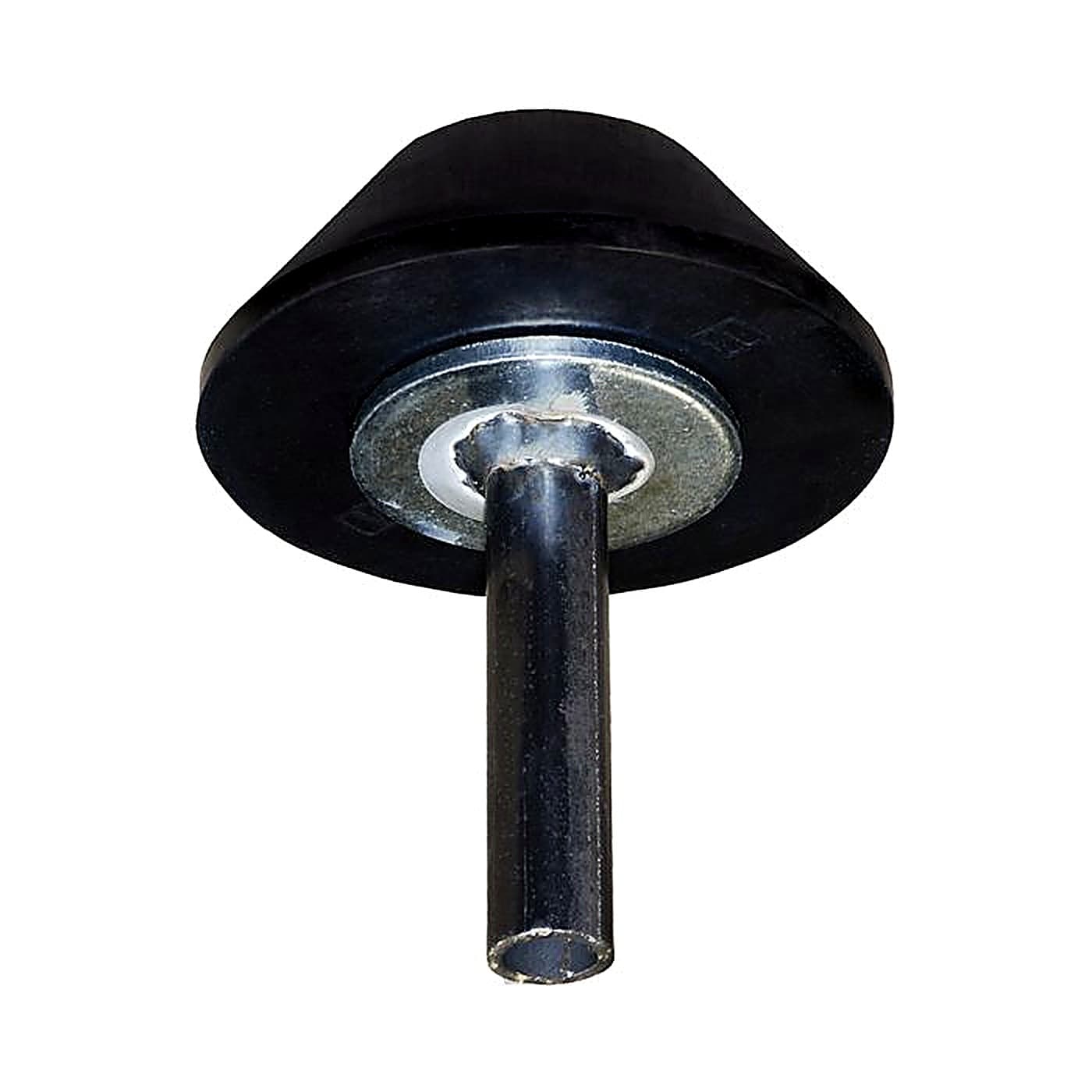

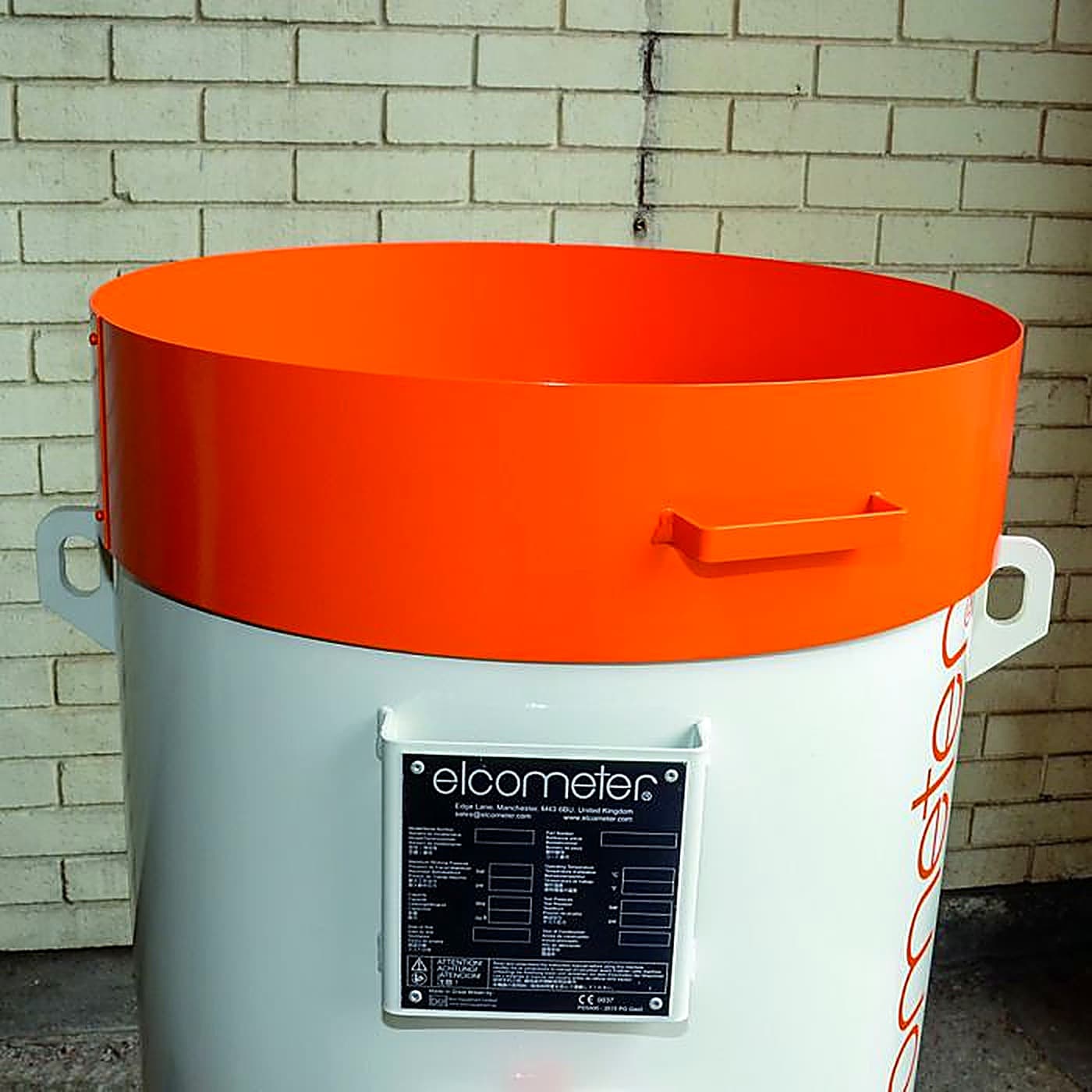

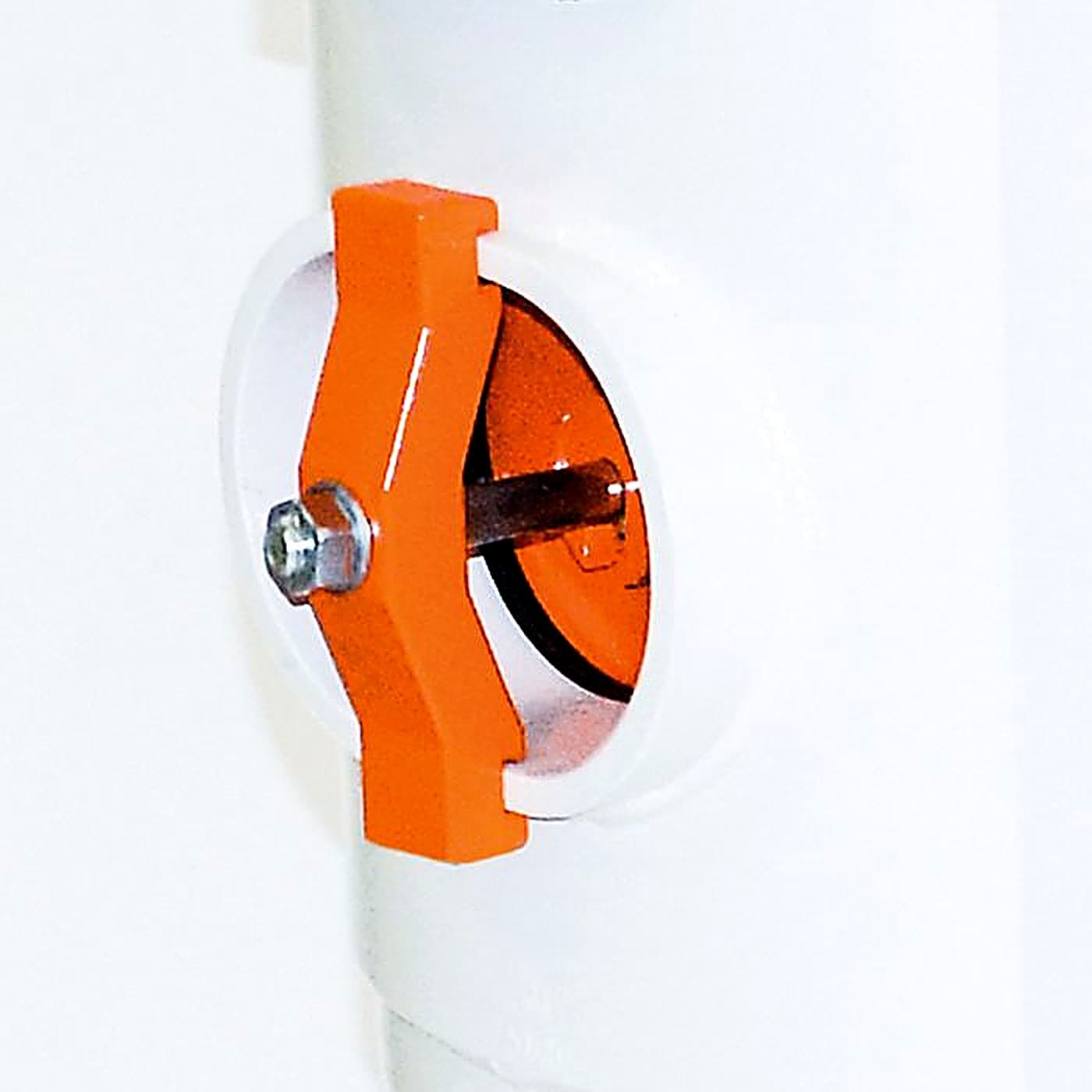

Certified 13mm Pressure Relief Valve      Elcometer Internal Pop Up Valve          Screen Sieve & Blast Machine Cover Lid              Access Door & Assembly

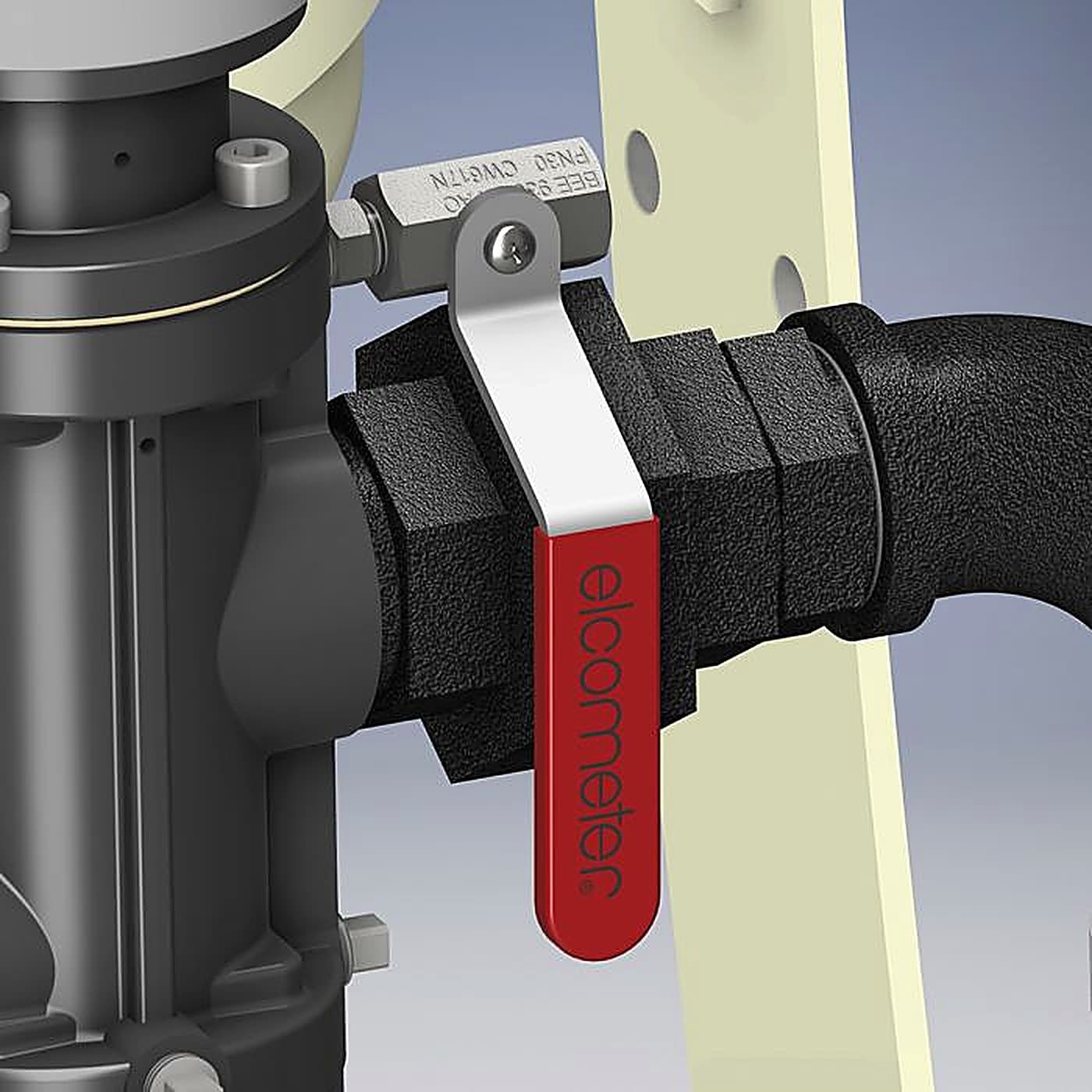

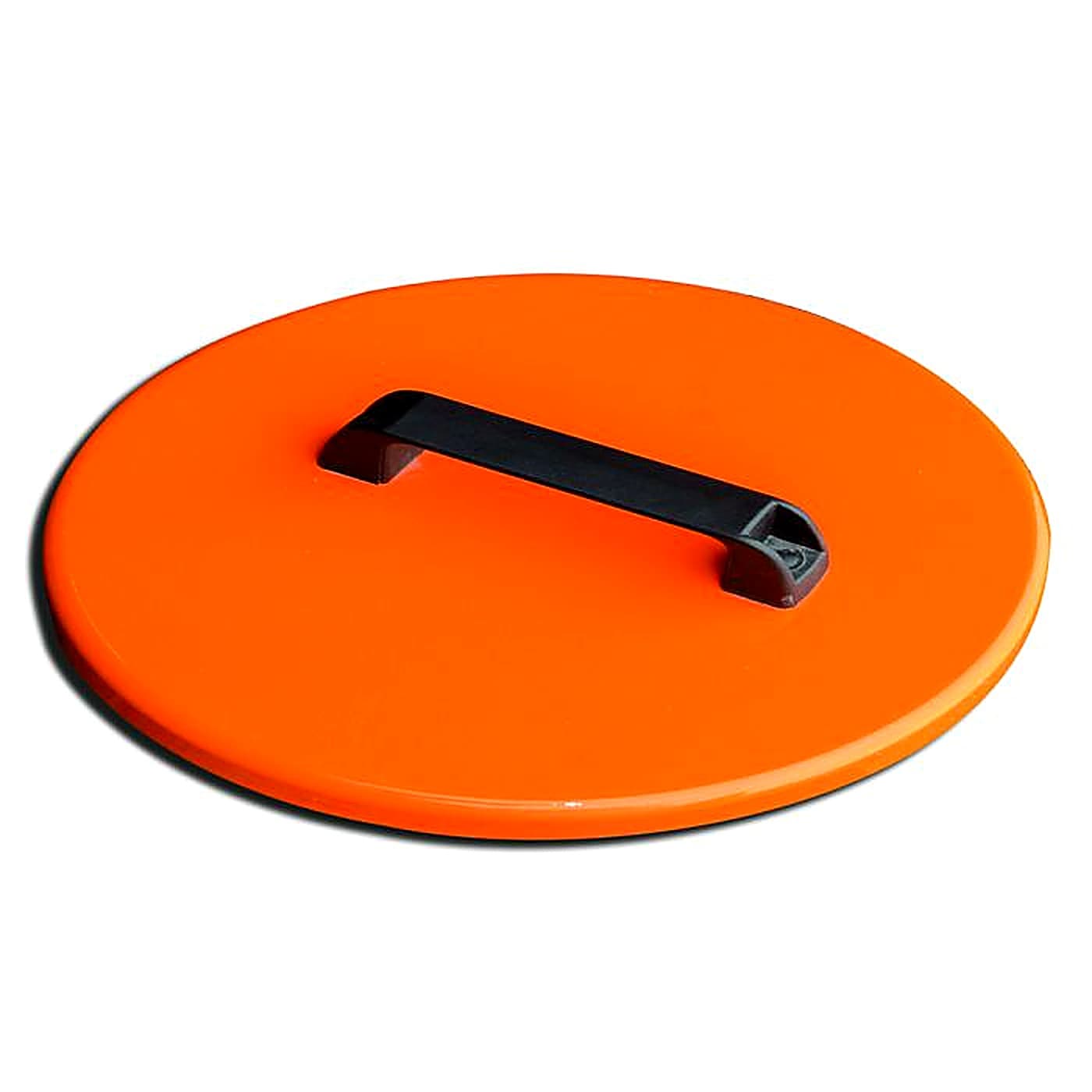

        Screen Sieve                               Elcometer Manual Media Shut Off        Elcometer Safety Petcock 6mm HP Ball Valve              Blast Machine Cover Lid

                                                                  Valve and Flange Assembly

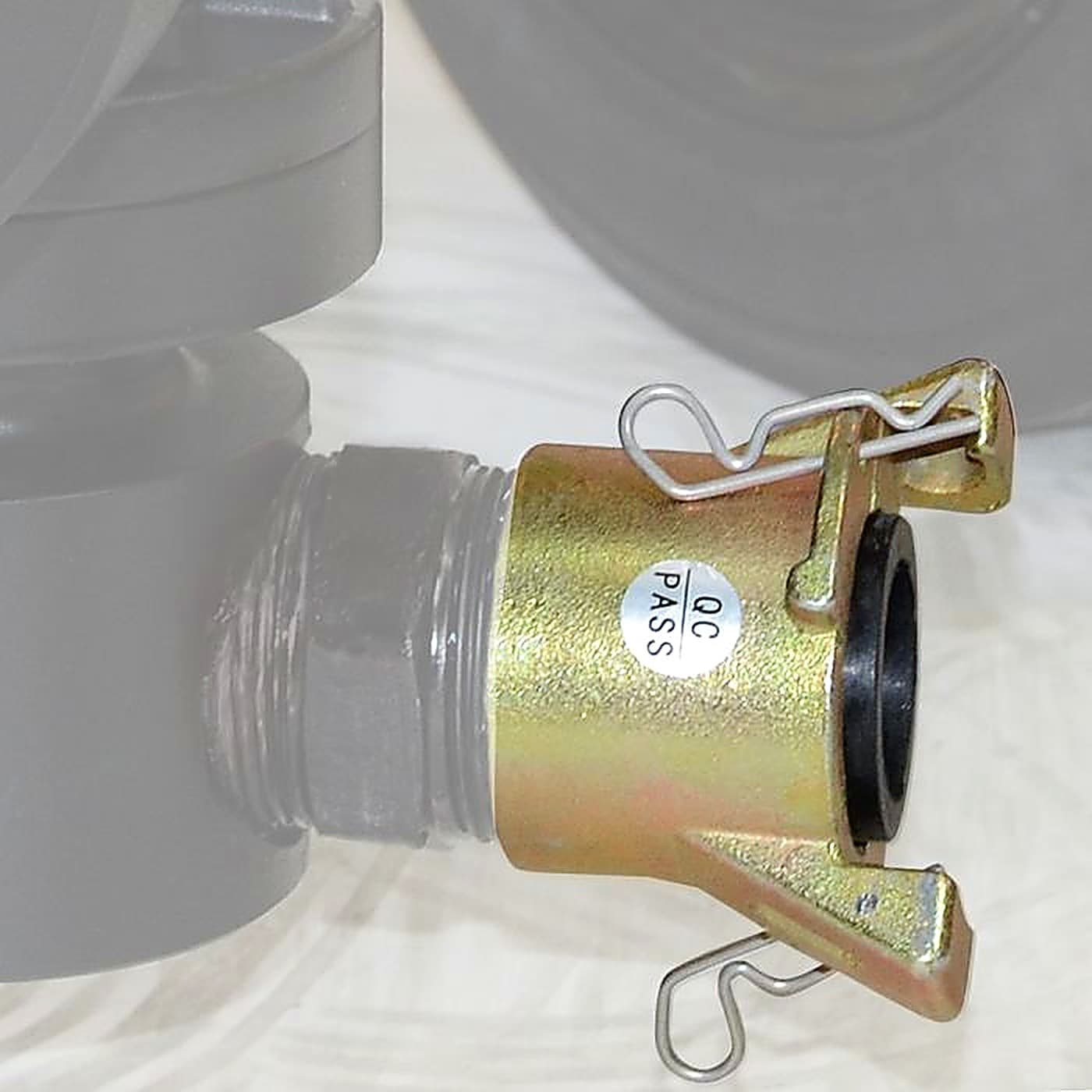

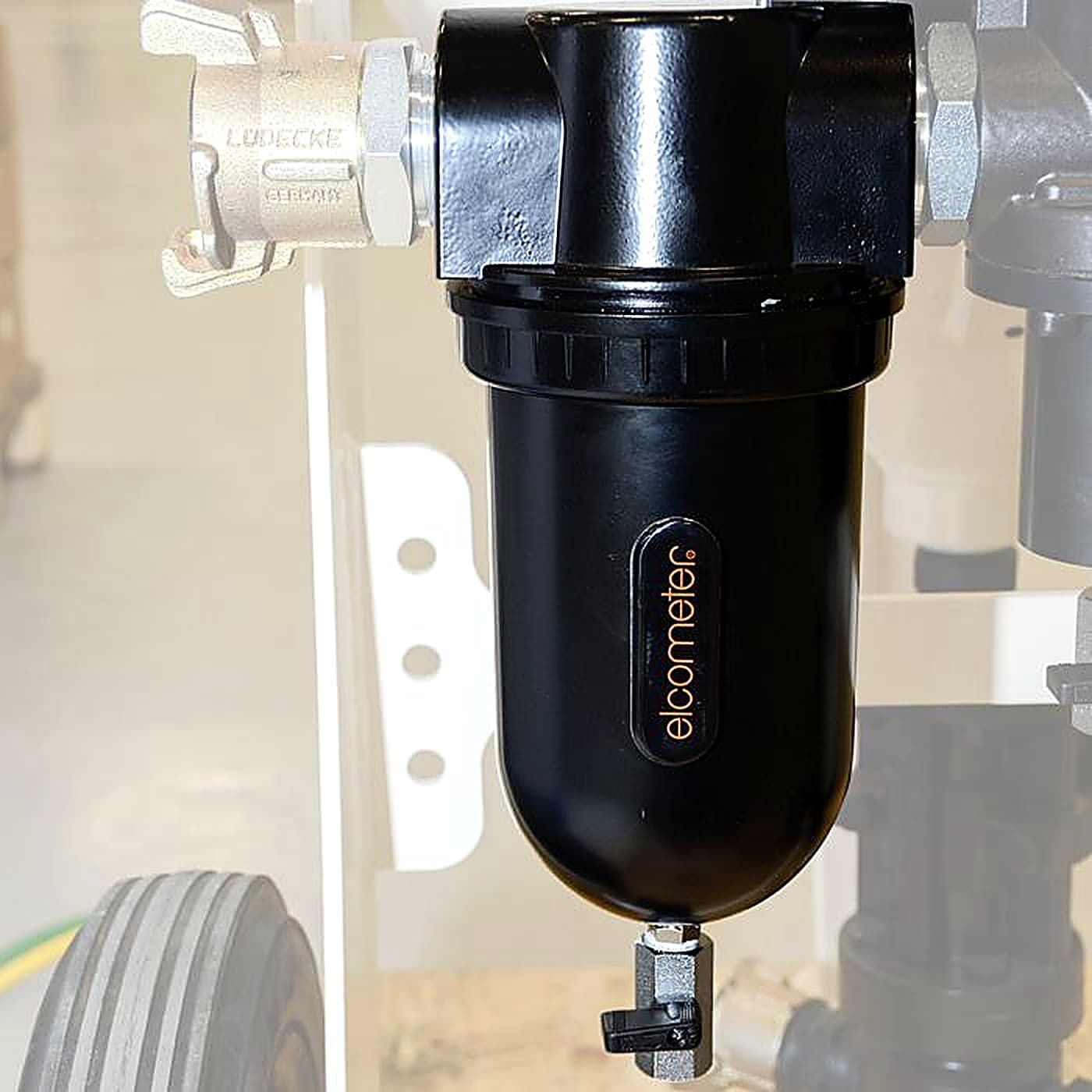

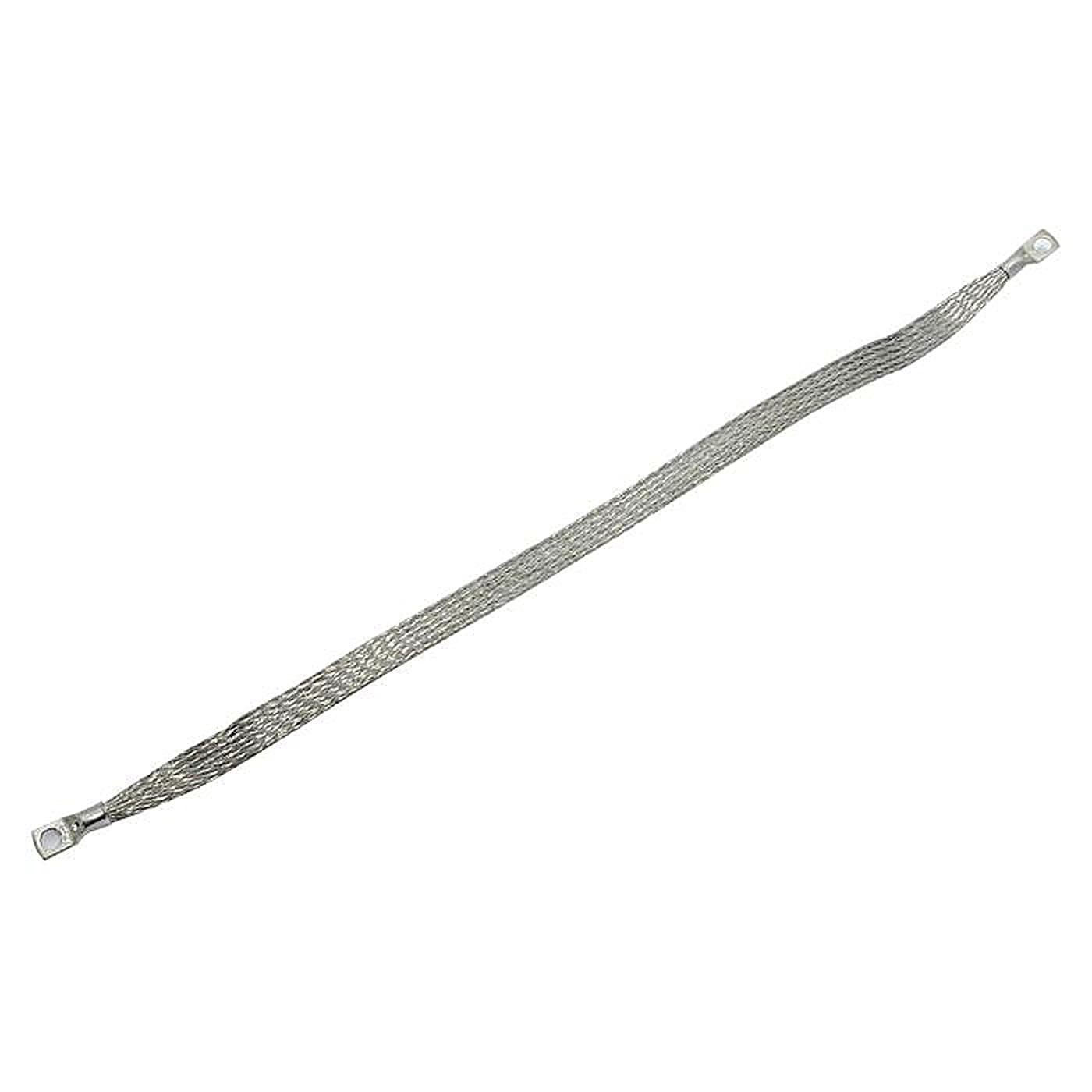

Elcometer 38mm Moisture Separator       Elcometer ABM Pot Coupling                         Earthing Wire Assembly

Data Sheet

Elcometer 1020 Portable Abrasive Blast Machine 20 litre – 12bar  –  Data Sheet

Elcometer-1020-Portable-Abrasive-Blast-Machine-20-litre-12bar Data Sheet
