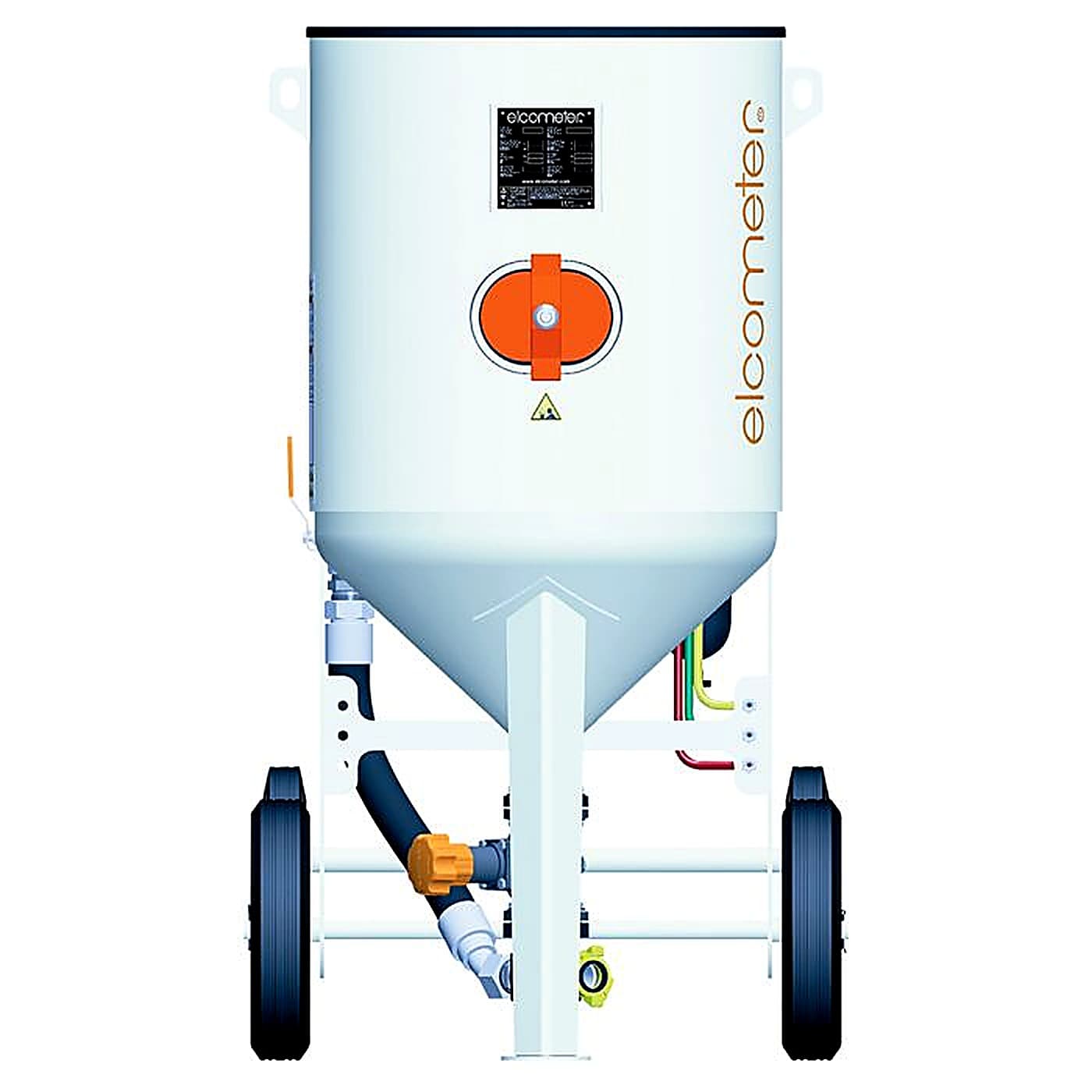

Elcometer 24200 Portable Abrasive Blast Machine 200 litre - 12bar

Specialist pick

Image 1 / 8

About this product

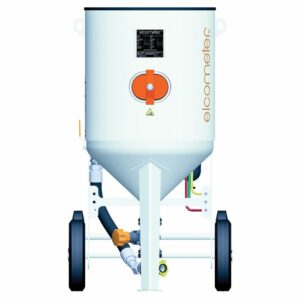

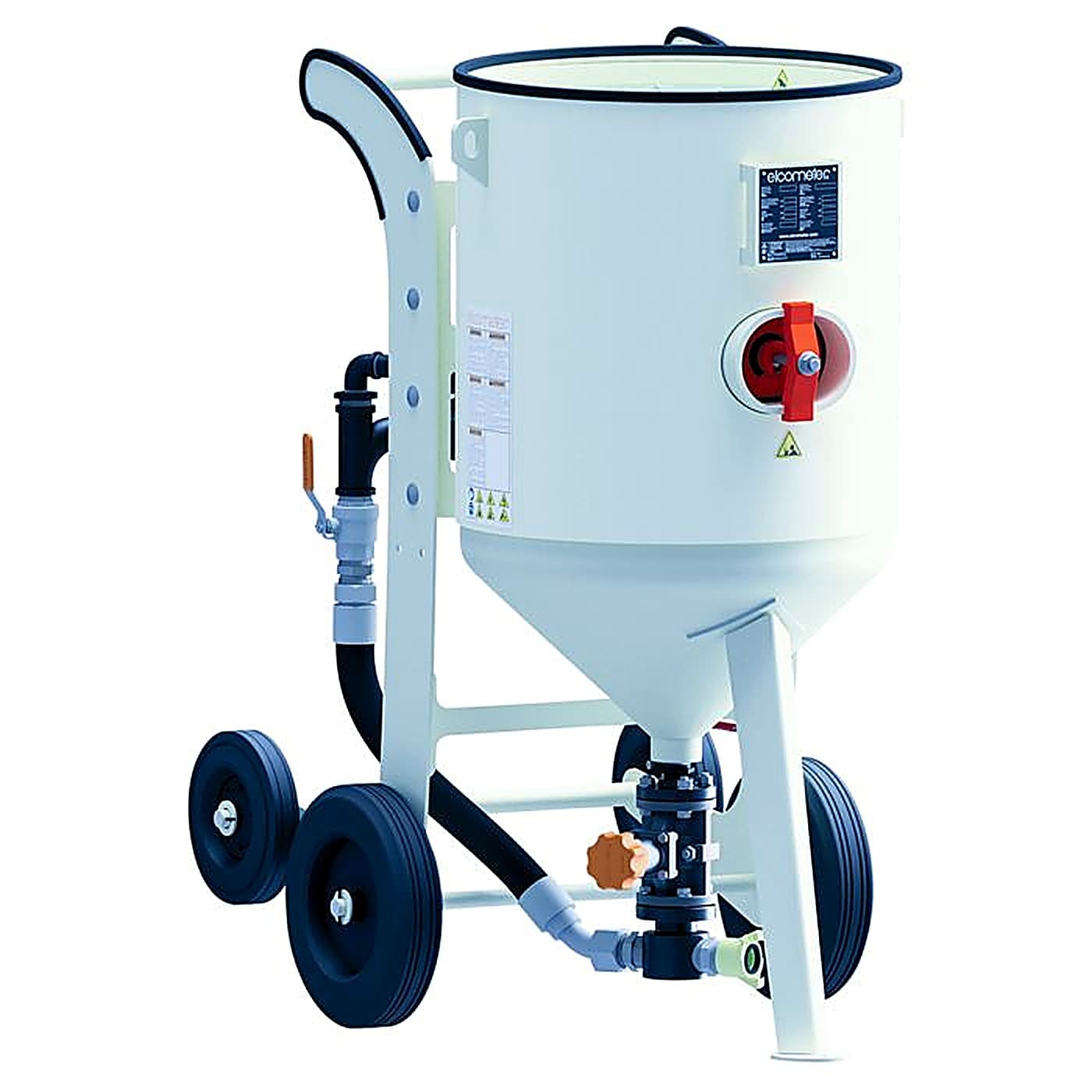

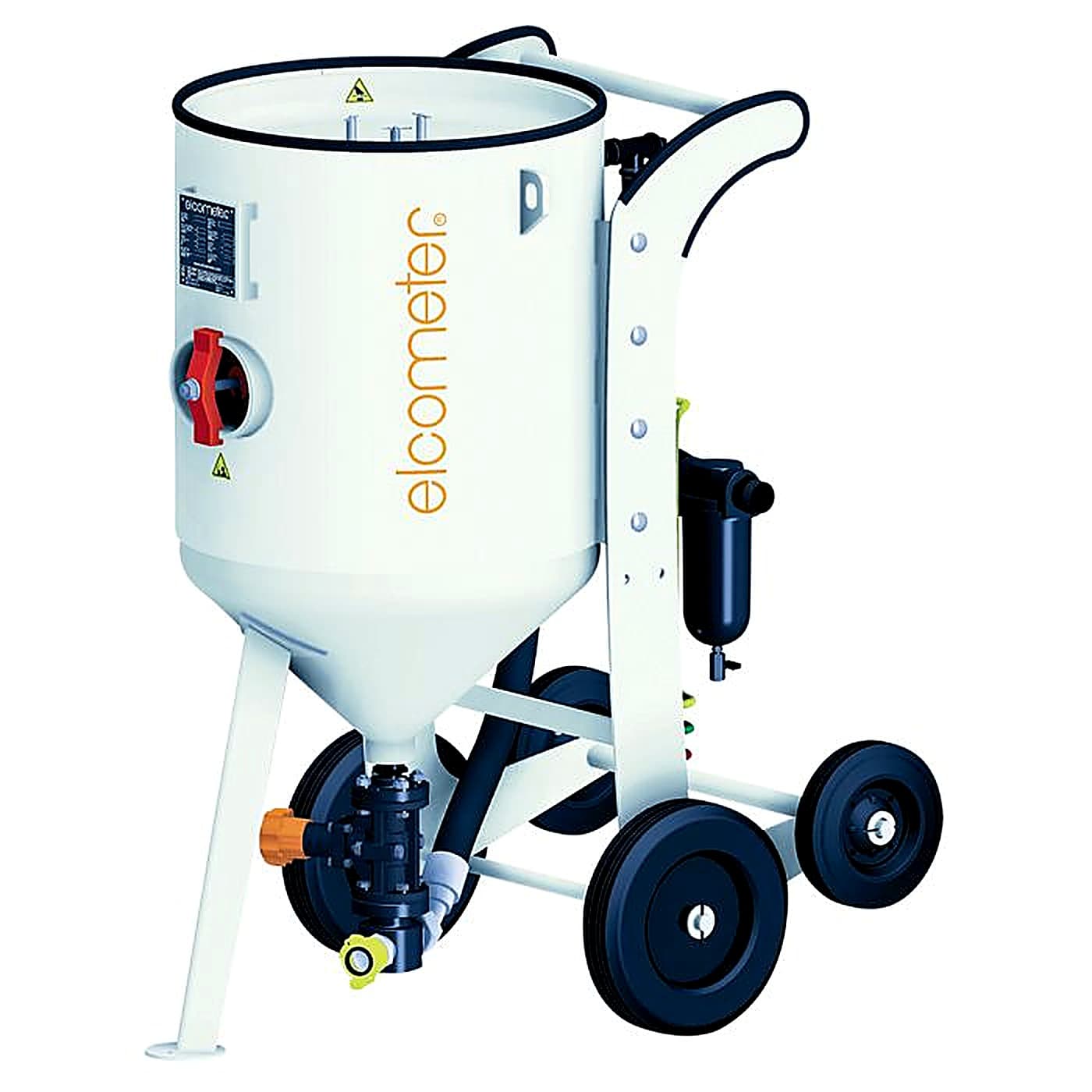

The Elcometer 24200 Portable Abrasive Blast Machine (part numbers M24200-GV1-B through M24200-AGV2-N) is a 200 litre twin wheeled blast pot built for continuous, high production sandblasting. The large capacity is the point: a bigger hopper means fewer stops to refill, so an operator spends more time blasting and less time idle. On a site clearing rust and old coatings ahead of recoating, that uptime translates directly into throughput.

The 200 litre pot holds up to 468kg of garnet grit or 880kg of steel shot, and the twin wheeled frame keeps a heavily loaded machine easy to manoeuvre around a worksite. Construction is heavy duty 6mm steel, with 38mm pipework feeding the abrasive, a maximum working pressure of 12bar and an operating temperature range of 0 to 60 degrees C. The pot measures 610mm in diameter, stands 1380mm high and weighs 205kg.

The Elcometer 24200 Portable Abrasive Blast Machine 200 litre is offered with a choice of media valves to suit the blast application, including General Valve (GV) and Automatic General Valve (AGV) configurations, each available in PED and ASME pressure variants. Kits add the RCV4000+ remote control valve, deadman's handle, choke valve, moisture separator and blast hose. It is supplied with a full 12 month warranty and is quick to service.

Used in surface preparation, corrosion control and coatings work, the Elcometer 24200 is supplied in South Africa by BAMR, the country's authorised distributor.

Elcometer

Elcometer 24200 Portable Abrasive Blast Machine 200 litre - 12bar

SKU · M24200-GV1-B (+7 more)

The Elcometer 24200 Abrasive Blast Machine is ideal for continuous high production sandblasting as its large capacity reduces down time refilling the hopper.

Ideal for high volume sandblasting work easy to fill with large capacity
Twin wheeled abrasive blast pot safe and easy to manoeuvre
Available with a range of abrasive media valves to suit your blast application
Heavy duty 6mm construction
Easy and quick to service
Engineered to work harder, last longer and be faster to maintain
Rugged, reliable and easy to use
Supplied with a full 12 month warranty
Engineered and tested to be incredibly efficient, durable and safe
Manufactured to an industry leading specification

Indicative price

Specialist-built quote, by close of business

Used by inspection teams in

RefiningMarineMiningBridge / civil

Capacity ¹

Volume: 200 Litres
Garnet Grit: 468kg
Steel Shot: 880kg

Physical Dimensions

Pot Diameter: 610mm
Height: 1380mm
Width: 794mm
Depth: 1109mm
Weight: 205kg

Operating Specifications

Pipework Diameter: 38mm
Maximum Working Pressure (WP) ²: 12bar
Operating Temperature Range: 0 to 60°C
¹: Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.
²: Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.

Specifications

Capacity ¹

Volume: 200 Litres
Garnet Grit: 468kg
Steel Shot: 880kg

Physical Dimensions

Pot Diameter: 610mm
Height: 1380mm
Width: 794mm
Depth: 1109mm
Weight: 205kg

Operating Specifications

Pipework Diameter: 38mm
Maximum Working Pressure (WP) ²: 12bar
Operating Temperature Range: 0 to 60°C
¹: Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.
²: Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.

What's in the kit

610mm, 200 litre Abrasive Blast Machine

Pressure Test Certificate

RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

20m Pneumatic Control Hose and Deadman's Handle (DMHII)

Choke Valve and Pusher Line

Abrasive Metering Valve with Mixer T and Metal Pot Coupling

Moisture Separator

20m, 32mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder

Kit 2 only

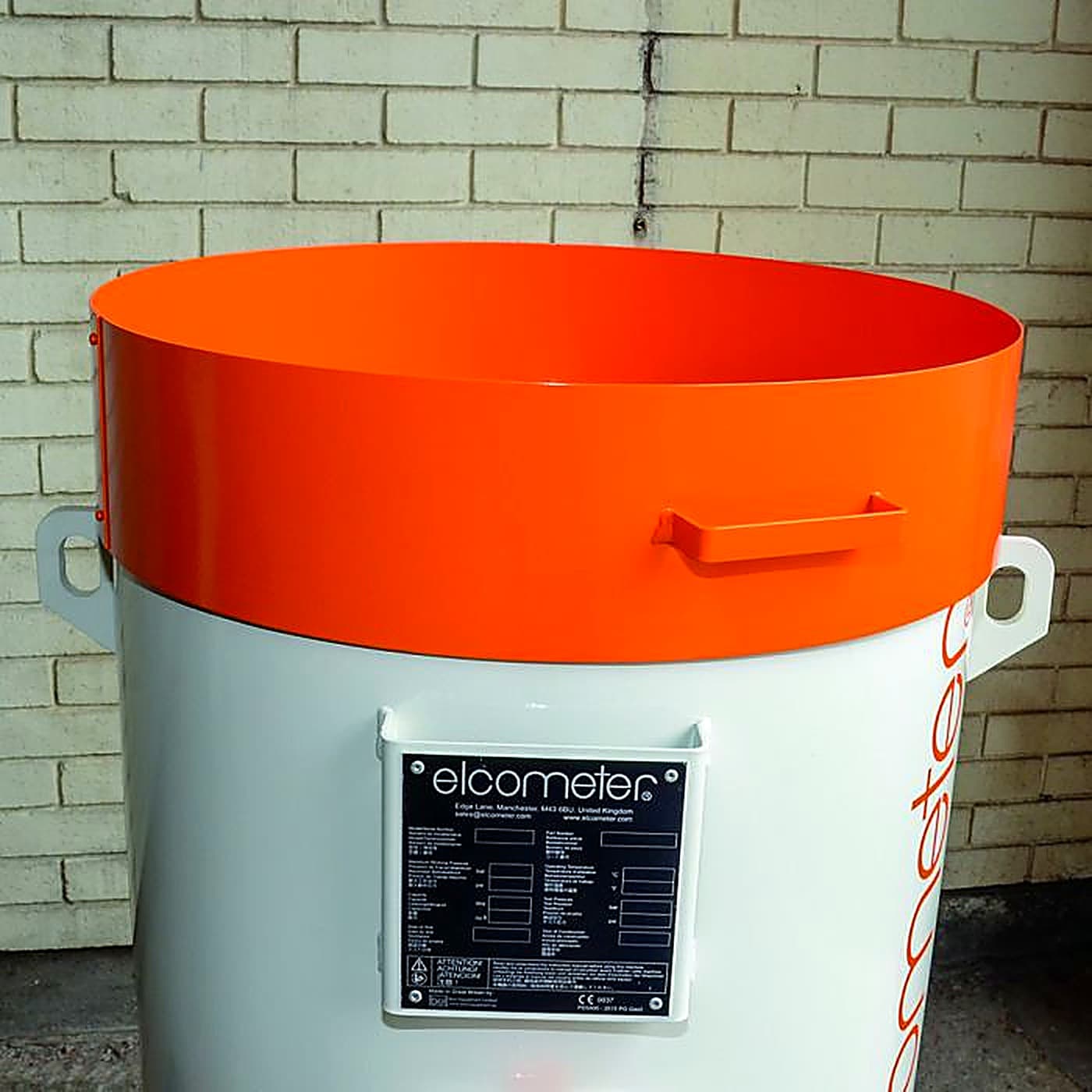

Externally Mounted Sieve and Lid

Kit 2 only

Accessories

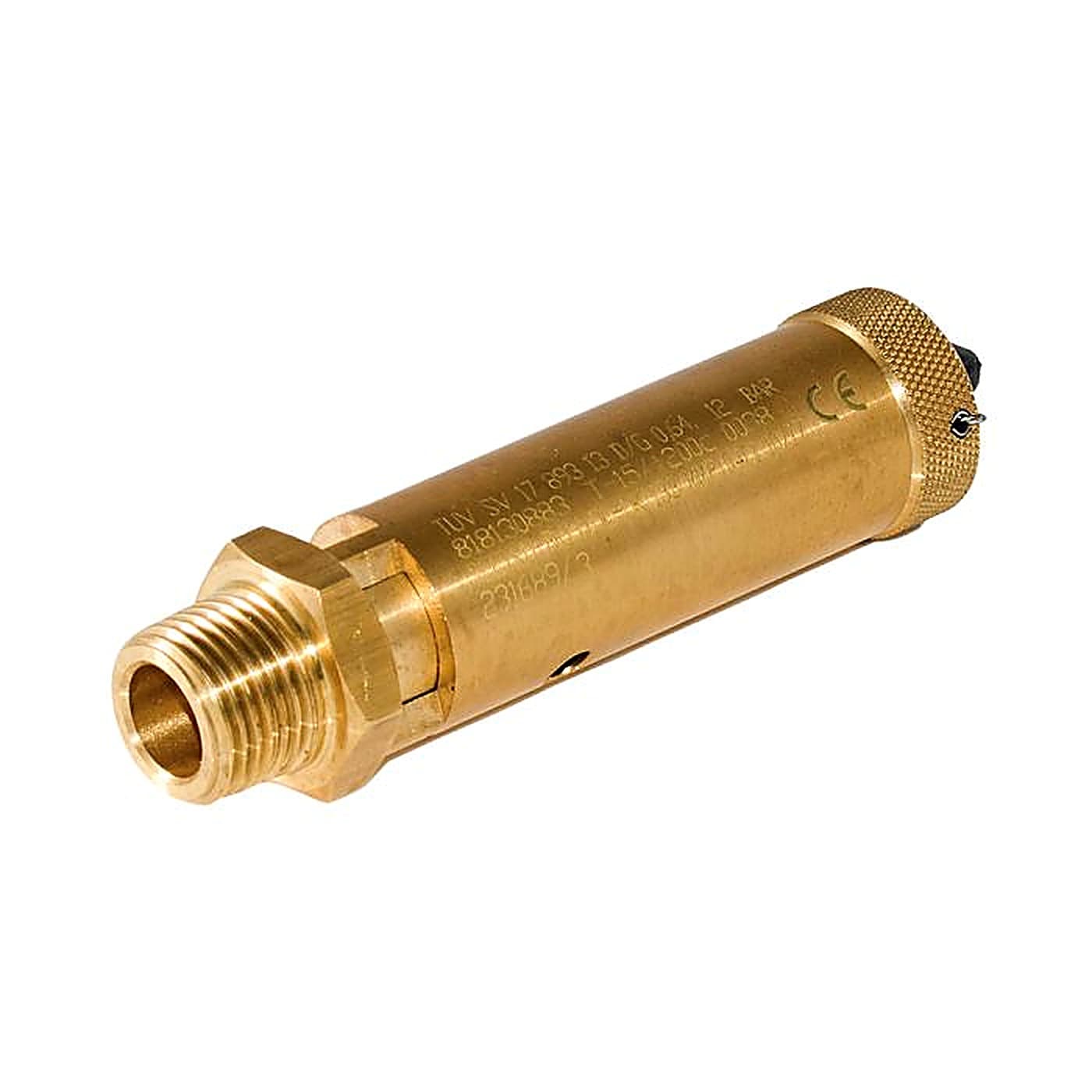

Certified 13mm Pressure Relief Valve

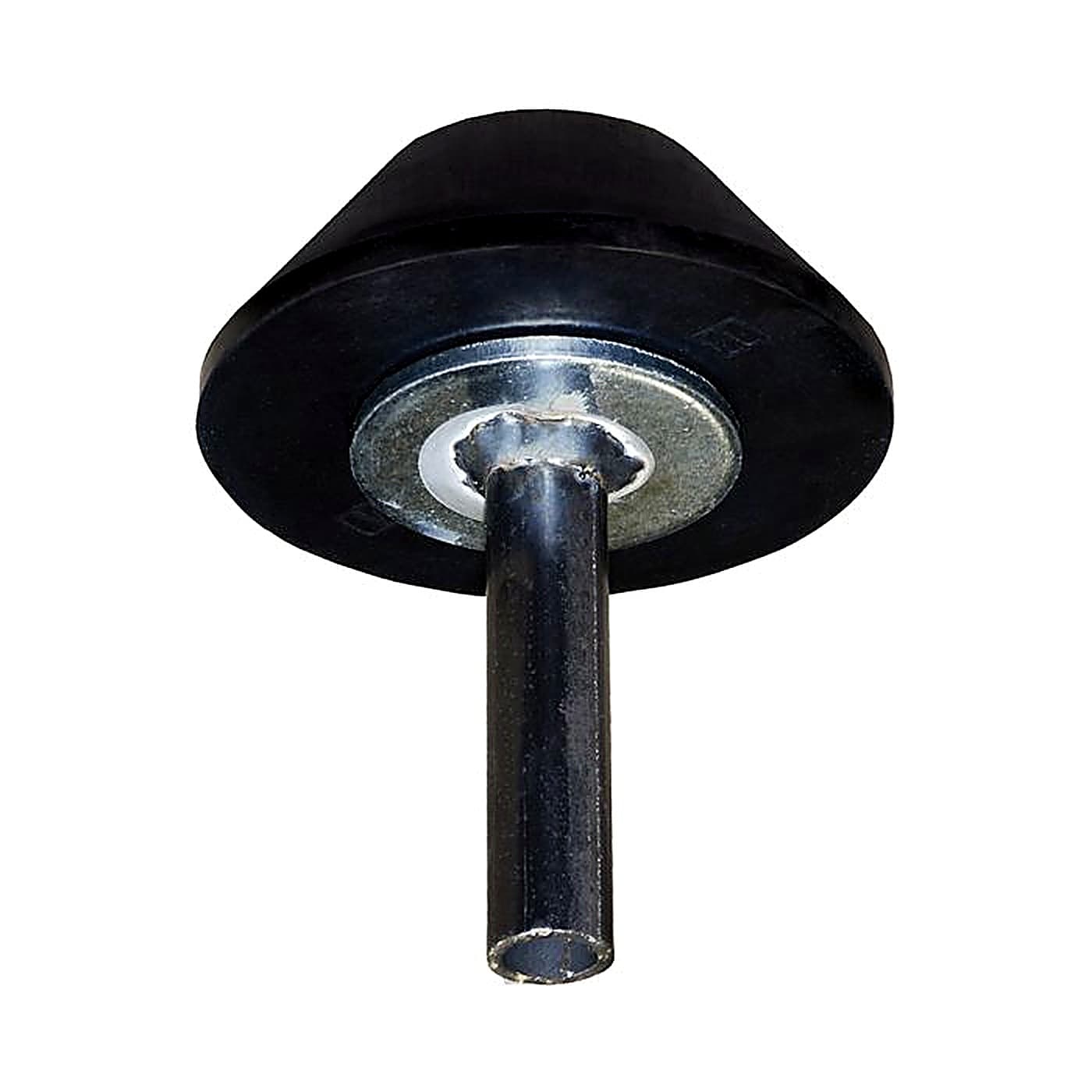

Elcometer Internal Pop Up Valve

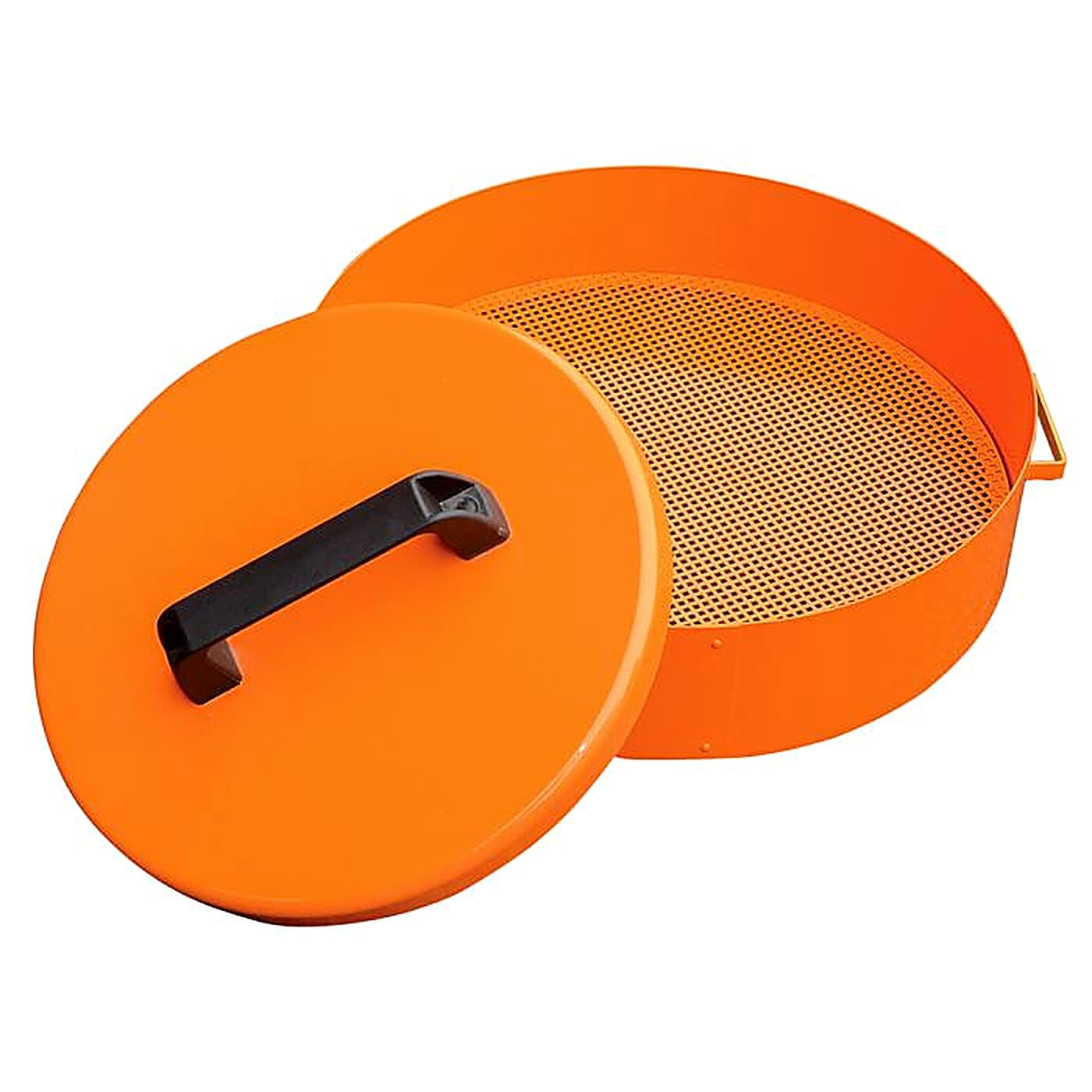

Screen Sieve & Blast Machine Cover Lid

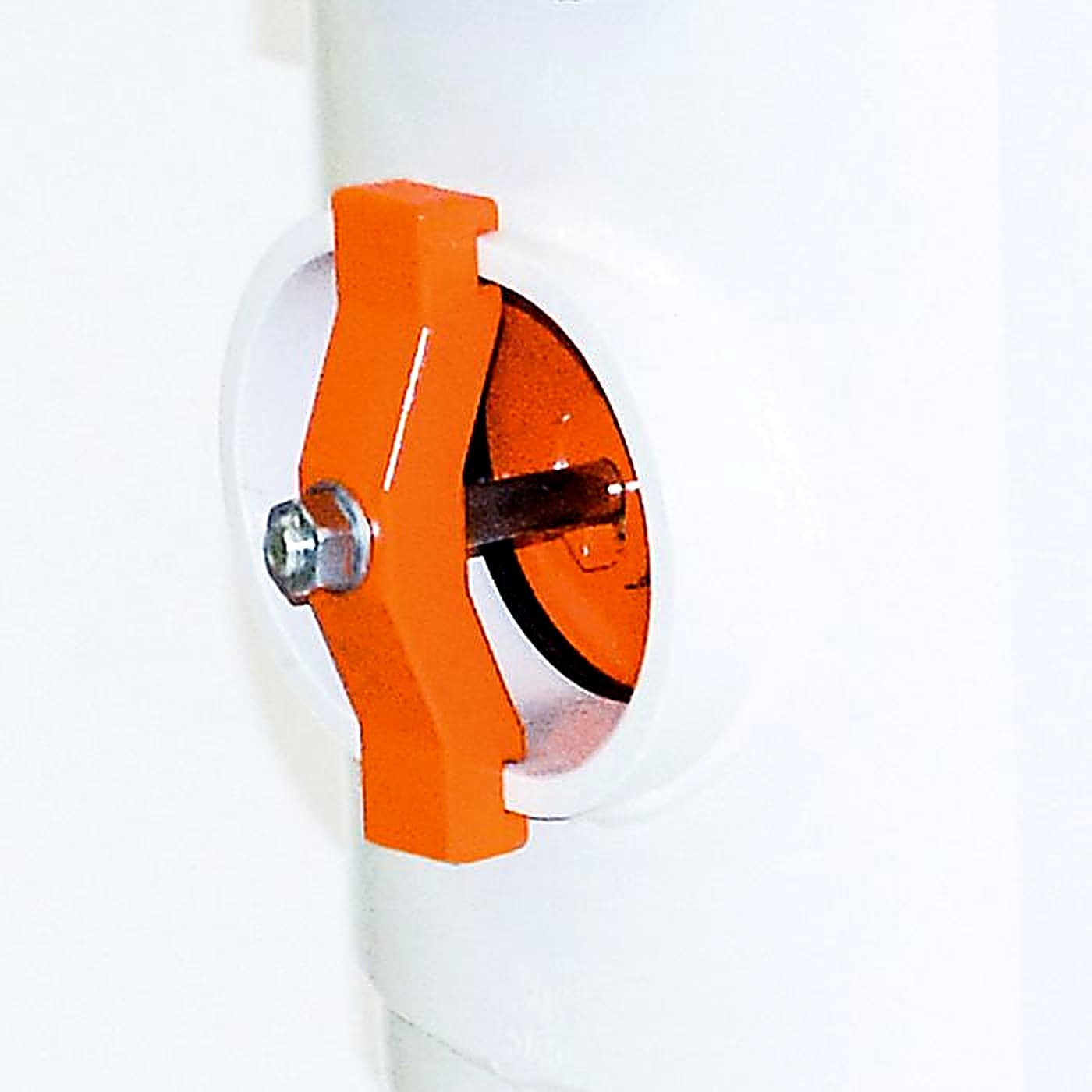

Access Door & Assembly

Screen Sieve

Elcometer Manual Media Shut Off Valve and Flange Assembly

Elcometer Safety Petcock 6mm HP Ball Valve

Blast Machine Cover Lid

Elcometer 38mm Moisture Separator

Elcometer ABM Pot Coupling

Earthing Wire Assembly

Product Range - PED

■ = available / compatible with that option or model

Kits are available with:	Portable Kit 1	Kit 2
General Media Valve (G)	M24200-GV1-B	M24200-GV2-B
Automatic General Valve (A)	M24200-AGV1-B	M24200-AGV1-B
610mm, 200 litre Abrasive Blast Machine	■	■
Pressure Test Certificate	■	■
RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer	■	■
20m Pneumatic Control Hose and Deadman's Handle (DMHII)	■	■
Choke Valve and Pusher Line	■	■
Abrasive Metering Valve with Mixer T and Metal Pot Coupling	G / A	G / A
Moisture Separator	■	■
20m, 32mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder		■
Externally Mounted Sieve and Lid		■

Product Range - ASME

■ = available / compatible with that option or model

Kits are available with:	Portable Kit 1	Kit 2
General Media Valve (G)	M24200-GV1-N	M24200-GV2-N
Automatic General Valve (A)	M24200-AGV1-N	M24200-AGV1-N
610mm, 200 litre Abrasive Blast Machine	■	■
Pressure Test Certificate	■	■
RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer	■	■
20m Pneumatic Control Hose and Deadman's Handle (DMHII)	■	■
Choke Valve and Pusher Line	■	■
Abrasive Metering Valve with Mixer T and Metal Pot Coupling	G / A	G / A
Moisture Separator	■	■
20m, 32mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder		■
Externally Mounted Sieve and Lid		■

Spare Parts

Pop Up Valve: MT28622
25mm Pop Up Shaft for Elcometer 24200 (185mm): MT28631-5
25mm Female 90° Equal Elbow: MT29661
38mm Hex Nipple: MT29663
Moisture Separator Assembly: MT28617
38mm Male/Male Union Taper Seat: MT29662
6mm Bulkhead Connector (x3): MT29664
Elcometer 24200 Twin Airline Hose Assembly (Yellow & Green): MT29721
Airline Assembly for Elcometer 24200 (Red): MT29722
Pop Up Valve O-Ring (x5): MT28627-5
Protective Edging Strip Kit (2.7m): MT29601
Spring Cotter Pin Type E (x3): MT29667
Short Deflector Plate Spacer - 25mm (x3) (1″): MT29719
Long Deflector Plate Spacer - 51mm (x3) (2″): MT29720
Deflector Plate: MT29670
Deflector Plate Shaft - 82mm (x3): MT28629-3
25mm Backnut (Recessed): MT29672
25mm Female/Female Union Taper Seat: MT29673
25mm Hex Nipple: MT29679
25mm Exhaust T Assembly (complete with MT29681 Exhaust Plug): MT29680
25mm Exhaust Plug: MT29681
25mm Pipe for Elcometer 24200 (170mm): MT29723
25mm Socket: MT29683
25mm Male/Female Equal Union Taper Seat: MT29704
25mm Pipe for Elcometer 24200 (108mm) (4 1/4″): MT29724
25mm Male/Female 90° Elbow: MT29706
25 x 38mm (1″ to 1 1 ⁄ 2 ") Reducing Bush: MT29707
19mm Reinforced Union Elbow: MT28599
19mm Hex Nipple: MT29688
Elcometer RCV4000+ Remote Control Valve: MT29465
Petcock Valve Assembly - (Red Handle): MT29656
38mm Male/Female Equal Union Taper Seat: MT30122-5
38mm Pipe for Elcometer 24200 (83mm) (3.3″): MT30127-1
38mm Equal Pitcher T: MT29708
38mm Choke Valve Handle: MT30094
38mm Choke Valve Assembly (include MT30094 Choke Valve Handle): MT29177
38mm 60° Cone Male/Male Adaptor: MT29710
6mm Ball Valve Assembly - (Black Handle): MT29658
6mm Airline Ball Valve Assembly (Black Handle): MT29660
Exhaust Silencer Assembly: MT28597
Protection Guard for Elcometer 24200: MT29692-4
Elcometer Inspection Hatch Door for Elcometer 24200: MT28616
ElcoFit™ Door Sealing Gasket: MT28613
Elcometer Inspection Door Hatch Bolt - M16 x 110mm: MT29695
Inspection Hatch Door Yoke: MT28615
M16 Hexagon Flanged Nut: MT29696
Flat Washer (x8): MT29697
Ø250mm Diameter Wheel (x1): MT28636
Ø350mm Diameter Wheel (x1): MT28637
Split Cotter Pin (x4): MT29698
Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange): MT29490-5
Elcometer Safety Label Kit: MT29180

Pop Up Valve: MT28622
25mm Pop Up Shaft for Elcometer 24200 (185mm): MT28631-5N
25mm Female 90° Equal Elbow: MT29661N
38mm Hex Nipple: MT31013-3N
Moisture Separator Assembly: MT28617N
38mm Close Nipple: MT30407N
38mm Union Brass Seat: MT31018-5N
6mm Bulkhead Connector (x3): MT29664N
Elcometer 24200 Twin Airline Hose Assembly (Yellow & Green): MT29721N
Airline Assembly for Elcometer 24200 (Red): MT29722N
Pop Up Valve O-Ring (x5): MT28627-5
Protective Edging Strip Kit (2.7m): MT29601
Spring Cotter Pin Type E (x3): MT29667
Short Deflector Plate Spacer - 25mm (x3): MT29719
Long Deflector Plate Spacer - 51mm (x3): MT29720
Deflector Plate: MT29670
Deflector Plate Shaft - 82mm (x3): MT28629-3
25mm Backnut: MT29672N
25mm Union Brass Seat: MT31018-3N
25mm Hex Nipple: MT31013-2N
25mm Equal T: MT30574-2N
25mm Solid Plug: MT29681N
25mm SCH 40 Pipe Tube: MT30556-6N
25mm Machined Socket: MT31017N
25mm Pipe: MT30556-7N
25mm 90° Street Elbow: MT31019-2N
1″ to 1 1 ⁄ 2 " Reducing Bush (25 x 38mm): MT30577-3N
19mm Hex Nipple: MT31013-1N
19mm Union Elbow Male: MT28599N
Elcometer RCV4000+ Remote Control Valve: MT29465N
Petcock Valve Assembly - (Red Handle): MT29656N
38mm Pipe: MT30556-3N
38mm Equal Pitcher T: MT29708N
38mm Choke Valve Handle: MT30094N
38mm Choke Valve Handle Assembly (includes MT30094N Choke Valve Handle): MT29177N
36mm NPTF Male x 7/8 JIC Male Adaptor: MT29710N
6mm Ball Valve Assembly (Black Handle): MT29658N
6mm Airline Ball Valve Assembly (Black Handle): MT29660N
Exhaust Silencer Assembly: MT28597N
Protection Guard for Elcometer 24200: MT29692-4
Elcometer Inspection Hatch Door for Elcometer 24200: MT28616
ElcoFit™ Door Sealing Gasket: MT28613
Elcometer Inspection Door Hatch Bolt - M16 x 110mm: MT29695N
Inspection Hatch Door Yoke: MT28615
M16 ( 5 ⁄ 8 ") Hexagon Flanged Nut: MT29696N
Flat Washer (x8): MT29697
Ø250mm Diameter Wheel (x1): MT28636
Ø350mm Diameter Wheel (x1): MT28637
Split Cotter Pin (x4): MT29698
Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange): MT29490-5N
Elcometer Safety Label Kit: MT29180

Downloads

PDF

Elcometer 24200 Portable Abrasive Blast Machine 200 litre - 12bar Data Sheet

Answers

Frequently asked questions

Which Portable Kit should I buy, Kit 1 or Kit 2?

Kit 2 includes a 20m blast hose with cast iron couplings, nylon nozzle holder, and an externally mounted sieve and lid. Kit 1 contains the core machine and controls but not these items. Choose Kit 2 if you need a complete ready-to-use setup; Kit 1 if you prefer to source ancillaries separately.

What is the difference between the General Media Valve and Automatic General Valve options?

The General Media Valve requires manual control of media feed. The Automatic General Valve regulates flow automatically, maintaining consistent output throughout blasting. Choose automatic if you want hands-free operation; manual if you need direct control.

What abrasive media types can the 24200 use, and what are the capacity limits?

The 200-litre tank holds 468kg of garnet grit or 880kg of steel shot. Bulk density varies with media type and grade, so check your specific abrasive's density. Select media based on your substrate and target surface finish.

What is the operating temperature range for the 24200?

The machine operates between 0 and 60 degrees Celsius. Confirm that your workshop environment and abrasive storage meet this range, particularly in very hot or cold climates.

Must I install a pressure relief valve separately?

Yes. An appropriate safety pressure relief valve must be fitted within the pressurised system before operation. This is a mandatory safety requirement and must be confirmed as part of your system setup.
