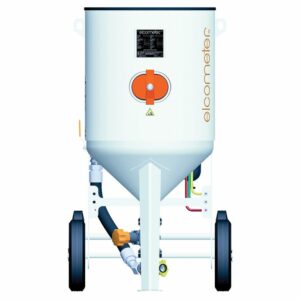

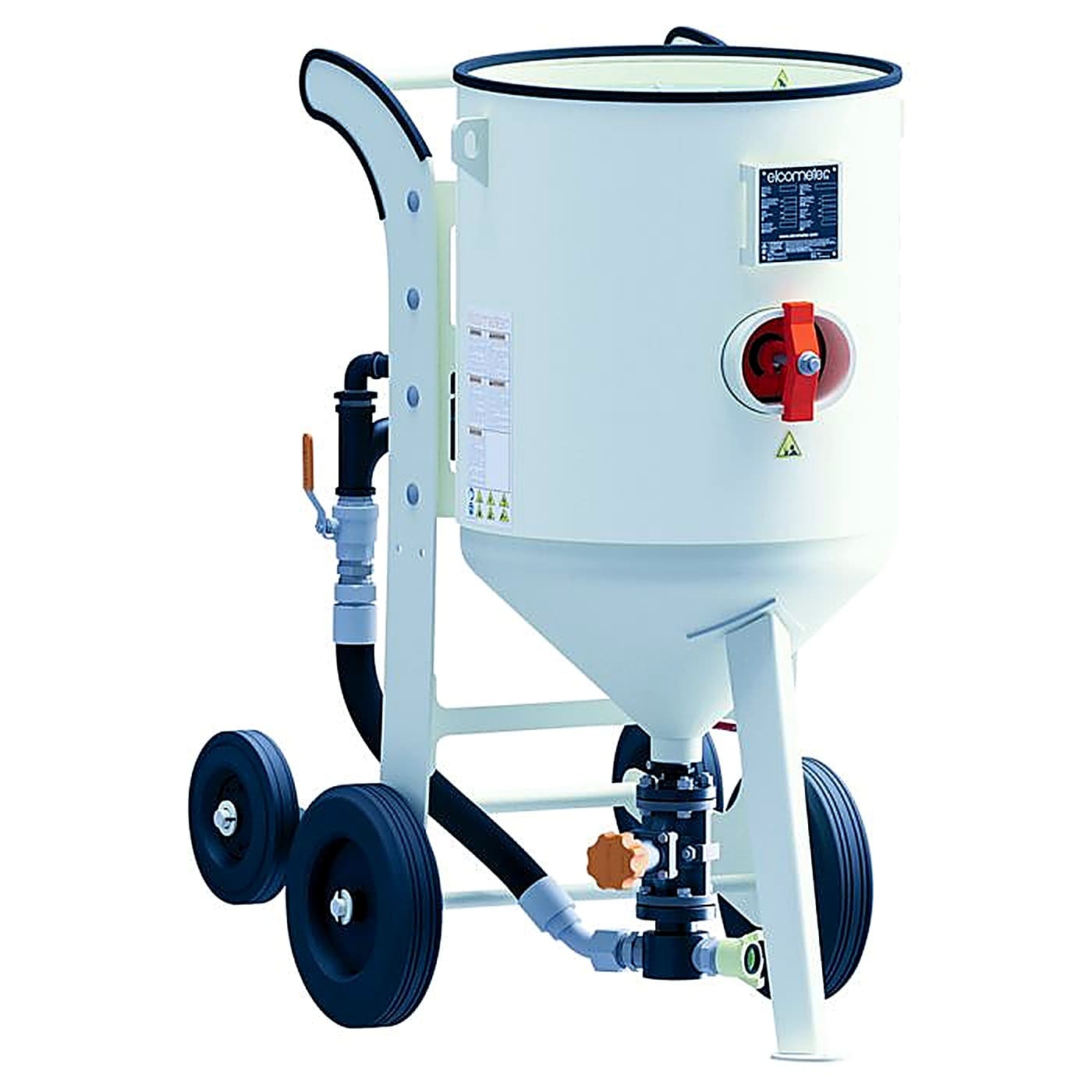

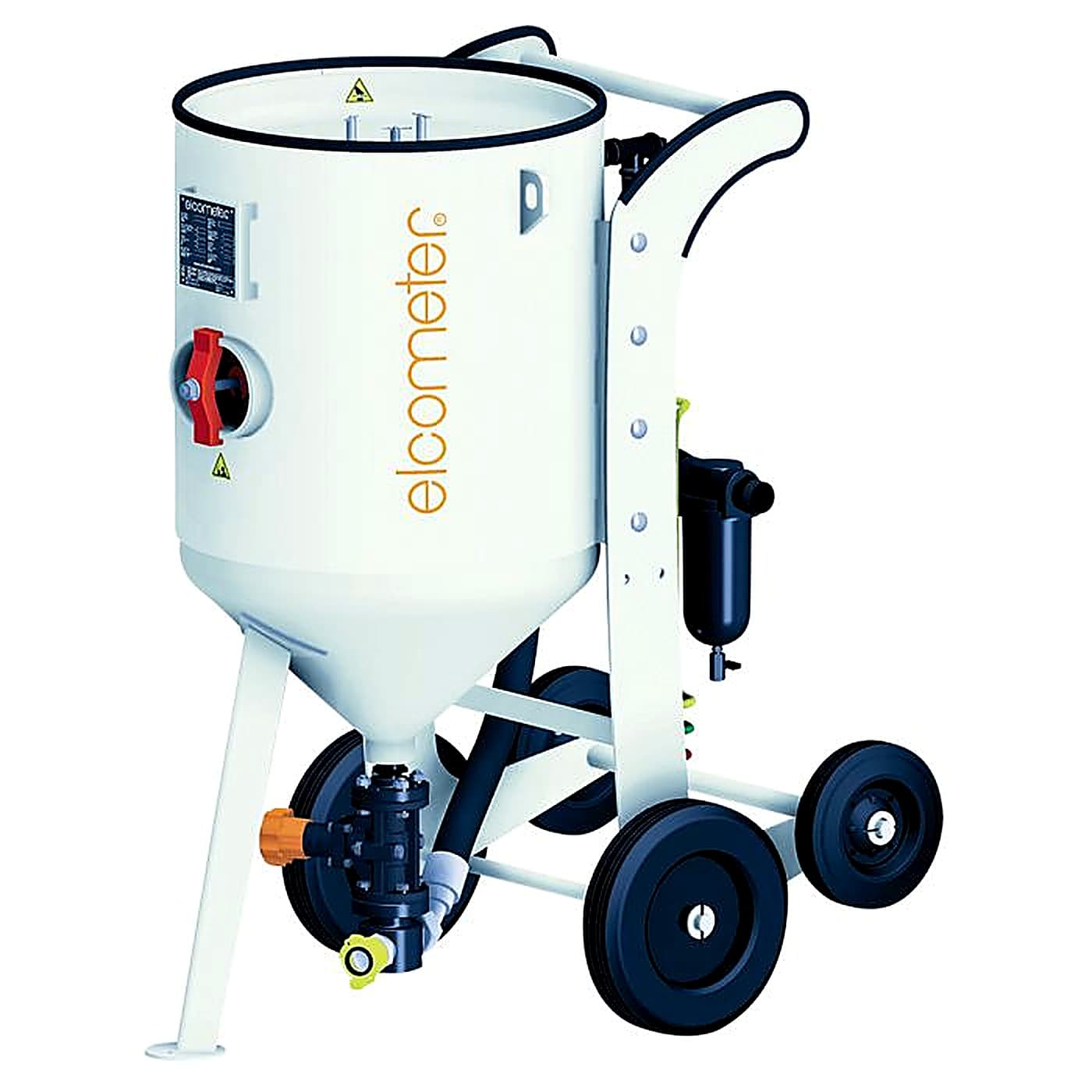

Elcometer 24200H Portable Abrasive Blast Machine 200 litre – 15bar
Product Description

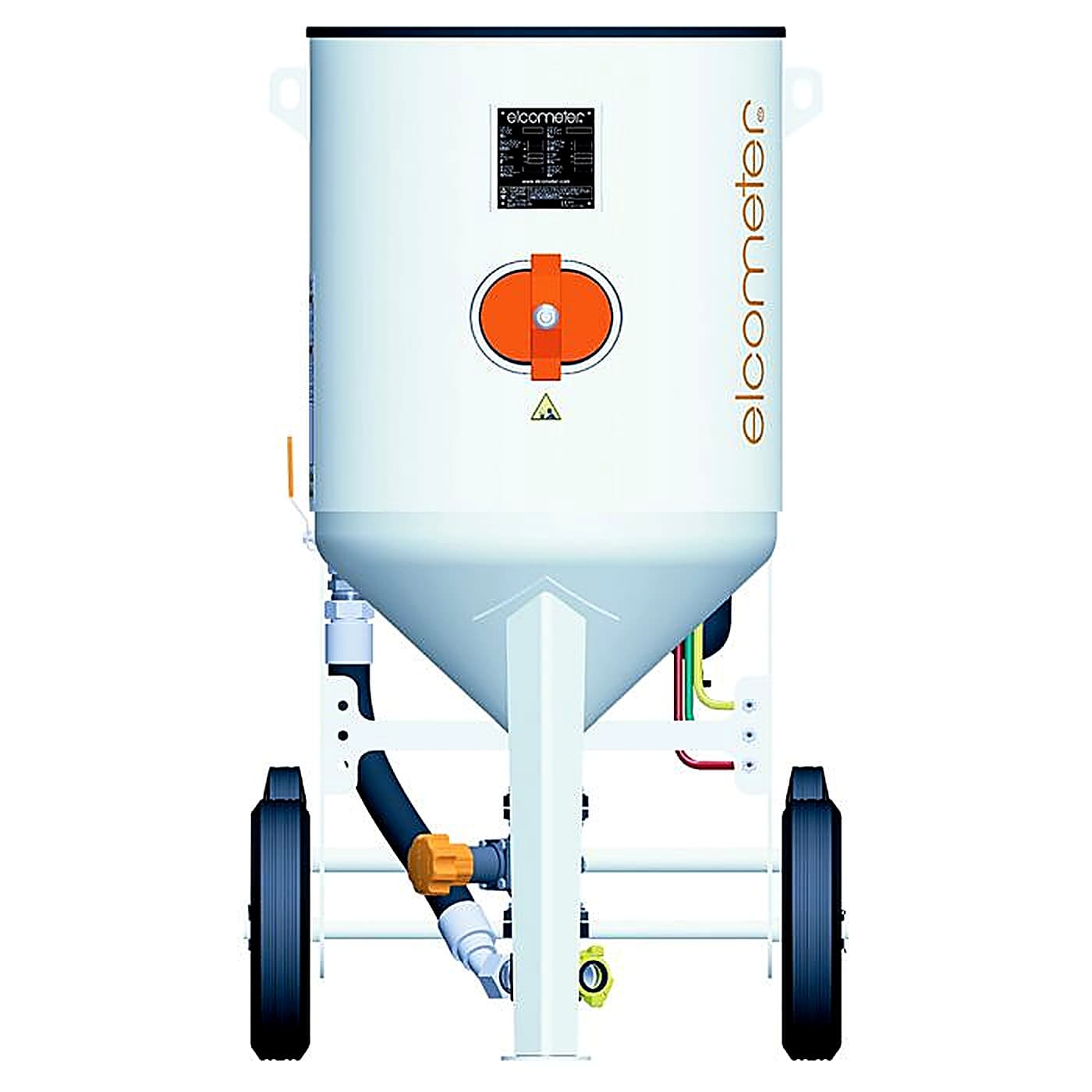

The Elcometer 24200 High Pressure Abrasive Blast Machine is ideal for continuous high production blasting as its large capacity reduces refill time.
- Ideal for high volume work, easy to fill with large capacity
- Twin wheeled portable system makes it safe and easy to manoeuvre
- Available with range of abrasive blast media valves to suit your application
- Heavy duty 6mm construction
- Easy & fast to service
Enhance Your Performance
The Elcometer 24200H Portable Abrasive Blast Machine is engineered to work harder, last longer and be faster to maintain. For more information on the efficiency of the Elcometer 24200H Portable Abrasive Blast Machine and how to maximise your up time.
Safe & Reliable
Rugged, reliable and easy to use, the Elcometer Portable 24200H Abrasive Blast Machine & Valves are supplied with a full 12 month warranty and are engineered & tested to be incredibly efficient, durable and safe. For more information on the Elcometer 24200H Portable Abrasive Blast Machines’ safety features.
Elcometer Engineered
The Elcometer 24200H Portable Abrasive Blast Machine is manufactured to an industry leading specification and designed and engineered by Elcometer experts. For more information about the high quality components with Elcometer Performance blast pots, including the high flow pipework, precision metering valves and hardwearing mixer T’s.
Product Range
Elcometer 24200H High Pressure Portable Abrasive Blast Machine Kit 2 Automatic General Valve – 15bar
Kit includes:
- 610mm, 200 litre Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- Automatic General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
- 20m, 38mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
- Externally Mounted Sieve and Lid
PED
- Maximum Working Pressure :15bar
- Valve Type :AGV
- Part Number :M24200H-AGV2-B
Elcometer 24200H High Pressure Portable Abrasive Blast Machine Kit 2 General Valve – 15bar
Kit includes:
- 610mm, 200 litre Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
- 20m, 38mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
- Externally Mounted Sieve and Lid
PED
- Maximum Working Pressure :15bar
- Valve Type :GV
- Part Number :M24200H-GV2-B
Elcometer 24200H High Pressure Portable Abrasive Blast Machine Kit 1 Automatic General Valve – 15bar
Kit includes:
- 610mm, 200 litre Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- Automatic General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
PED
- Maximum Working Pressure :15bar
- Valve Type :AGV
- Part Number :M24200H-AGV1-B
Elcometer 24200H High Pressure Portable Abrasive Blast Machine Kit 1 General Valve – 15bar
Kit includes:
- 610mm, 200 litre Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
PED
- Maximum Working Pressure :15bar
- Valve Type :GV
- Part Number :M24200H-GV1-B
Spare Parts
| Elcometer 24200H Portable Abrasive Blast Machine Spare Parts | |||||||
| Item | Part Number | Description | |||||
| 1 | MT28622 | Pop Up Valve | |||||
| 2 | MT28631-5 | 25mm Pop Up Shaft for Elcometer 24200H (185mm) | |||||
| 3 | MT29661 | 25mm Female 90° Equal Elbow | |||||
| 4 | MT29663 | 38mm Hex Nipple | |||||
| 5 | MT28617 | Moisture Separator Assembly | |||||
| 6 | MT29662 | 38mm Male/Male Union Taper Seat | |||||
| 7 | MT29664 | 6mm Bulkhead Connector (x3) | |||||
| 8 | MT29721 | Elcometer 24200H Twin Airline Hose Assembly (Yellow & Green) | |||||
| 9 | MT29722 | Airline Assembly for Elcometer 24200H (Red) | |||||
| 10 | MT28627-5 | Pop Up Valve O-Ring (x5) | |||||
| 11 | MT31073 | Protective Edging Strip Kit (2.7m) | |||||
| 12 | MT29667 | Spring Cotter Pin Type E (x3) | |||||
| 13 | MT29719 | Short Deflector Plate Spacer – 25mm (x3) | |||||
| 14 | MT29720 | Long Deflector Plate Spacer – 51mm (x3) | |||||
| 15 | MT29670 | Deflector Plate | |||||
| 16 | MT28629-3 | Deflector Plate Shaft – 82mm (x3) | |||||
| 17 | MT29672 | 25mm Backnut (Recessed) | |||||
| 18 | MT29673 | 25mm Female/Female Union Taper Seat | |||||
| 19 | MT29679 | 25mm Hex Nipple | |||||
| 20 | MT29680 | 25mm Exhaust T Assembly (complete with MT29681 Exhaust Plug) | |||||
| 21 | MT29681 | 25mm Exhaust Plug | |||||
| 22 | MT29723 | 25mm Pipe for Elcometer 24200H (170mm) | |||||
| 23 | MT29683 | 25mm Socket | |||||
| 24 | MT29704 | 25mm Male/Female Equal Union Taper Seat | |||||
| 25 | MT29724 | 25mm Pipe for Elcometer 24200H (108mm) (41/4“) | |||||
| 26 | MT29706 | 25mm Male/Female 90° Elbow | |||||
| 27 | MT29707 | Reducing Bush 25 x 38mm (1″ to 11⁄2“) | |||||
| 28 | MT28599 | 19mm Reinforced Union Elbow | |||||
| 29 | MT29688 | 19mm Hex Nipple | |||||
| 30 | MT29465 | Elcometer RCV4000+ Remote Control Valve | |||||
| 31 | MT29656 | Petcock Valve Assembly – (Red Handle) | |||||
| 32 | MT30122-5 | 38mm Male/Female Equal Union Taper Seat | |||||
| 33 | MT30127-1 | 38mm Pipe for Elcometer 24200H (83mm) | |||||
| 34 | MT29708 | 38mm Equal Pitcher T | |||||
| 35 | MT30094 | 38mm Choke Valve Handle | |||||
| 36 | MT29177 | 38mm Choke Valve Assembly (include MT30094 Choke Valve Handle) | |||||
| 37 | MT29710 | 38mm 60° Cone Male/Male Adaptor | |||||
| 38 | MT29658 | 6mm Ball Valve Assembly – (Black Handle) | |||||
| 39 | MT29660 | 6mm Airline Ball Valve Assembly (Black Handle) | |||||
| 40 | MT28597 | Exhaust Silencer Assembly | |||||
| 41 | MT29692-4 | Protection Guard for Elcometer 24200H | |||||
| 42 | MT28616 | Elcometer Inspection Hatch Door for Elcometer 24200H | |||||
| 43 | MT28613 | ElcoFit™ Door Sealing Gasket | |||||
| 44 | MT29695 | Elcometer Inspection Door Hatch Bolt – M16 x 110mm | |||||
| 45 | MT28615 | Inspection Hatch Door Yoke | |||||
| 46 | MT29696 | M16 Hexagon Flanged Nut | |||||
| 47 | MT29697 | Flat Washer (x8) | |||||
| 48 | MT28636 | Ø250mm Diameter Wheel (x1) | |||||
| 49 | MT28637 | Ø350mm Diameter Wheel (x1) | |||||
| 50 | MT29698 | Split Cotter Pin (x4) | |||||
| – | MT29490-5 | Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange) | |||||
| – | MT29180 | Elcometer Safety Label Kit | |||||
Technical Specifications
| Elcometer 24200H Abrasive Blast Machine – 12bar | |||
| Capacity1 | |||
| Volume | 200 Litres | ||
| Garnet Grit | 468kg | ||
| Steel Shot | 880kg | ||
| Pot Diameter: | 610mm | ||
| Height: | 1380mm | ||
| Width: | 794mm | ||
| Depth: | 1109mm | ||
| Weight: | 205kg | ||
| Pipework Diameter: | 38mm | ||
| Maximum Working Pressure (WP)2: | 15bar | ||
| Operating Temperature Range: | 0 to 60oC | ||
| Kit Selection | Part Numbers | ||
|---|---|---|---|
| Elcometer Blast Machines Kits are available with: | Portable Kit 1 Kit 2 | ||
General Media Valve (G) | Automatic General Valve (A) | M24200H-GV1-B M24200H-AGV1-B | M24200H-GV2-B M24200H-AGV1-B |
| 610mm, 200 litre Abrasive Blast Machine | ■ ■ | ■ ■ | |
| Pressure Test Certificate | ■ ■ | ■ ■ | |
| RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer | ■ ■ | ■ ■ | |
| 20m Pneumatic Control Hose and Deadman’s Handle (DMHII) | ■ ■ | ■ ■ | |
| Choke Valve and Pusher Line | ■ ■ | ■ ■ | |
| Abrasive Metering Valve with Mixer T and Metal Pot Coupling | G A | G A | |
| Moisture Separator | ■ ■ | ■ ■ | |
| 20m, 38mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder |
| ■ ■ | |
| Externally Mounted Sieve and Lid |
| ■ ■ | |
1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.
2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.
Accessories

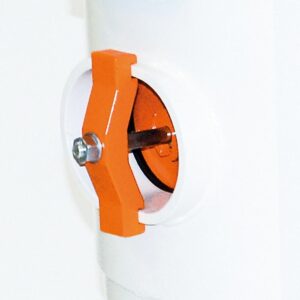

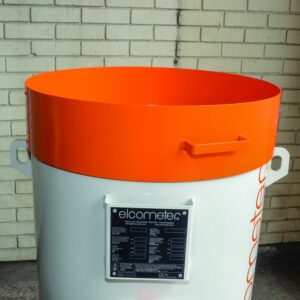

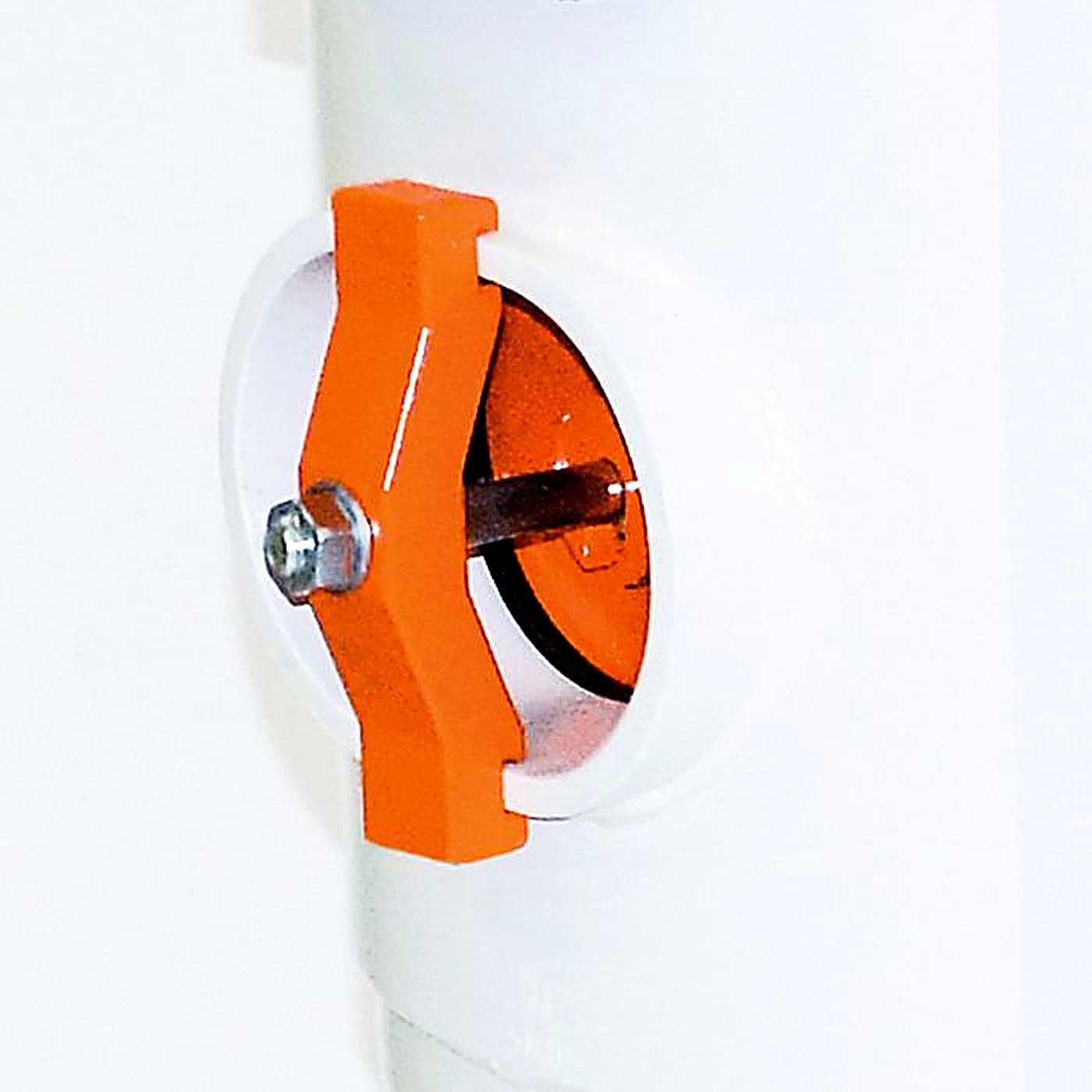

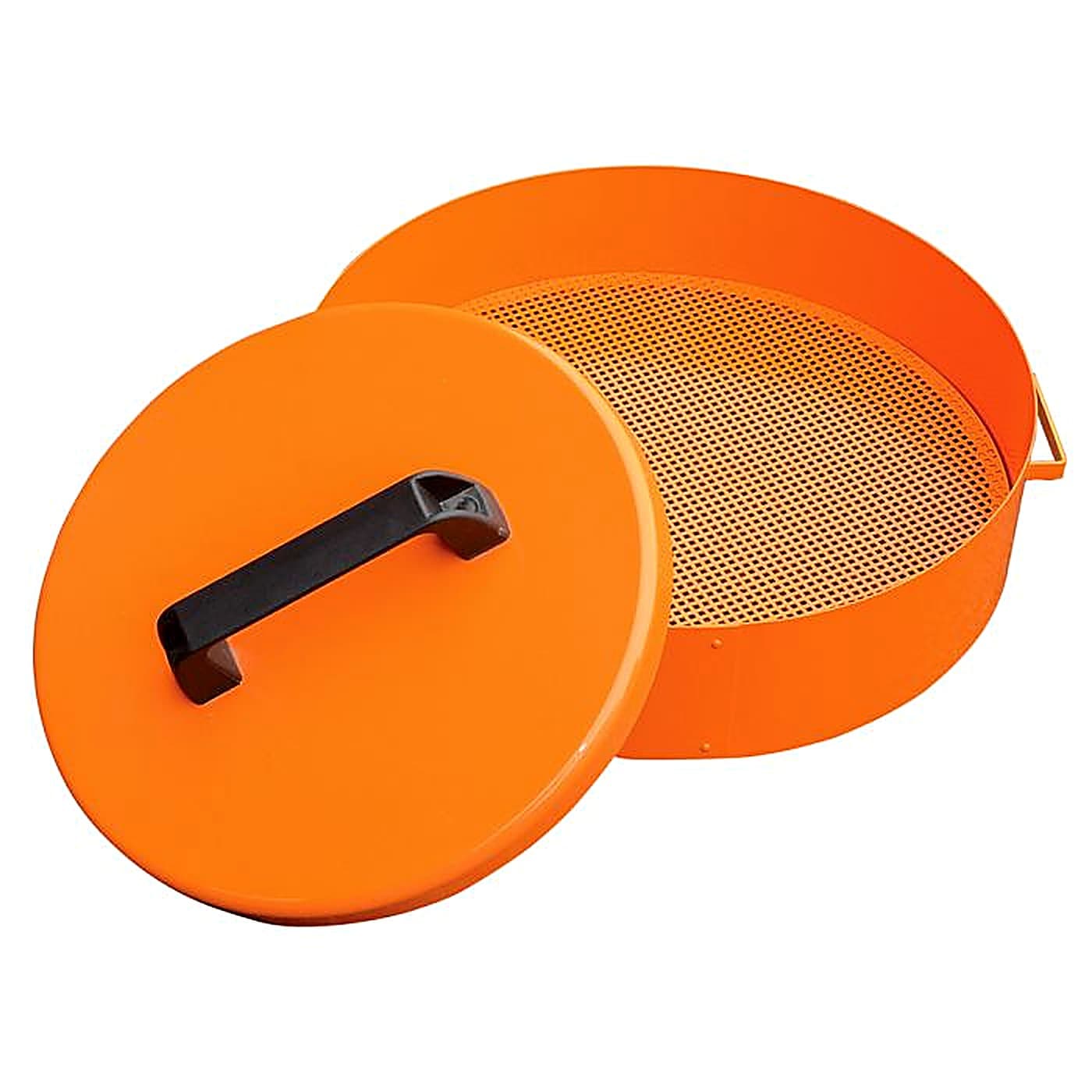

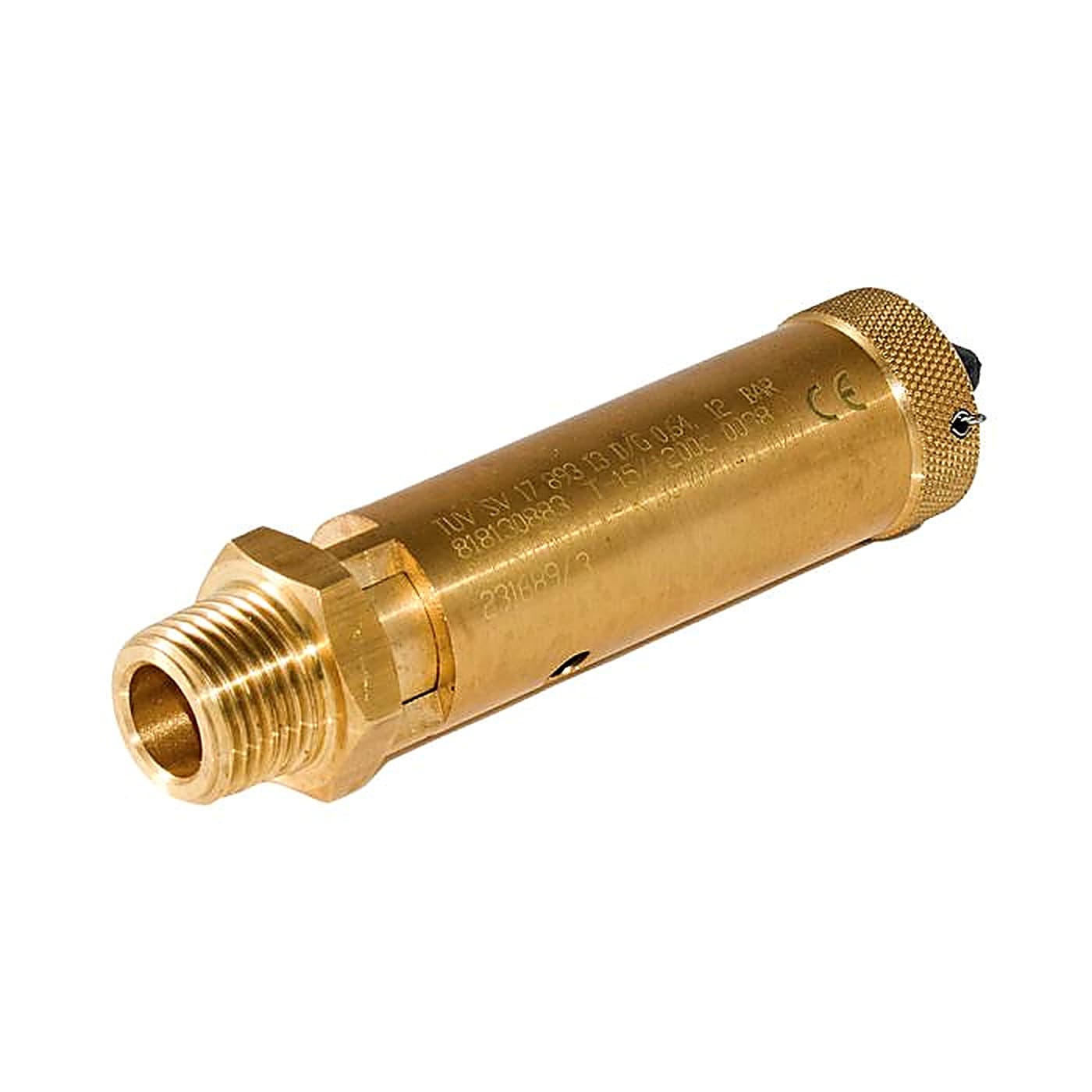

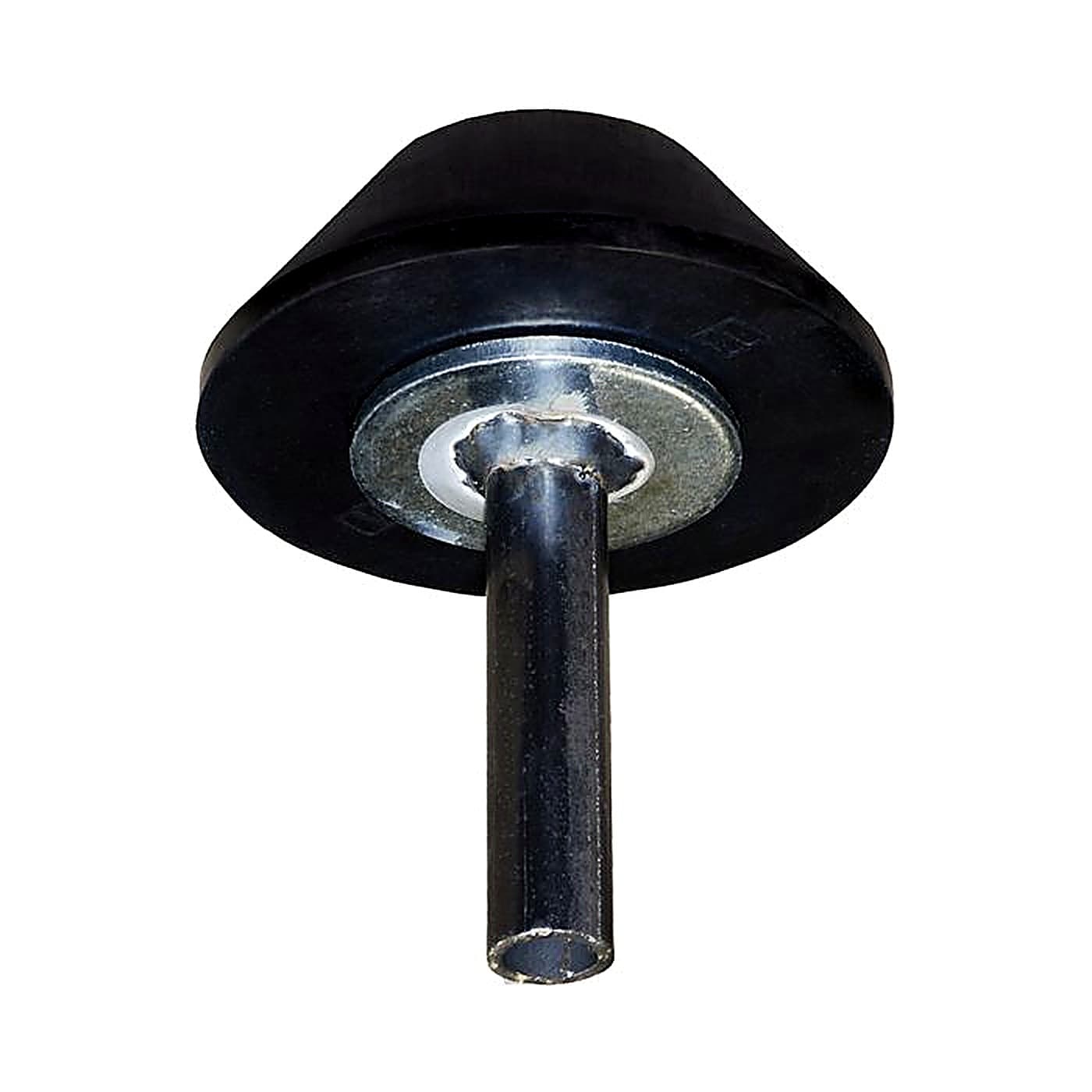

Certified 13mm Pressure Relief Valve Elcometer Internal Pop Up Valve Screen Sieve & Blast Machine Cover Lid Access Door & Assembly

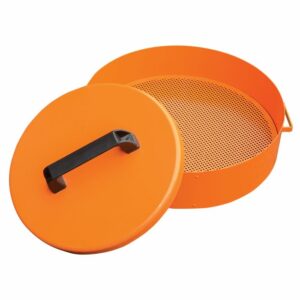

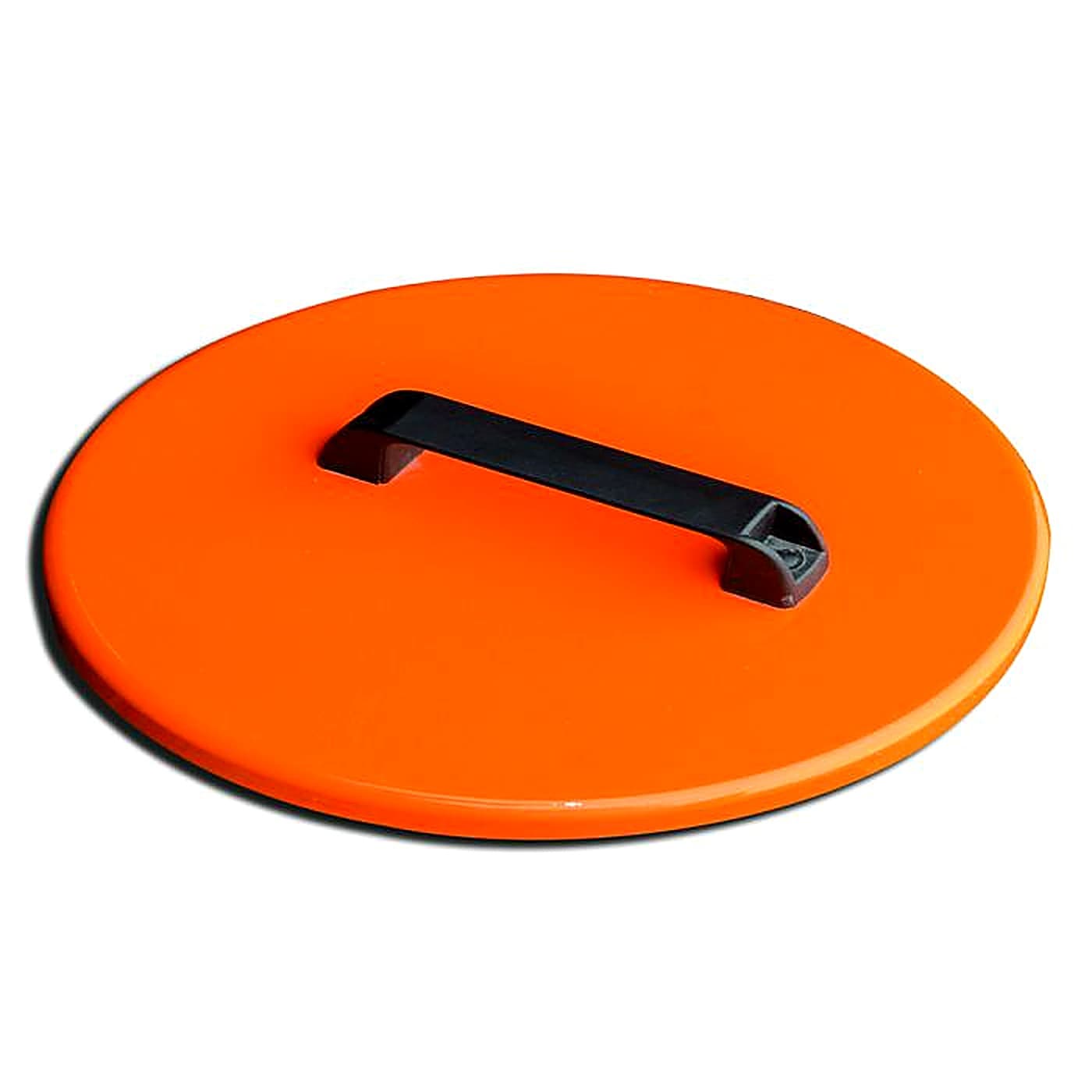

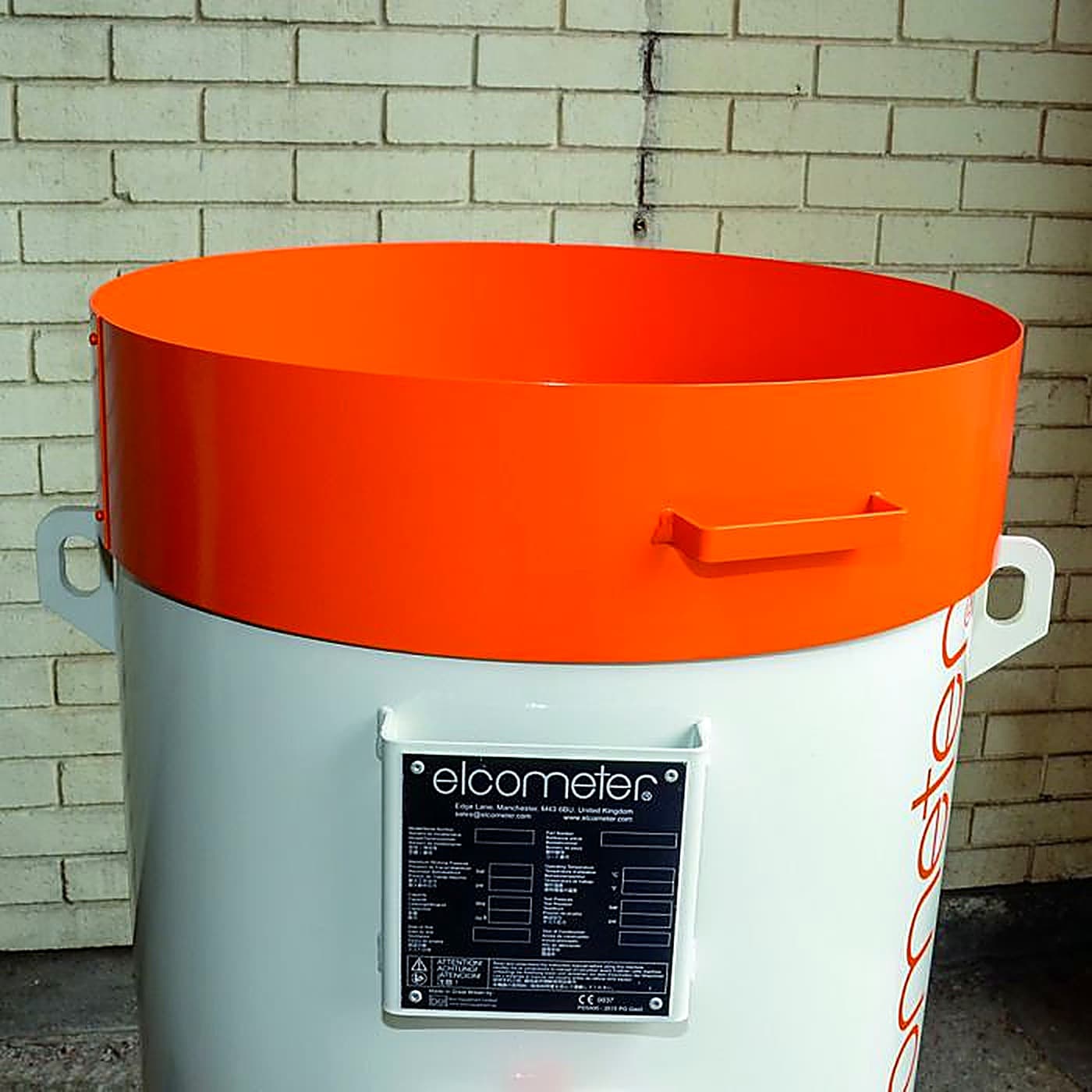

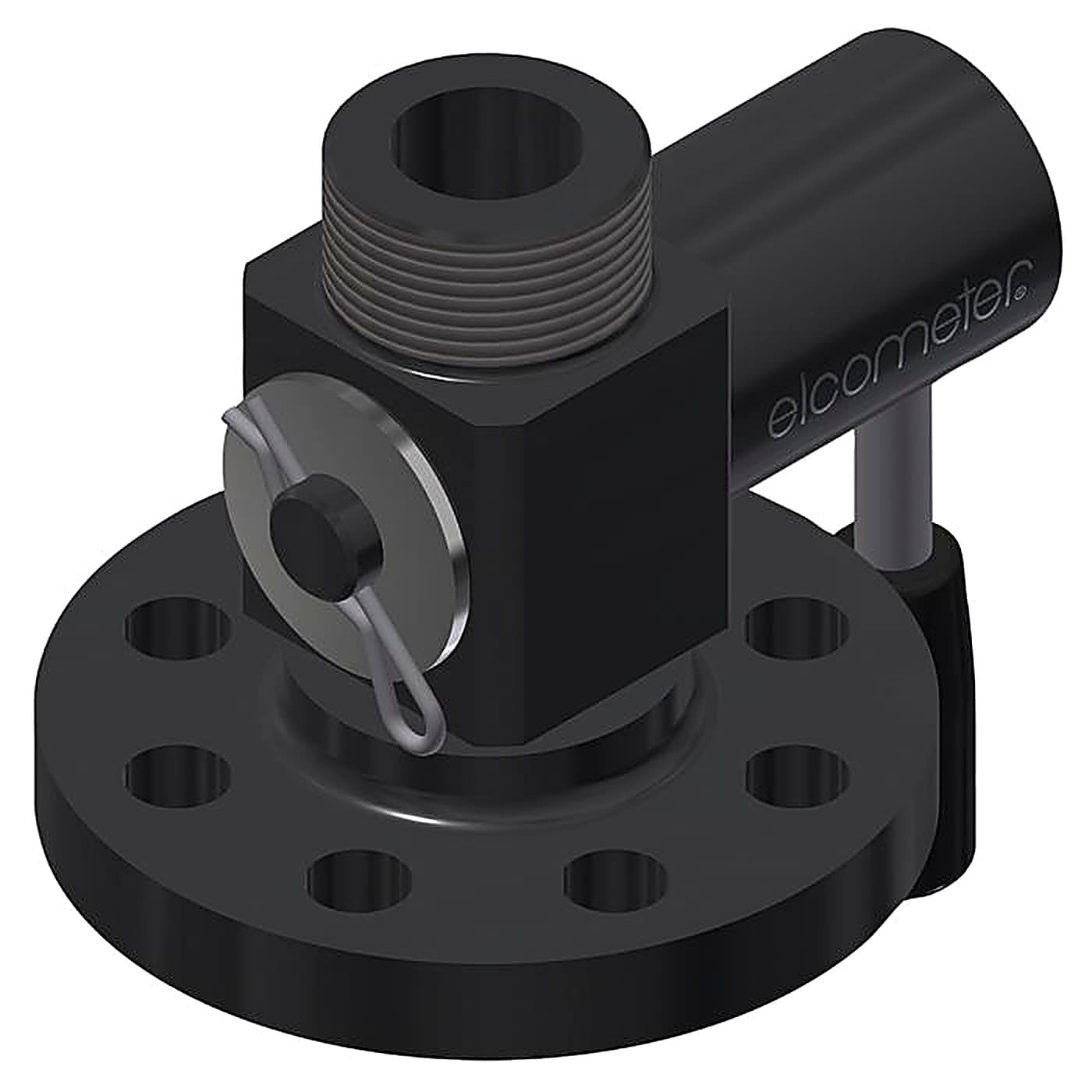

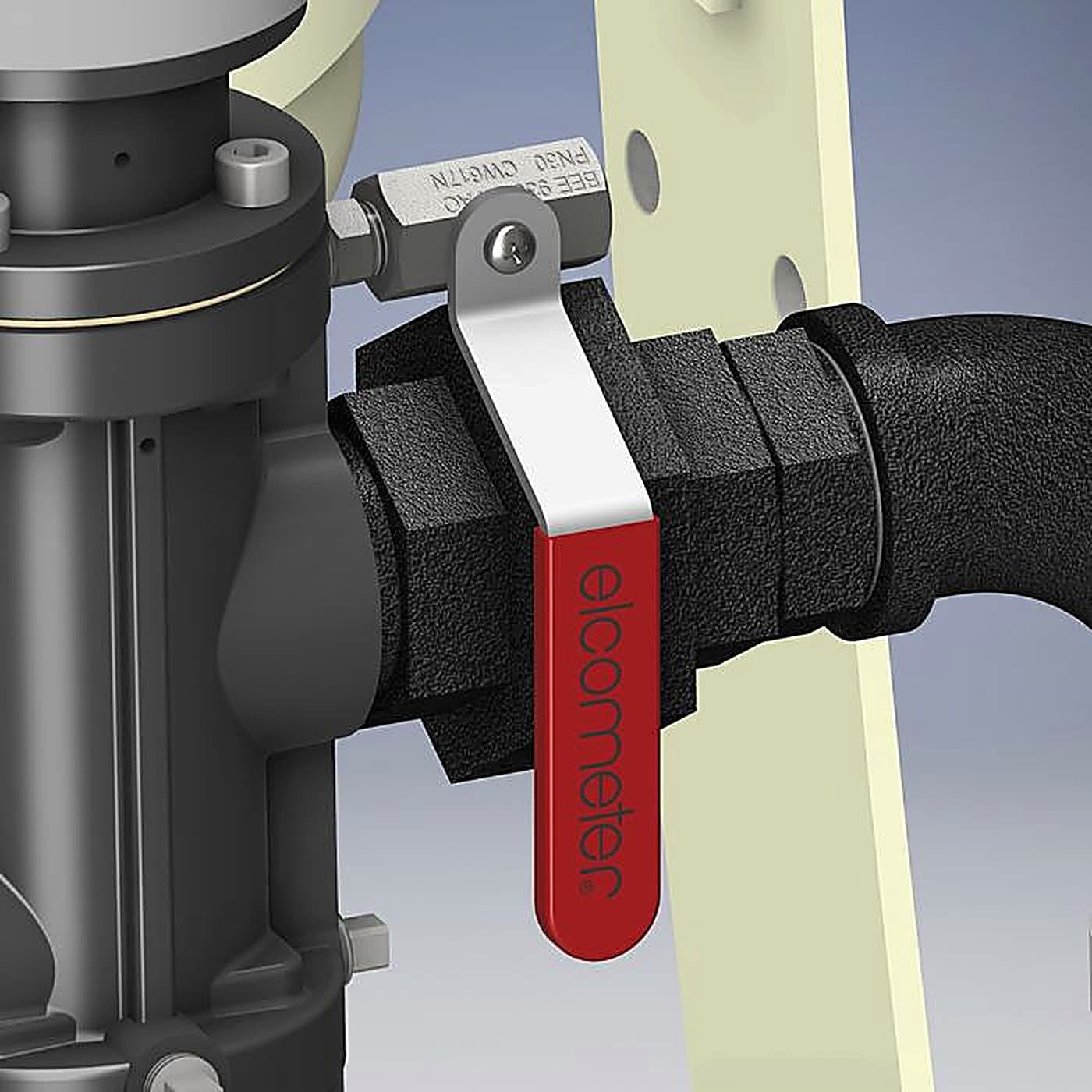

Screen Sieve Elcometer Manual Media Shut Off Elcometer Safety Petcock 6mm HP Ball Valve Blast Machine Cover Lid

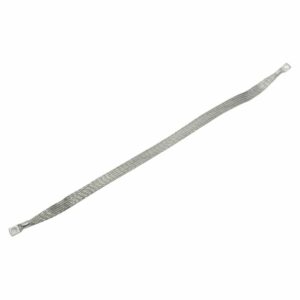

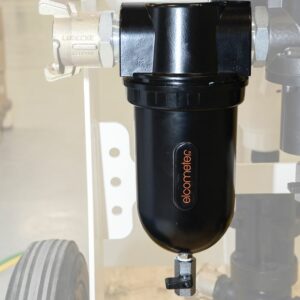

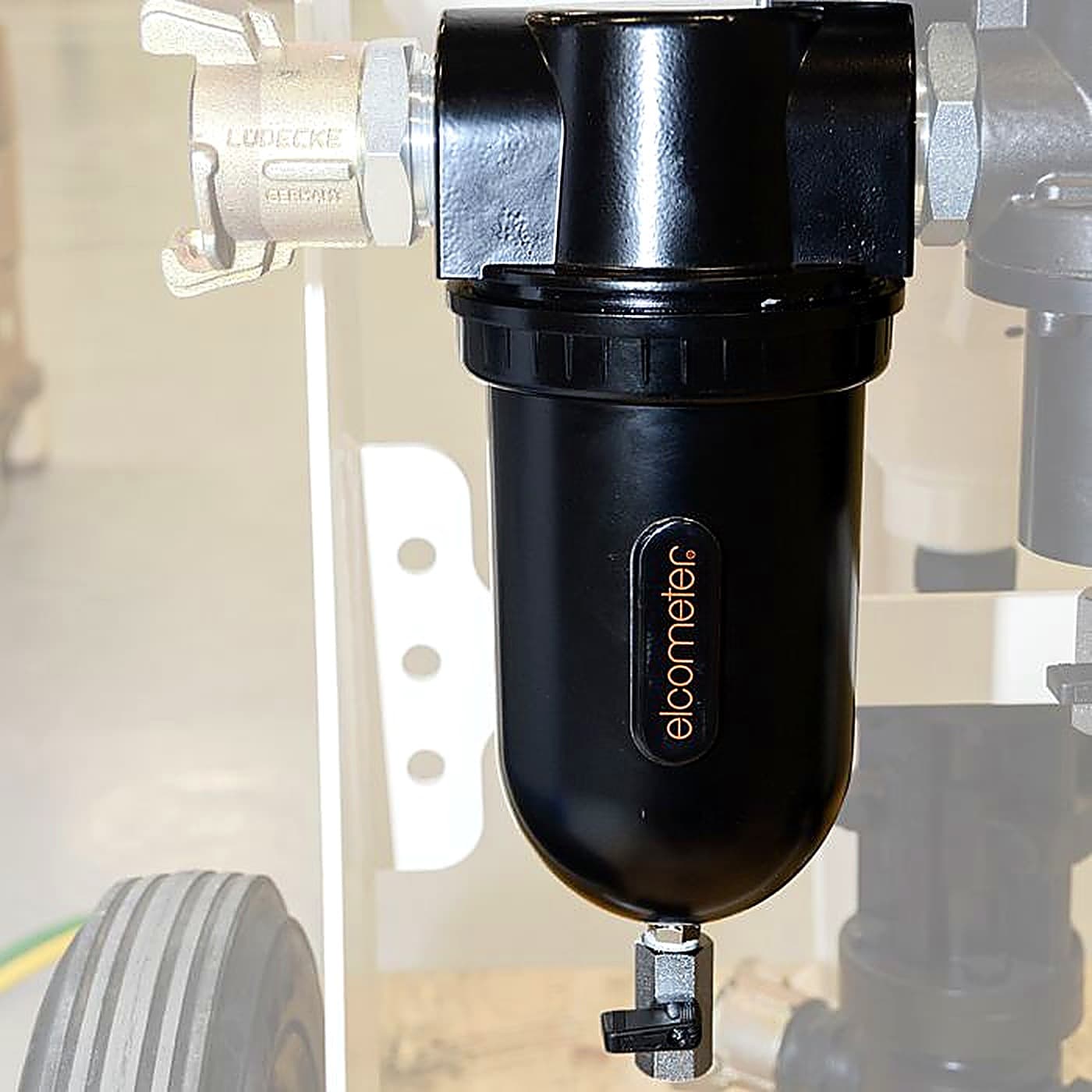

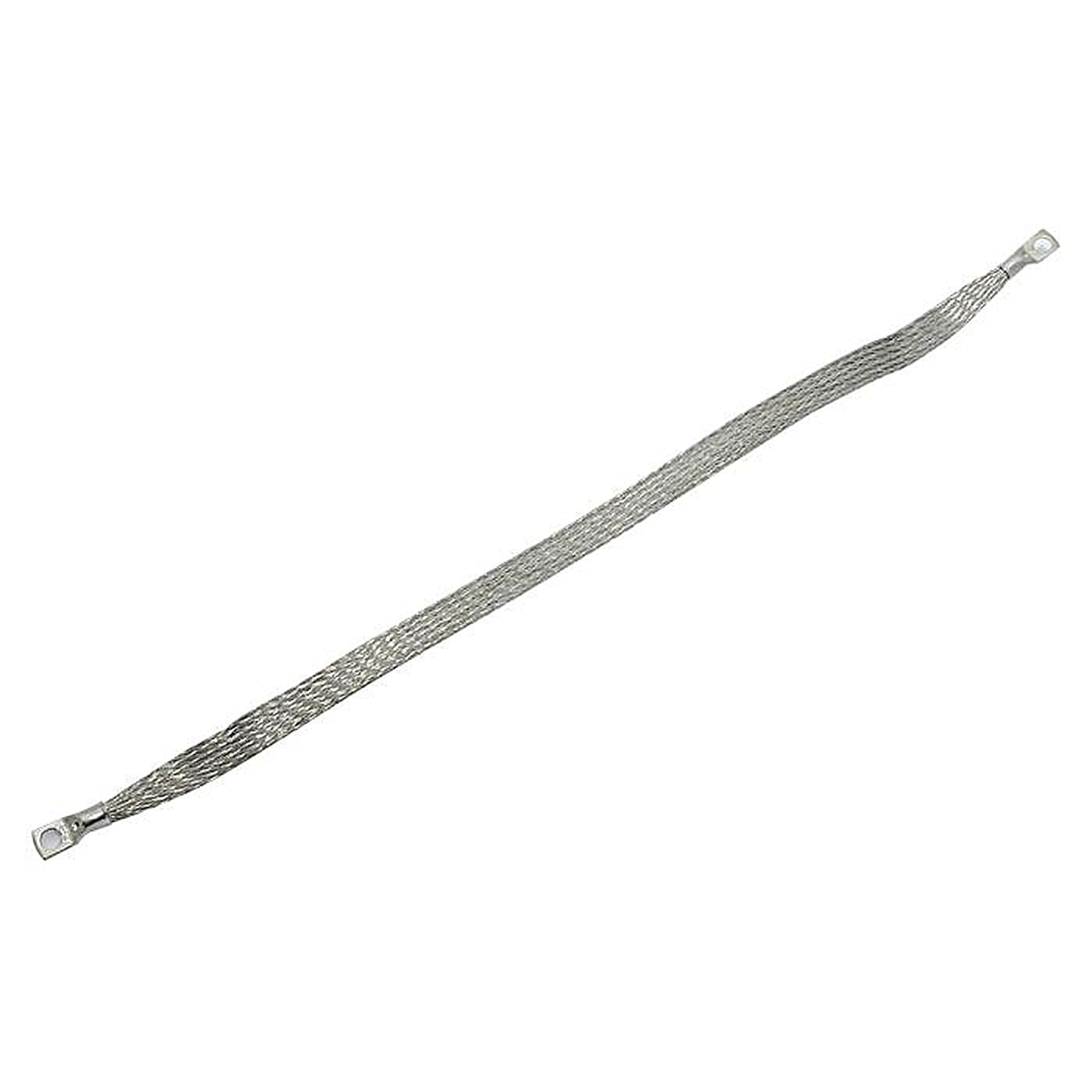

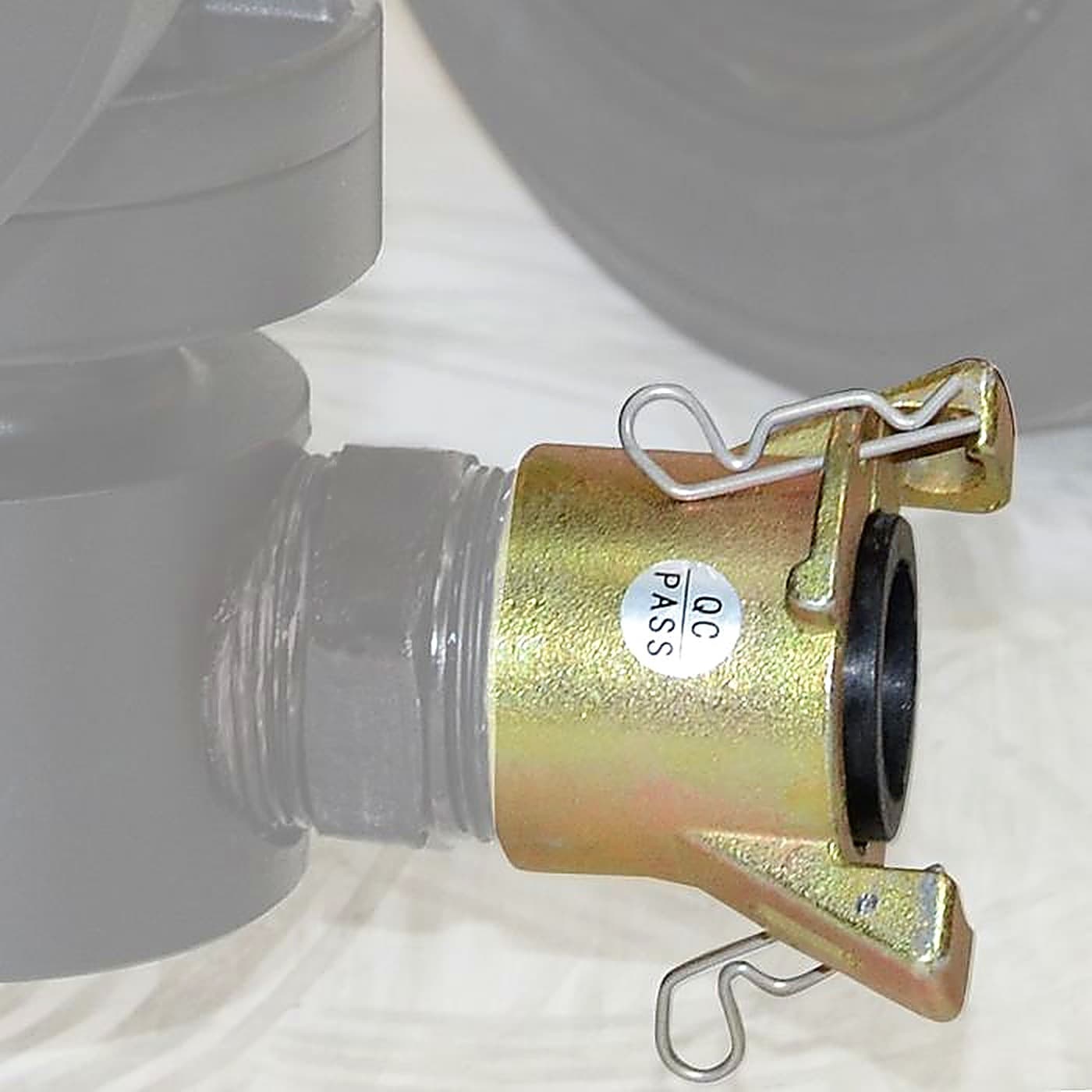

Elcometer 38mm Moisture Separator Elcometer ABM Pot Coupling Earthing Wire Assembly
