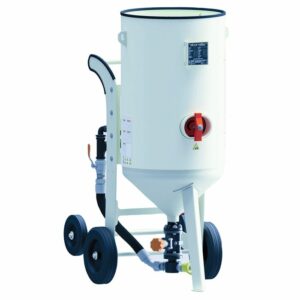

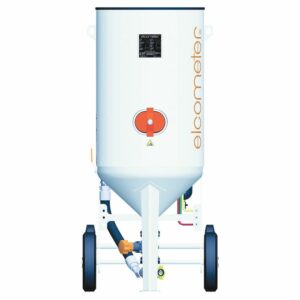

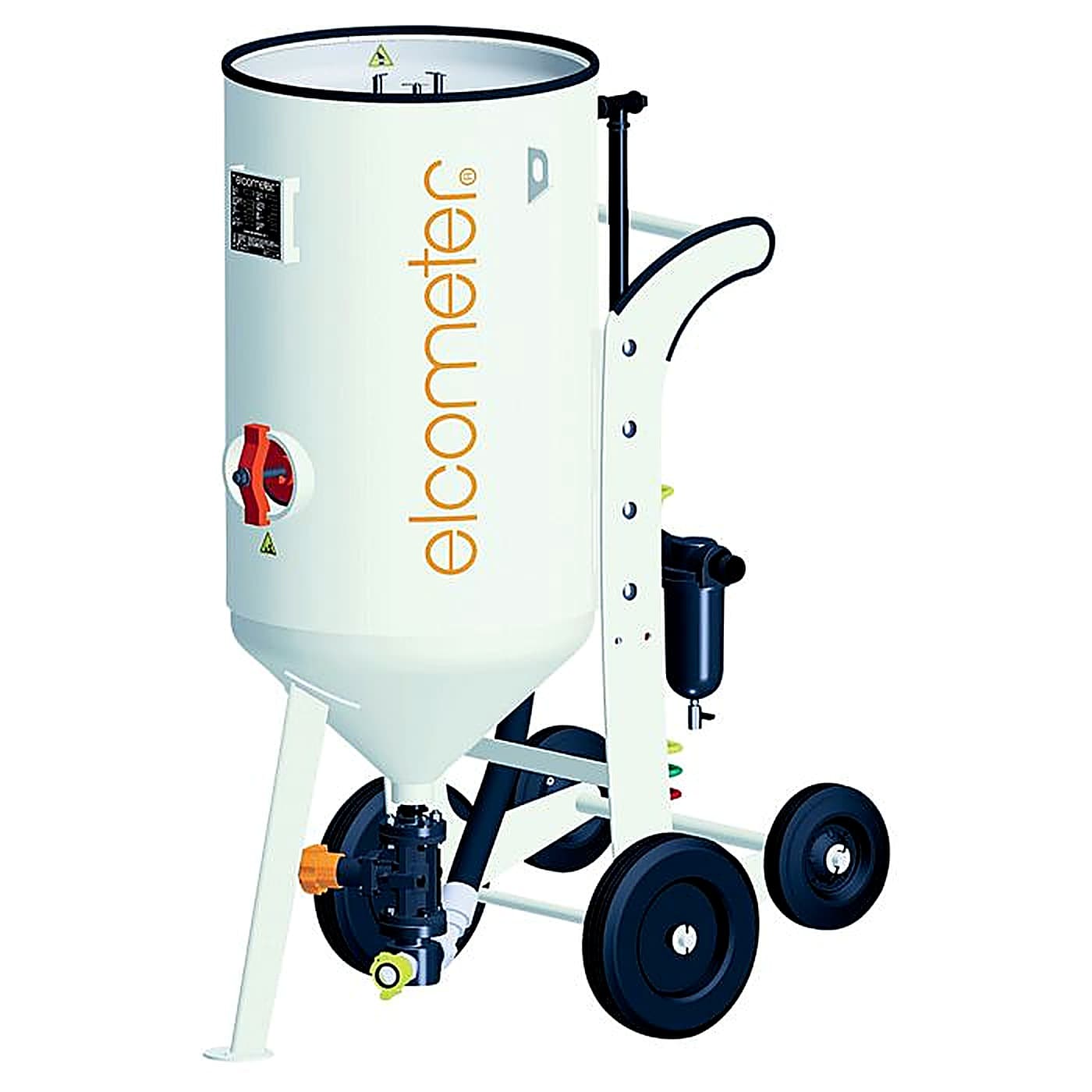

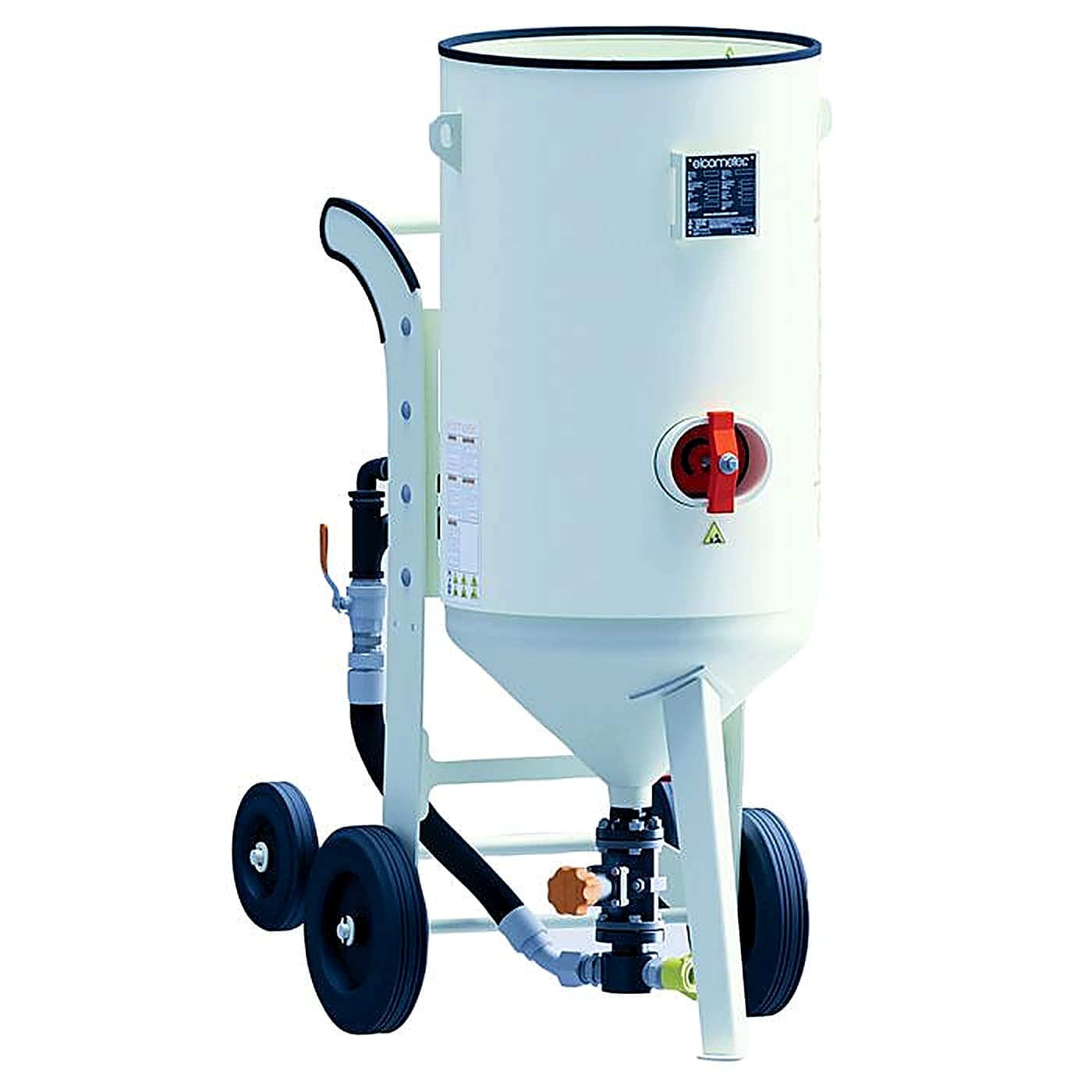

Elcometer 24285 Portable Abrasive Blast Machine 285 litre – 12bar

Product Description

The Elcometer 24285 Abrasive Blast Machine is ideal for continuous high production abrasive blasting, on site or in a blast room.

  • Ideal for site work or blast room installation
  • One or two operators from a single blast pot
  • Ideal for hopper filling
  • Twin wheeled portable blast pot that is safe and easy to manoeuvre
  • Available with a range of grit valves to suit your application
  • Heavy duty 6mm construction
  • Easy and quick to service



Enhance Your Performance

The Elcometer 24285 Portable Abrasive Blast Machine is engineered to work harder, last longer and be faster to maintain. For more information on the efficiency of the Elcometer 24285 Portable Abrasive Blast Machine and how to maximise your up time.

Safe & Reliable

Rugged, reliable and easy to use, the Elcometer 24285 Portable Abrasive Blast Machine & Valves are supplied with a full 12 month warranty and are engineered & tested to be incredibly efficient, durable and safe. For more information on the Elcometer 24285 Portable Abrasive Blast Machines’ safety features.

Elcometer Engineered

The Elcometer 24285 Portable Abrasive Blast Machine is manufactured to an industry leading specification and designed and engineered by Elcometer experts. For more information about the high quality components of the Elcometer 24285 Portable Abrasive Blast Machine, including the high flow pipework, precision metering valves and hardwearing mixer T’s.

Product Range

Elcometer 24285 Portable Abrasive Blast Machine Kit 2 General Valve – 12bar

Kit includes:
  • 610mm, 285 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • General Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator
  • 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
  • Externally Mounted Sieve and Lid



PED
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M24285-GV2-B



ASME
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M24285-GV2-N



Elcometer 24285 Portable Abrasive Blast Machine Kit 2 Automatic General Valve – 12bar

Kit includes:
  • 610mm, 285 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • Automatic General Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator
  • 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
  • Externally Mounted Sieve and Lid



PED
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M24285-AGV2-B



ASME
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M24285-AGV2-N



Elcometer 24285 Portable Abrasive Blast Machine Kit 1 Automatic General Valve – 12bar

Kit includes:
  • 610mm, 285 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • Automatic General Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator



PED
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M24285-AGV1-B



ASME
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M24285-AGV1-N



Elcometer 24285 Portable Abrasive Blast Machine Kit 1 General Valve – 12bar

Kit includes:
  • 610mm, 285 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • General Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator



PED
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M24285-GV1-B



ASME
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M24285-GV1-N

Spare Parts

PED

Elcometer 24285 Portable Abrasive Blast Machine Spare Parts



Elcometer 24285 Portable Abrasive Blast Machine Spare Parts
ItemPart NumberDescription
1MT28622Pop Up Valve
2MT28631-625mm Pop Up Shaft for Elcometer 24285
3MT2966125mm Female 90° Equal Elbow
4MT2966338mm Hex Nipple
5MT28617Moisture Separator Assembly
6MT2966238mm Male/Male Union Taper Seat
7MT296646mm Bulkhead Connector (x3)
8MT29727Elcometer 24285 Twin Airline Hose Assembly (Yellow & Green)
9MT29728Airline Assembly for Elcometer 24285 (Red)
10MT28627-5Pop Up Valve O-Ring (x5)
11MT29601Protective Edging Strip Kit (2.7m)
12MT29667Spring Cotter Pin Type E (x3)
13MT29719Short Deflector Plate Spacer – 25mm (x3)
14MT29720Long Deflector Plate Spacer – 51mm (x3)
15MT29670Deflector Plate
16MT28629-3Deflector Plate Shaft – 82mm (x3)
17MT2967225mm Backnut (Recessed)
18MT2967325mm Female/Female Union Taper Seat
19MT2967925mm Hex Nipple
20MT2968025mm Exhaust T Assembly (complete with MT29681 Exhaust Plug)
21MT2968125mm Exhaust Plug
22MT2972925mm Pipe for Elcometer 24285 (448mm)
23MT2968325mm Socket
24MT2970425mm Male/Female Equal Union Taper Seat
25MT2973025mm Pipe for Elcometer 24285 (106mm)
26MT2970625mm Male/Female 90° Elbow
27MT2970725 x 38mm Reducing Bush (1″ to 11⁄2” )
28MT2859919mm Reinforced Union Elbow
29MT2968819mm Hex Nipple
30MT29465Elcometer RCV4000+ Remote Control Valve
31MT29656Petcock Valve Assembly – (Red Handle)
32MT30122-538mm Male/Female Equal Union Taper Seat
33MT2972638mm Pipe for Elcometer 24285 (84mm)
34MT2970838mm Equal Pitcher T
35MT3009438mm Choke Valve Handle
36MT2917738mm Choke Valve Assembly (include MT30094 Choke Valve Handle)
37MT2971038mm 60° Cone Male/Male Adaptor
38MT296586mm Ball Valve Assembly – (Black Handle)
39MT296606mm Airline Ball Valve Assembly (Black Handle)
40MT28597Exhaust Silencer Assembly
41MT29692-4Protection Guard for Elcometer 24285
42MT28616Elcometer Inspection Hatch Door for Elcometer 24285
43MT28613ElcoFit™ Door Sealing Gasket
44MT29695Elcometer Inspection Door Hatch Bolt – M16 x 110mm
45MT28615Inspection Hatch Door Yoke
46MT29696M16 Hexagon Flanged Nut
47MT29697Flat Washer (x8)
48MT28636Ø250mm Diameter Wheel (x1)
49MT28637Ø350mm Diameter Wheel (x1)
50MT29698Split Cotter Pin (x4)
–MT29490-6Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange)
–MT29180Elcometer Safety Label Kit



ASME

Elcometer 24285 Portable Abrasive Blast Machine Spare Parts
ItemPart NumberDescription
1MT28622Pop Up Valve
2MT28631-6N25mm Pop Up Shaft for Elcometer 24285
3MT29661N25mm Female 90° Equal Elbow
4MT31013-3N38mm Hex Nipple
5MT28617NMoisture Separator Assembly
6MT30407N38mm Close Nipple
7MT31018-5N38mm Union Brass Seat
8MT29664N6mm Bulkhead Connector (x3)
9MT29727NElcometer 24285 Twin Airline Hose Assembly (Yellow & Green)
10MT29728NAirline Assembly for Elcometer 24285 (Red)
11MT28627-5Pop Up Valve O-Ring (x5)
12MT29601Protective Edging Strip Kit (2.7m)
13MT29667Spring Cotter Pin Type E (x3)
14MT29719Short Deflector Plate Spacer – 25mm (x3)
15MT29720Long Deflector Plate Spacer – 51mm (x3)
16MT29670Deflector Plate
17MT28629-3Deflector Plate Shaft – 82mm (x3)
18MT29672N25mm Backnut
19MT31018-3N25mm Union Brass Seat
20MT31013-2N25mm Hex Nipple
21MT30574-2N25mm Equal T
22MT29681N25mm Solid Plug
23MT29729N25mm SCH 40 Pipe Tube
24MT31017N25mm Machine Socket
25MT30556-7N25mm Pipe
26MT31019-2N25mm 90° Elbow
27MT30577-3N25 to 38mm Reducing Bush
28MT31013-1N19mm Hex Nipple
29MT28599N19mm Union Elbow Male
30MT29465NElcometer RCV4000+ Remote Control Valve
31MT29656NPetcock Valve Assembly – (Red Handle)
32MT30556-3N38mm Pipe
33MT29708N38mm Equal Pitcher T
34MT30094N38mm Choke Valve Handle
35MT29177N38mm Choke Valve Handle Assembly (includes MT30094N Choke Valve Handle)
36MT29710N38mm NPTF Male x 7/8 JIC Male Adaptor
37MT29658N6mm Ball Valve Assembly (Black Handle)
38MT29660N6mm Airline Ball Valve Assembly (Black Handle)
39MT28597NExhaust Silencer Assembly
40MT29692-4Protection Guard for Elcometer 24285
41MT28616Elcometer Inspection Hatch Door for Elcometer 24285
42MT28613ElcoFit™ Door Sealing Gasket
43MT29695NElcometer Inspection Door Hatch Bolt – M16 x 110mm
44MT28615Inspection Hatch Door Yoke
45MT29696NM16 Hexagon Flanged Nut
46MT29697Flat Washer (x8)
47MT28636Ø250mm Diameter Wheel (x1)
48MT28637Ø350mm Diameter Wheel (x1)
49MT29698Split Cotter Pin (x4)
–MT29490-6NElcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange)
–MT29180Elcometer Safety Label Kit


Technical Specifications

Elcometer 24285 Abrasive Blast Machine – 12bar
Capacity1
Volume285 Litres
Garnet Grit667kg
Steel Shot1254kg
Pot Diameter:610mm
Height:1665mm
Width:794mm
Depth:1109mm
Weight:231kg
Pipework Diameter:38mm
Maximum Working Pressure (WP)2:12bar
Operating Temperature Range:0 to 60oC

24285 Diagram

PED

Kit SelectionPart Numbers
Elcometer Blast Machines Kits are available with:

Portable

Kit 1                                            Kit 2

General Media Valve (G)General Valve Automatic General Valve (A)Automatic General Valve

M24285-GV1-B

M24285-AGV1-B

M24285-GV2-B

M24285-AGV2-B

610mm, 285 litre Abrasive Blast Machine

■

■

■

■

Pressure Test Certificate

■

■

■

■

RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

■

■

■

■

20m Pneumatic Control Hose and Deadman’s Handle (DMHII)

■

■

■

■

Choke Valve and Pusher Line

■

■

■

■

Abrasive Metering Valve with Mixer T and Metal Pot Coupling

G

A

G

A

Moisture Separator

■

■

■

■

20m, 32mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder



■

■

Externally Mounted Sieve and Lid



■

■


1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.

2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.





ASME

Kit SelectionPart Numbers
Elcometer Blast Machines Kits are available with:

Portable

Kit 1                                            Kit 2

General Media Valve (G)General Valve Automatic General Valve (A)Automatic General Valve

M24285-GV1-N

M24285-AGV1-N

M24285-GV2-N

M24285-AGV2-N

610mm, 285 litre Abrasive Blast Machine

■

■

■

■

Pressure Test Certificate

■

■

■

■

RCV4000+ Remote Control Valve with Air manifold, Exhaust and Silencer

■

■

■

■

20m Pneumatic Control Hose and Deadman’s Handle (DMHII)

■

■

■

■

Choke Valve and Pusher Line

■

■

■

■

Abrasive Metering Valve with Mixer T and Metal Pot Coupling

G

A

G

A

Moisture Separator

■

■

■

■

20m, 32mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder



■

■

Externally Mounted Sieve and Lid



■

■


1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.

2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.

Accessories

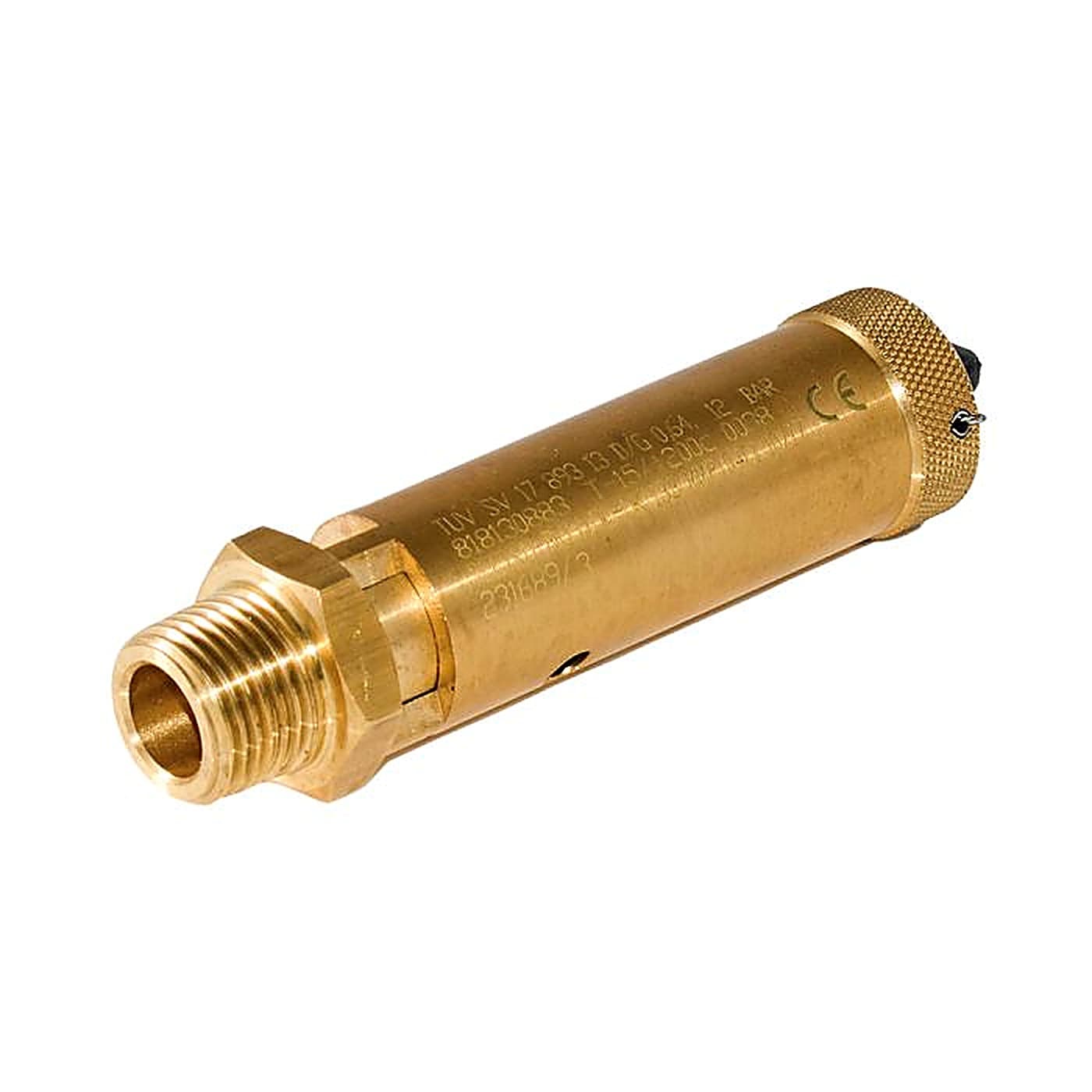

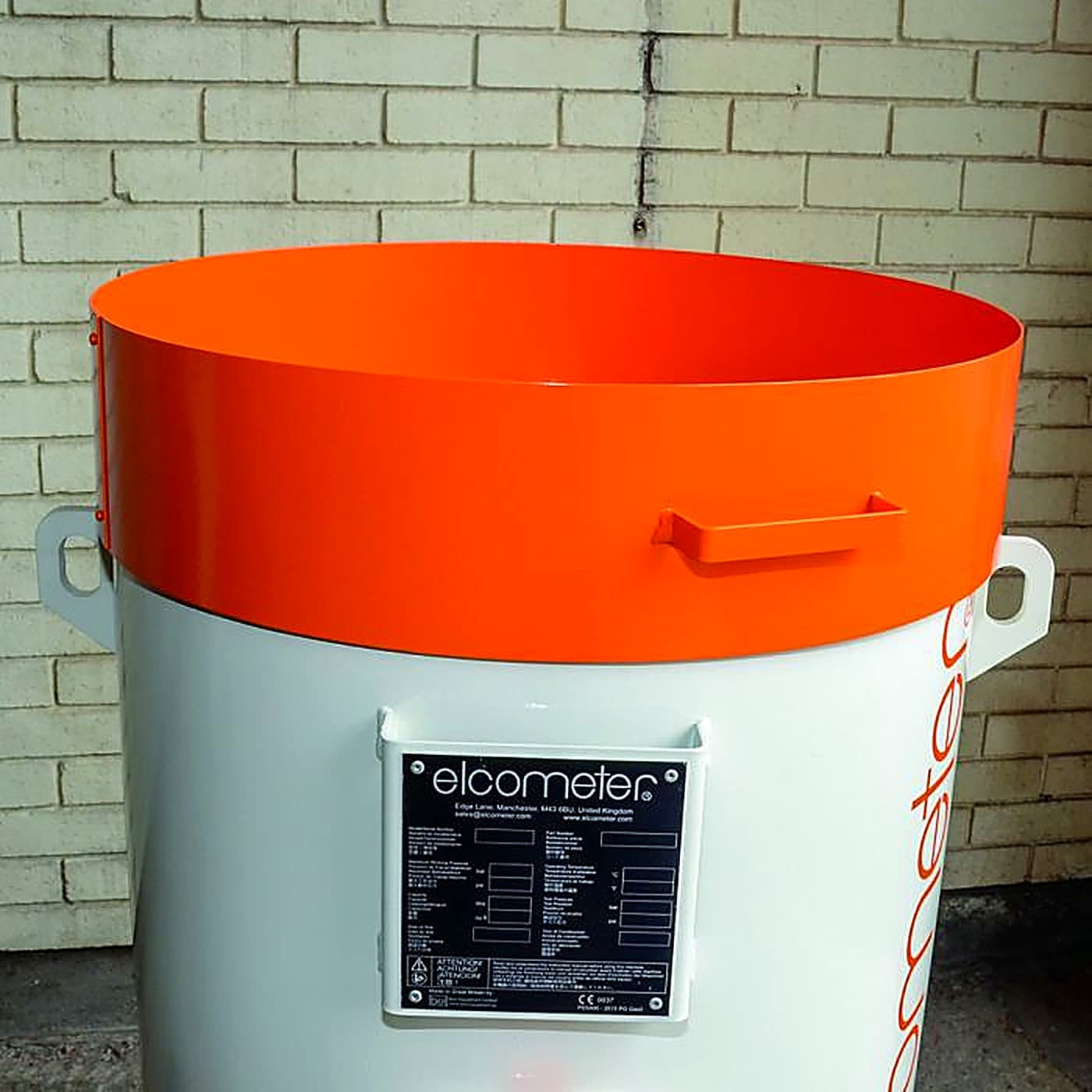

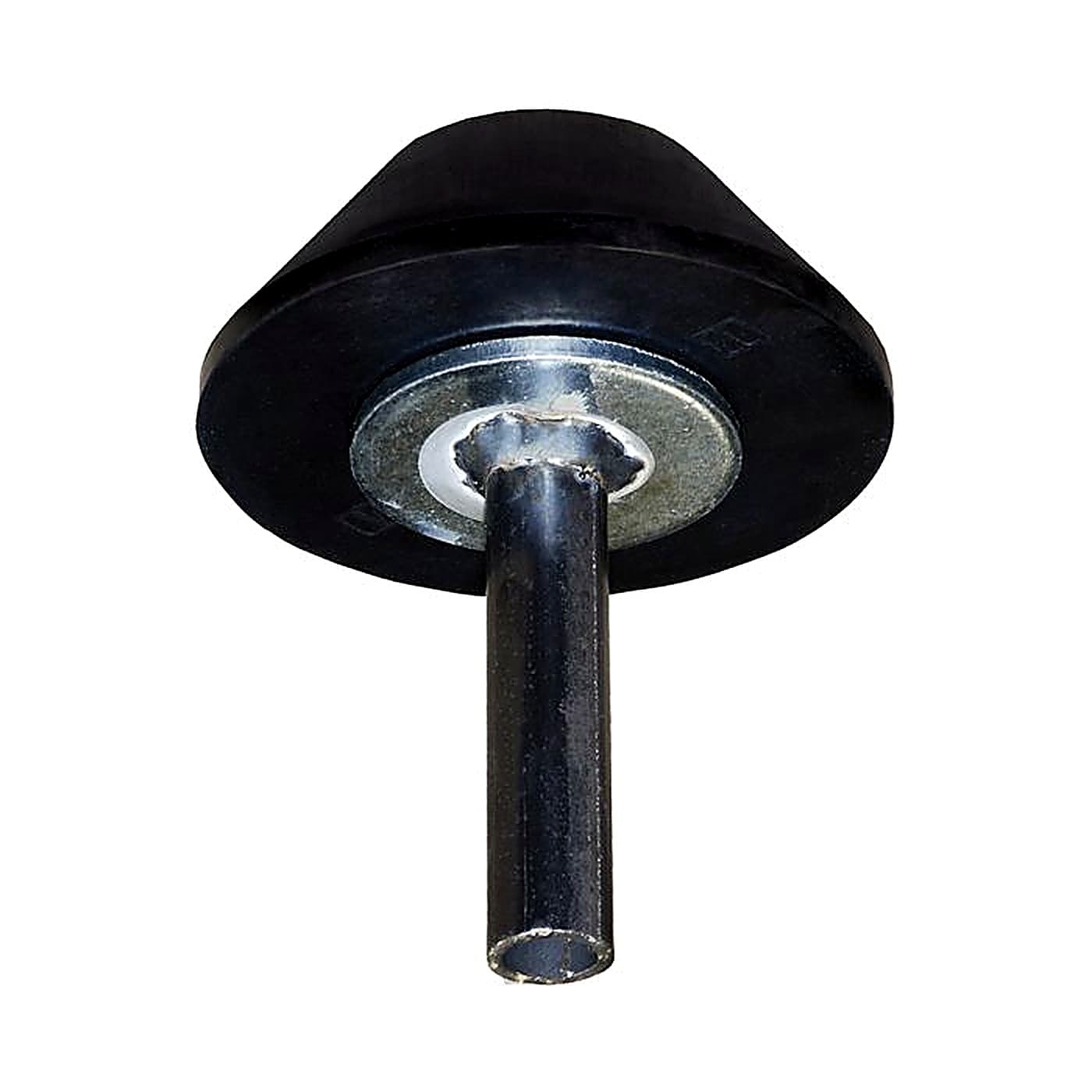

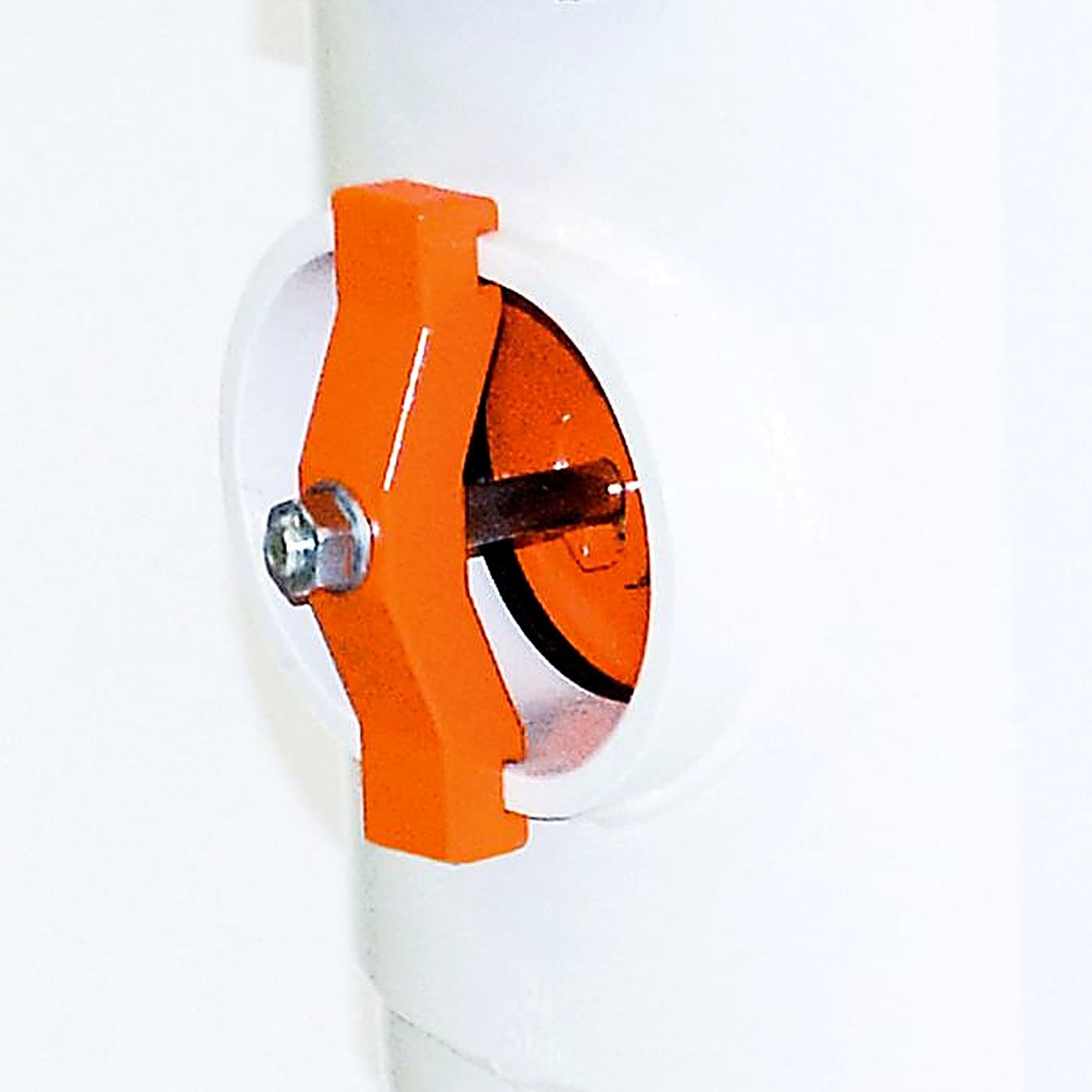

Certified 13mm Pressure Relief Valve      Elcometer Internal Pop Up Valve          Screen Sieve & Blast Machine Cover Lid              Access Door & Assembly

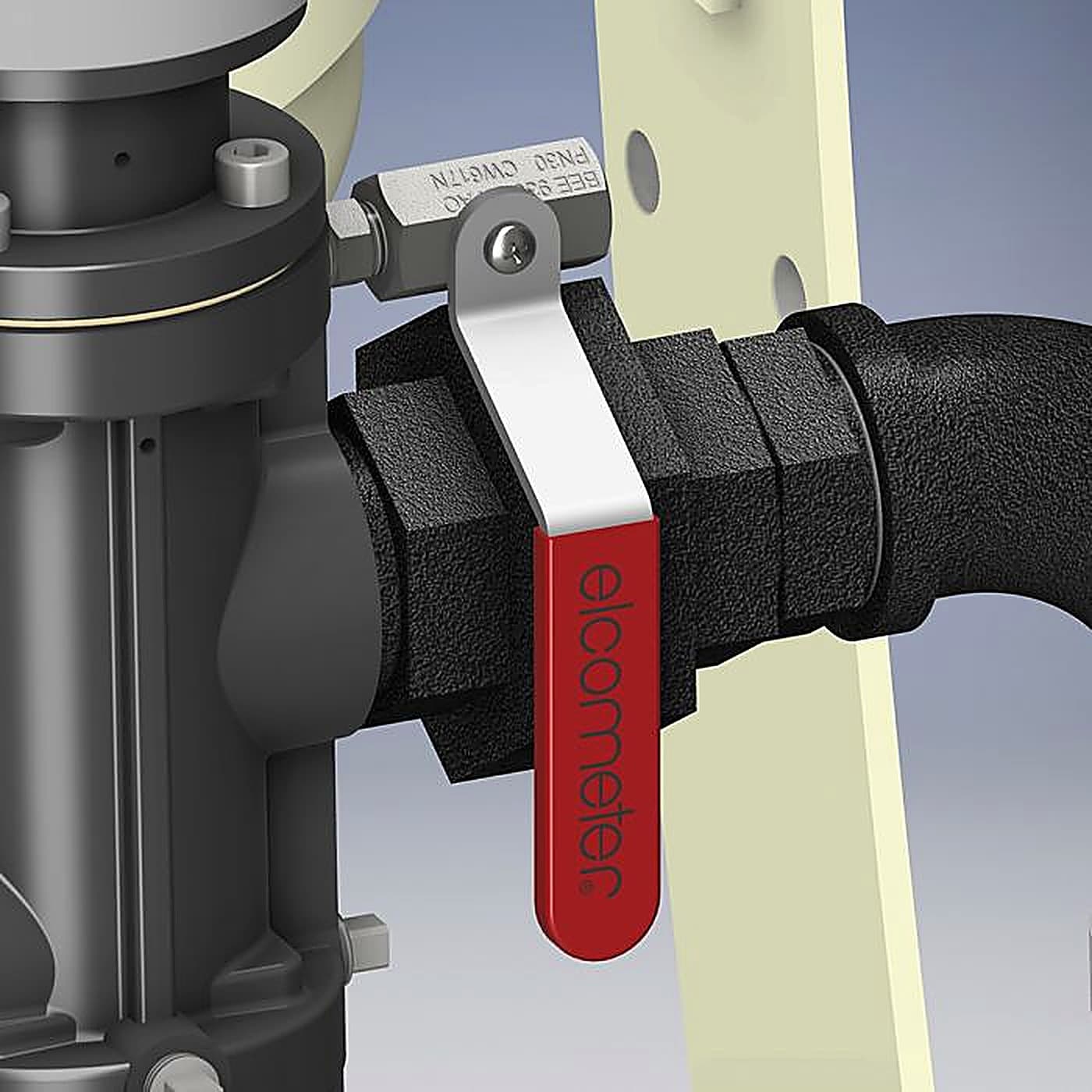

        Screen Sieve                               Elcometer Manual Media Shut Off        Elcometer Safety Petcock 6mm HP Ball Valve              Blast Machine Cover Lid

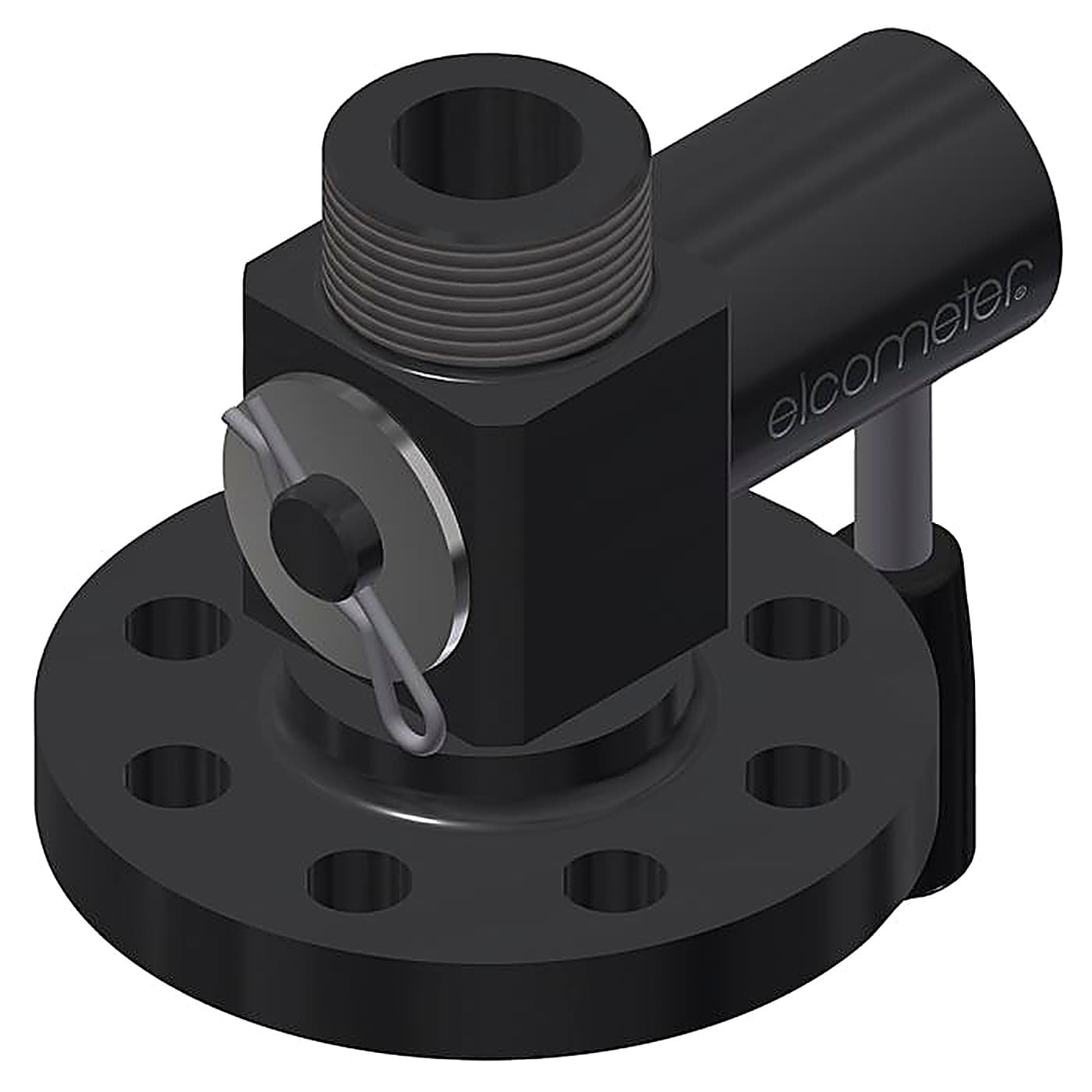

                                                                  Valve and Flange Assembly

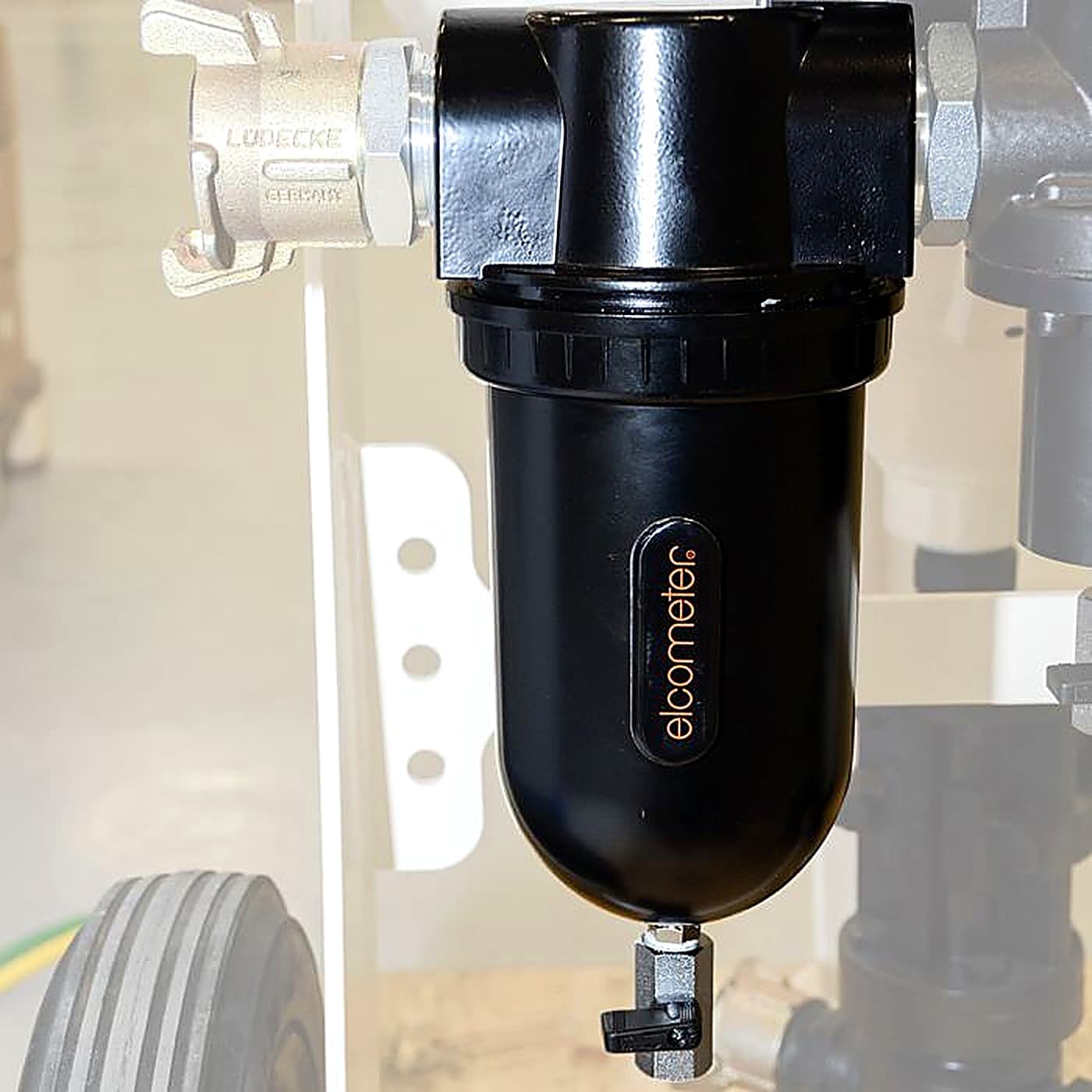

Elcometer 38mm Moisture Separator       Elcometer ABM Pot Coupling                         Earthing Wire Assembly

Data Sheet

Elcometer 24285 Portable Abrasive Blast Machine 285 litre – 12bar  –  Data Sheet
