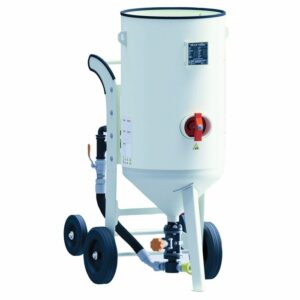

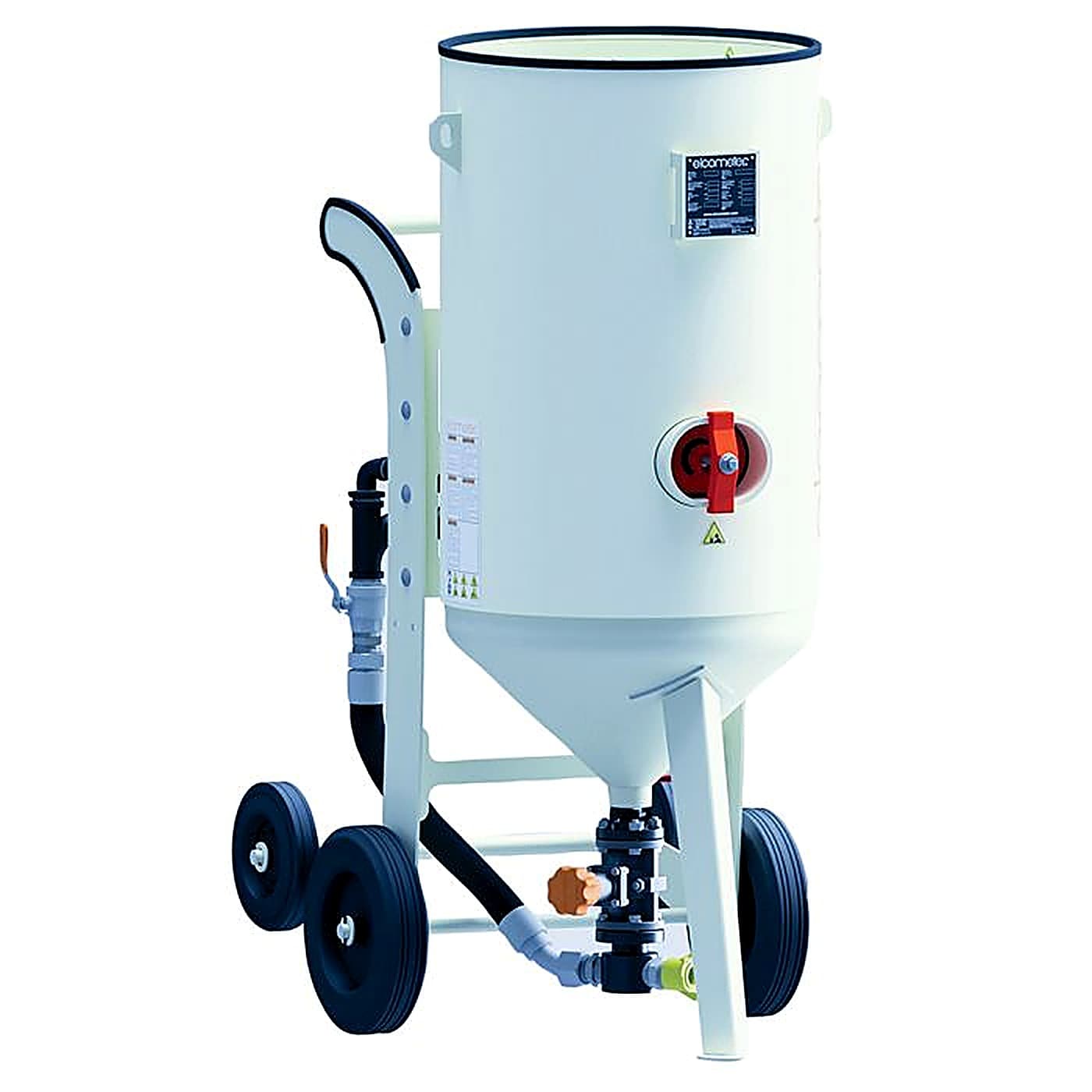

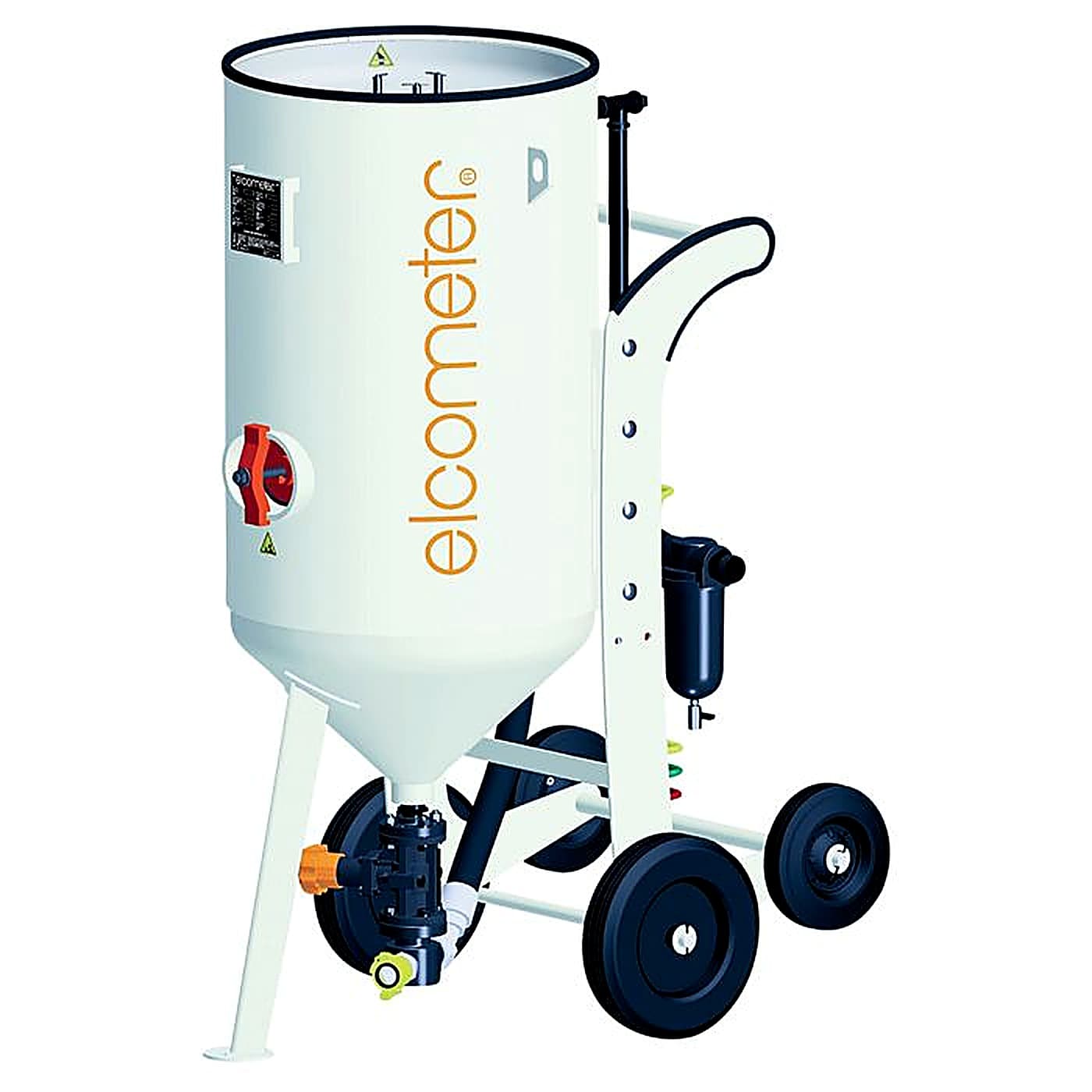

Elcometer 24285H Portable Abrasive Blast Machine 285 litre - 15bar

Specialist pick

Image 1 / 8

About this product

The Elcometer 24285H Portable Abrasive Blast Machine (part numbers M24285H-GV1-B, M24285H-GV2-B, M24285H-AGV1-B and M24285H-AGV2-B) is a 285 litre high pressure blast pot for large scale applications that demand continuous, high production blasting. The H marks the higher pressure rating of 15bar against the 12bar of the standard 24285, increasing abrasive velocity for faster removal of mill scale, rust and old coatings on demanding jobs.

The 285 litre pot of the Elcometer 24285H Portable Abrasive Blast Machine holds up to 667kg of garnet grit or 1254kg of steel shot, suits filling from a storage hopper, and where configured can feed one or two operators from a single pot. Construction is heavy duty 6mm steel with 38mm pipework and an operating temperature range of 0 to 60 degrees C. The pot is 610mm in diameter, stands 1665mm high and weighs 231kg, with a twin wheeled frame for safe handling of a loaded machine.

The Elcometer 24285H Portable Abrasive Blast Machine is available with a range of grit valves to suit the application, in General Valve (GV) and Automatic General Valve (AGV) forms, Kit 1 or Kit 2. Kits add the RCV4000+ remote control valve, deadman's handle, choke valve, moisture separator and, on Kit 2, a 38mm ID blast hose. The Elcometer 24285H Portable Abrasive Blast Machine carries a full 12 month warranty and is quick to service.

Used in surface preparation and corrosion control on site and in blast rooms, the Elcometer 24285H Portable Abrasive Blast Machine is supplied in South Africa by BAMR, the country's authorised distributor.

Elcometer

Elcometer 24285H Portable Abrasive Blast Machine 285 litre - 15bar

SKU · M24285H-AGV2-B (+3 more)

The Elcometer 24285 High Pressure Abrasive Blast Machine is ideal for large scale applications requiring continuous high production blasting.

Ideal for site work or blasting room installation
A single blast pot can be used by one or two operators
Ideal for refilling from a storage hopper
Twin wheeled, safe and easy to manoeuvre
Available with range of grit valves to suit your application
Heavy duty 6mm construction and easy & fast to service
Engineered to work harder, last longer and be faster to maintain
Rugged, reliable and easy to use
Supplied with a full 12 month warranty
Engineered & tested to be incredibly efficient, durable and safe

Indicative price

Specialist-built quote, by close of business

Used by inspection teams in

RefiningMarineMiningBridge / civil

Capacity

Volume: 285 Litres
Garnet Grit: 667kg
Steel Shot: 1254kg

Physical Dimensions

Pot Diameter: 610mm
Height: 1665mm
Width: 794mm
Depth: 1109mm
Weight: 231kg

Performance

Pipework Diameter: 38mm
Maximum Working Pressure (WP): 15bar
Operating Temperature Range: 0 to 60°C

Specifications

Capacity

Volume: 285 Litres
Garnet Grit: 667kg
Steel Shot: 1254kg

Physical Dimensions

Pot Diameter: 610mm
Height: 1665mm
Width: 794mm
Depth: 1109mm
Weight: 231kg

Performance

Pipework Diameter: 38mm
Maximum Working Pressure (WP): 15bar
Operating Temperature Range: 0 to 60°C

What's in the kit

610mm, 285 litre Abrasive Blast Machine

Pressure Test Certificate

RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

20m Pneumatic Control Hose and Deadman's Handle (DMHII)

Choke Valve and Pusher Line

Automatic General Valve with Mixer T and Metal Pot Coupling

Moisture Separator

20m, 38mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder

Externally Mounted Sieve and Lid

Accessories

Certified 13mm Pressure Relief Valve

Elcometer Internal Pop Up Valve

Screen Sieve & Blast Machine Cover Lid

Access Door & Assembly

Screen Sieve

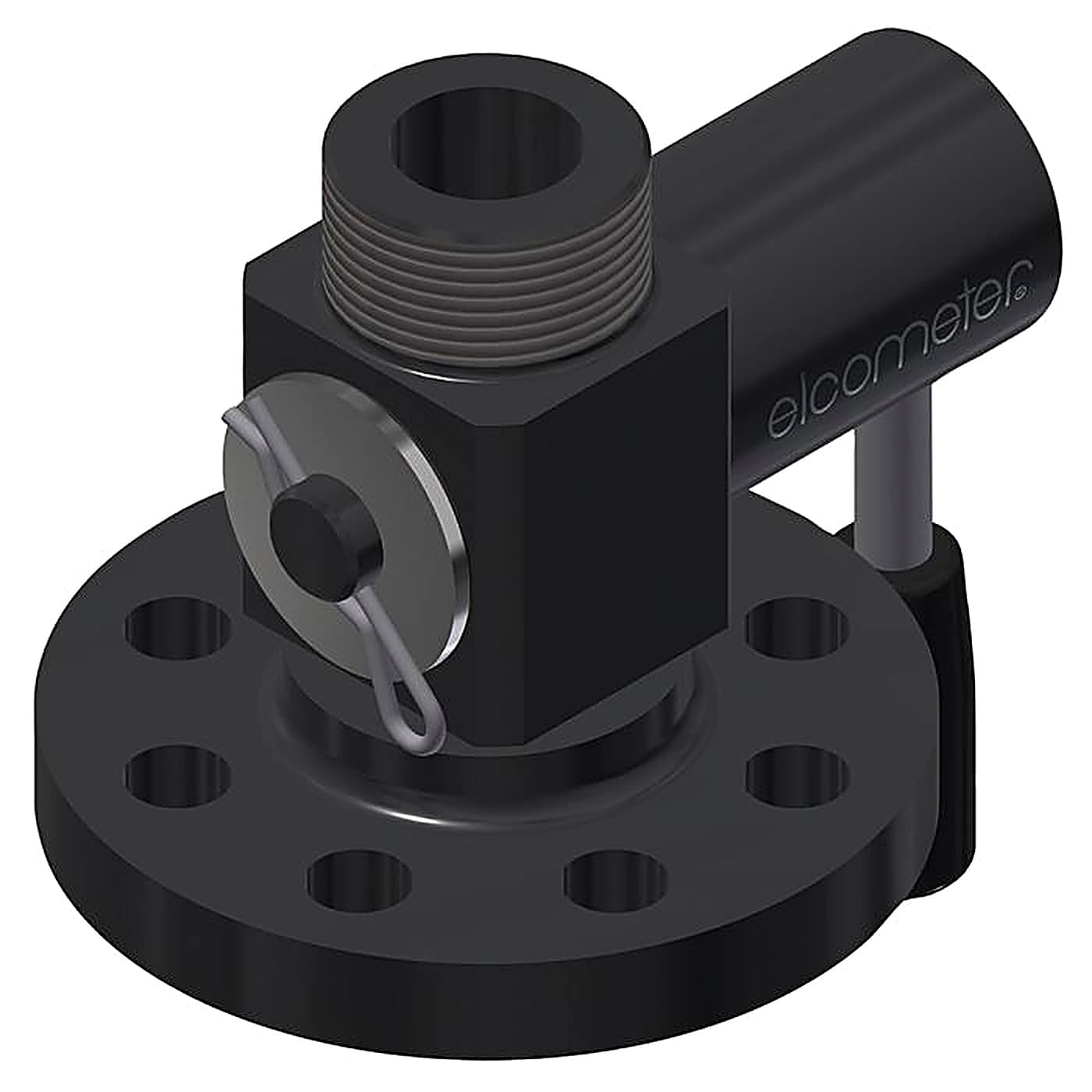

Elcometer Manual Media Shut Off Valve and Flange Assembly

Elcometer Safety Petcock 6mm HP Ball Valve

Blast Machine Cover Lid

Elcometer 38mm Moisture Separator

Elcometer ABM Pot Coupling

Earthing Wire Assembly

Kit Selection / Part Numbers

■ = included in that kit.

G / A = supplied with the chosen valve option (G = General Media Valve; A = Automatic General Valve).

Portable Kit 1 part numbers: M24285H-GV1-B (G) / M24285H-AGV1-B (A). Kit 2 part numbers: M24285H-GV2-B (G) / M24285H-AGV2-B (A).

Kit contents	Portable Kit 1	Kit 2
610mm, 285 litre Abrasive Blast Machine	■	■
Pressure Test Certificate	■	■
RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer	■	■
20m Pneumatic Control Hose and Deadman's Handle (DMHII)	■	■
Choke Valve and Pusher Line	■	■
Abrasive Metering Valve with Mixer T and Metal Pot Coupling	G / A	G / A
Moisture Separator	■	■
20m, 38mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder	-	■
Externally Mounted Sieve and Lid	-	■

Spare Parts

Pop Up Valve: MT28622
25mm Pop Up Shaft for Elcometer 24285H (470mm): MT28631-6
25mm Female 90° Equal Elbow: MT29661
38mm Hex Nipple: MT29663
Moisture Separator Assembly: MT28617
38mm Male/Male Union Taper Seat: MT29662
6mm Bulkhead Connector (x3): MT29664
Elcometer 24285H Twin Airline Hose Assembly (Yellow & Green): MT29727
Airline Assembly for Elcometer 24285H (Red): MT29728
Pop Up Valve O-Ring (x5): MT28627-5
Protective Edging Strip Kit (2.7m): MT31073
Spring Cotter Pin Type E (x3): MT29667
Short Deflector Plate Spacer - 25mm (x3): MT29719
Long Deflector Plate Spacer - 51mm (x3): MT29720
Deflector Plate: MT29670
Deflector Plate Shaft - 82mm (x3): MT28629-3
25mm Backnut (Recessed): MT29672
25mm Female/Female Union Taper Seat: MT29673
25mm Hex Nipple: MT29679
25mm Exhaust T Assembly (complete with MT29681 Exhaust Plug): MT29680
25mm Exhaust Plug: MT29681
25mm Pipe for Elcometer 24285H (448mm): MT29729
25mm Socket: MT29683
25mm Male/Female Equal Union Taper Seat: MT29704
25mm Pipe for Elcometer 24285H (106mm): MT29730
25mm Male/Female 90° Elbow: MT29706
25 x 38mm Reducing Bush (1″ to 1 1 ⁄ 2 " ): MT29707
19mm Reinforced Union Elbow: MT28599
19mm Hex Nipple: MT29688
Elcometer RCV4000+ Remote Control Valve: MT29465
Petcock Valve Assembly - (Red Handle): MT29656
38mm Male/Female Equal Union Taper Seat: MT30122-5
38mm Pipe for Elcometer 24285H (84mm): MT29726
38mm Equal Pitcher T: MT29708
38mm Choke Valve Handle: MT30094
38mm Choke Valve Assembly (include MT30094 Choke Valve Handle): MT29177
38mm 60° Cone Male/Male Adaptor: MT29710
6mm Ball Valve Assembly - (Black Handle): MT29658
6mm Airline Ball Valve Assembly (Black Handle): MT29660
Exhaust Silencer Assembly: MT28597
Protection Guard for Elcometer 24285H: MT29692-4
Elcometer Inspection Hatch Door for Elcometer 24285H: MT28616
ElcoFit™ Door Sealing Gasket: MT28613
Elcometer Inspection Door Hatch Bolt - M16 x 110mm: MT29695
Inspection Hatch Door Yoke: MT28615
M16 Hexagon Flanged Nut: MT29696
Flat Washer (x8): MT29697
Ø250mm Diameter Wheel (x1): MT28636
Ø350mmDiameter Wheel (x1): MT28637
Split Cotter Pin (x4): MT29698
Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange): MT29490-6
Elcometer Safety Label Kit: MT29180

Downloads

PDF

Elcometer 24285H Portable Abrasive Blast Machine 285 litre 15bar Data Sheet

Answers

Frequently asked questions

What abrasive materials work with the 24285H, and how much does it hold?

The 285-litre pot accommodates 667kg of garnet grit or 1254kg of steel shot. Both materials are suitable for large-scale, high-production blasting applications.

What is the maximum working pressure?

The 24285H is rated to 15bar maximum working pressure. This specification supports continuous high-production blasting on large-scale applications.

Can the 24285H be moved around a site?

Yes. At 231kg with 250mm and 350mm diameter wheels fitted, it is mobile enough to reposition for different work areas.

Does the kit include remote control?

Yes. The standard kit includes an RCV4000+ remote control valve with air manifold, pneumatic control hose, and deadman's handle for safe operation.

What operating temperature range is this machine rated for?

The 24285H operates between 0 and 60°C. This covers typical site conditions in temperate and warm climates.

What spare parts are available?

A comprehensive range of spare parts is stocked, including pop-up valves, hoses, door assemblies, wheels, and deflector plates. Request the parts catalogue for specific items and part numbers.
