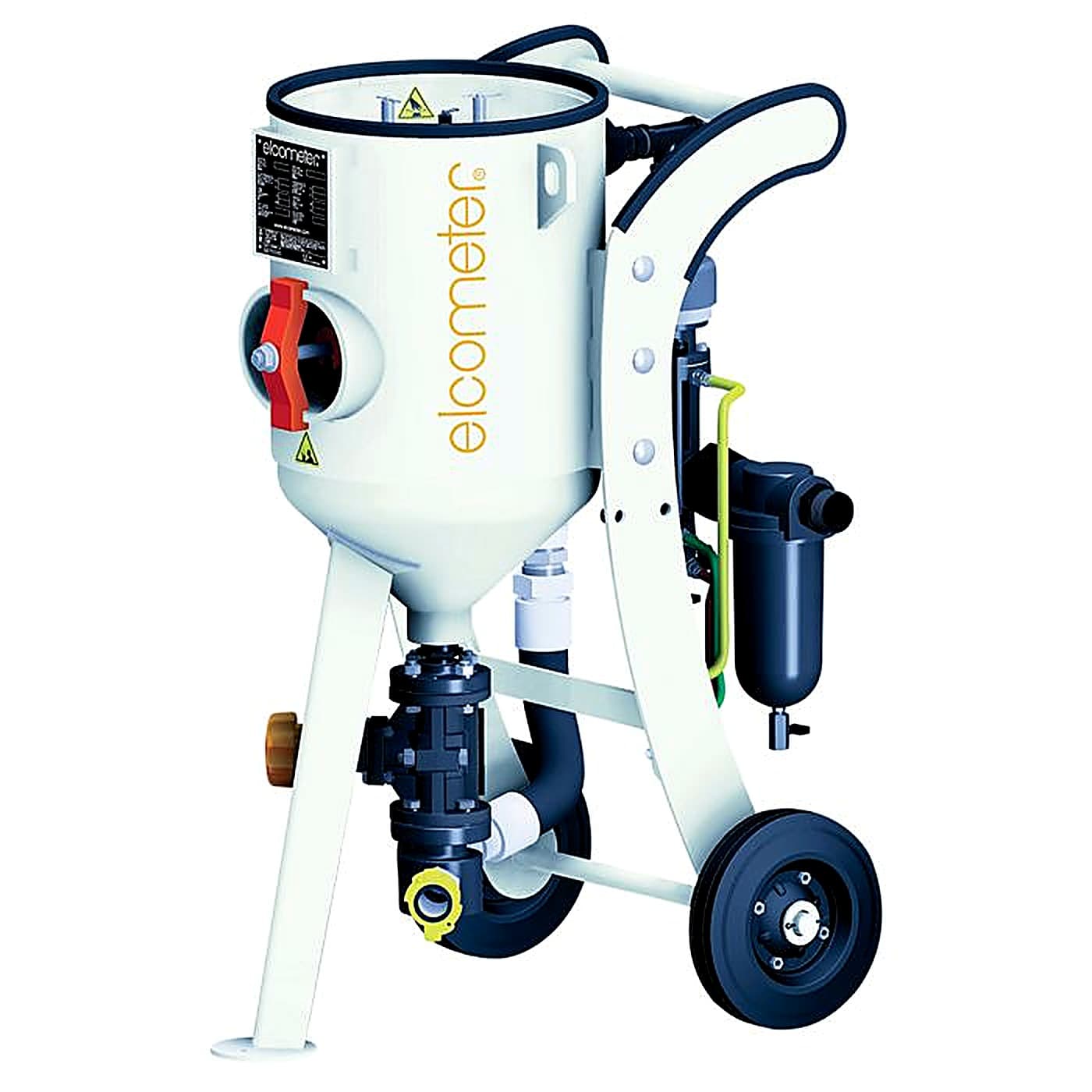

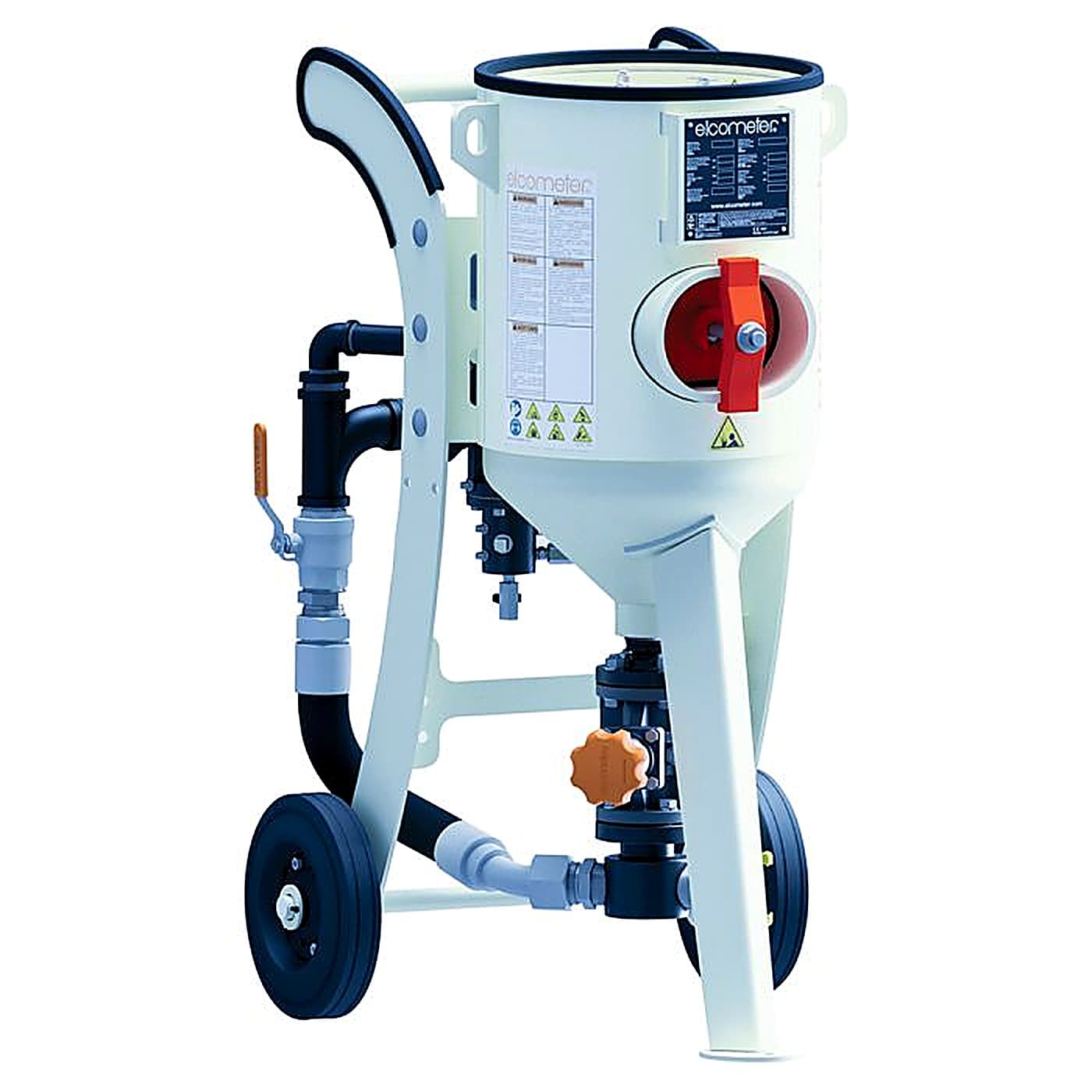

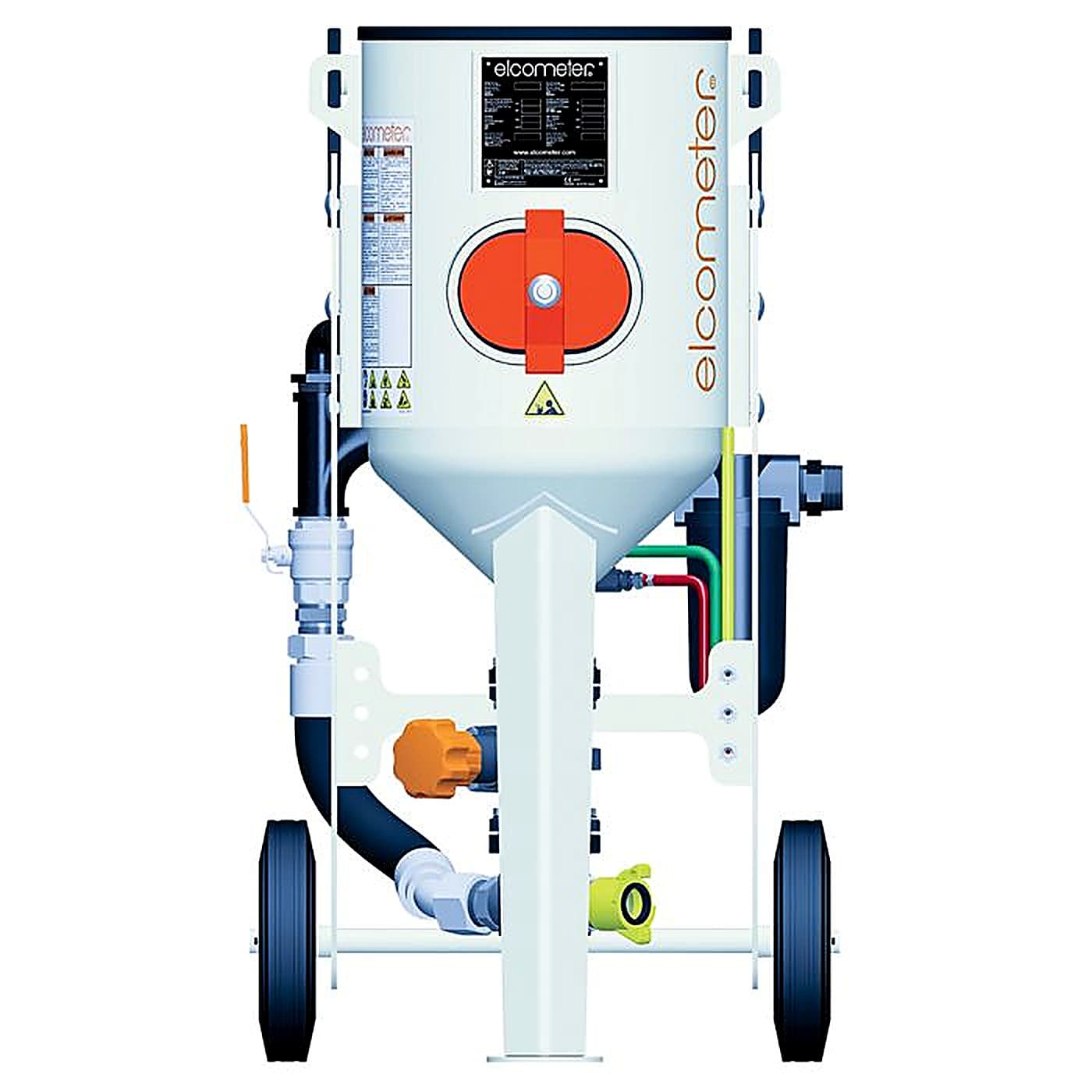

Elcometer 1440 Portable Abrasive Blast Machine 40 litre – 12bar

Product Description

The Elcometer 1440 Portable Abrasive Blast Machine is ideal for mobile contractors completing small blasting applications.

  • Ideal for touch-up applications and spot blasting
  • Compact size with heavy duty wheels make for easy manoeuvre of the portable abrasive blasting machine in small spaces
  • Available with a range of grit valves to suit your blast machine
  • Heavy duty 6mm construction
  • Easy and quick to service

Enhance Your Performance

The Elcometer 1440 Blast Machine maximises uptime as it is engineered to work harder, last longer and be faster to maintain.

Safe & Reliable

Rugged, reliable and easy to use, the Elcometer 1440 Portable Abrasive Blast Machine & Valves are supplied with a full 12 month warranty and are engineered & tested to be incredibly efficient, durable and safe. For more information on the safety features included within the blast pot.

Elcometer Engineered

The Elcometer 1440 Portable Abrasive Blast Machine is manufactured to an industry leading specification and designed and engineered by Elcometer experts. For more information on the high quality components, including the high flow pipework, efficient grit valves and hardwearing mixer T’s.

Product Range

Elcometer 1440 Portable Abrasive Blast Machine Kit 1 with Automatic General Valve – 12bar

Kit includes:
  • 14″ 40 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • Automatic General Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator
PED
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M1440-AGV1-B
ASME
  • Maximum Working Pressure :174psi
  • Valve Type :AGV
  • Part Number :M1440-AGV1-N

Elcometer 1440 Portable Abrasive Blast Machine Kit 1 with General Valve – 12bar

Kit includes:
  • 14″ 40 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • General Media Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator
PED
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M1440-GV1-B
ASME
  • Maximum Working Pressure :174psi
  • Valve Type :GV
  • Part Number :M1440-GV1-N

Elcometer 1440 Portable Abrasive Blast Machine Kit 2 with Automatic General Valve – 12bar

Kit includes:
  • 14″ 40 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • Automatic General Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator
  • 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
  • Externally Mounted Sieve and Lid
PED
  • Maximum Working Pressure :12bar
  • Valve Type :AGV
  • Part Number :M1440-AGV2-B
ASME
  • Maximum Working Pressure :174psi
  • Valve Type :AGV
  • Part Number :M1440-AGV2-N

Elcometer 1440 Portable Abrasive Blast Machine Kit 2 with General Valve – 12bar

Kit includes:
  • 14″ 40 litre Abrasive Blast Machine
  • Pressure Test Certificate
  • RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
  • 20m Pneumatic Control Hose and Deadman’s Handle (DMHII)
  • Choke Valve and Pusher Line
  • General Media Valve with Mixer T and Metal Pot Coupling
  • Moisture Separator
  • 20m, 32mm ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
  • Externally Mounted Sieve and Lid
PED
  • Maximum Working Pressure :12bar
  • Valve Type :GV
  • Part Number :M1440-GV2-B
ASME
  • Maximum Working Pressure :174psi
  • Valve Type :GV
  • Part Number :M1440-GV2-N

Spare Parts

PED

Elcometer 1440 Portable Abrasive Blast Machine Spare Parts

Elcometer 1440 Portable Abrasive Blast Machine Spare Parts
Item Part Number Description
1 MT28622 Pop Up Valve
2 MT28631-2 25mm Pop Up Shaft for Elcometer 1440
3 MT29661 25mm Female 90° Equal Elbow
4 MT29663 38mm Hex Nipple
5 MT28617 Moisture Separator Assembly
6 MT29662 38mm Male/Male Union Taper Seat
7 MT29664 6mm Bulkhead Connector (x3)
8 MT29699 Elcometer 1440 Twin Airline Hose Assembly (Yellow & Green)
9 MT29700 Airline Assembly for Elcometer 1440 (Red)
10 MT28627-5 Pop Up Valve O-Ring (x5)
11 MT29601 Protective Edging Strip Kit (2.7m)
12 MT29667 Spring Cotter Pin Type E (x3)
13 MT29701 Short Deflector Plate Spacer – 16mm (x3)
14 MT29702 Long Deflector Plate Spacer – 30mm (x3)
15 MT29670 Deflector Plate
16 MT28629-2 Deflector Plate Shaft – 51mm (x3)
17 MT29672 25mm Backnut (Recessed)
18 MT29673 25mm Female/Female Union Taper Seat
19 MT29679 25mm Hex Nipple
20 MT29680 25mm Exhaust T Assembly (complete with MT29681 Exhaust Plug)
21 MT29681 25mm Exhaust Plug
22 MT30121 25mm Pipe for Elcometer 1440 (79mm)
23 MT29683 25mm Socket
24 MT29704 25mm Male/Female Equal Union Taper Seat
25 MT30120 25mm Pipe for Elcometer 1440 (115mm) (41⁄2“)
26 MT29706 25mm Male/Female 90° Elbow
27 MT29707 1″ to 11⁄2” Reducing Bush (38 x 27mm)
28 MT28599 19mm Reinforced Union Elbow
29 MT29688 19mm Hex Nipple
30 MT29465 Elcometer RCV4000+ Remote Control Valve
31 MT29656 Petcock Valve Assembly – (Red Handle)
32 MT30122-5 38mm Male/Female Equal Union Taper Seat
33 MT29708 38mm Equal Pitcher T
34 MT30094 38mm Choke Valve Handle
35 MT29177 38mm Choke Valve Assembly (include MT30094 Choke Valve Handle)
36 MT29710 38mm 60° Cone Male/Male Adaptor
37 MT29658 6mm Ball Valve Assembly – (Black Handle)
38 MT29660 6mm Airline Ball Valve Assembly (Black Handle)
39 MT28597 Exhaust Silencer Assembly
40 MT29692-2 Protection Guard for Elcometer 1440
41 MT28616 Elcometer Inspection Hatch Door for Elcometer 1440
42 MT28613 ElcoFit™ Door Sealing Gasket
43 MT29695 Elcometer Inspection Door Hatch Bolt – M16 x 110mm
44 MT28615 Inspection Hatch Door Yoke
45 MT29696 M16 Hexagon Flanged Nut
46 MT28636 Ø250mm Diameter Wheel (x1)
47 MT29697 Flat Washer (x8)
48 MT29698 Split Cotter Pin (x4)
– MT29490-2 Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange)
– MT29180 Elcometer Safety Label Kit

ASME

Elcometer 1440 Portable Abrasive Blast Machine Spare Parts
Item Part Number Description
1 MT28622 Pop Up Valve
2 MT28631-2N 25mm Pop Up Shaft for Elcometer 1440
3 MT29661N 25mm Female 90° Equal Elbow
4 MT31013-3N 38mm Hex Nipple
5 MT28617N Moisture Separator Assembly
6 MT30553-1N 38mm Close Nipple
7 MT31018-5N 38mm Union Brass Seat
8 MT29664N 6mm Bulkhead Connector (x3)
9 MT29699N Elcometer 1440 Twin Airline Hose Assembly (Yellow & Green)
10 MT29700N Airline Assembly for Elcometer 1440 (Red)
11 MT28627-5 Pop Up Valve O-Ring (x5)
12 MT29601 Protective Edging Strip Kit (2.7m)
13 MT29667 Spring Cotter Pin Type E (x3)
14 MT29701 Short Deflector Plate Spacer – 16mm (x3)
15 MT29702 Long Deflector Plate Spacer – 30mm (x3)
16 MT29670 Deflector Plate
17 MT28629-2 Deflector Plate Shaft – 51mm (x3)
18 MT29672N 25mm Backnut
19 MT31018-3N 25mm Union Brass Seat
20 MT31013-2N 25mm Hex Nipple
21 MT30574-2N 25mm Equal T
22 MT29681N 25mm Solid Plug
23 MT30556-1N 25mm SCH 40 Pipe Tube
24 MT31017N 25mm Machine Socket
25 MT30556-3N 25mm SCH 40 Pipe Tube
26 MT31019-2N 25mm 90° Street Elbow
27 MT30577-3N 1″ to 11⁄2” Reducing Bush (38 x 25mm)
28 MT28599N 19mm Union Elbow Male
29 MT31013-1N 19mm Hex Nipple
30 MT29465N Elcometer RCV4000+ Remote Control Valve
31 MT29656N Petcock Valve Assembly – (Red Handle)
32 MT30566-1N 38mm Pipe
33 MT29708N 38mm Equal Pitcher T
34 MT30094N 38mm Choke Valve Handle
35 MT29177N 38mm Choke Valve Assembly (include MT30094N Choke Valve Handle)
36 MT29710N 38mm NPTF Male x 7/8 JIC Male Adaptor
37 MT29658N 6mm Ball Valve Assembly (Black Handle)
38 MT29660N 6mm Airline Ball Valve Assembly (Black Handle)
39 MT28597N Exhaust Silencer Assembly
40 MT29692-2
 Protection Guard for Elcometer 1440
41 MT28616 Elcometer Inspection Hatch Door for Elcometer 1440
42 MT28613 ElcoFit™ Door Sealing Gasket
43 MT29695N Elcometer Inspection Door Hatch Bolt – M16 x 110mm
44 MT28615 Inspection Hatch Door Yoke
45 MT29696N 5/8” M16 Hexagon Flanged Nut
46 MT28636 Ø250mm Diameter Wheel (x1)
47 MT29697 Flat Washer (x8)
48 MT29698 Split Cotter Pin (x4)
– MT29490-2N Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange)
– MT29180
 Elcometer Safety Label Kit



Technical Specifications

Elcometer 1440 Abrasive Blast Machine – 12bar
Capacity1
Volume 40 Litres
Garnet Grit 94kg
Steel Shot 176kg
Pot Diameter: 355mm
Height: 1015mm
Width: 615mm
Depth: 714mm
Weight: 95kg
Pipework Diameter: 38mm
Maximum Working Pressure (WP)2: 12bar
Operating Temperature Range: 0 to 60oC

1440 Blast Machines

PED

Kit Selection Part Numbers
Elcometer Blast Machines Kits are available with:

Portable

Kit 1                                            Kit 2

General Media Valve (G)General Valve

Automatic General Valve (A)Automatic General Valve

M1440-GV1-B

M1440-AGV1-B

M1440-GV2-B

M1440-AGV2-B
355mm,  40 litre  Abrasive Blast Machine

■

■

■

■
Pressure Test Certificate

■

■

■

■
RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

■

■

■

■
20m Pneumatic Control Hose and Deadman’s Handle (DMHII)

■

■

■

■
Choke Valve and Pusher Line

■

■

■

■
Abrasive Metering Valve with Mixer T and Metal Pot Coupling

G

A

G

A
Moisture Separator

■

■

■

■
20m, 32mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder

■

■
Externally Mounted Sieve and Lid

■

■


1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.

2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.



ASME

Kit Selection Part Numbers
Elcometer Blast Machines Kits are available with:

Portable

Kit 1                                            Kit 2

General Media Valve (G)General Valve

Automatic General Valve (A)Automatic General Valve

M1440-GV1-N

M1440-AGV1-N

M1440-GV2-N

M1440-AGV2-N
355mm, 40 litre Abrasive Blast Machine

■

■

■

■
Pressure Test Certificate

■

■

■

■
RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer

■

■

■

■
20m Pneumatic Control Hose and Deadman’s Handle (DMHII)

■

■

■

■
Choke Valve and Pusher Line

■

■

■

■
Abrasive Metering Valve with Mixer T and Metal Pot Coupling

G

A

G

A
Moisture Separator

■

■

■

■
20m, 25mm ID Blast Hose with Cast Iron Hose Couplings and Nylon Nozzle Holder

■

■
Externally Mounted Sieve and Lid

■

■


1 Garnet & steel shot capacity figures based on typical media bulk density. Note that bulk density also varies according to media size and grade.

2 Do not operate this abrasive blast machine unless there is an appropriate safety pressure relief valve within the pressurised system as a whole.



Accessories



Certified 13mm Pressure Relief Valve      Elcometer Internal Pop Up Valve          Screen Sieve & Blast Machine Cover Lid              Access Door & Assembly



        Screen Sieve                               Elcometer Manual Media Shut Off        Elcometer Safety Petcock 6mm HP Ball Valve              Blast Machine Cover Lid

                                                                  Valve and Flange Assembly



Elcometer 38mm Moisture Separator       Elcometer ABM Pot Coupling                         Earthing Wire Assembly                                   Protection Skid
